ELECTRONIC TIME DELAY BRAKE CONTROLLER

Item# 7513263
New

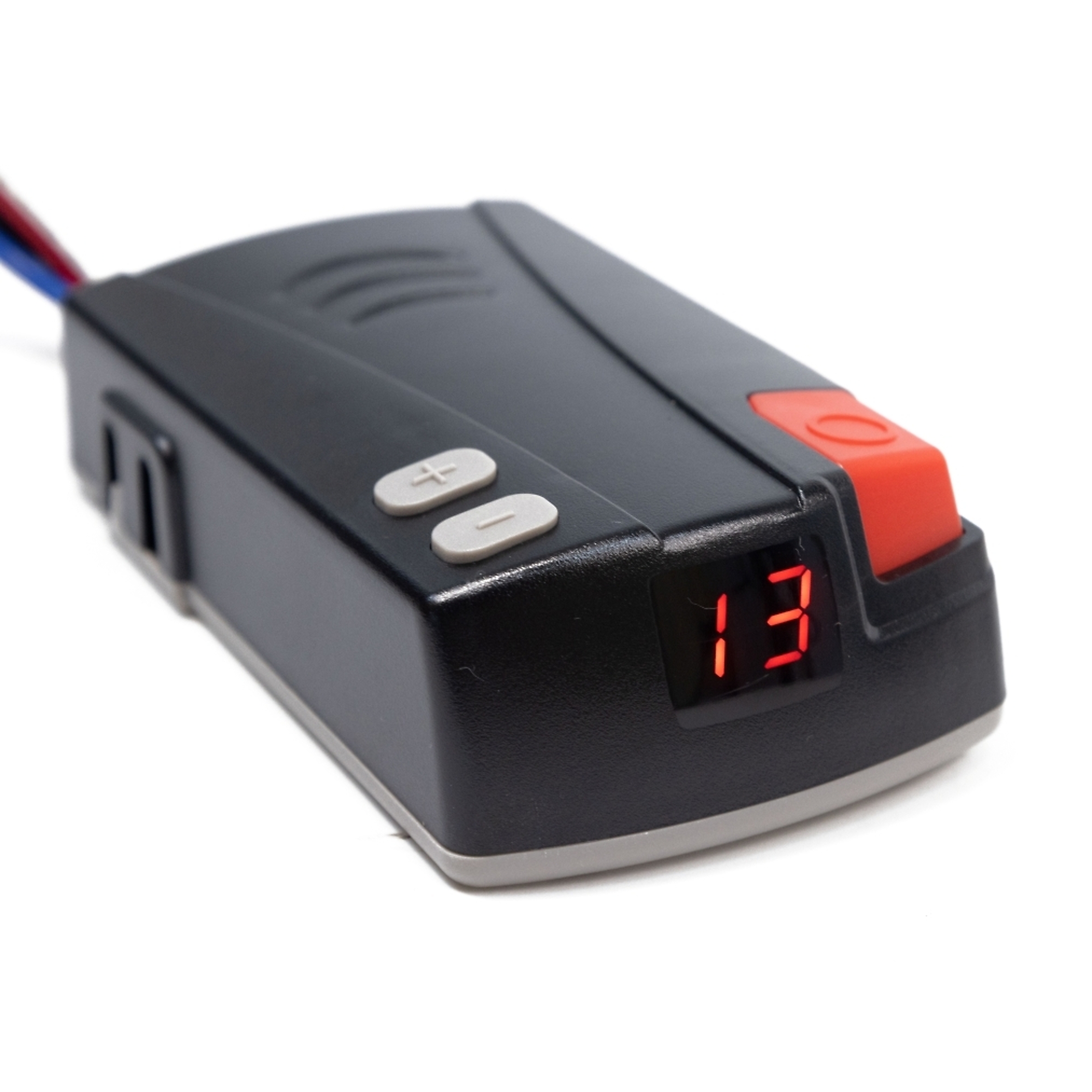

ELECTRONIC TIME DELAY BRAKE CONTROLLER

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

ELECTRONIC TIME DELAY BRAKE CONTROLLER

Click or Tap image to Zoom

$69.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Digital Display
  • Time-delay output for consistent, adjustable braking response

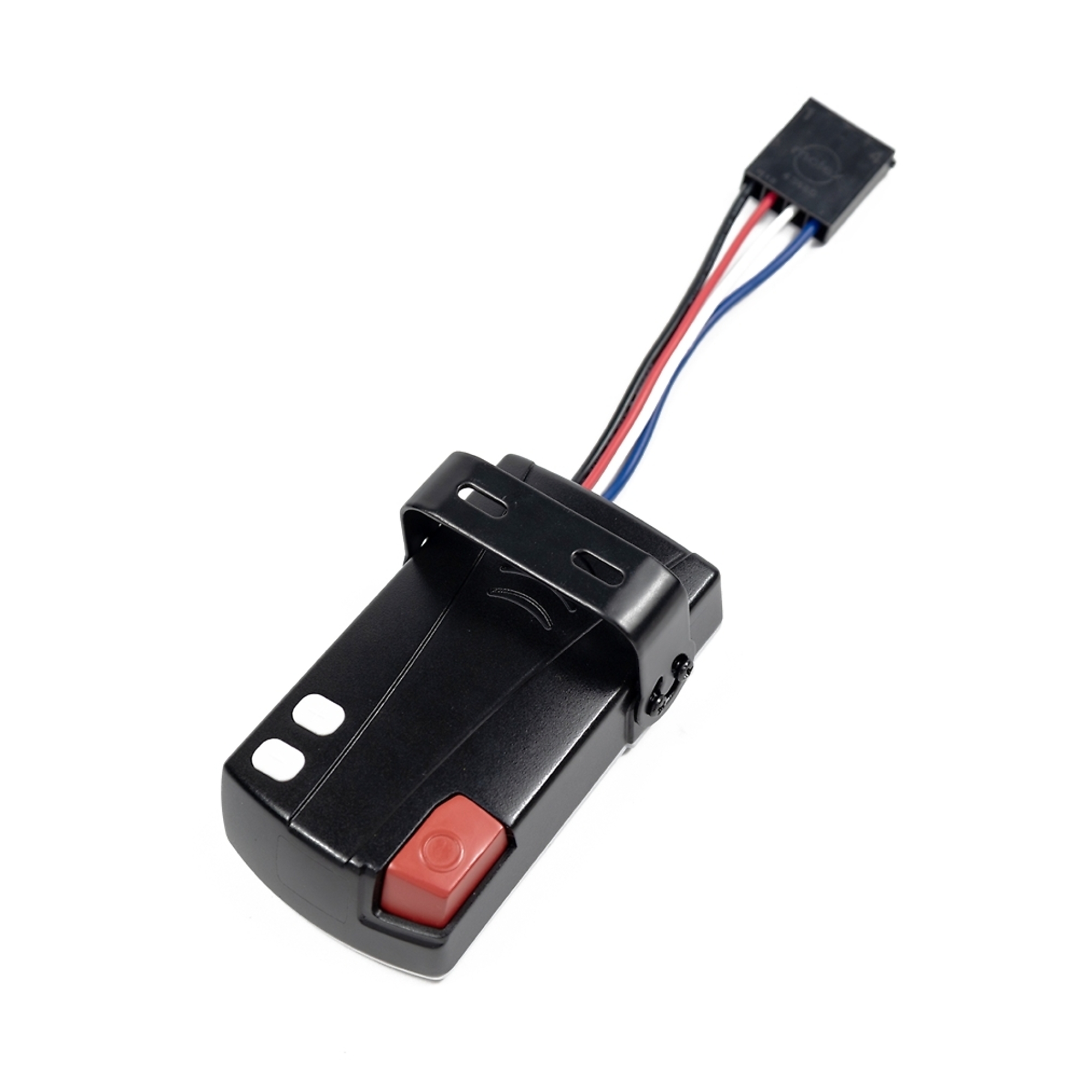

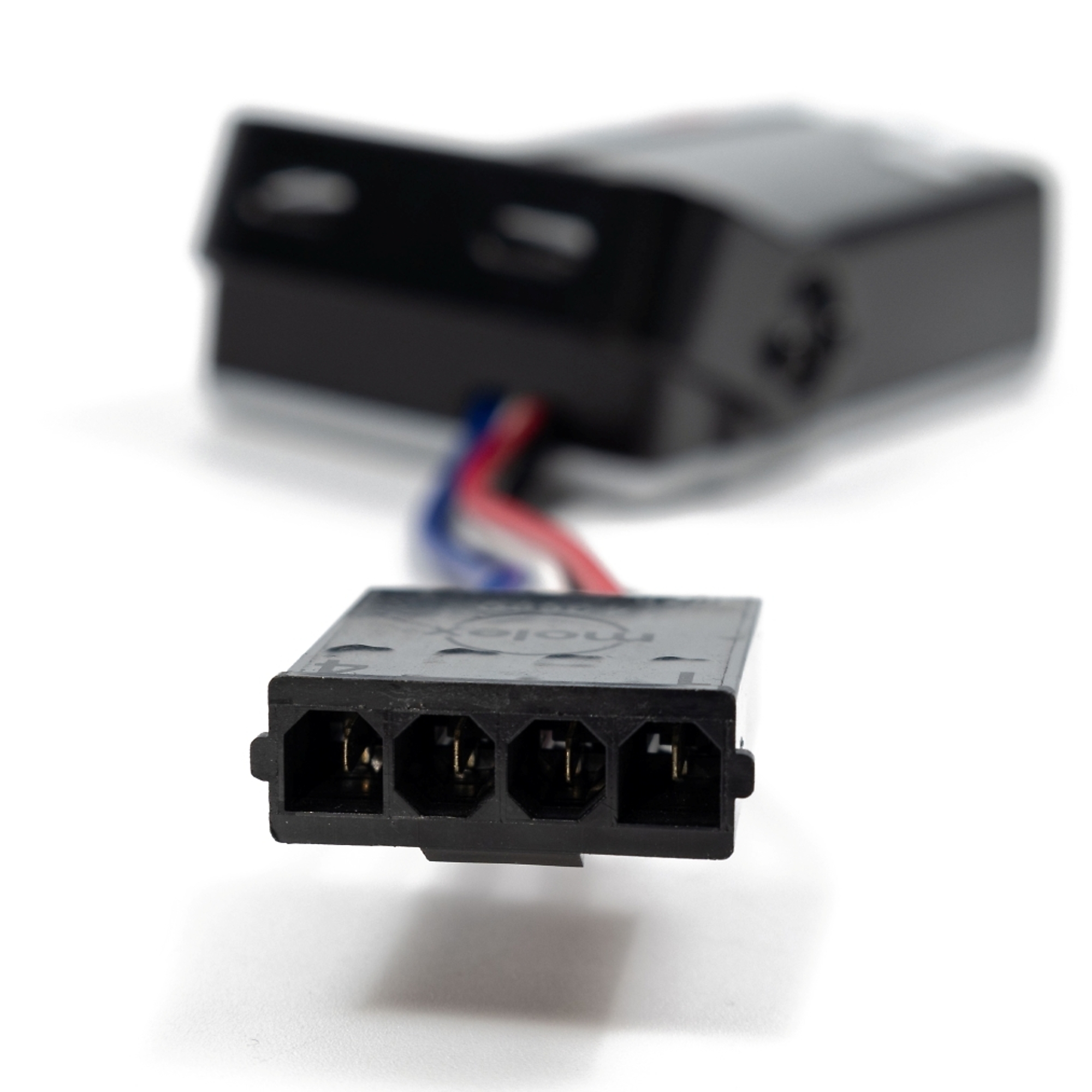

  • The controller includes a pre-wired quick-connect adapter
  • Compatible with standard electric trailer brakes and electric-over-hydraulic sytems

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This electronic time-delay trailer brake controller delivers smooth, consistent, and reliable braking for trucks, SUVs, and vans towing single or multi-axle trailers by applying trailer brake power on a fixed, user-adjustable ramp every time the tow vehicle's brake pedal is pressed, giving drivers predictable stopping performance load after load without the sensitive internal sensors or precise mounting-angle requirements that inertia-based controllers demand, which means faster installation, fewer calibration headaches, and consistent performance regardless of vehicle attitude, road grade, or driving style, making it ideal for work trucks, rental fleets, and everyday towing alike; output gain and sync (ramp) time are easily adjustable to match your trailer's brake magnets and preferred stopping feel, from a gentle progressive engagement to a firmer, more immediate response, while a manual override lever lets you apply trailer brakes independently for added control on grades, in sway situations, or during backing maneuvers, and an illuminated digital display shows output level at a glance while alerting you to trailer connection issues such as short circuits or no-trailer-detected conditions so problems are caught before they become hazards; housed in a compact, low-profile enclosure designed for easy under-dash mounting, the unit is built with durable components rated for demanding daily use, backed by reverse-polarity and overload protection to safeguard its electronics and a wide voltage-compatibility range for stable operation across varying vehicle electrical systems, and its compatibility with 1 to 4 axle electric and electric-over-hydraulic trailer brake systems makes it a versatile fit for utility and boat trailers, horse trailers, larger RVs, and both personal and commercial towing needs — all while delivering the same dependable braking response every time, since output isn't dependent on inertia-sensing, making it a favorite among drivers who want simplicity, mounting flexibility, and confident, controlled stopping power on every trip.

What's Included

    (1) ELECTRONIC PROPORTIONAL BRAKE CONTROLLER (1) MOUNTING BRACKET

Features + Benefits

  • Digital Display
  • Time-delay output for consistent, adjustable braking response
  • The controller includes a pre-wired quick-connect adapter
  • Compatible with standard electric trailer brakes and electric-over-hydraulic sytems

Key Specs

AttributeSpecification

item#

7513263

Brand

Power Sentry

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.0 LB

Axle Capacity

1-3

Brakes Capacity (qty.)

6

Display Type

LED
AttributeSpecification

Automatic Level Adjust

Yes

Mounting Location

Dash

Mounting Hardware Included

Yes

Bluetooth

No

Product Weight

2.5000 lb

Dimensions L x W x H (in.)

3.15 x 1.61 x 5.31 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
