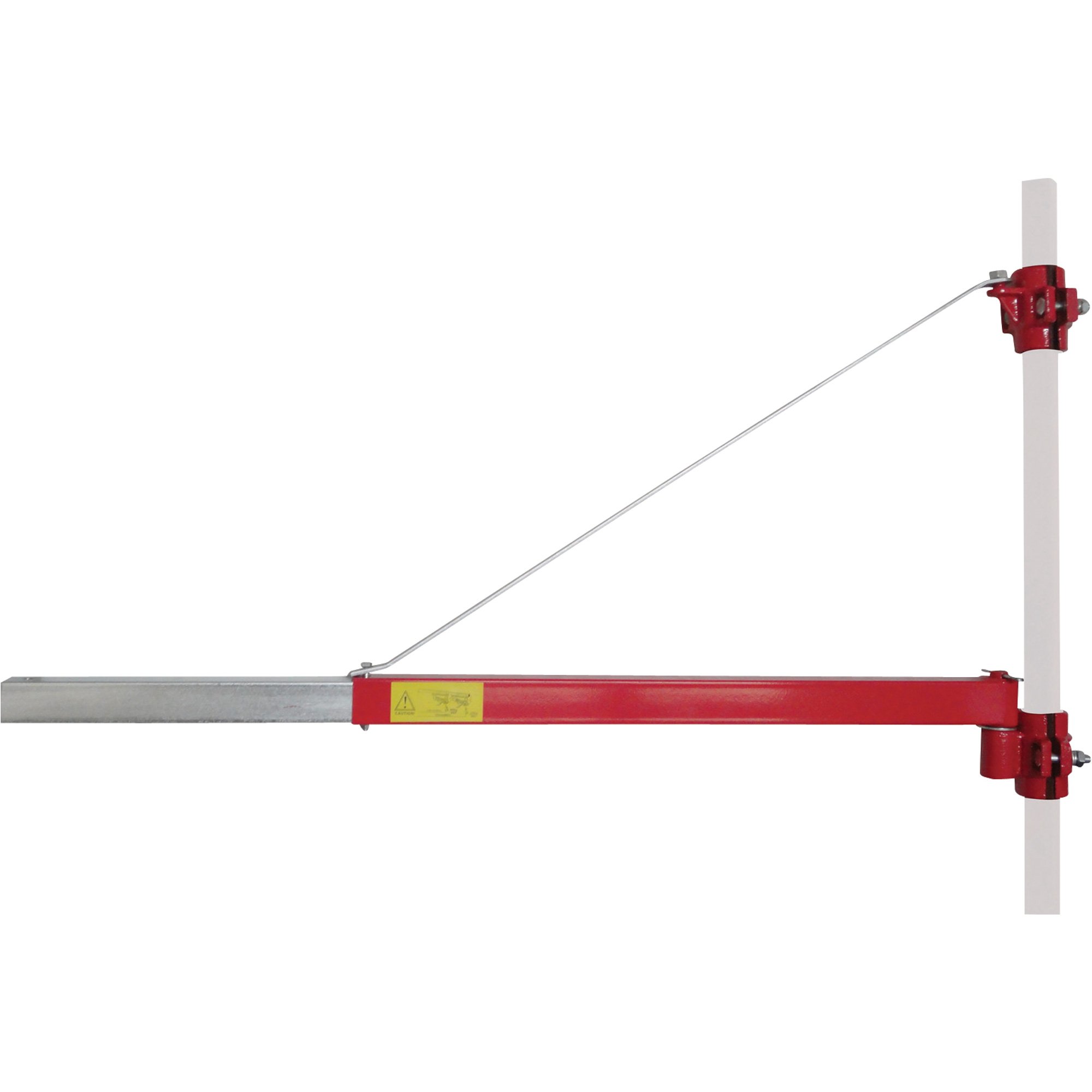

Electric Hoist Frame – 1320-Lb. Capacity

Item# 19236
Electric Hoist Frame - 1320-Lb. Capacity
Electric Hoist Frame – 1320-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Electric Hoist Frame – 1320-Lb. Capacity

Click or Tap image to Zoom

  • Hoist frame extension tube is 1 3/4in. square

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Electric Hoist Frame adds versatility to your electric hoist while increasing productivity. Frame mounts to a steel post (not included) and allows electric hoist applications in the shop, warehouse or garage. Conveniently swings out of the way when not in use. Includes all mounting hardware.

What's Included

  • (1) Hoist frame

Downloads

Product Manual

Features + Benefits

  • Hoist frame extension tube is 1 3/4in. square

Key Specs

AttributeSpecification

item#

19236

Manufacturer's Warranty

12 months parts / 12 months labor
AttributeSpecification

Ship Weight

19.2 LB

Mount Type

Post

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. how to install in the garage (home)

    I would like to know the recommendations for installing it in the home garage.

    1. Install a column of 1-1/2" Steel Pipe. If possible, place it directly below a horizontal beam. Using 1-1/2” steel floor flange, secure it to floor, with anchor bolts, and to the overhead horizontal beam with another 1-1/2” floor flange.

      If you have no beam, just open framing (e.g., Truss frames), position the column so it extends all the way to the top rafter, then secure the pipe to the side of the rafter using long U-Bolts through both the rafter and the horizontal stringer directly below. Finally, plumb the column and secure to the floor using a 1-1/2” floor flange.

      I any case, be sure to consider the swing radius of the arm when placing the column.

      Helpful?

    2. Mounting installation is the same for shop, warehouse or garage. The frame mounts to a steel post which is not included. Mounting hardware to mount to the post is included. This item is not designed for any other type of mounting.

      Helpful?

  2. What are the dimmensions of the extended support arm(diameter)?

    I believe the red support arm is 2", what are the dimensions of the inside arm (the silver one) which extends out. Is it 1 7/8" square?

    1. Arm is a square!
      Red section is 2"
      Chrome section is 1-3/4"

      Helpful?

    2. The hoist frame extension tube is 1 3/4" square

      Helpful?

  3. What is the largest outside diameter in inches of the pipe the clamps will fit on? thank you

    1 answer

    1. The largest diameter pipe is 1-1/2".

      Helpful?

  4. What is the distance between the pole mount at the swing arm and the support wire mount?

    Height issues for the barn loft swing out need to calculate usable
    Distances between the opening floor and the swing arm.

    1 answer

    1. The length of the arm is 43 5/8" fully extended, 29 7/8" fully retracted, gray portion does extend/retract into the red portion.

      Helpful?

  5. what does the maximum lift dimension represent?

    1 answer

    1. The maximum lift dimension (29 1/2in) refers to highest point the hoist can lift when using this electric hoist frame.

      Helpful?

  6. what's the outside dimension between mounting points?

    1 answer

    1. The outside dimension between the mounting points is 24" approximately.

      Helpful?

  7. What is the length of the frame from the pole. The total amount of arm reach.

    1 answer

    1. The length of the arm measures 43 5/8" fully extended, and 29 7/8" fully retracted.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
