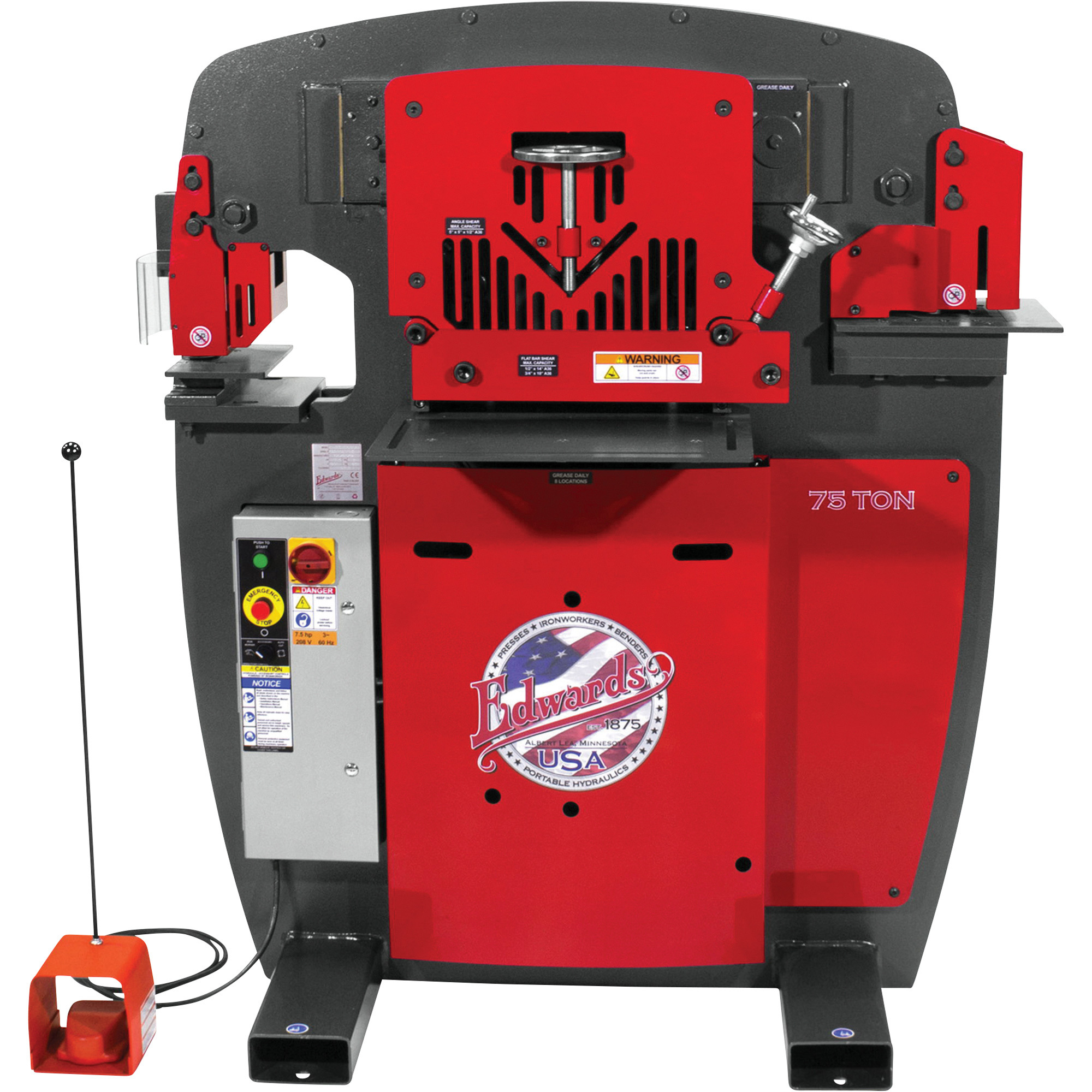

Edwards JAWS 75-Ton Ironworker with Accessory Pack, 3-Phase, 575 Volt, Model# IW75-3P575-AC600

Item# 57819
Edwards JAWS 75-Ton Ironworker with Accessory Pack, 3-Phase, 575 Volt, Model# IW75-3P575-AC600

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Edwards JAWS 75-Ton Ironworker with Accessory Pack, 3-Phase, 575 Volt, Model# IW75-3P575-AC600

Click or Tap image to Zoom

$30,159.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Dedicated coper notcher station eliminates setup and takedown time for added convenience
  • 14in.W flat bar shear handles 1/2in. x 14in., and 3/4in. x 10in. metal
  • Angle shear has a capacity of 5in. x 5in. x 1/2in.
  • Punch assembly with pedestal die table delivers up to 75 tons of punching pressure
  • Punch assembly is easily converted to an open station designed to accept optional tooling accessories, allowing flexibility to customize your Ironworker to match your needs

See full description

Complete Your Solution

  • Edwards JAWS 75-Ton Ironworker with Accessory Pack, 3-Phase, 575 Volt, Model# IW75-3P575-AC600
  • Edwards Press Brake Tooling Set, 6 Pieces, Model# PRB06
  • Edwards Pipe Notching Die, 3/4in., Model# AC1045
  • Edwards Pipe Notching Die, 1/2in., Model# AC1044
Price for all four:

$33,019.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Edwards JAWS 75-Ton Ironworker with Accessory Pack gives you the punch you need along with a large capacity to accomplish bigger tasks. Features 4 available workstations including punch assembly, flat bar shear, angle shear, and coper notcher. ANSI B11.5-1988R(02) compliant. ETL/UL approved controls. Item too large for lift gate. Forklift required for on-site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) 75-ton Ironworker

Downloads

Product Manual Product Manual2 Product Manual3 Product Manual4

Features + Benefits

  • Dedicated coper notcher station eliminates setup and takedown time for added convenience
  • 14in.W flat bar shear handles 1/2in. x 14in., and 3/4in. x 10in. metal
  • Angle shear has a capacity of 5in. x 5in. x 1/2in.
  • Punch assembly with pedestal die table delivers up to 75 tons of punching pressure
  • Punch assembly is easily converted to an open station designed to accept optional tooling accessories, allowing flexibility to customize your Ironworker to match your needs
  • Reliable 7.5 HP 3-phase motor delivers the power you need
  • Electric stroke control
  • 575 Volt operation
  • Built-in Hydraulic Accessory Pack allows this ironworker to act as a power source to a line of innovative hydraulic accessory tools (all sold separately) including: 10-Ton Tube/Pipe Bender (Item# 57686), 20-Ton Shop Press (Item# 57687), 40-Ton Shop Pres

Key Specs

AttributeSpecification

item#

57819

Brand

Edwards Ironworkers

Manufacturer's Warranty

1 year limited warranty

Ship Weight

4100.0 LB

Horsepower

7.5 HP

Volts

575

Phase

Three-phase

Hydraulic Pump Speed

10.5 GPM

Valve Pressure

3,500 PSI

Hydraulic Pump

10 1/2 GPM, 2-stage

Foot Switch Control

Yes

Cylinder

3 1/2 in. ram

Throat Depth

10 in

Resevoir

17 gal.

Punching Pressure

75 Tons
AttributeSpecification

Throat Depth (in.)

10

Reservoir Size

17 Gal

Punching Pressure (Tons)

75

Flat Bar Shear Capacity

14 in

Square/Round Shear Capacity

1 in

Flat Bar Shearing Capacity (in.)

1/2 x 14; 3/4 x 10

Square/Round Shear Capacity (in.)

1

Angle Shear Capacity

5 in

Coper Notcher Capacity

0.5 in

Angle Shear Capacity (in.)

5 x 5 x 1/2

Coper Notcher Capacity (in.)

1/2

Amps

8

Portable

No

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x 69.0 x 66.0 in
