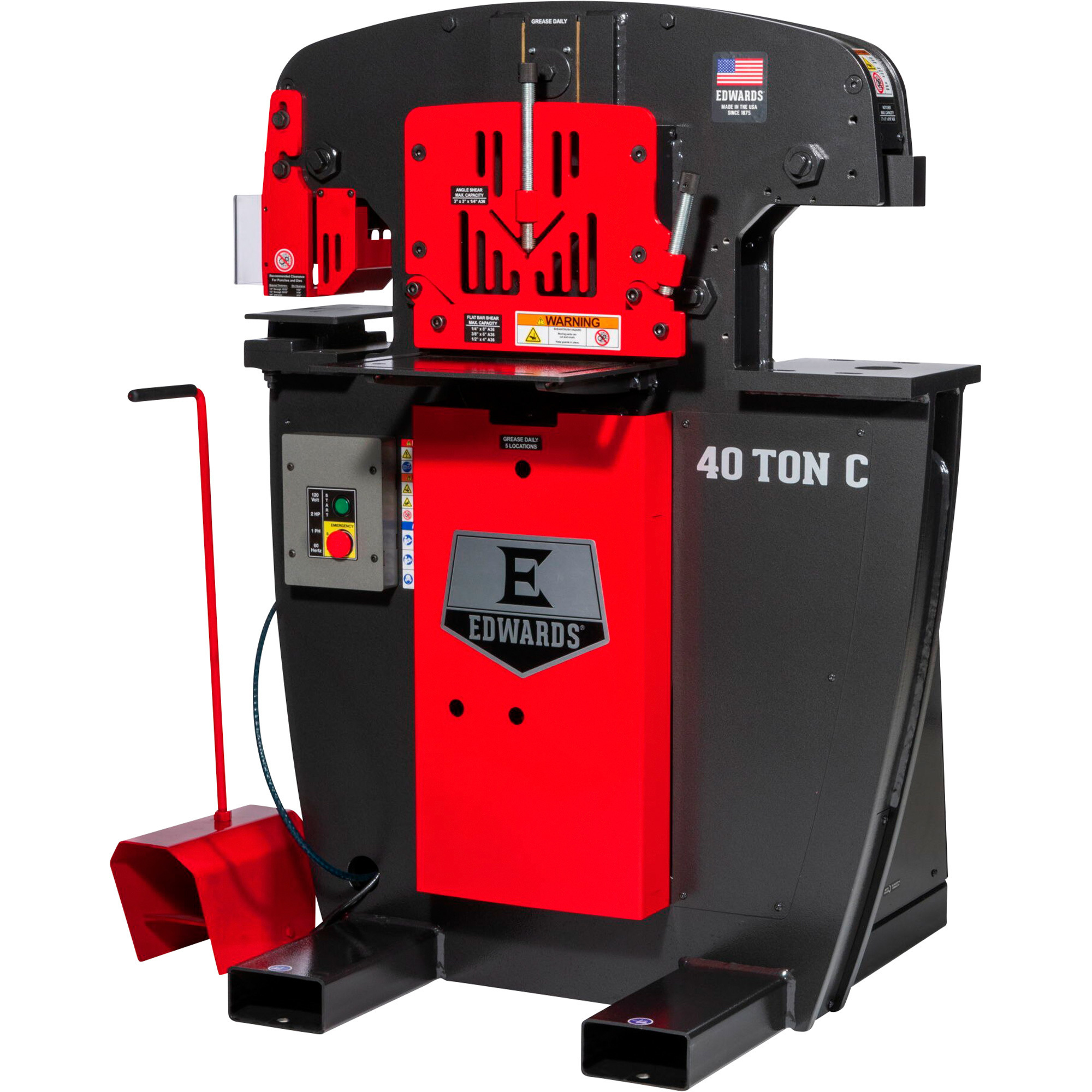

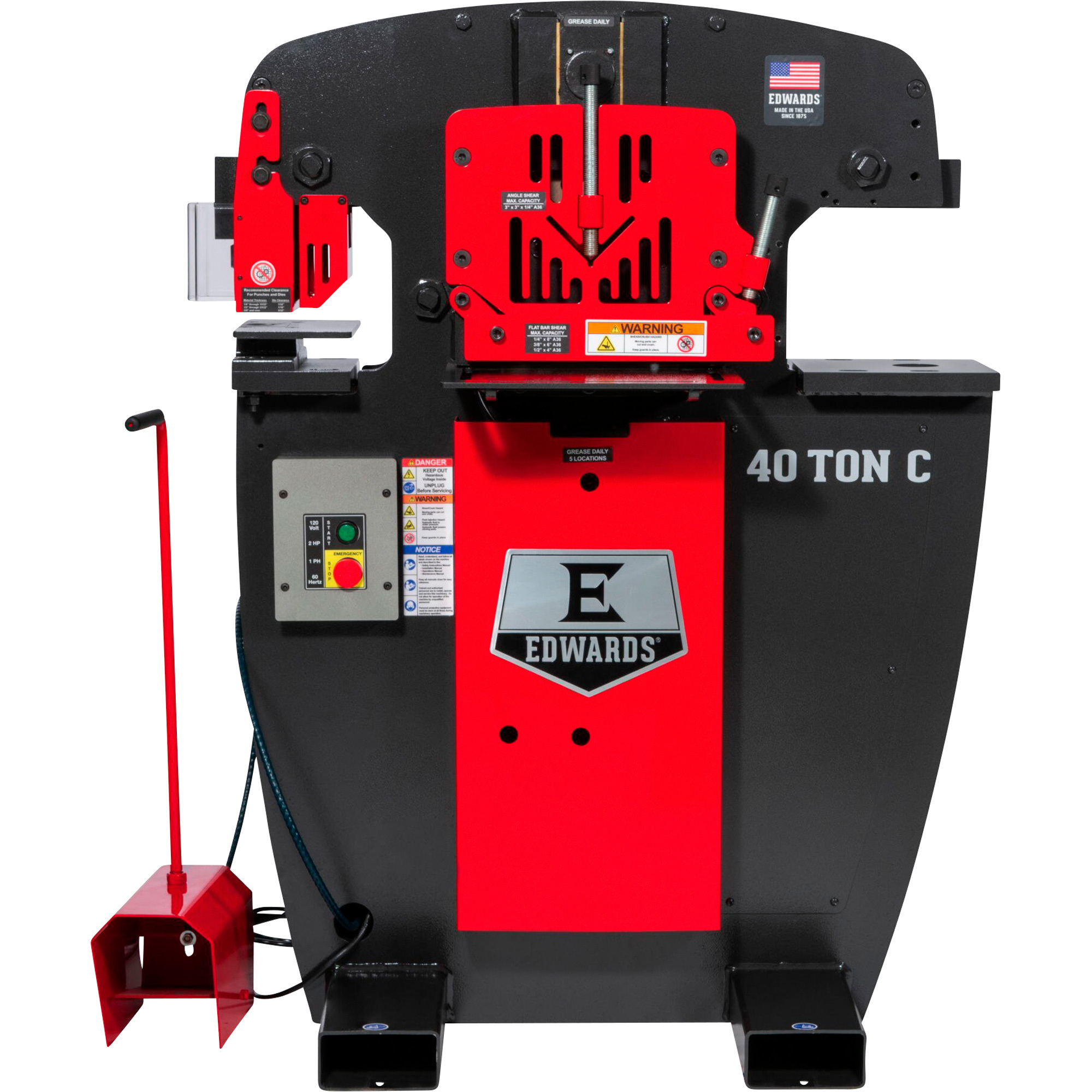

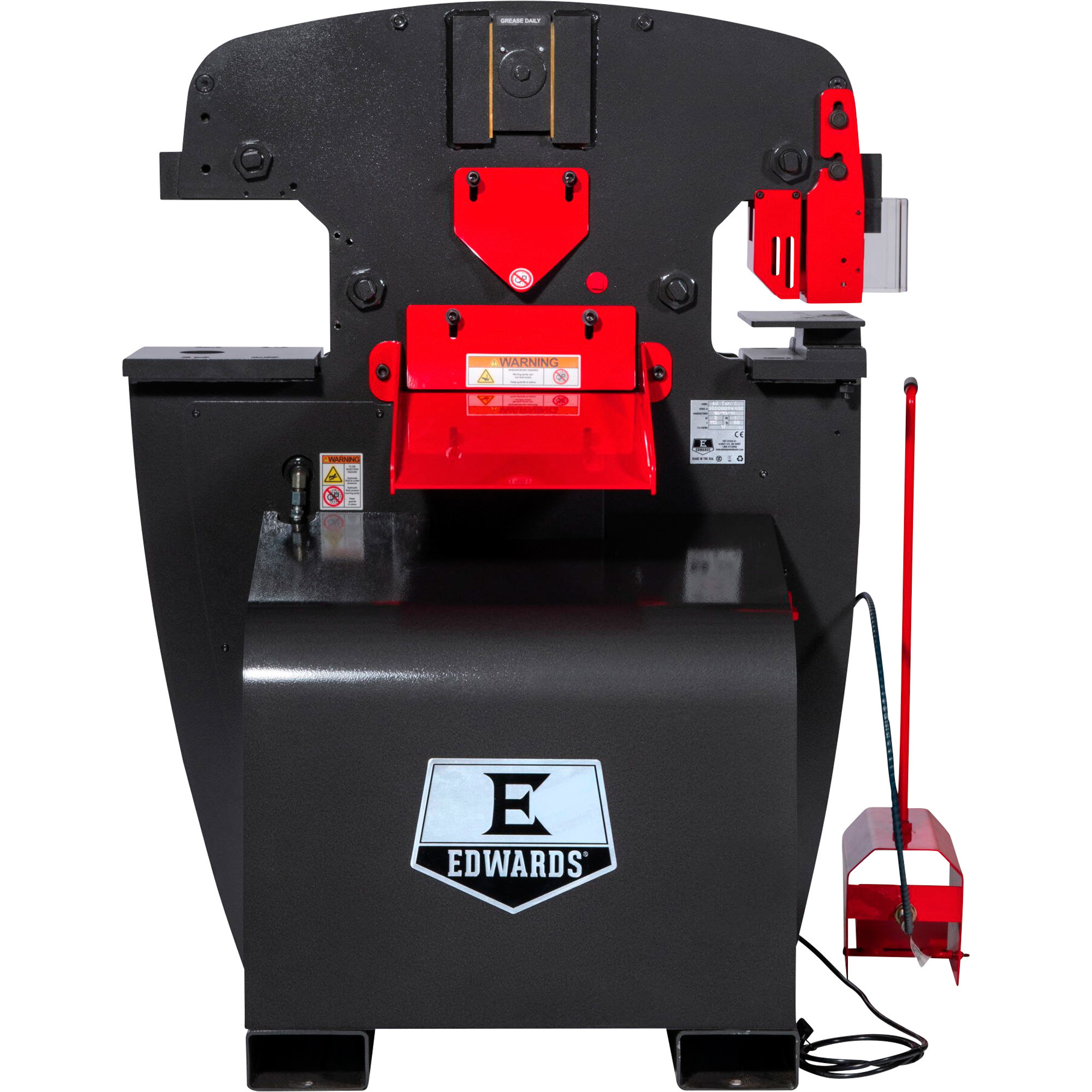

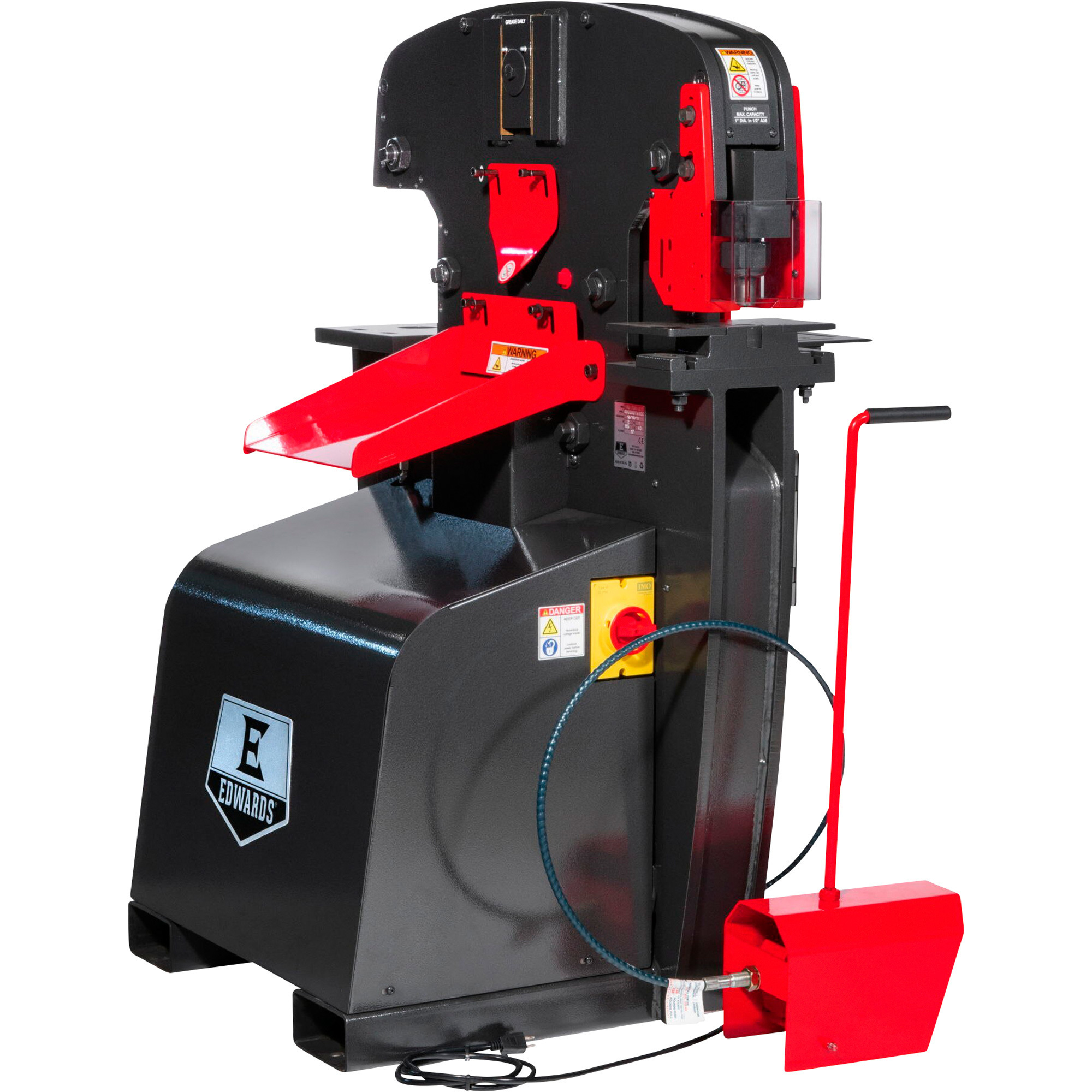

Edwards 40-Ton C Ironworker, Single Phase, 120 Volt, Model# IW40C-1P120

Item# 108544
"Edwards 40-Ton C Ironworker, Single Phase, 120 Volt, Model# IW40C-1P120"
Edwards 40-Ton C Ironworker, Single Phase, 120 Volt, Model# IW40C-1P120

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Edwards 40-Ton C Ironworker, Single Phase, 120 Volt, Model# IW40C-1P120

Click or Tap image to Zoom

$12,209.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Flat bar shear handles 1/4in. x 8in., 3/8in. x 6in. and 1/2in. x 4in. metal
  • Angle shear has a capacity of 3in. x 3in. x 1/4in.
  • Punch assembly with pedestal die table delivers up to 40 tons of punching pressure
  • 10 1/2in. throat depth
  • 4 available workstations

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Edwards 40-Ton C Ironworker is ideally suited for home, farm fabrication and medium-sized shop jobs. It's loaded with features including a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories (sold separately). There are 11in.terchangeable attachments and 16 accessories available, allowing customization to fit a wide variety of needs. ANSI B11.5-1988(02) compliant guarding. ETL Certified controls. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) 40-ton Ironworker

Downloads

Product Manual

Features + Benefits

  • Flat bar shear handles 1/4in. x 8in., 3/8in. x 6in. and 1/2in. x 4in. metal
  • Angle shear has a capacity of 3in. x 3in. x 1/4in.
  • Punch assembly with pedestal die table delivers up to 40 tons of punching pressure
  • 10 1/2in. throat depth
  • 4 available workstations
  • Universal open tooling station
  • Reliable single phase motor delivers the power you need
  • Operates on 115V power
  • Integrated Lock-out/Tag-out

Key Specs

AttributeSpecification

item#

108544

Brand

Edwards Ironworkers

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1720.0 LB

Horsepower

2 HP

Volts

120

Phase

Single-phase

Valve Pressure

2,750 PSI

Foot Switch Control

Yes

Throat Depth

10.5 in
AttributeSpecification

Punching Pressure

40 Tons

Throat Depth (in.)

10.5

Punching Pressure (Tons)

40

Flat Bar Shear Capacity

8 in

Flat Bar Shearing Capacity (in.)

1/4 x 8, 3/8 x 6, 1/2 x 4

Angle Shear Capacity

3 in

Angle Shear Capacity (in.)

3 x 3 x 1/4

Portable

No

Product Weight

lb

Dimensions L x W x H (in.)

36.0 x 40.0 x 53.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

  1. Will this unit come with any punch dies?

    1 answer

    1. It does not include dies. It is best to contact the manufacturer directly for the optional tooling accessories.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
