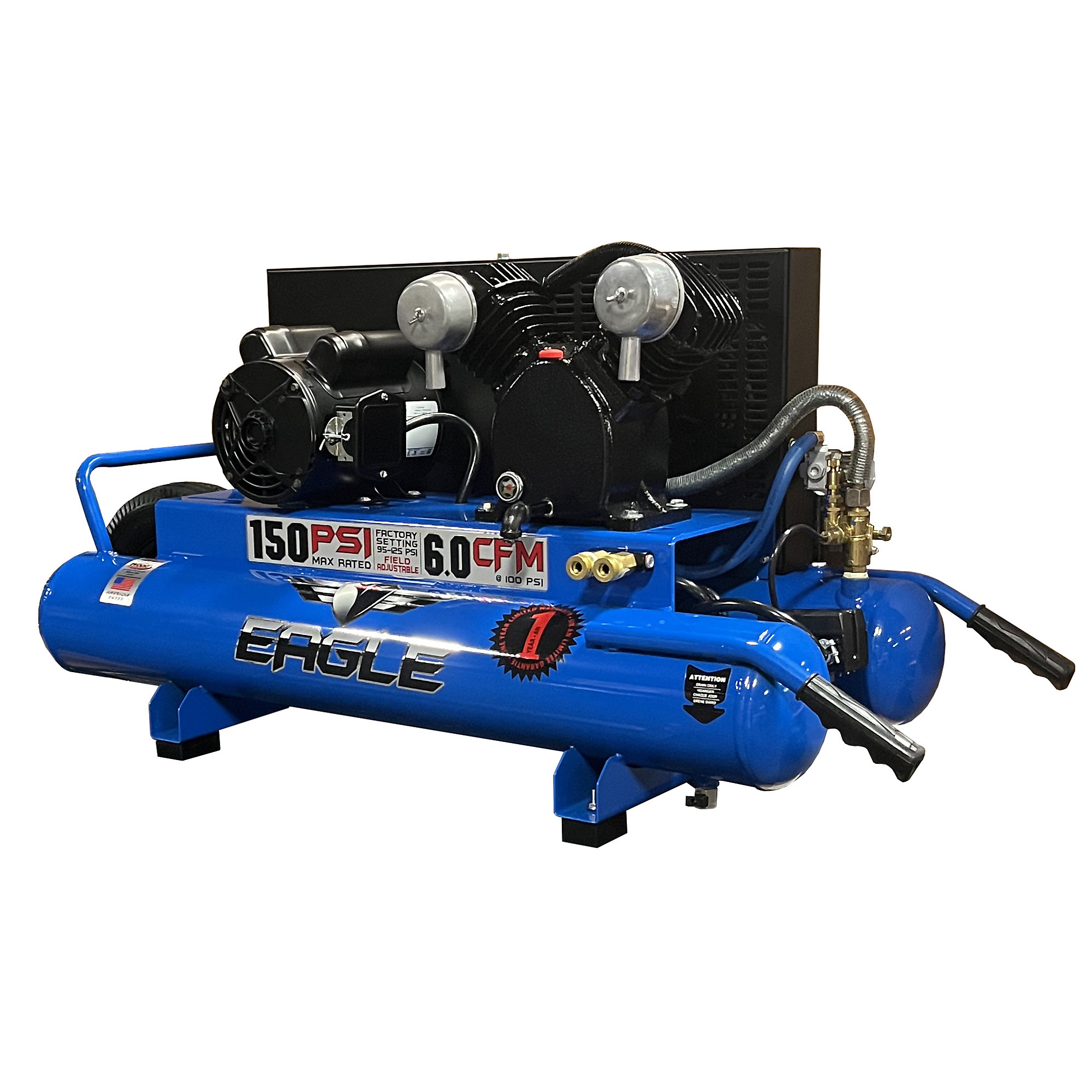

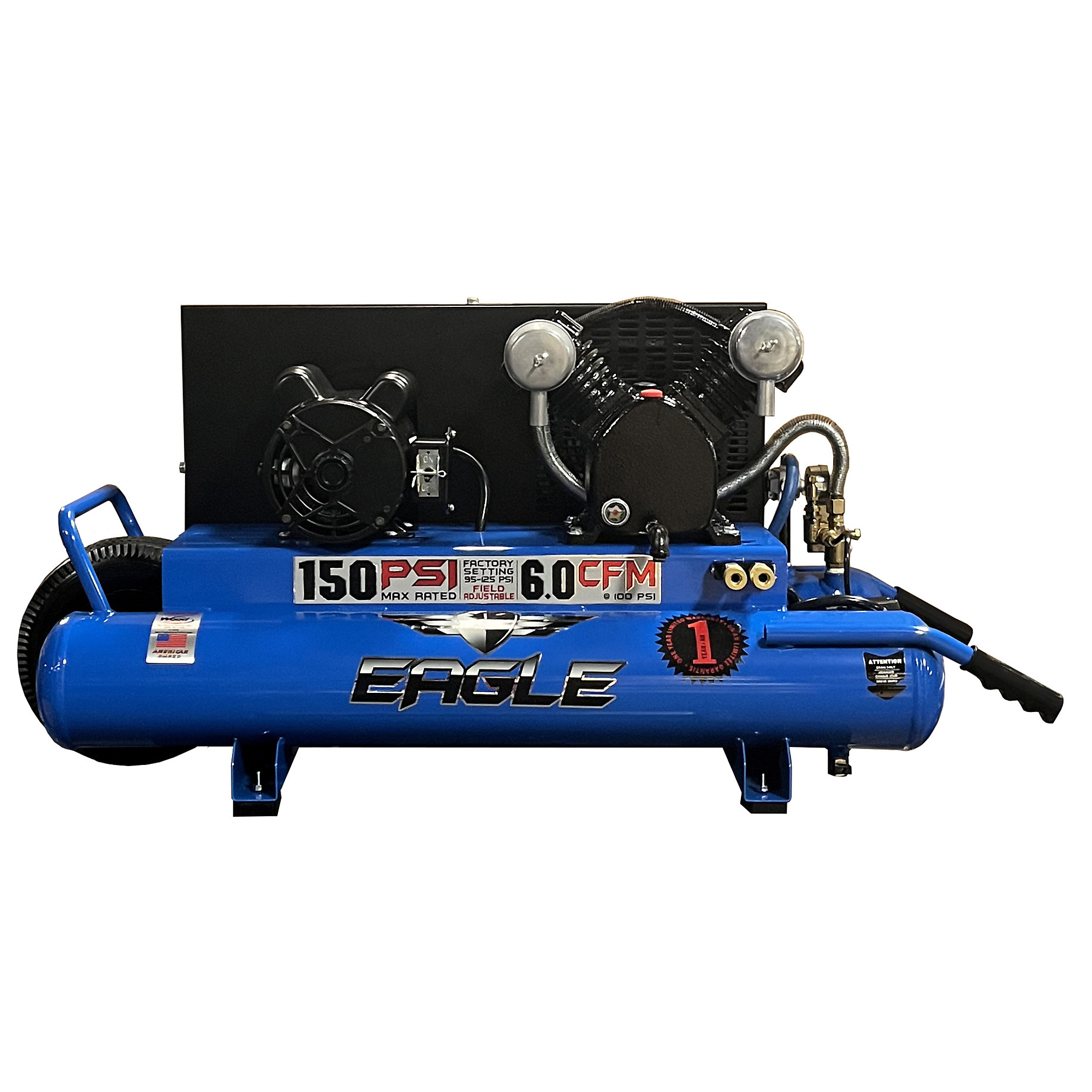

EAGLE, Dual Control Elec Wheelbarrow Compressor, Horsepower 3 HP, Air Tank Size 10 Gal, Volts 110/220 Model# TT318E-DV

Item# 6040134
EAGLE, Dual Control Elec Wheelbarrow Compressor, Horsepower 3 HP, Air Tank Size 10 Gal, Volts 110/220 Model# TT318E-DV

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, Dual Control Elec Wheelbarrow Compressor, Horsepower 3 HP, Air Tank Size 10 Gal, Volts 110/220 Model# TT318E-DV

Click or Tap image to Zoom

$1229.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Dual Volt Operation 110 or 220 Volt
  • 150 psi Cast Iron Pump
  • Built in Regulator
  • Dual Automotive Style Air Filters
  • Industry Leading 10 gallon tank

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle wheelbarrow dual voltage 3hp MAX compressor is paired with a cast iron "V" twin 150 psi pump that produces 6 CFM's of air. This portable unit is perfect for jobsites with limited power supply. It's dual mode STOP/START or CONTINUOUS run feature makes it ideal for temporary job site power or use with a generator. The dual voltage motor feature allows you to change from 110 volt to 220 volt power with the flip of a toggle switch! ThIs model is also loaded with convienent features like extended oil drain automotive style air filters for easy service along with ready to use features like dual quick connects, a built in regulator and an industry leading 10 gallon tank.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual

Features + Benefits

  • Dual Volt Operation 110 or 220 Volt
  • 150 psi Cast Iron Pump
  • Built in Regulator
  • Dual Automotive Style Air Filters
  • Industry Leading 10 gallon tank
  • Dual Mode Continuous run or Stop/Start Controls
  • 3 Hp Max Motor
  • Convenient Extended Oil Drain
  • "V" Style Design Minimizes Vibration & Improves Cooling
  • Easy View Oil Site Guage
  • Assembled in the USA!

Key Specs

AttributeSpecification

item#

6040134

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

260.0 LB

Horsepower

3 HP

Air Tank Size

10 Gal

Volts

110/220

CFM at 90 PSI

6

Max. PSI

150

Stage

1

Air Outlets (qty.)

2

Amps

7.5

Duty Cycle

100 %
AttributeSpecification

Motor RPM

3,600

Working Pressure

95-125 PSI

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Drain Type

Ball Valve

Tank Orientation

Horizontal

Product Weight

160.0000 lb

Dimensions L x W x H (in.)

48.0 x 18.0 x 22.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
