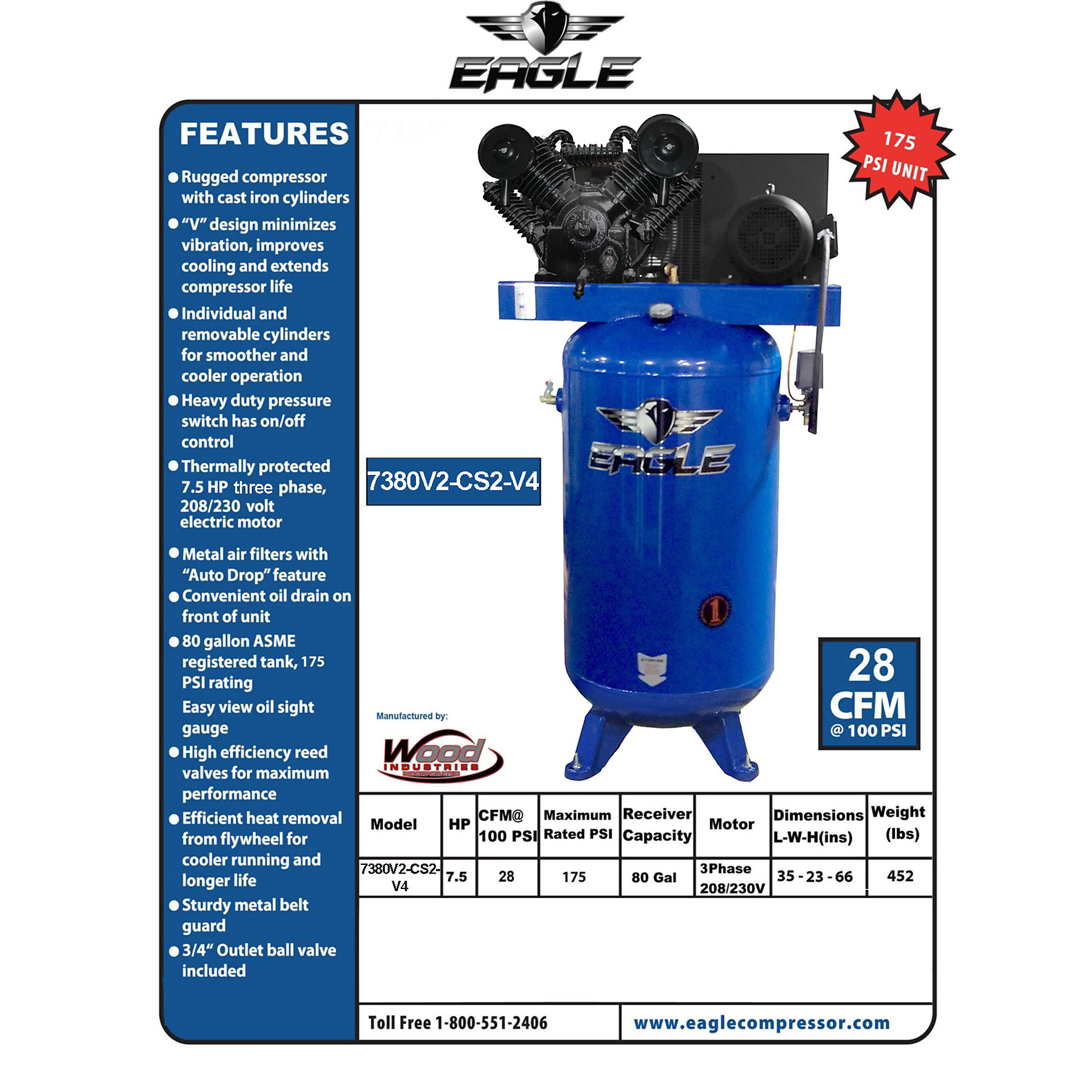

EAGLE, 80 Gallon Stationary Air Compressor, Horsepower 7.5 HP, Air Tank Size 80 Gal, Model# 7380V2-CS2-V4

Item# 6108055
EAGLE, 80 Gallon Stationary Air Compressor, Horsepower 7.5 HP, Air Tank Size 80 Gal, Model# 7380V2-CS2-V4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 80 Gallon Stationary Air Compressor, Horsepower 7.5 HP, Air Tank Size 80 Gal, Model# 7380V2-CS2-V4

Click or Tap image to Zoom

$3199.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • High Flow 28 CFM @ 100 PSI
  • Oversize 4 Cylinder Pump Runs at Lower RPMs
  • Heavy Duty 7.5 HP Three Phase Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Our Flagship Eagle Series 80 gallon shop compressor is perfect for the professional, the enthusiast or has enough power to run small business operations like tire and body shops, cabinet shops, dry cleaners etc. The large tank allows for longer runs times between the on/off intervals. The Powerful 7.5hp motor drives the heavy duty three cylinder cast iron two stage pump and delivers an impressive 28 CFM's of air with a max PSI of 175. This is one of the largest units in the industry that still operates on single phase power. So if you have a business with no acess to 3 phase power, this unit might be your answer. The robust four cylinder pump has dual after coolers and one inner cooler and supplies enough air to run multiple tools at once as well as hi-demand tools like sanders, 1in. impacts or small sand blasters. The Eagle unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety as you work along beside the unit. The oversize V-style pump allows for the larger bore pistons to run at lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, 1/2in. ball valve, heavy duty ON/OFF pressure switch, and manual tank drain all add up to a greater value. This Eagle model has proven to be a dependable unit at the top of it's class.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Space Saving Vertical Tank Design
  • High Flow 28 CFM @ 100 PSI
  • Oversize 4 Cylinder Pump Runs at Lower RPMs
  • Heavy Duty 7.5 HP Three Phase Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • Automotive Style Air Filters
  • Assembled in the USA!
  • 175 PSI Cast Iron Pump with Dual After Coolers

Key Specs

AttributeSpecification

item#

6108055

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

735.0 LB

Horsepower

7.5 HP
AttributeSpecification

Air Tank Size

80 Gal

Volts

208/230

Product Weight

452.0000 lb

Dimensions L x W x H (in.)

23.0 x 35.0 x 66.0 in
