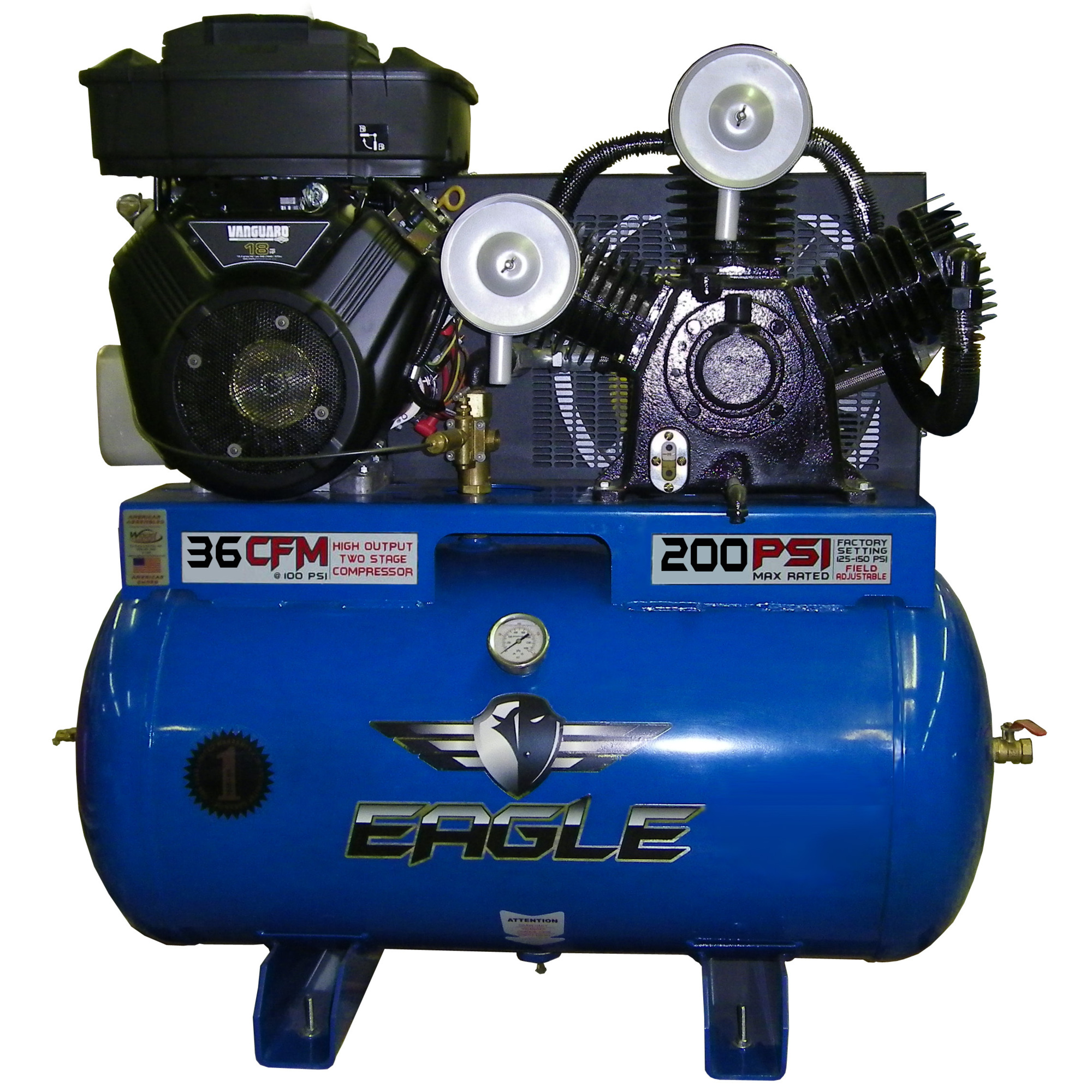

EAGLE, 55 Gallon 36 CFM Truck Mount Compressor, Horsepower 18 HP, Air Tank Size 55 Gal, Model# 18G55TRKE

Item# 6039643
EAGLE, 55 Gallon 36 CFM Truck Mount Compressor, Horsepower 18 HP, Air Tank Size 55 Gal, Model# 18G55TRKE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 55 Gallon 36 CFM Truck Mount Compressor, Horsepower 18 HP, Air Tank Size 55 Gal, Model# 18G55TRKE

Click or Tap image to Zoom

$5449.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Oversized Cast Iron Pump
  • 200 psi
  • Idle Control
  • Extended Oil Drain
  • Industry Leading 200 Psi

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle 3 cylinder truck compressor comes with a powerful 18hp twin cylinder Vanguard engine and a "V" style 3 cylinder cast iron compressor head that produces 32 CFM's of air flow and an industry leading maximum pressure of 200 PSI. Coupled with the industy leading 55 gallon tank, this combination will provide years of quality service and superior performance. While producing almost 35% more air than most competitors, this model will support mutli tool usage at once. Making it ideal for contractor and construction crews for in the field maintenance and service applications.

What's Included

    (1) AIR COMPRESSOR ONLY - DOES NOT INCLUDE BATTERY OR BATTERY CABLE KIT

Downloads

Product Manual

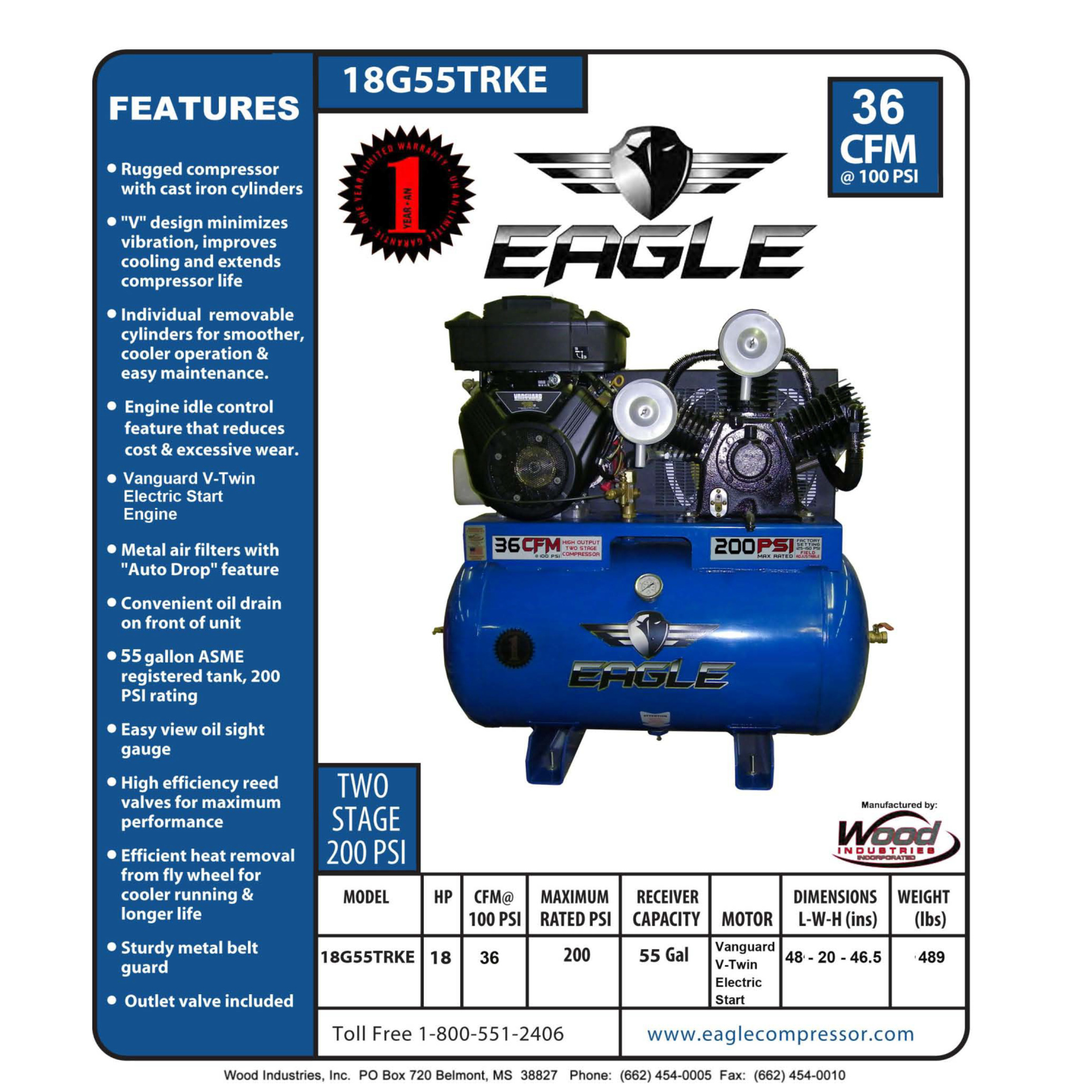

Features + Benefits

  • Oversized Cast Iron Pump
  • 200 psi
  • Idle Control
  • Extended Oil Drain
  • Industry Leading 200 Psi
  • 36 CFM at 100 psi
  • "V" Style Pump Improves Cooling
  • 55 Gallon ASME Certified Tank
  • Vanguard 18hp Engine
  • Automotive Style Filters
  • Assembled in the USA!

Key Specs

AttributeSpecification

item#

6039643

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

525.0 LB

Horsepower

18 HP

Air Tank Size

55 Gal

Engine Brand

Briggs & Stratton

CFM at 90 PSI

36

Stage

1

Air Outlets (qty.)

3

Duty Cycle

100 %

Fuel Capacity

2.25 Gal

Motor RPM

3,600

Working Pressure

150 PSI
AttributeSpecification

Engine Displacement

570 cc

Engine Start Type

Electric

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

Multiple in. NPT

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

Air Dryer

None

Tank Orientation

Horizontal

Product Weight

489.0000 lb

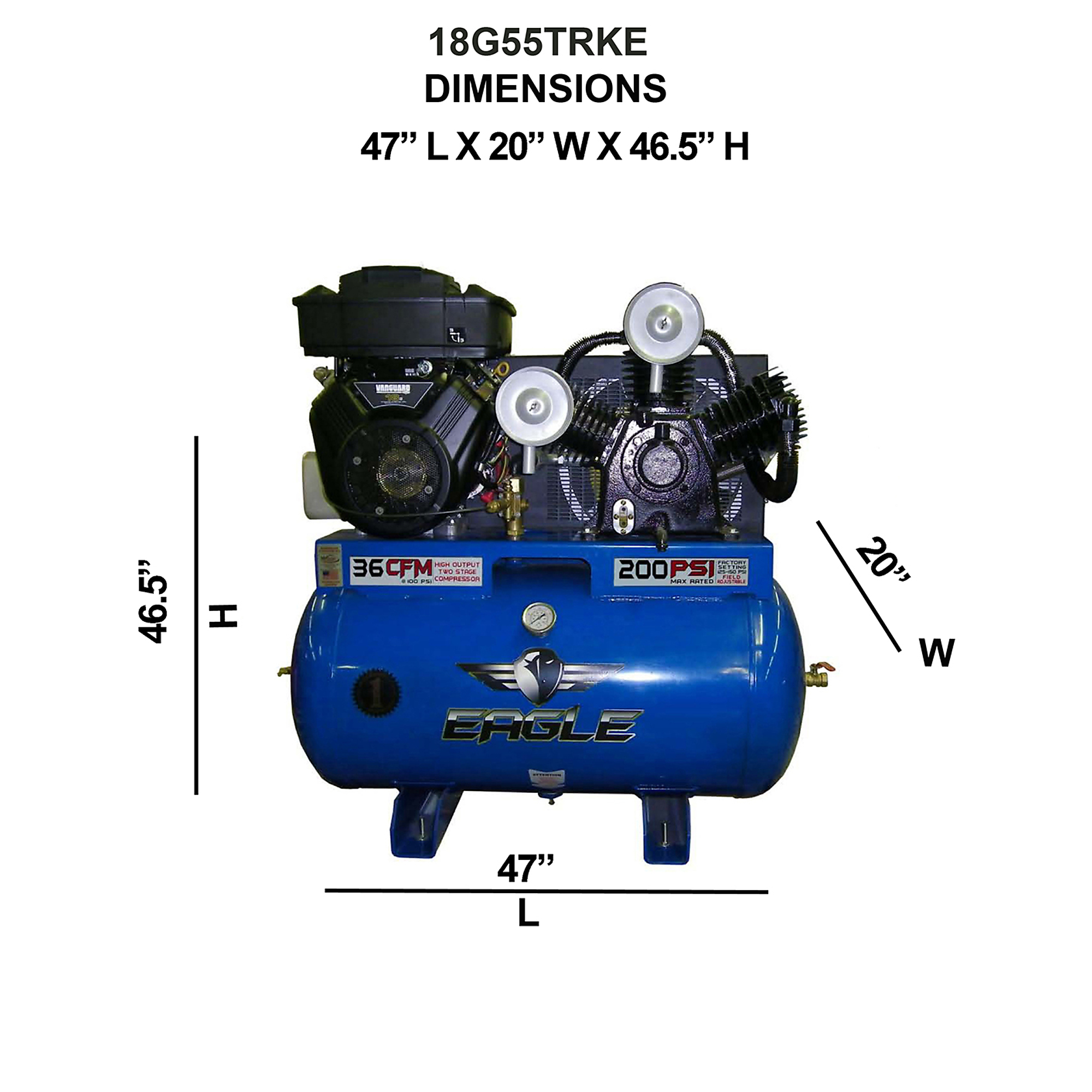

Dimensions L x W x H (in.)

47.0 x 20.0 x 46.5 in
