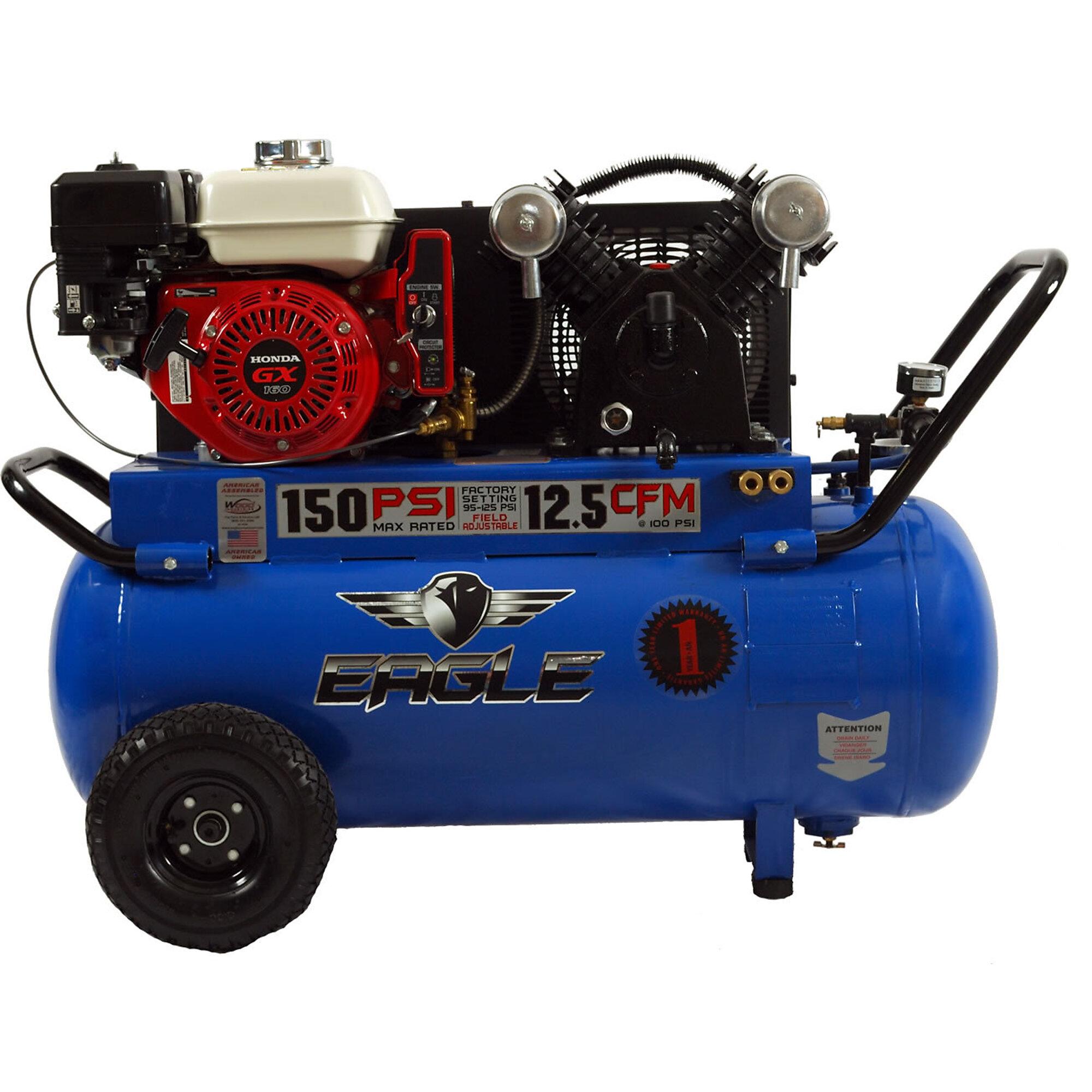

EAGLE, 25 Gallon Elec Start Air Compressor, Horsepower 5.5 HP, Air Tank Size 25 Gal, Model# P55GE25H1

Item# 6040281
EAGLE, 25 Gallon Elec Start Air Compressor, Horsepower 5.5 HP, Air Tank Size 25 Gal, Model# P55GE25H1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 25 Gallon Elec Start Air Compressor, Horsepower 5.5 HP, Air Tank Size 25 Gal, Model# P55GE25H1

Click or Tap image to Zoom

$2149.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • V Style design improves cooling & extends compressor life
  • Portable design manuvers effortlessly on rough terrian
  • Industry Leading 25 Gallon Tank
  • Convenient Extended Oil Drain
  • Electric Start 163cc Honda Engine

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle gas compressor is powered by a GX160 Electric Start OHV Honda engine paired with the reliable PV02A V-twin cast iron compressor head that pumps out an industry leading 12.5 CFMs of air with an impressive 150 PSI max pressure rating and an industry leading 25 gallon portable tank! The unit comes standard with the fuel saving idle control feature, dual air filter system, a built in regulator and dual quick connects. It's easy manuverability and portable design makes it ideal for mounting on a service truck or moving around a jobsite.

What's Included

    (1) AIR COMPRESSOR ONLY - BATTERY AND BATTERY CABLE KIT NOT INCLUDED

Features + Benefits

  • V Style design improves cooling & extends compressor life
  • Portable design manuvers effortlessly on rough terrian
  • Industry Leading 25 Gallon Tank
  • Convenient Extended Oil Drain
  • Electric Start 163cc Honda Engine
  • Operates Impact & Mechanic Tools
  • Easy View Oil Site Guage
  • Operates 5-6 Pneumatic Nail Guns
  • Dual Automotive Style Air Filters
  • Assembled in the USA!
  • 150 psi Cast Iron Pump

Key Specs

AttributeSpecification

item#

6040281

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

310.0 LB

Horsepower

5.5 HP

Air Tank Size

25 Gal

Engine Brand

Honda

CFM at 90 PSI

12

Max. PSI

150

Stage

1

Air Outlets (qty.)

2

Duty Cycle

1 %

Motor RPM

3,600

Working Pressure

95-125 PSI

Engine Displacement

163 cc
AttributeSpecification

Engine Start Type

Electric and Pull

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Petcock

Tank Orientation

Horizontal

Engine Model

GX160 Honda

Product Weight

200.0000 lb

Dimensions L x W x H (in.)

44.0 x 18.0 x 33.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
