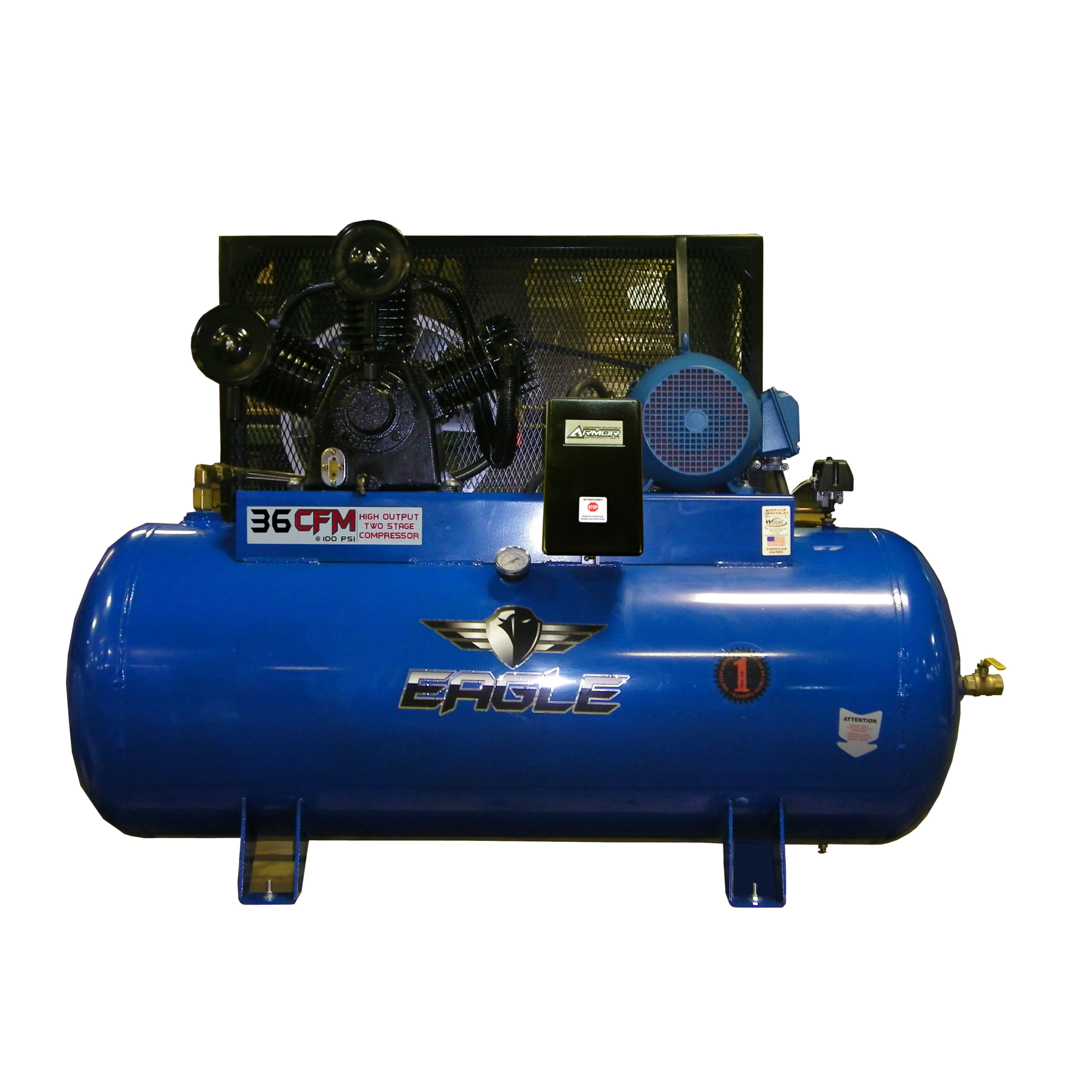

EAGLE, 120 Gallon 36 CFM Air Compressor, Horsepower 10 HP, Air Tank Size 120 Gal, Model# 103120H2-MS230

Item# 6039547
EAGLE, 120 Gallon 36 CFM Air Compressor, Horsepower 10 HP, Air Tank Size 120 Gal, Model# 103120H2-MS230

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 120 Gallon 36 CFM Air Compressor, Horsepower 10 HP, Air Tank Size 120 Gal, Model# 103120H2-MS230

Click or Tap image to Zoom

$5049.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • V Style compressor design improves cooling & extends compressor life
  • Horizontal Tank Design
  • 36 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 10HP Three Phase Industrial Motor

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Eagle 120 gallon shop compressor sets the standard in it's class, making it the perfect option for the professional, the enthusiast or it can be the power driving many different types of small business operations. This unit is ideal for small body shops, tires shops, dry cleaners and many other small business applications. The large tank allows for longer runs times between the on/off intervals. The durable 10hp industrial motor drives the robust V-style, three cylinder cast iron pump and delivers an industy leading 36 CFM's of air with a max PSI of 175. The Eagle unit has an extended oil drain for easy clean service when it's time and convenient oil site glass for monitoring lubrcants. The Government certified ASME tank pressure release valve ensures your safety is priority #1. The V-Style pump allows for the larger bore pistons to run at a lower RPM rate while still producing more air than the competition. The lower speed, creates less friction and less heat ultimately giving the compressor longer life. The fully enclosed metal belt guard meets or exceeds UL OSHA requirements. Features like the automotive style air filters, 3/4in. ball valve and heavy duty ON/OFF pressure switch all add up to Greater Value!

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual

Features + Benefits

  • V Style compressor design improves cooling & extends compressor life
  • Horizontal Tank Design
  • 36 CFM @ 100 PSI
  • Convenient Extended Oil & Tank Drain
  • Heavy Duty 10HP Three Phase Industrial Motor
  • Operates Multiple Impact & Mechanic Tools at Once
  • Easy View Oil Site Guage
  • Larger Bore Pistons Produce More Air and Generate less Heat
  • One Year Warranty
  • Assembled in the USA!
  • Two Stage 175 PSI Cast Iron Pump

Key Specs

AttributeSpecification

item#

6039547

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

890.0 LB

Air Tank Size

120 Gal
AttributeSpecification

Volts

230

Horsepower

10 HP

Product Weight

741.0000 lb

Dimensions L x W x H (in.)

73.0 x 27.0 x 50.0 in
