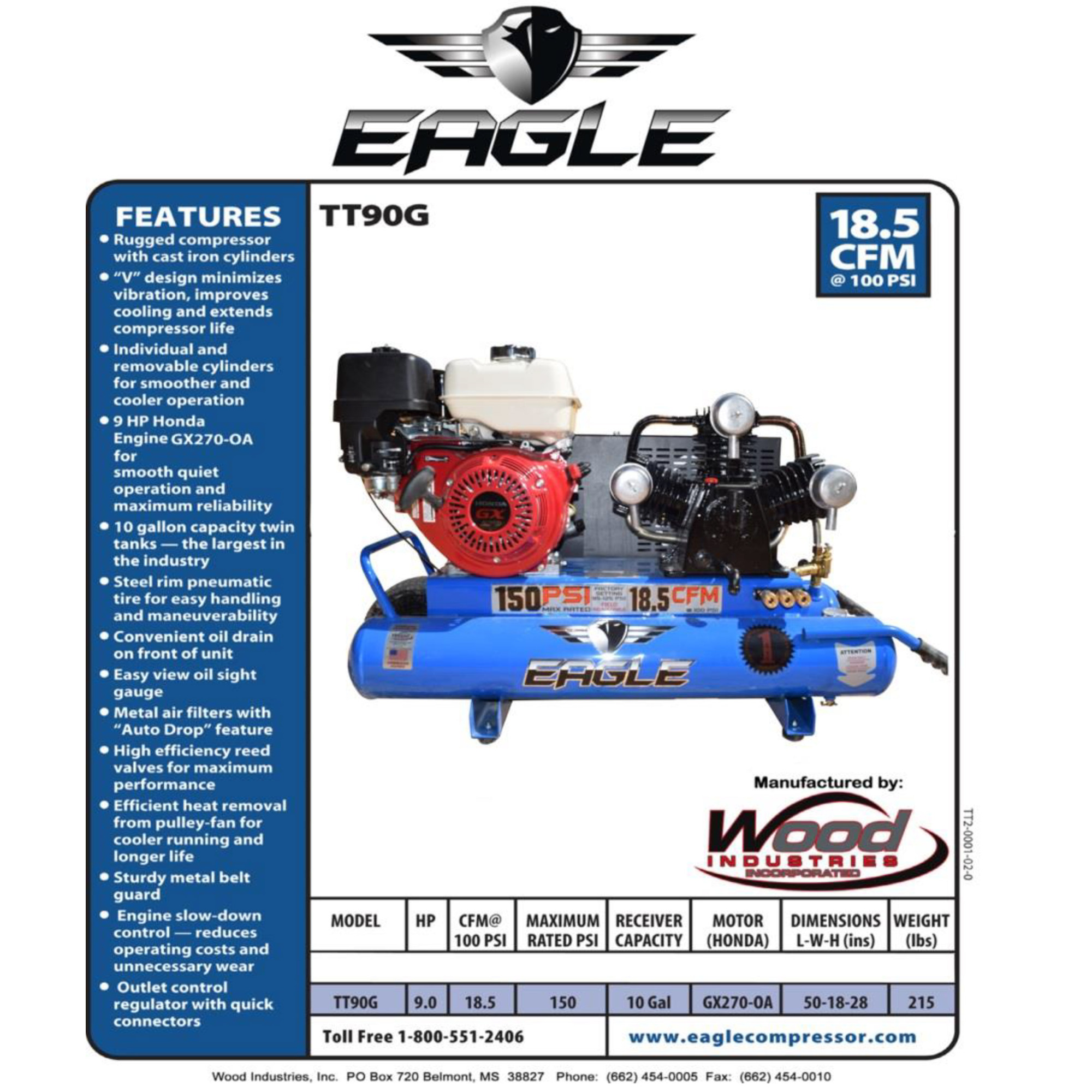

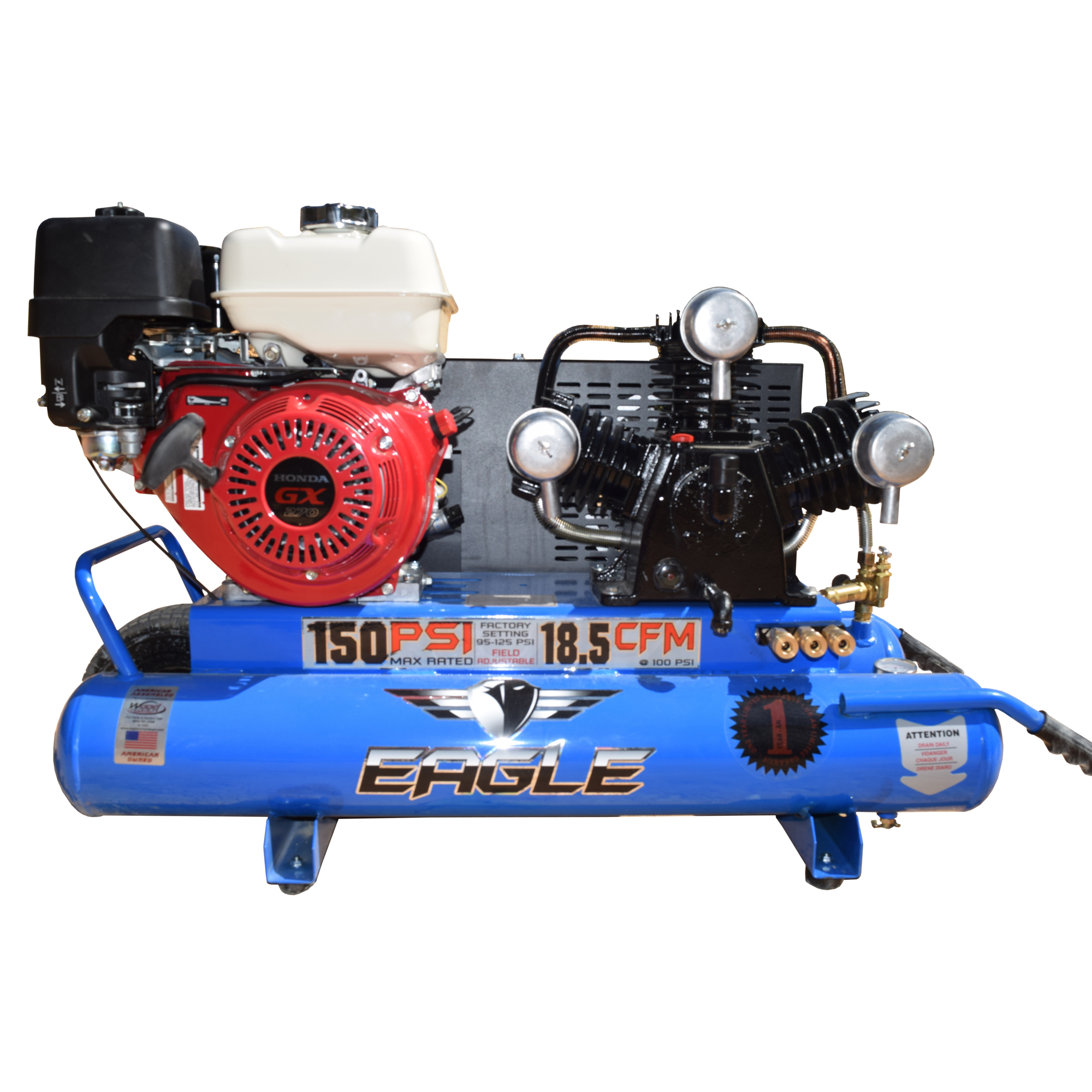

EAGLE, 10 Gallon 18.5 CFM Air Compressor, Horsepower 9 HP, Air Tank Size 10 Gal, Model# TT90G

Item# 6042068
EAGLE, 10 Gallon 18.5 CFM Air Compressor, Horsepower 9 HP, Air Tank Size 10 Gal, Model# TT90G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

EAGLE, 10 Gallon 18.5 CFM Air Compressor, Horsepower 9 HP, Air Tank Size 10 Gal, Model# TT90G

Click or Tap image to Zoom

$2299.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • GX270 OHV Honda Engine
  • 150 psi Cast Iron Pump
  • Built in Regulator
  • Triple Automotive Style Air Filters
  • Industry Leading 10 gallon tank

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Honda powered Eagle wheelbarrow compressor is paired with a cast iron "V" twin 150 psi pump that produces 18.5 CFM's of air. This portable unit is ideal for farm, construction, contractors road side service. The TT90GE is loaded with convienent features like an extended oil drain automotive style air filters for easy service along with ready to use features like triple quick connects, a built in regulator and an industry leading 10 gallon tank.

What's Included

    (1) AIR COMPRESSOR

Downloads

Product Manual

Features + Benefits

  • GX270 OHV Honda Engine
  • 150 psi Cast Iron Pump
  • Built in Regulator
  • Triple Automotive Style Air Filters
  • Industry Leading 10 gallon tank
  • Fully Enclosed Metal Belt Guard
  • Fuel Saving Idle Control Feature
  • Convenient Extended Oil Drain
  • "V" Style Design Minimizes Vibration & Improves Cooling
  • Easy View Oil Site Guage
  • Assembled in the USA!

Key Specs

AttributeSpecification

item#

6042068

Brand

EAGLE

Manufacturer's Warranty

1 year limited warranty

Ship Weight

309.0 LB

Horsepower

9 HP

Air Tank Size

10 Gal

Engine Brand

Honda

CFM at 90 PSI

18.5

Max. PSI

150

Stage

1

Air Outlets (qty.)

3

Duty Cycle

100 %

Motor RPM

3,600

Working Pressure

95-125 PSI
AttributeSpecification

Engine Displacement

270 cc

Engine Start Type

Manual

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Drain Type

Ball Valve

Tank Orientation

Horizontal

Engine Model

GX270 HONDA

Product Weight

215.0000 lb

Dimensions L x W x H (in.)

45.0 x 18.0 x 28.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
