When the motor is engaged the winch will draw approximately 60-70 amps. The winch will then drop to around 30-40 amps while running before jumping back up to 60-70 amps when you disengage the motor.

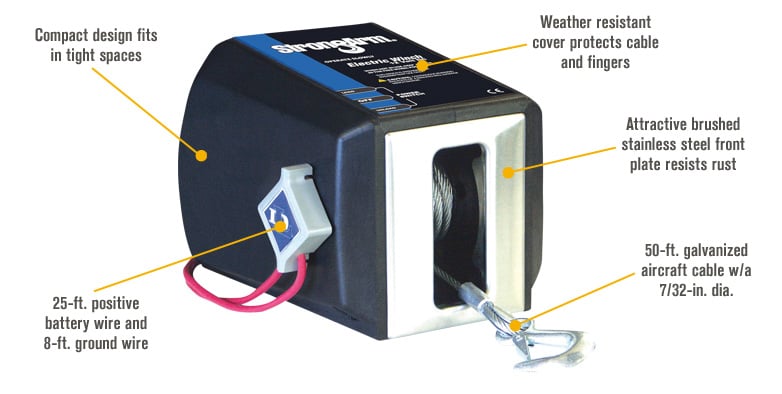

Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 3000-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9000DC
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$659.99

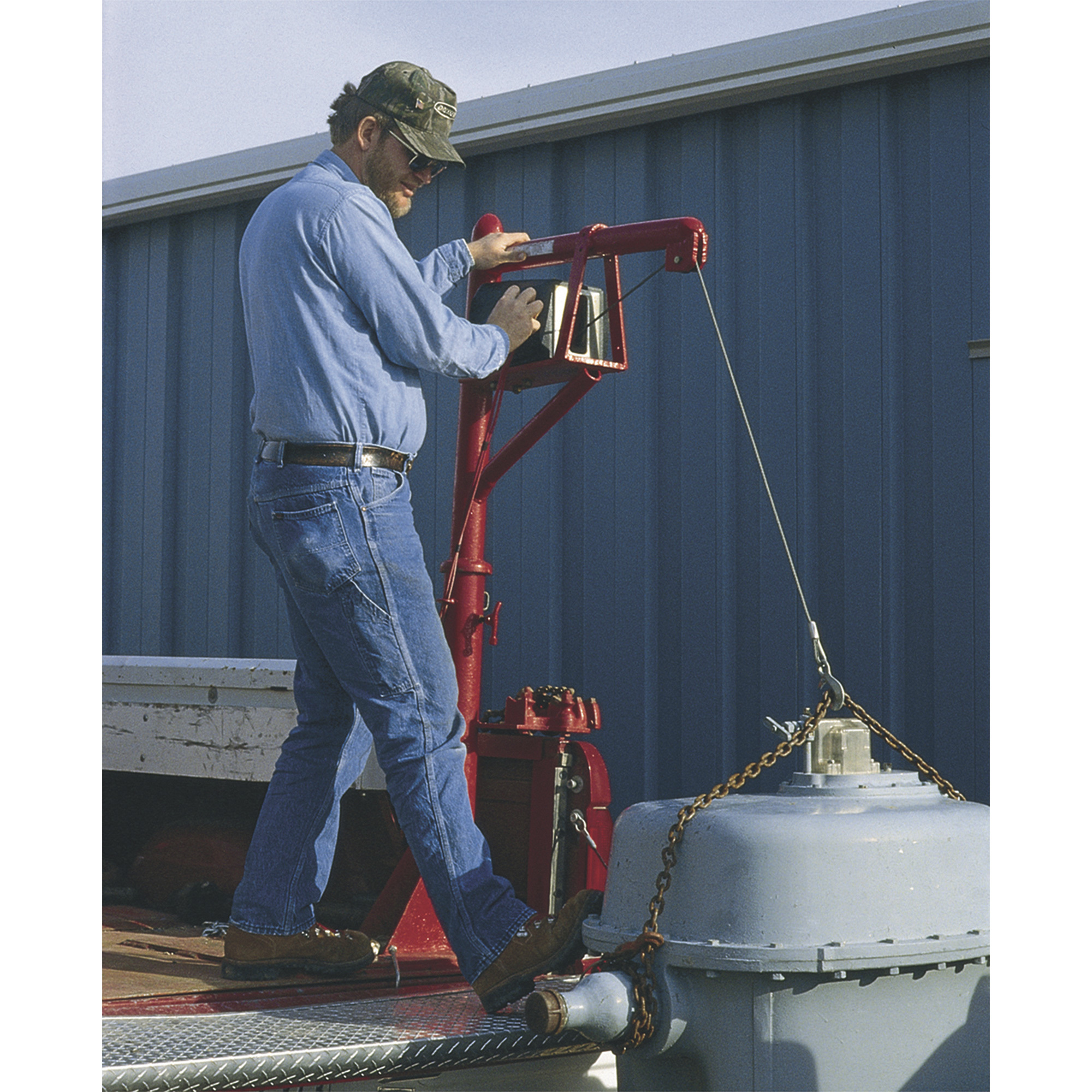

- Designed for mobile applications like hay bale moving, portable cranes, vehicle cranes, livestock feeding trailers, boat lifts and articulating conveyors
- Powerin, powerout and automatic brake
- Will accept 2in.W strap
- Not to be used as a hoist for lifting, supporting or transporting people
- Should not handle loads over areas where people might be present
See full description
Price for all two:
$679.98
What's Included
- (1) Winch (1) Emergency crank handle (1) Wiring harness
Features + Benefits
- Designed for mobile applications like hay bale moving, portable cranes, vehicle cranes, livestock feeding trailers, boat lifts and articulating conveyors
- Powerin, powerout and automatic brake
- Will accept 2in.W strap
- Not to be used as a hoist for lifting, supporting or transporting people
- Should not handle loads over areas where people might be present
- Includes wiring harness
- Emergency crank handle
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All DC Powered Winches
See All StrongArm DC Powered Winches
Currently Viewing This Product
Specifications
Specifications
Dutton-Lainson StrongArm 12 Volt DC Powered Electric Winch, 3000-Lb. Capacity, Galvanized Aircraft Cable, Model# SA9000DC
OZ Lifting Products 12V DC Electric Winch, 1200-Lb. Capacity
Keeper KX9, DC Powered Winch, Remote, Capacity 9500lb. Capacity, 12 Volts,, Model# KX95172B
Keeper KX9, DC Powered Winch, Remote, w/ Light, 9500lb. Capacity, 12 Volts, Model# KX95132
Horsepower
Same
0.7 HP
0.6 HP
5-1/2 HP
5-1/2 HP
Capacity (Line Pull)
Same
3,000 lb
1,200 lb
9,500 lb
9,500 lb
Application
Same
Multiple
Multiple
-
-
Gear Type
Same
Spur
Spur
Planetary
Planetary
Line Speed
Same
4 ft./min.
5.5 ft./min.
22.3 ft./min.
23 ft./min.
Gear Ratio
Same
570:1
189:1
218:01:00
216:01:00
Rope Length
Same
25 ft
90 ft
85 ft
85 ft
Rope Diameter
Same
7/32 in
-
3/8 in
3/8 in
Rope Material
Same
Galvanized Steel
-
Polyethylene
Polyethylene
Brake Type
Same
Other
Disc
Automatic
Automatic
Remote
Same
No
Yes
Yes
Yes
Freespooling
Same
No
No
Yes
Yes
Mounting Hardware Included
Same
No
No
-
-
Volts
Same
-
12
-
-
Max. Amps
Same
-
70
-
-
Remote Cord Length
Same
-
10 ft
15 ft
15 ft
Underwater Use
Same
-
No
No
No
Power Cord Length
Same
-
25 ft
-
-
Automatic Load Holding
Same
-
-
Yes
Yes
Fairlead Type
Same
-
-
Hawse
Hawse
