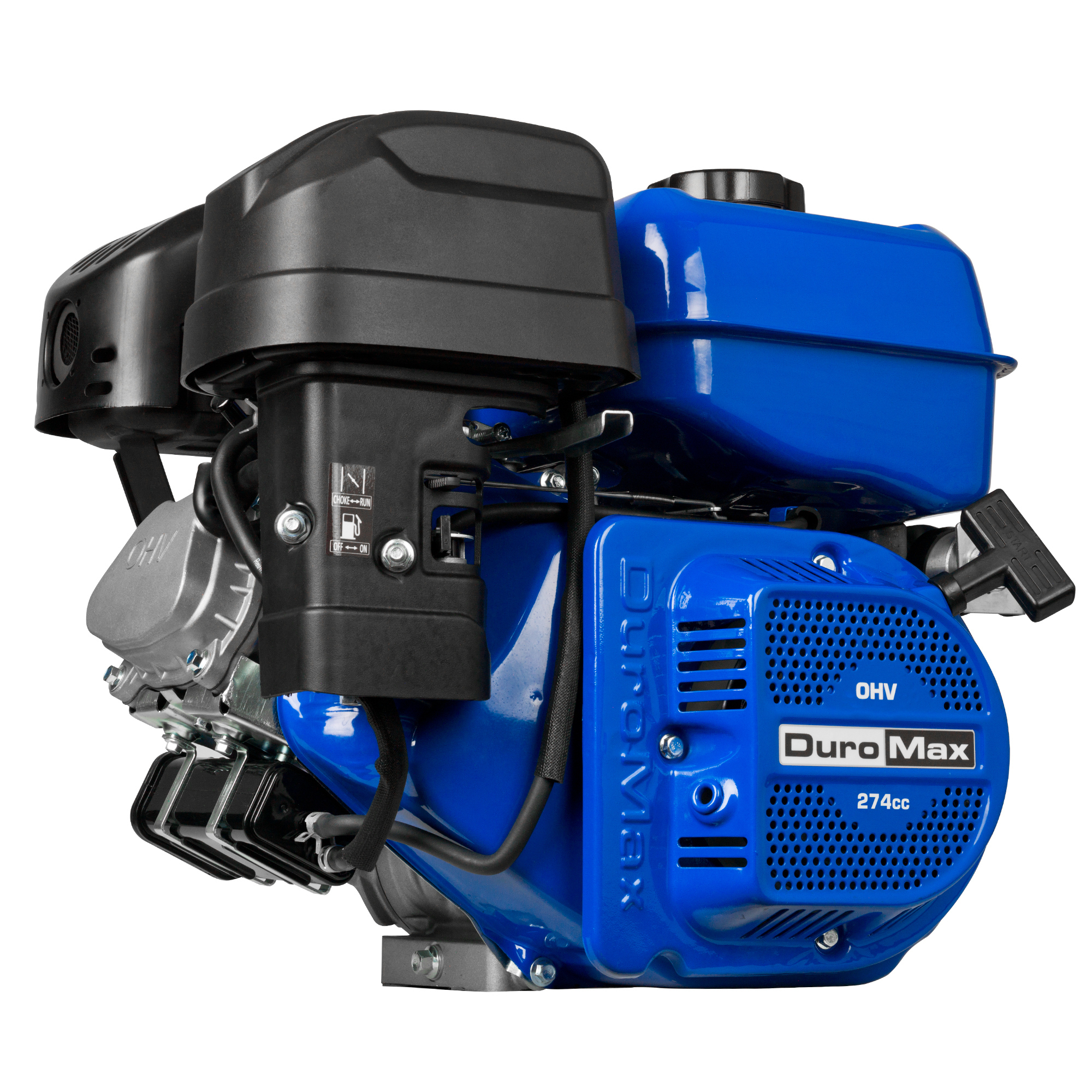

DuroMax, 274cc Electric Start Gasoline Engine, Engine Displacement 274 cc, Engine Type Gasoline Engines, Shaft Diameter 1 in, Model# XP9HPE

Item# 5183969
DuroMax, 274cc Electric Start Gasoline Engine, Engine Displacement 274 cc, Engine Type Gasoline Engines, Shaft Diameter 1 in, Model# XP9HPE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DuroMax, 274cc Electric Start Gasoline Engine, Engine Displacement 274 cc, Engine Type Gasoline Engines, Shaft Diameter 1 in, Model# XP9HPE

Click or Tap image to Zoom

$389.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 274cc 4-Stroke OHV Engine
  • Large 1.3 Gallon Fuel Tank
  • Runs on Standard 87 Octane Gasoline
  • Electric Start Key Switch Box
  • EPA and CARB Approved for Safe Mandated Use

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DuroMax XP9HPE is one of our most compact and lightweight engines available, but don’t let the size fool you. This powerful 274 cc 4-stroke OHV engine has plenty of power for multiple light duty applications including go karts, pressure washers, trailer-mounted mobile carwashes, log splitters, rototillers, cultivators, and water/trash transfer pumps. The XP9HPE is equipped with convenient features such as a large 1.3-gallon gas tank for longer runtimes, a quick and easy electric start, and an E-Z pull recoil starter for startup flexibility. This engine is EPA and CARB approved for safe mandated use.

What's Included

    (6) DuroMax XP9HPE Engine, 12V Battery Leads, Spark Plug Wrench, Keys, Oil Funnel, and Owner’s Manual

Features + Benefits

  • 274cc 4-Stroke OHV Engine
  • Large 1.3 Gallon Fuel Tank
  • Runs on Standard 87 Octane Gasoline
  • Electric Start Key Switch Box
  • EPA and CARB Approved for Safe Mandated Use
  • Applications: Go Karts, Pressure Washers, Trailer Mounted - Mobile Carwashes, Log Splitters, RotoTillers - Cultivators, Water/Trash Transfer Pump

Key Specs

AttributeSpecification

item#

5183969

Brand

DuroMax

Manufacturer's Warranty

3 year limited warranty

Ship Weight

60.0 LB

Engine Displacement

274 cc

Engine Type

Gasoline Engines
AttributeSpecification

Shaft Diameter

1 in

Fuel Type

Gasoline

Start Type

Electric and Recoil

Shaft Keyway

.276inch in

Product Weight

45.0000 lb

Dimensions L x W x H (in.)

16.4 x 13.2 x 15.1 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. Is this a true 1 inch shaft or 25mm .98 ? Is the shaft bolt standard or metric ?

    1 answer

    1. The shaft diameter is 25 MM (0.98"). The shaft will have a tapped end measurement of M10x1.25-6. Usable shaft length 63 MM (2.48").

      Helpful?

  2. Whats the engine rpm? Is this a 12 volt starter?

    1 answer

    1. The maximum RPM is 3600 RPM. The engine will have a 12 volt electric starter. The 12 volt battery leads are included.

      Helpful?

  3. Can you upgrade carburetor on motor

    1 answer

    1. The manufacturer does not recommend any modifications to this engine.

      Helpful?

  4. horse power

    1 answer

    1. This engine is rated at approximately 8 HP.

      Helpful?

  5. Does this engine have a charging system for battery?

    1 answer

    1. This engine is equipped with a charging system.

      Helpful?

  6. I wanted to know what is the whole engine demension. what the width, leight and height?

    1 answer

    1. The dimensions are 16.4" L x 13.2" W x 15.1" H.

      Helpful?

  7. How long is the shaft it states it’s a 1” diameter  and also states the key way size?

    1 answer

    1. The length of the shaft is 2.48 " L .

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
