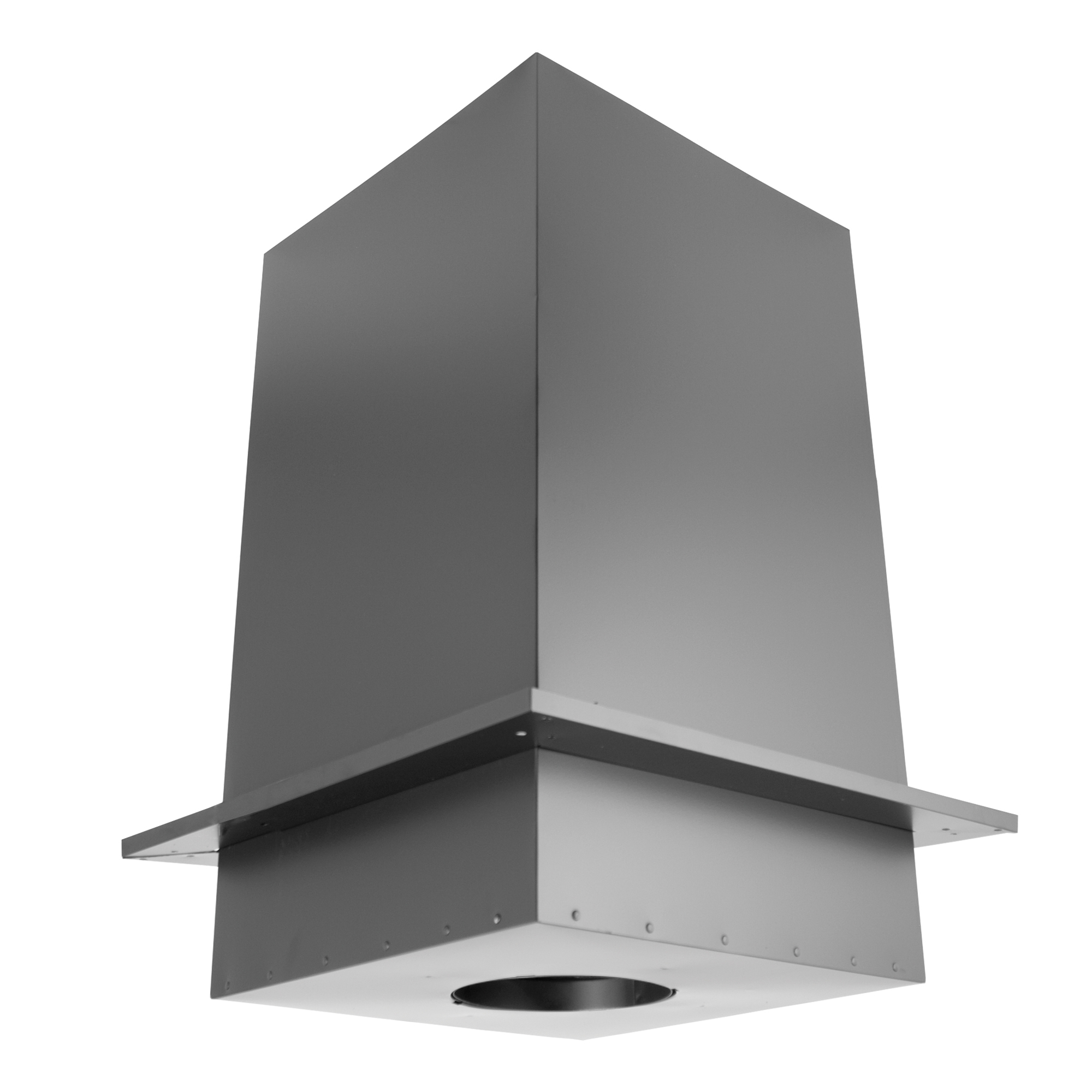

DuraVent, 6in. Diameter Support Box 11in. Height, Included (qty.) 1 Material Galvanized Steel, Model# 6DP-CS11

Item# 4840445
1 Included
DuraVent, 6in. Diameter Support Box 11in. Height, Included (qty.) 1 Material Galvanized Steel, Model# 6DP-CS11

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DuraVent, 6in. Diameter Support Box 11in. Height, Included (qty.) 1 Material Galvanized Steel, Model# 6DP-CS11

Click or Tap image to Zoom

$99.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Starter section built in
  • All decorative trim parts are included
  • Ceiling support box is factory painted black
  • DuraPlus is designed to stay cool on the outside, provide a hot draft on the inside, boost stove efficiency, and provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers—refractory blanket plus air space. Designed for normal, continuous operation at 1000 degrees F flue gas temperatures, DuraPlus is subjected to rigorous and strongest HT requirements of the UL standard.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DuraVent Support Box is designed to provide reliable support for chimney pipes in various ceiling types, including flat, vaulted, and cathedral ceilings. With a 6-inch diameter and an 11-inch height, this support box is crafted from durable galvanized steel, ensuring long-lasting performance and resistance to corrosion. Its versatile design allows for seamless integration into different ceiling structures, offering sturdy and secure support for chimney installations. Ideal for both residential and commercial applications, the DuraVent Support Box is a dependable solution for maintaining the integrity and safety of your chimney system.

What's Included

    (1) Support Box 24" Height

Features + Benefits

  • Starter section built in
  • All decorative trim parts are included
  • Ceiling support box is factory painted black
  • DuraPlus is designed to stay cool on the outside, provide a hot draft on the inside, boost stove efficiency, and provide for a fire-safe design that protects both the chimney and the building. This triple-wall chimney features two insulating layers—refractory blanket plus air space. Designed for normal, continuous operation at 1000 degrees F flue gas temperatures, DuraPlus is subjected to rigorous and strongest HT requirements of the UL standard.

Key Specs

AttributeSpecification

item#

4840445

Brand

DuraVent

Manufacturer's Warranty

No limited warranty

Ship Weight

9.14 LB

Included (qty.)

1

Material

Galvanized Steel
AttributeSpecification

Length

14.25 in

Height

11 in

Capacity

9.14 lb

Product Weight

9.1400 lb

Dimensions L x W x H (in.)

14.25 x 14.25 x 11.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Is the top open?

    1 answer

    1. The top of the support box is open.

      Helpful?

  2. How would one install flashing in a Corrugated meatball roof

    1 answer

    1. The support box can be used with a corrugated metal roof. You will need to use proper sealants and flashing specifically designed for corrugated roofing. Custom fitting may be required. Ensure adequate structural support is used.

      Helpful?

  3. I want to connect the 6DVL-46TA piping for my inside pipe . which connector piece do I need?

    1 answer

    1. The adapter model 6DVL-ADT (item number 77148) is needed to attach to the ceiling support box.

      Helpful?

  4. After I make the hole in my garage ceiling around 14 .5 by 14.5 & I hang the support box inside the whole in the ceiling how many inches should the box hang down like 3, or 4 or 5 inches hanging down from the hole on the ceiling?????

    1 answer

    1. The box should hang a minimum of 2" below the finished ceiling.

      Helpful?

  5. What is the actual I. D. Of the hole going thru the center?

    1 answer

    1. The ID of the hole going through the center of the support box would be 6".

      Helpful?

  6. in the specs it says its 24" tall but the description says its 11" high. i have a cathedral roof and need at least 14" to clear the celling and roof. will this work for my application?

    1 answer

    1. The overall dimensions are 14.25" x 14.25" x 18.25". The support box portion is 11" tall. It can work with a cathedral ceiling depending on the roof slope, local codes and ordinances and appliance requirements. Some applications will require a 24" (6DP-CS24) or 36" (6DP-36) support box.

      Helpful?

  7. What are the dimensions of the rafter opening needed for the box?

    1 answer

    1. The inside dimensions for the opening of the rafters would need to be 14 1/2" x 14 1/2".

      Helpful?

  8. Can this be used with duravent double wall pipe?

    1 answer

    1. The single wall stove pipe connecting to the bottom requires an adapter, but the actual adapter is dependent on the brand of stove pipe. This box requires Dura Plus triple wall Chimney out the top. DVL is only for indoor use and can be used in substitute of the single wall stove pipe only.

      Helpful?

  9. How many feet of duraplus will this box support?

    1 answer

    1. This will support up to 35 feet of chimney pipe.

      Helpful?

Warranty

Manufacturer's Warranty

No limited warranty
