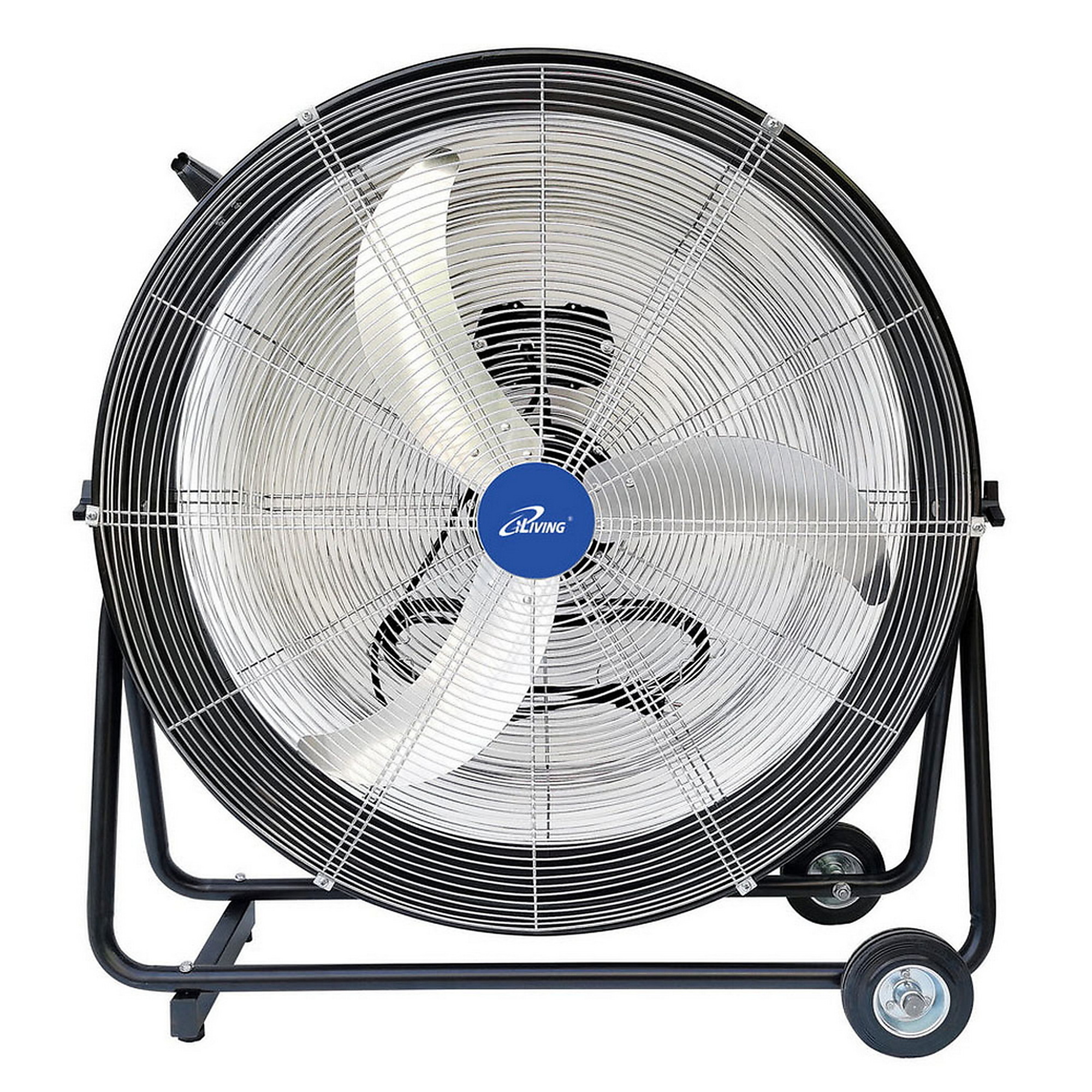

Dr. Infrared Heater iLiving High Velocity Drum Fan — 30in., 8300 CFM, 3-Speed, Steel Housing, UL Listed, Model# ILG8MF30-83

Item# 7188641
Dr. Infrared Heater iLiving High Velocity Drum Fan — 30in., 8300 CFM, 3-Speed, Steel Housing, UL Listed, Model# ILG8MF30-83

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving High Velocity Drum Fan — 30in., 8300 CFM, 3-Speed, Steel Housing, UL Listed, Model# ILG8MF30-83

Click or Tap image to Zoom

$269.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

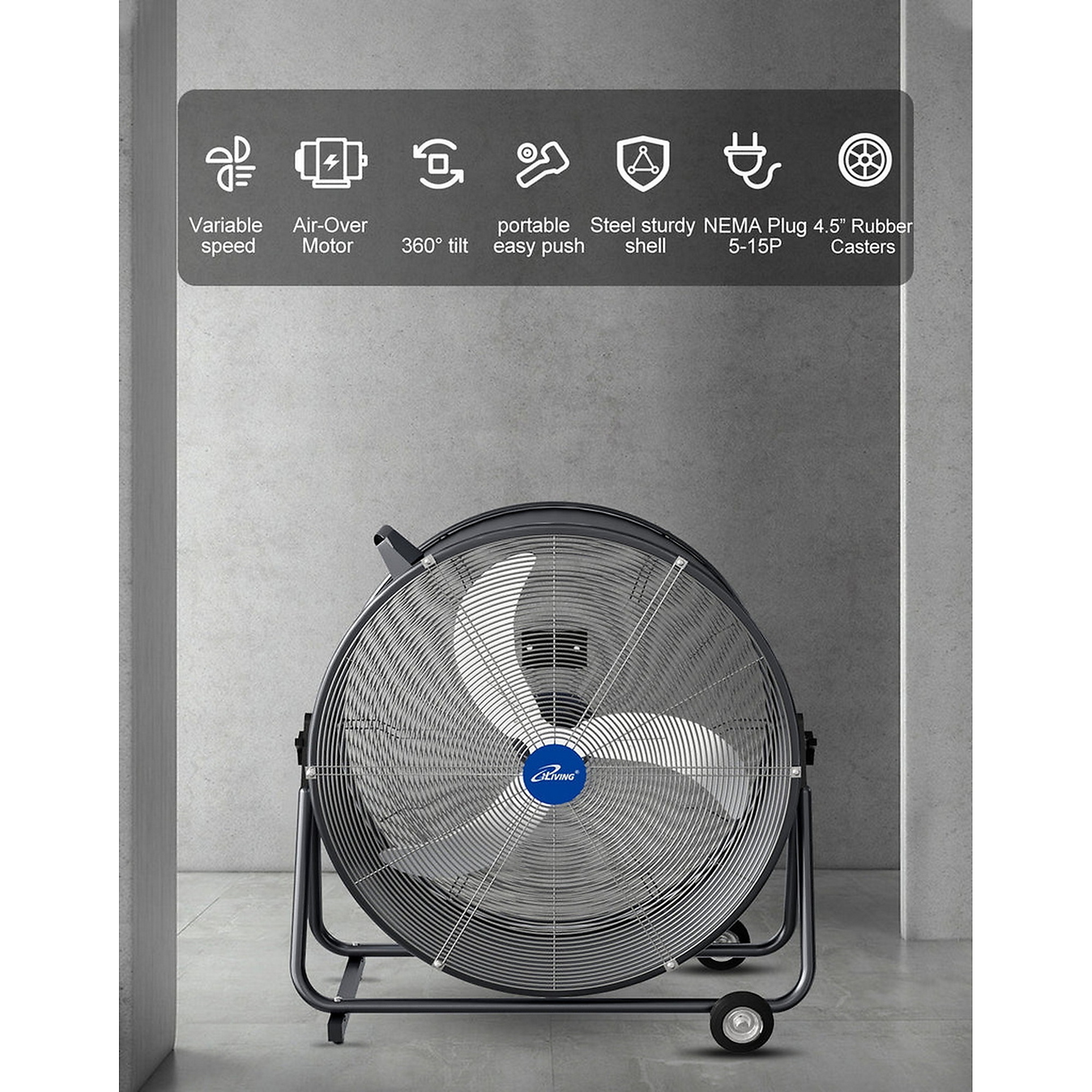

  • VARIABLE SPEED - The fan is designed with 3 Speed Setting HIGH, MID, and LOW settings. High speed will deliver 8300 CFM at below 70 DBA and Low Speed with 5550 CFM at below 69 DBA.
  • DIRECT DRIVE MOTOR - The fan has a roller bearing motor that’s heat resistant and maintenance-free. The motor has 1/5 horsepower.

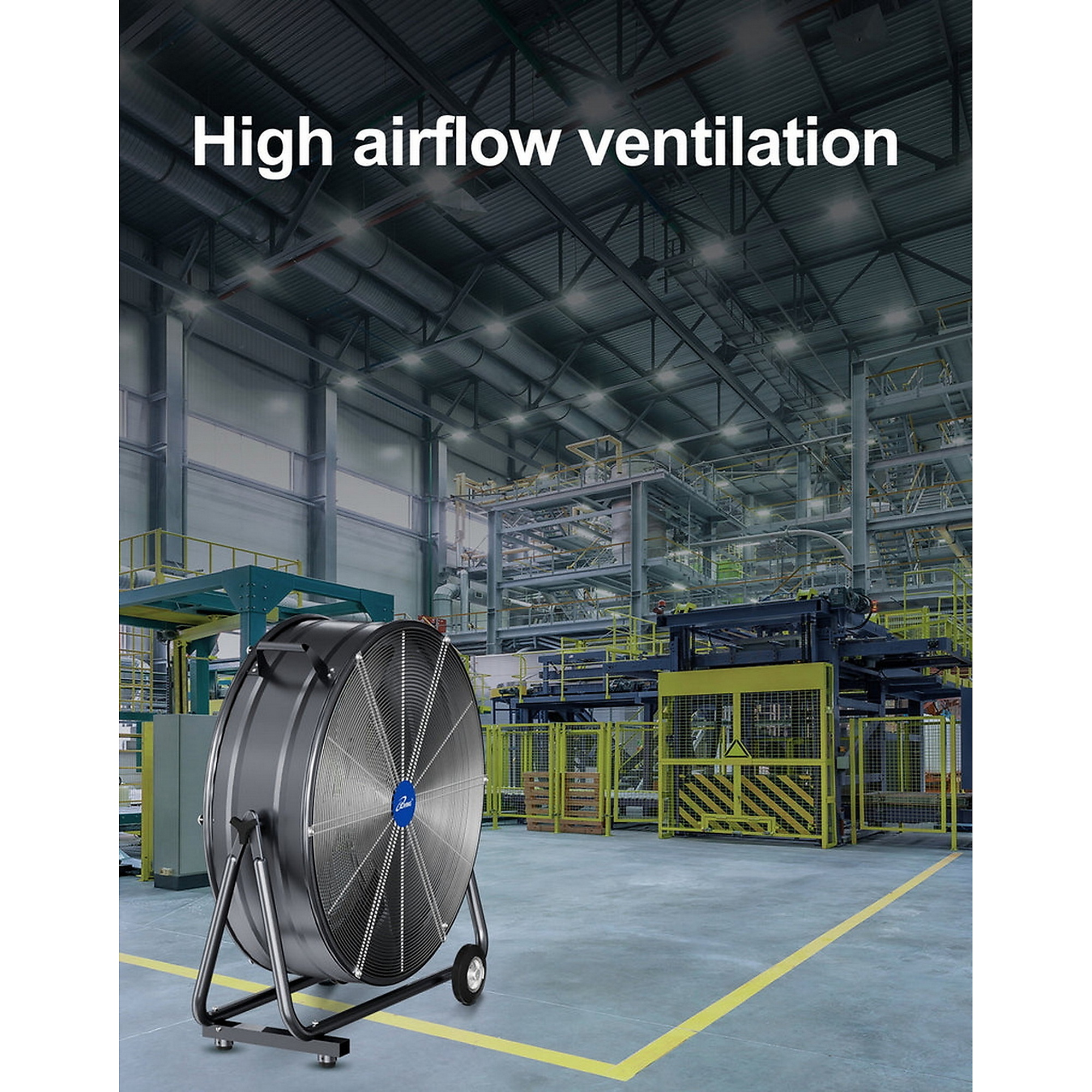

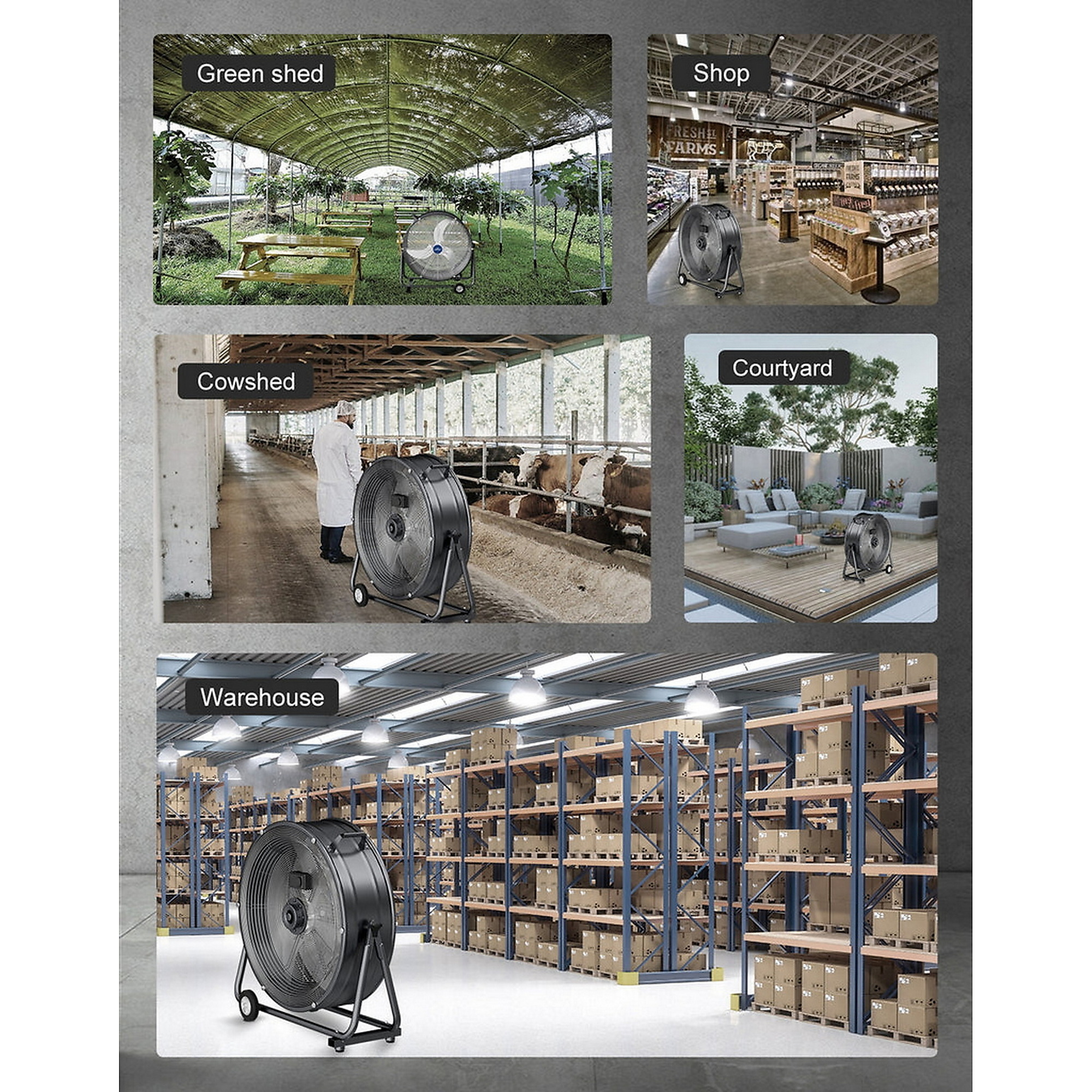

  • FULL 360 TILT - All around air direction that will fit all your needs. Designed with portable easy to push wheels that can be used in Garage, Shop, Patio, Barns, Greenhouse, Warehouses environment and more.
  • RUGGED HEAVY DUTY - The sturdy steel housing of this floor fan has formed channels for enhanced structure and rigidity. A grip handle for portability and powder coated as a beautiful finish and durability.
  • SAFETY CERTIFIED - Built-in thermal protection will shut off if overheat for any reason. UL Listed.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

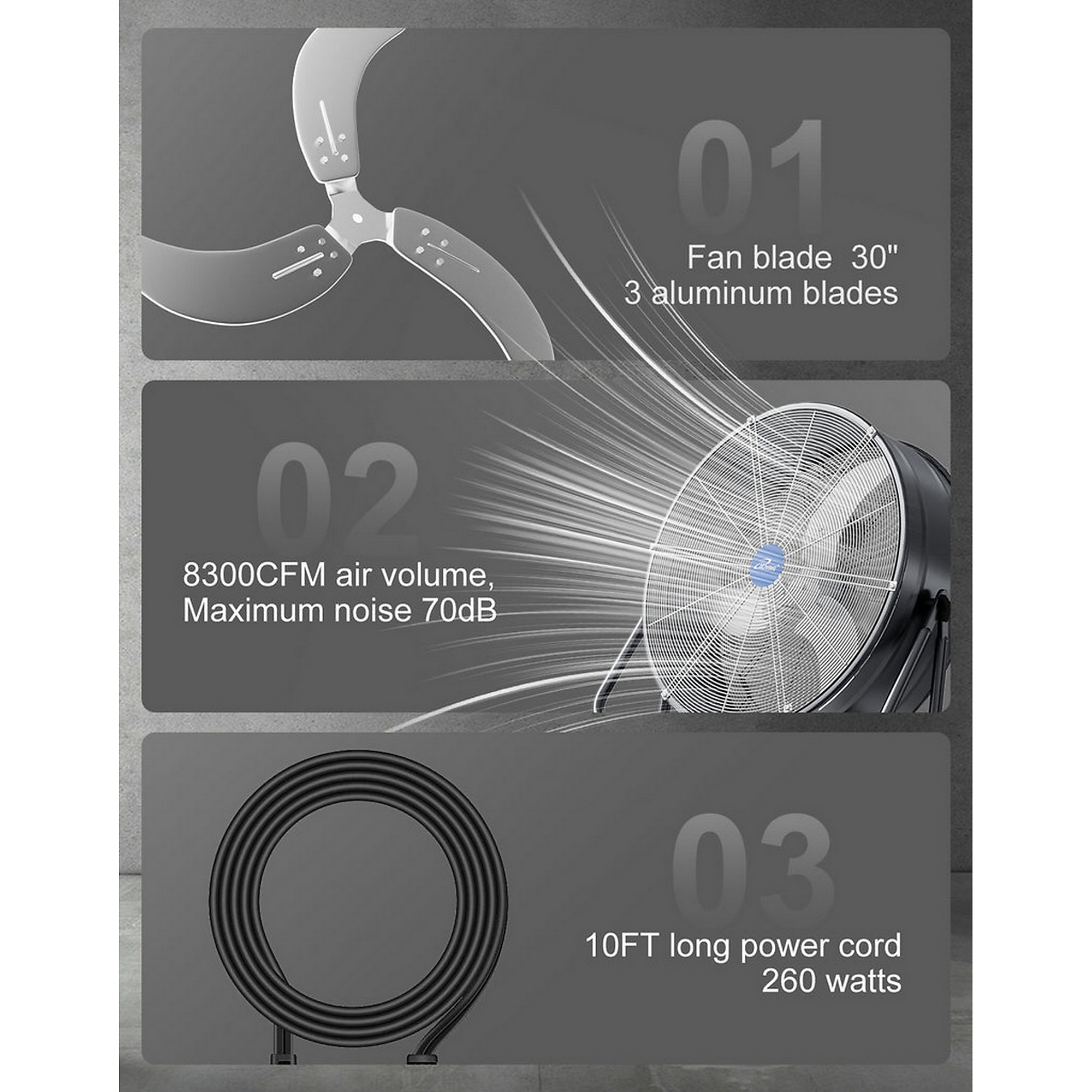

This iLIVING 30in. portable floor fan is designed to move large volumes of air; ideal for offices, factories, warehouses, loading docks, greenhouse, barn and auto shops. The fan speed is adjustable with 3 settings, High Mid, Low, Max 8300 CFM, allowing you to adjust the air circulation to your desired power, while still being cost and energy efficient, using only 260 watts at maximum speed. This fan has a 3-blade aluminum propeller with a built-in 360° rotation feature. The fan housing is constructed of heavy-duty steel with powder-coated finish. Motor RPM: 1100, Operating Amps: 2.3A, Industrial Applications, Fully Assembled, Max. Ambient Temp. 104°F (40°C), Totally Enclosed Air-Over-Motor Enclosure, Class B Motor Insulation, Auto Thermal Protection, Roller Bearing Type Ball, 36.25in.H x 36in.W x 13in.D, 10ft. cord, NEMA plug 5-15P, 3 Aluminum Blades, Steel Housing, Plastic and Rubber Casters, Steel Guard, Standards: UL USA and Canada.

What's Included

    (1) Drum Fan

Downloads

Product Manual

Features + Benefits

  • VARIABLE SPEED - The fan is designed with 3 Speed Setting HIGH, MID, and LOW settings. High speed will deliver 8300 CFM at below 70 DBA and Low Speed with 5550 CFM at below 69 DBA.
  • DIRECT DRIVE MOTOR - The fan has a roller bearing motor that’s heat resistant and maintenance-free. The motor has 1/5 horsepower.
  • FULL 360 TILT - All around air direction that will fit all your needs. Designed with portable easy to push wheels that can be used in Garage, Shop, Patio, Barns, Greenhouse, Warehouses environment and more.
  • RUGGED HEAVY DUTY - The sturdy steel housing of this floor fan has formed channels for enhanced structure and rigidity. A grip handle for portability and powder coated as a beautiful finish and durability.
  • SAFETY CERTIFIED - Built-in thermal protection will shut off if overheat for any reason. UL Listed.

Key Specs

AttributeSpecification

item#

7188641

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

45.3 LB

Fan Diameter

30 in

Air Delivery

8,300 cfm

Volts

120

Watts

260
AttributeSpecification

Amps

2.3

Speeds (qty.)

3

Max. Fan Speed

1,100 rpm

Noise Level

70 dB

Primary Color

Black

Assembly Required

No

Product Weight

41.5000 lb

Dimensions L x W x H (in.)

36.6 x 12.7 x 36.3 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
