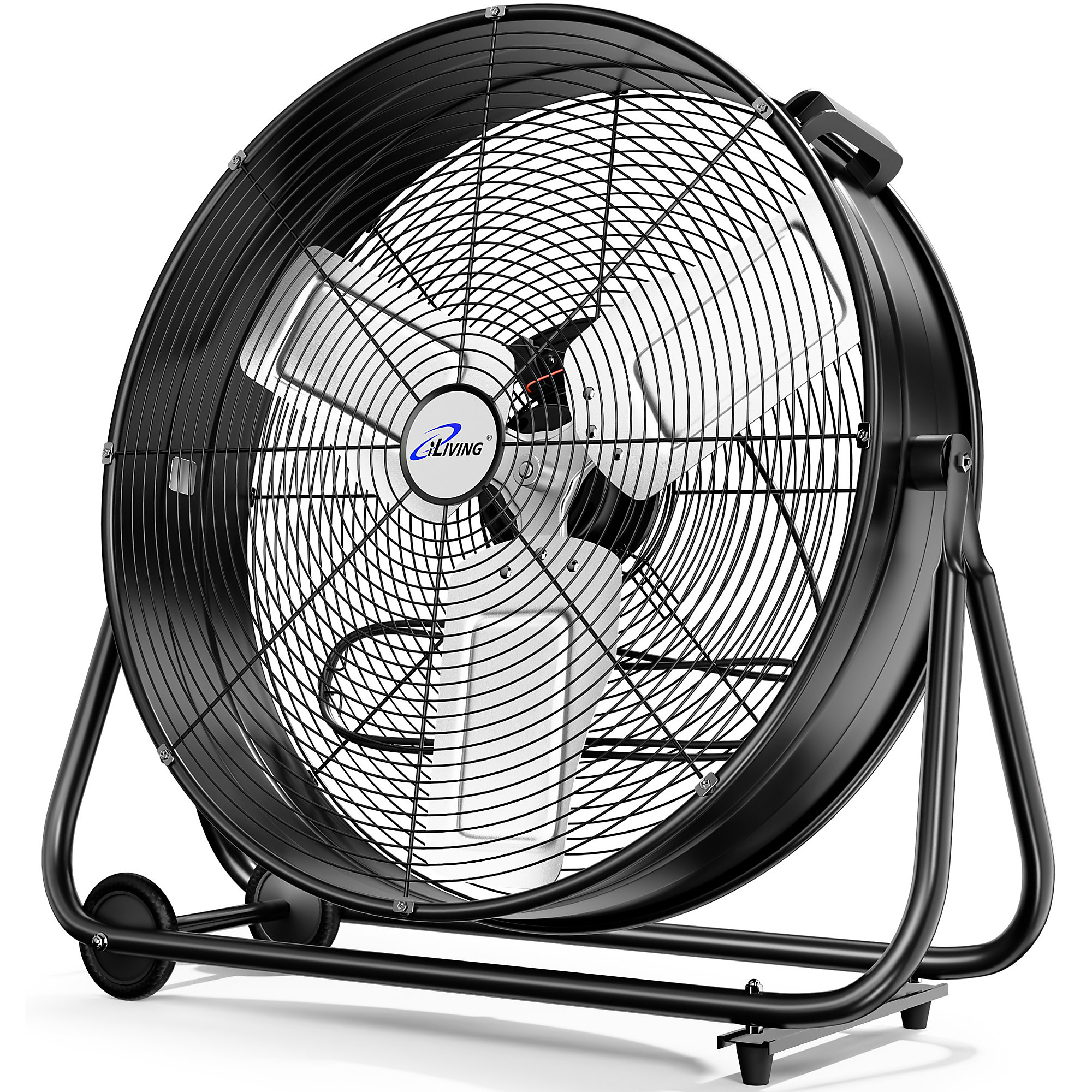

iLIVING High Velocity Drum Fan — 24in., 7700 CFM, Adjustable Speed, Steel Housing, UL Listed, Model# ILG8MF24-77

Item# 7188595
iLIVING High Velocity Drum Fan — 24in., 7700 CFM, Adjustable Speed, Steel Housing, UL Listed, Model# ILG8MF24-77

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

iLIVING High Velocity Drum Fan — 24in., 7700 CFM, Adjustable Speed, Steel Housing, UL Listed, Model# ILG8MF24-77

Click or Tap image to Zoom

$159.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

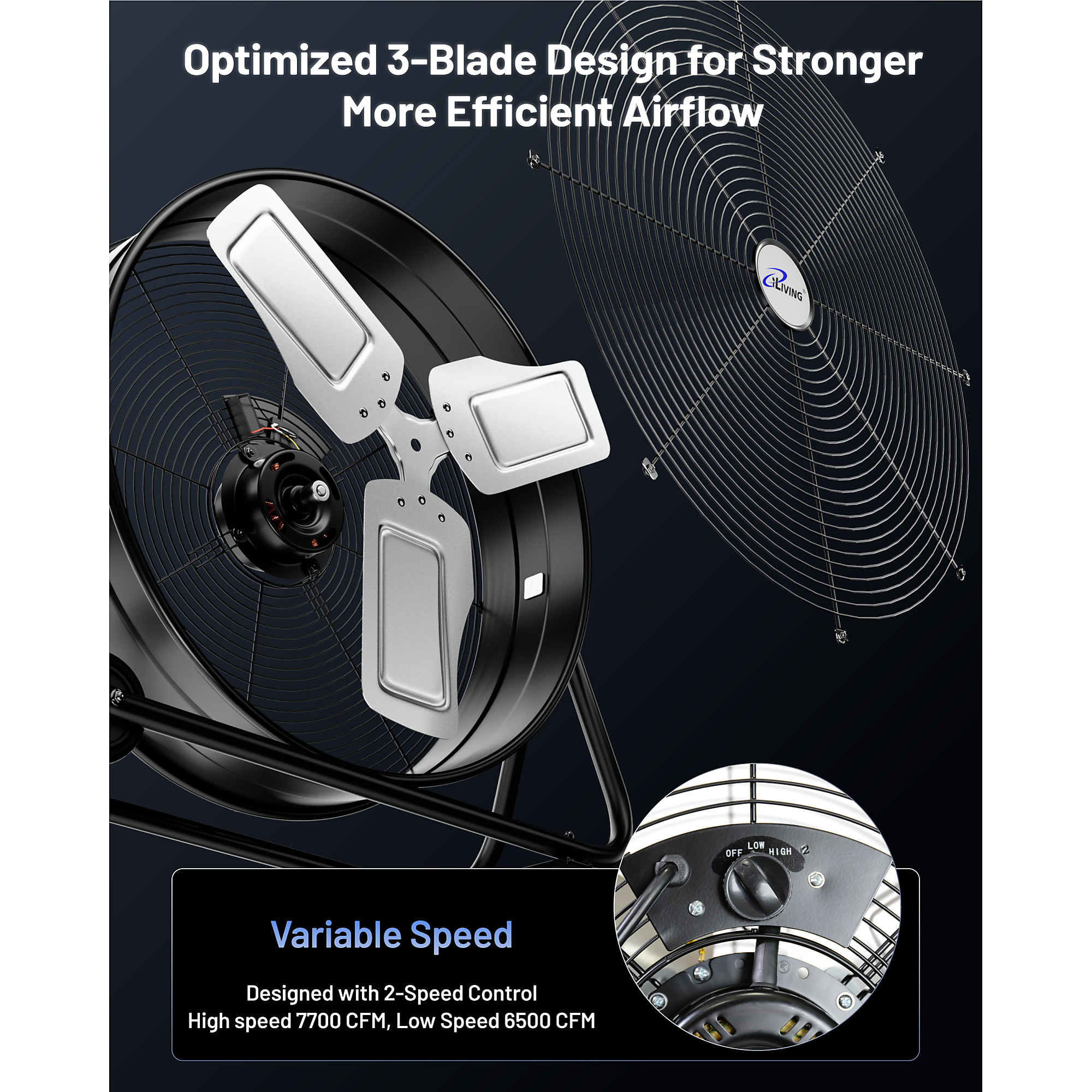

  • VARIABLE SPEED - The fan is designed with 2 Speeds Control, HIGH and LOW settings. High speed will deliver 7700 CFM at 69 DBA and Low Speed with 6500 CFM at 62 DBA.
  • DIRECT DRIVE MOTOR - The fan has a roller bearing motor that’s heat resistant and maintenance-free. The motor has 1/3 horsepower and can operate safely between 32 - 104 degrees Fahrenheit.
  • FULL 360 TILT - All around air direction that will fit all your needs. Designed with portable easy to push wheels that can be used in Garage, Shop, Patio, Barns, Greenhouse, Warehouses environment and more.
  • RUGGED HEAVY DUTY - The sturdy steel housing of this floor fan has formed channels for enhanced structure and rigidity. A grip handle for portability and powder coated as a beautiful finish and durability.
  • SAFETY CERTIFIED - Built-in thermal protection will shut off if overheat for any reason. UL Listed.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

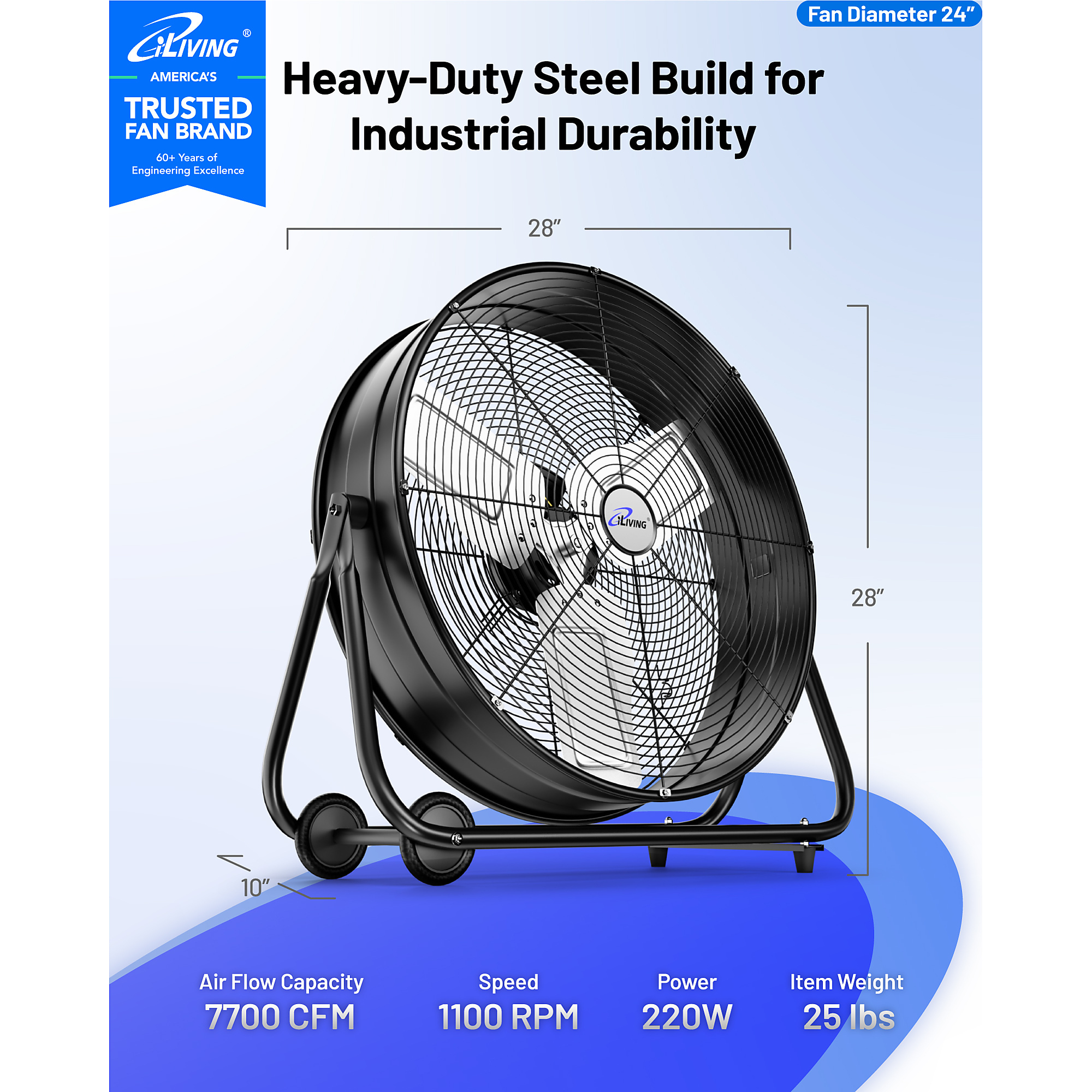

This iLIVING 24in. portable floor fan is designed to move large volumes of air; ideal for offices, factories, warehouses, loading docks, greenhouse, barn and auto shops. The fan speed is adjustable with 2 settings, High and Low, Max 7700 CFM, allowing you to adjust the air circulation to your desired power, while still being cost and energy efficient, using only 220 watts at maximum speed. This fan has a 3-blade aluminum propeller with a built-in 360° rotation feature. The fan housing is constructed of heavy-duty steel with powder-coated finish. Motor RPM: 1100, Operating Amps: 1.9A, Industrial Applications, Fully Assembled, Max. Ambient Temp. 104°F (40°C), Totally Enclosed Air-Over-Motor Enclosure, Class B Motor Insulation, Auto Thermal Protection, Roller Bearing Type Ball, 30in.H x 30 1/2in.W x 13 1/4in.D, 6.5ft. cord, NEMA plug 5-15P, 3 Aluminum Blades, Steel Housing, 7in. (17.8 cm) Plastic and Rubber Casters, Steel Guard, Standards: UL USA and Canada.

What's Included

    (1) Drum Fan

Downloads

Product Manual

Features + Benefits

  • VARIABLE SPEED - The fan is designed with 2 Speeds Control, HIGH and LOW settings. High speed will deliver 7700 CFM at 69 DBA and Low Speed with 6500 CFM at 62 DBA.
  • DIRECT DRIVE MOTOR - The fan has a roller bearing motor that’s heat resistant and maintenance-free. The motor has 1/3 horsepower and can operate safely between 32 - 104 degrees Fahrenheit.
  • FULL 360 TILT - All around air direction that will fit all your needs. Designed with portable easy to push wheels that can be used in Garage, Shop, Patio, Barns, Greenhouse, Warehouses environment and more.
  • RUGGED HEAVY DUTY - The sturdy steel housing of this floor fan has formed channels for enhanced structure and rigidity. A grip handle for portability and powder coated as a beautiful finish and durability.
  • SAFETY CERTIFIED - Built-in thermal protection will shut off if overheat for any reason. UL Listed.

Key Specs

AttributeSpecification

item#

7188595

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

26.7 LB

Fan Diameter

24 in

Air Delivery

7,700 cfm

Volts

120

Watts

220

Amps

1.9
AttributeSpecification

Speeds (qty.)

2

Max. Fan Speed

1,100 rpm

Noise Level

69 dB

Hardwired

No

Power Cord Length

6.5 ft

Primary Color

Black

Assembly Required

No

Product Weight

25.0000 lb

Dimensions L x W x H (in.)

30.0 x 13.25 x 30.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
