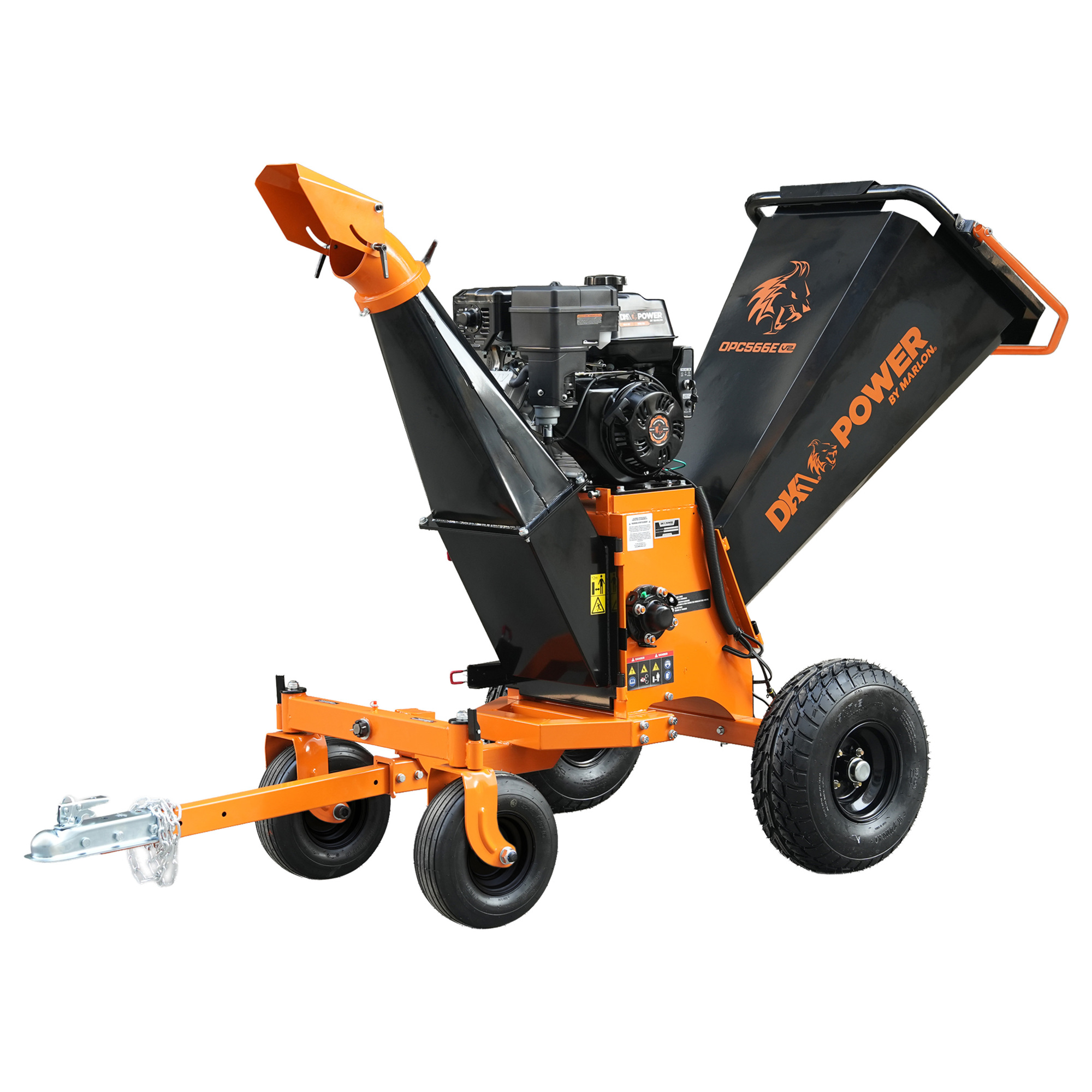

DK2 Power Kinetic Chipper — 6.25in. Capacity, 19.5 HP 500cc OHV Engine, Electric Start, Model# OPC566E-V2

Item# 7107943
DK2 Power Kinetic Chipper — 6.25in. Capacity, 19.5 HP 500cc OHV Engine, Electric Start, Model# OPC566E-V2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 Power Kinetic Chipper — 6.25in. Capacity, 19.5 HP 500cc OHV Engine, Electric Start, Model# OPC566E-V2

Click or Tap image to Zoom

$3499.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 19.5 HP 500 cc OHV engine with electric start
  • 22.8 ft-lb (31 Nm) net torque
  • Dual belt drive bearing-mounted drum chipping system that builds up kinetic force for smooth, continuous material feed
  • Extra-large feed chute handles material up to 6.25 inches (15.9 cm) in diameter
  • Two 12-inch (30 cm) hardened steel reversible chipping blades

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DK2 POWER by Marlon V2 Series OPC566E-V2 Kinetic Chipper is powered by a 19.5 HP 500 cc OHV engine, and deteriorates any tree up to 6.25in. in diameter. Its bearing-mounted chipping drum system, oversized discharge height, and heavy-duty tow-behind frame make this machine an easy choice for large land clearing projects. The OPC566E-V2 is also OSHA-compliant with an extended infeed chute equipped with a safety stop bar, ignition lockout keys, and safety lockout contactors on both infeed and discharge chutes.

What's Included

    (1) 6" Chipper Shredder with Electric Start

Downloads

Product Manual Product Manual2
Safety Data Sheet

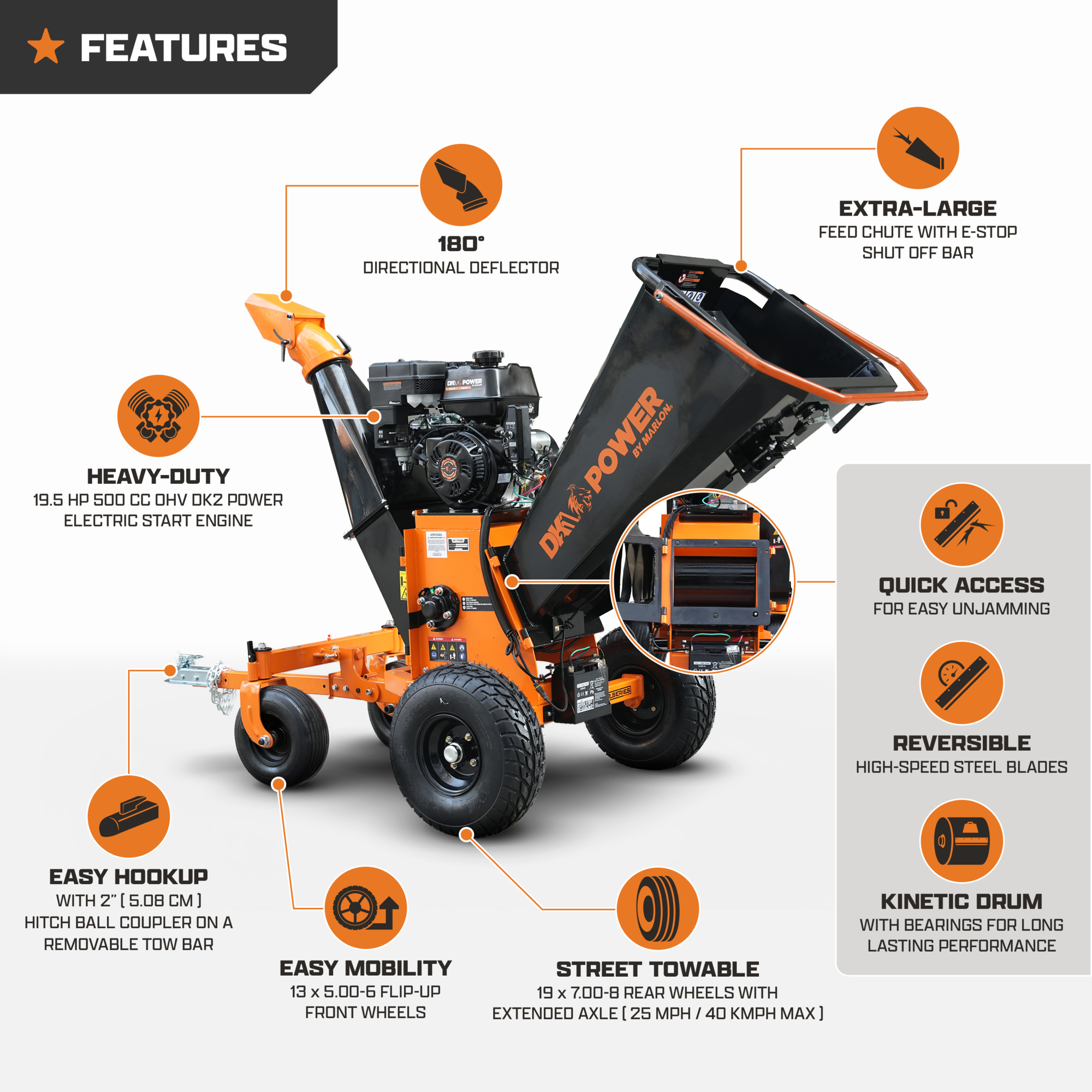

Features + Benefits

  • 19.5 HP 500 cc OHV engine with electric start
  • 22.8 ft-lb (31 Nm) net torque
  • Dual belt drive bearing-mounted drum chipping system that builds up kinetic force for smooth, continuous material feed
  • Extra-large feed chute handles material up to 6.25 inches (15.9 cm) in diameter
  • Two 12-inch (30 cm) hardened steel reversible chipping blades
  • Tool-free swing-open chutes with safety lockout contactors for quick access to the drum chamber for easy unjamming
  • 61 in. (155 cm) tall expulsion chute with 180° deflector adjustability for high-volume, controlled discharge
  • 13 x 5.00-6 front flip-up wheels and 19 x 7.00-8 rear D.O.T. tires for stability on any terrain and towability up to 25 mph (40 kmph)
  • Tow-behind design with 2" (5.08 cm) ball coupler
  • OSHA-compliant safety features including extended feed chute, safety stop bar, ignition lockout, and safety lockout chutes

Key Specs

AttributeSpecification

item#

7107943

Brand

DK2 Power

Manufacturer's Warranty

1 year limited warranty

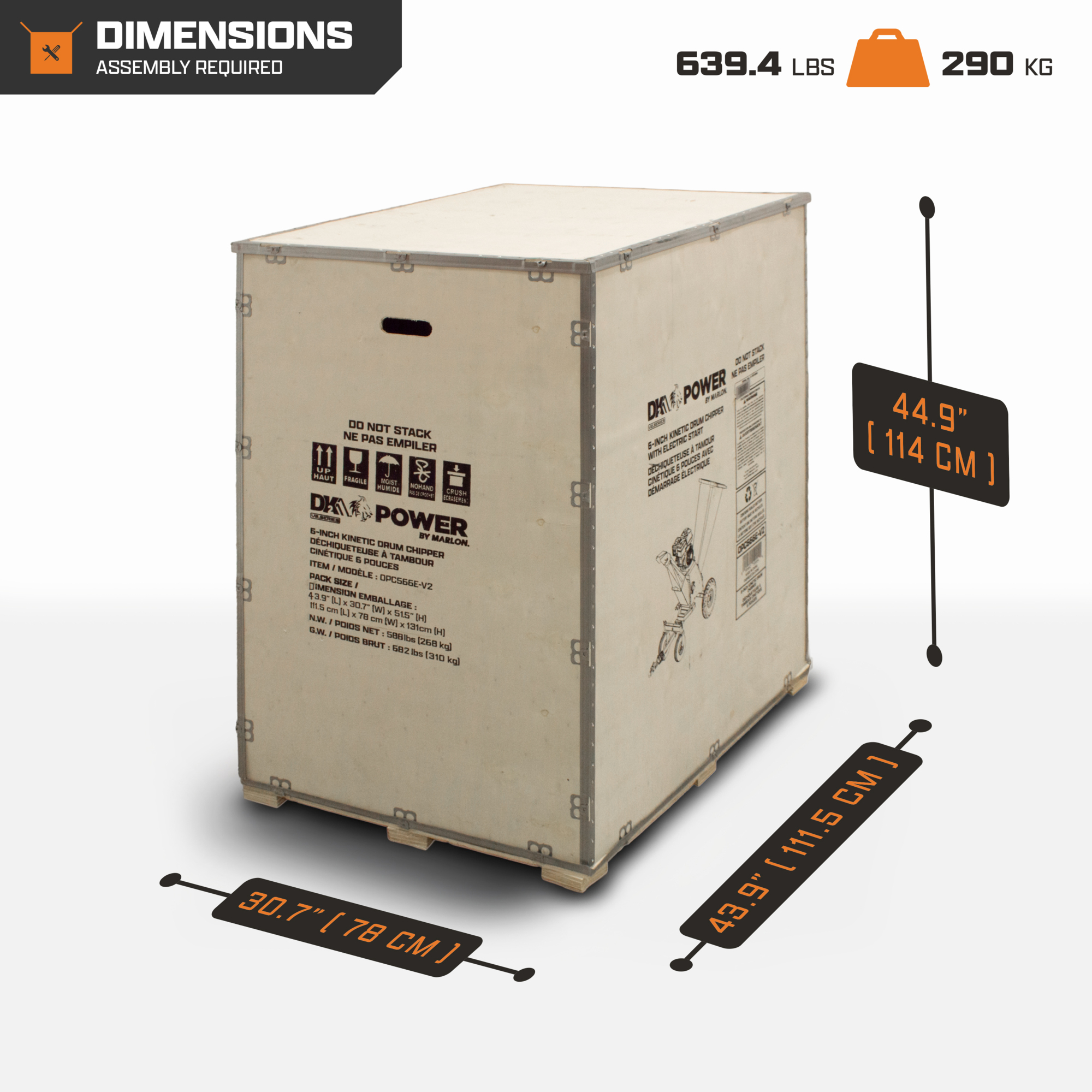

Ship Weight

639.4 LB

Max. Cutting Thickness

6 in

Engine Displacement

500 cc

Horsepower

19.5

Product Type

Chipper/Shredder

Fuel Type

Gasoline
AttributeSpecification

Engine Brand

OEM

Engine Model

DK2 POWER

Start Type

Electric and Recoil

Max. Speed

3,600 rpm

Vacuum Speed

0 cfm

Vacuum Hose Length

0 ft

Fuel Capacity

1.72 Gal

Product Weight

555.6000 lb

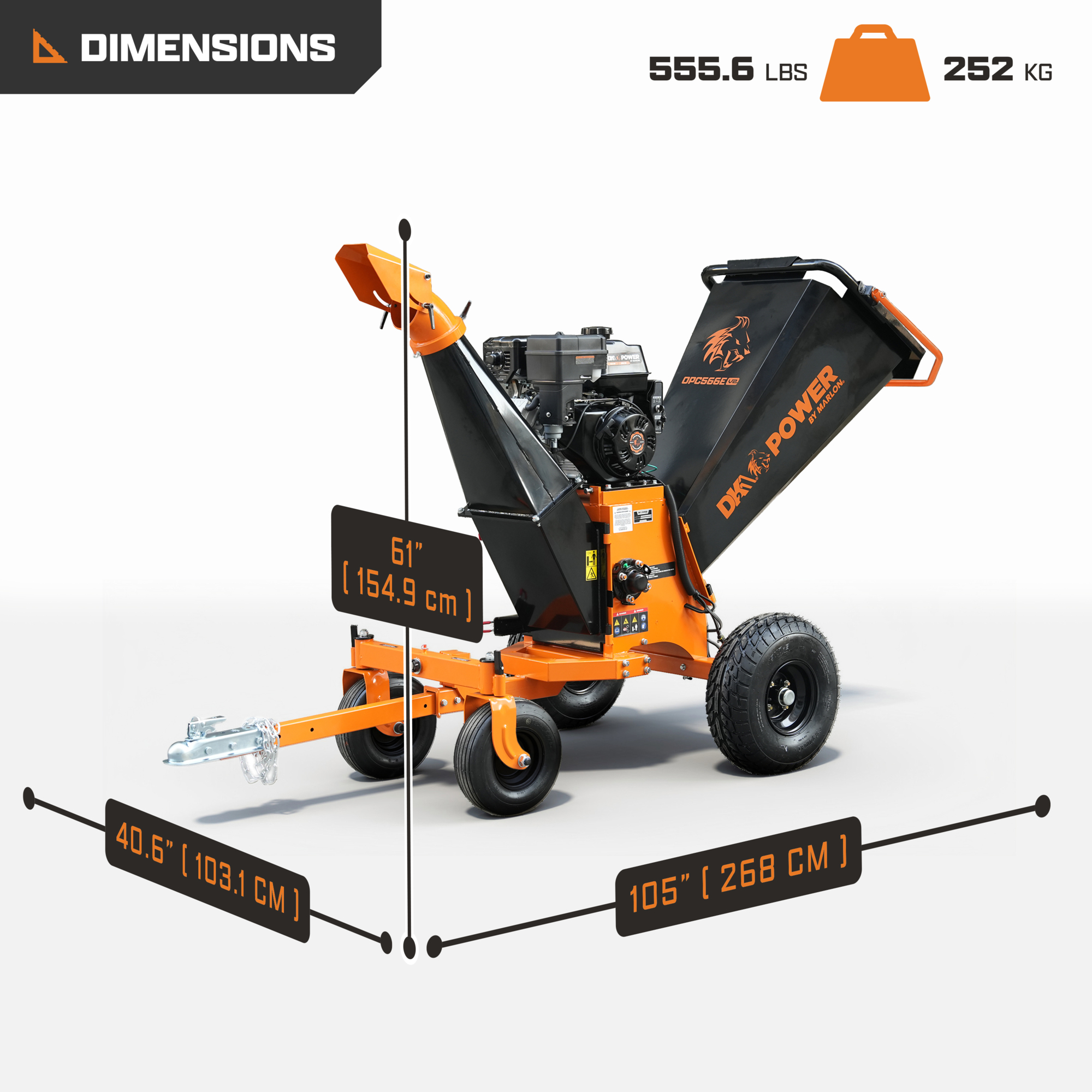

Dimensions L x W x H (in.)

105.5 x 40.6 x 61.0 in

Reviews

Questions & Answers

Questions

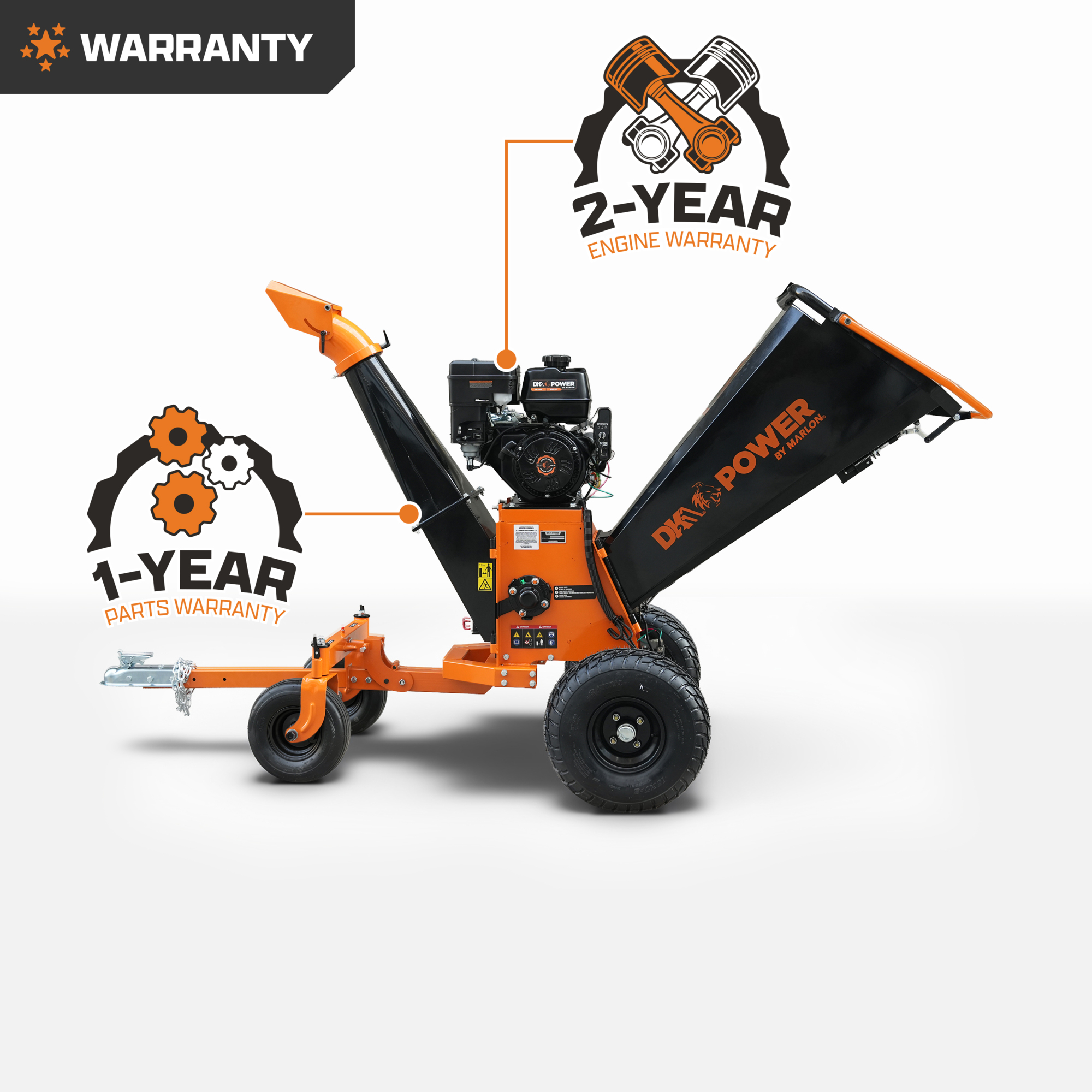

Warranty

Manufacturer's Warranty

1 year limited warranty
