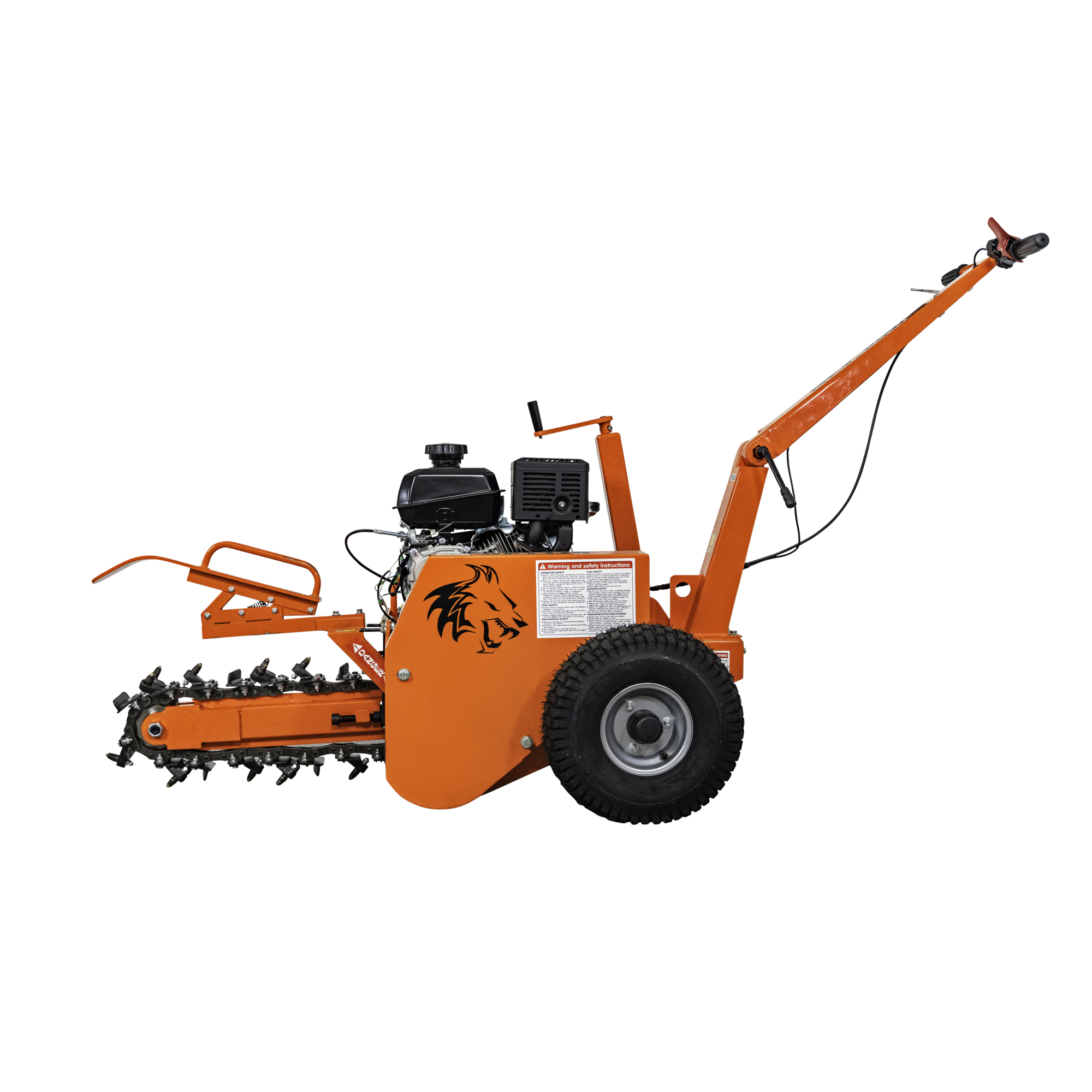

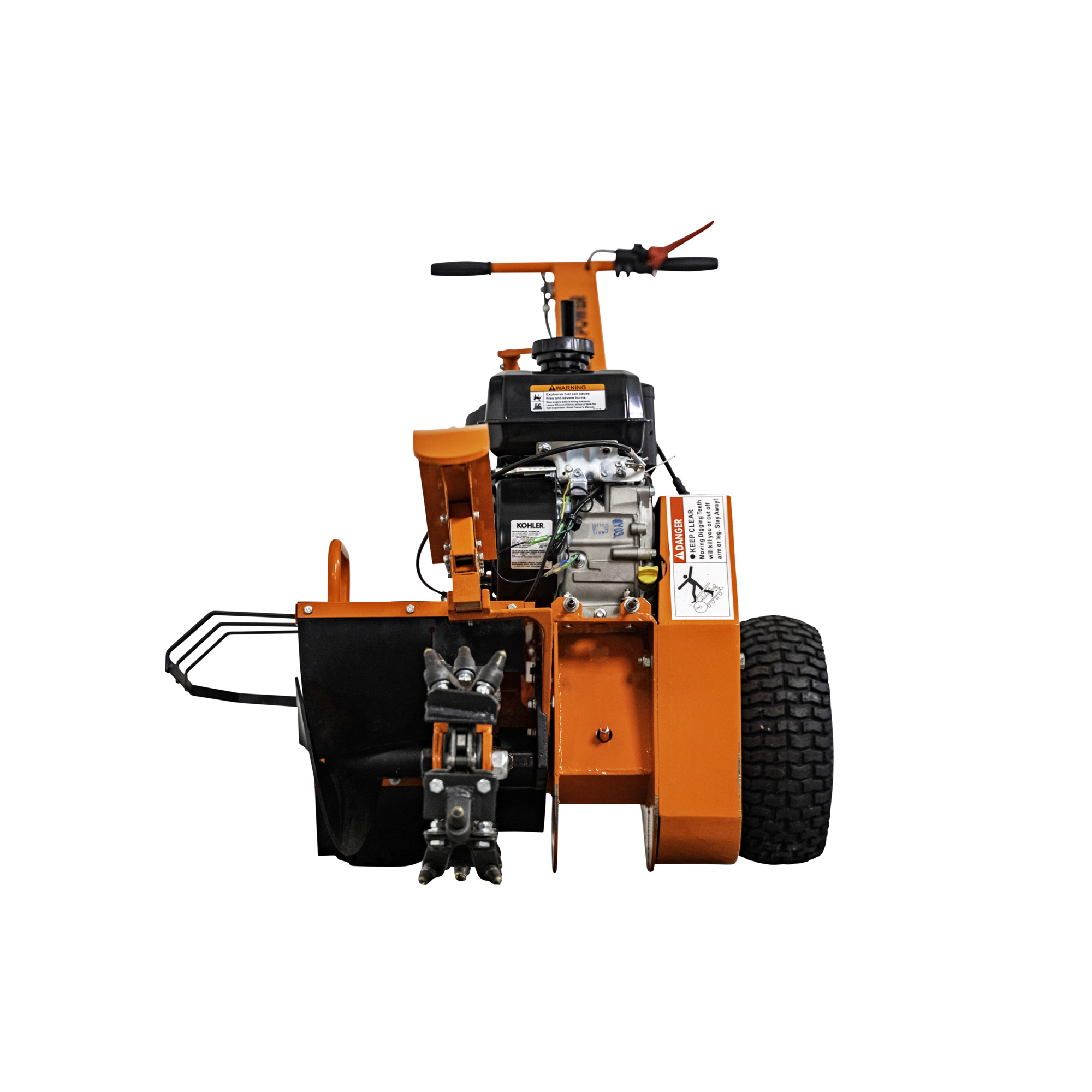

DK2 Power DK2 Power, 18in. Kohler CH270 7HP Trencher, Horsepower 7 HP, Engine Displacement 208 cc, Model# OPT118

Item# 5757598
DK2 Power DK2 Power, 18in. Kohler CH270 7HP Trencher, Horsepower 7 HP, Engine Displacement 208 cc, Model# OPT118

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 Power DK2 Power, 18in. Kohler CH270 7HP Trencher, Horsepower 7 HP, Engine Displacement 208 cc, Model# OPT118

Click or Tap image to Zoom

$3199.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

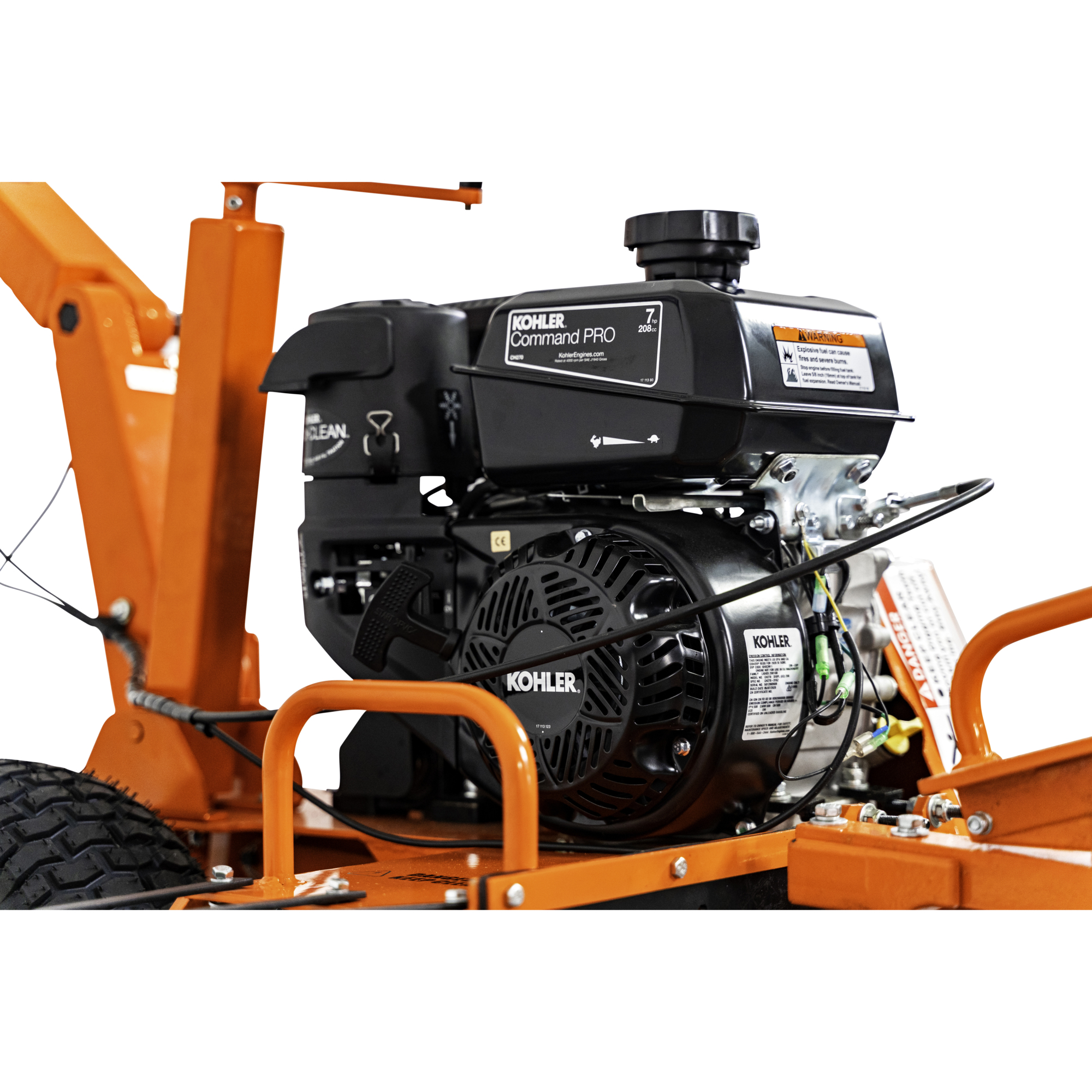

  • Powered by a KOHLER® Command PRO® CH270 7 HP 208 cc engine
  • Direct chain drive trencher chain and auger
  • 5 depth positions
  • Auto-locking 6.00-6 15-inch tires for digging in reverse
  • 3/8-inch plow plates with 21 carbide alloy high-pressure quick-change teeth

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

18in. Trencher powered by Kohler Commercial 3 yr warranty 4000 rpm CH270 7 HP. High pressure sintered 21 Tungsten Carbide cutters trench at 1800ft./min. Tri cut 63in. chain traveling at 200ft./hour. Aggressive 10.5ft./lbs torque chain at 400 rpm power through 4in. wide trenches feeding the dual belt chain auto auger. Adjustable leveling handle, axle auto lock in reverse. Quick depth MULTI position change. Quick change teeth with 3/8 plow plates, HD trolly wheel for easy transportation and digging stability. DK2 Power designs and manufactures only performance commercial equipment.

What's Included

    (1) trencher

Features + Benefits

  • Powered by a KOHLER® Command PRO® CH270 7 HP 208 cc engine
  • Direct chain drive trencher chain and auger
  • 5 depth positions
  • Auto-locking 6.00-6 15-inch tires for digging in reverse
  • 3/8-inch plow plates with 21 carbide alloy high-pressure quick-change teeth
  • Adjustable handle with release and stop safety hand grip
  • 6-inch direct drive auger
  • Heavy-gauge steel construction
  • Direct drive with 400 RPM tri-cut teeth chain drive at 180 ft/min dig rate
  • Includes 3-year KOHLER® engine and 1-year limited DK2 chassis warranty

Key Specs

AttributeSpecification

item#

5757598

Brand

DK2 Power

Manufacturer's Warranty

1 year limited warranty

Ship Weight

362.0 LB

Product Type

Trencher

Horsepower

7 HP

Engine Displacement

208 cc

Max. Speed

400 rpm
AttributeSpecification

Gas or Electric

Gas

Min. Cutting Depth

6 in

Max. Cutting Depth

18 in

Engine Brand

Kohler

Engine Model

CH270

Product Weight

335.0000 lb

Dimensions L x W x H (in.)

95.0 x 59.0 x 47.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. How wide a trench will it cut

    1 answer

    1. This trencher digs trenches 4" high and 18" deep.

      Helpful?

  2. How do I engage the drive on wheels ?

    1 answer

    1. To engage the drive, you would lower the forward brake bar so the gears engage with the wheels, then set the engine to a high speed and pull the machine backward. The forward brake bar prevents the trencher from moving forward, while the backward movement is controlled by pulling the unit. Then to disengage the brakes and move it freely, loosen the center bolt in the brake bar.

      Helpful?

  3. Is this self-propelled?

    1 answer

    1. The trencher is not self propelled.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
