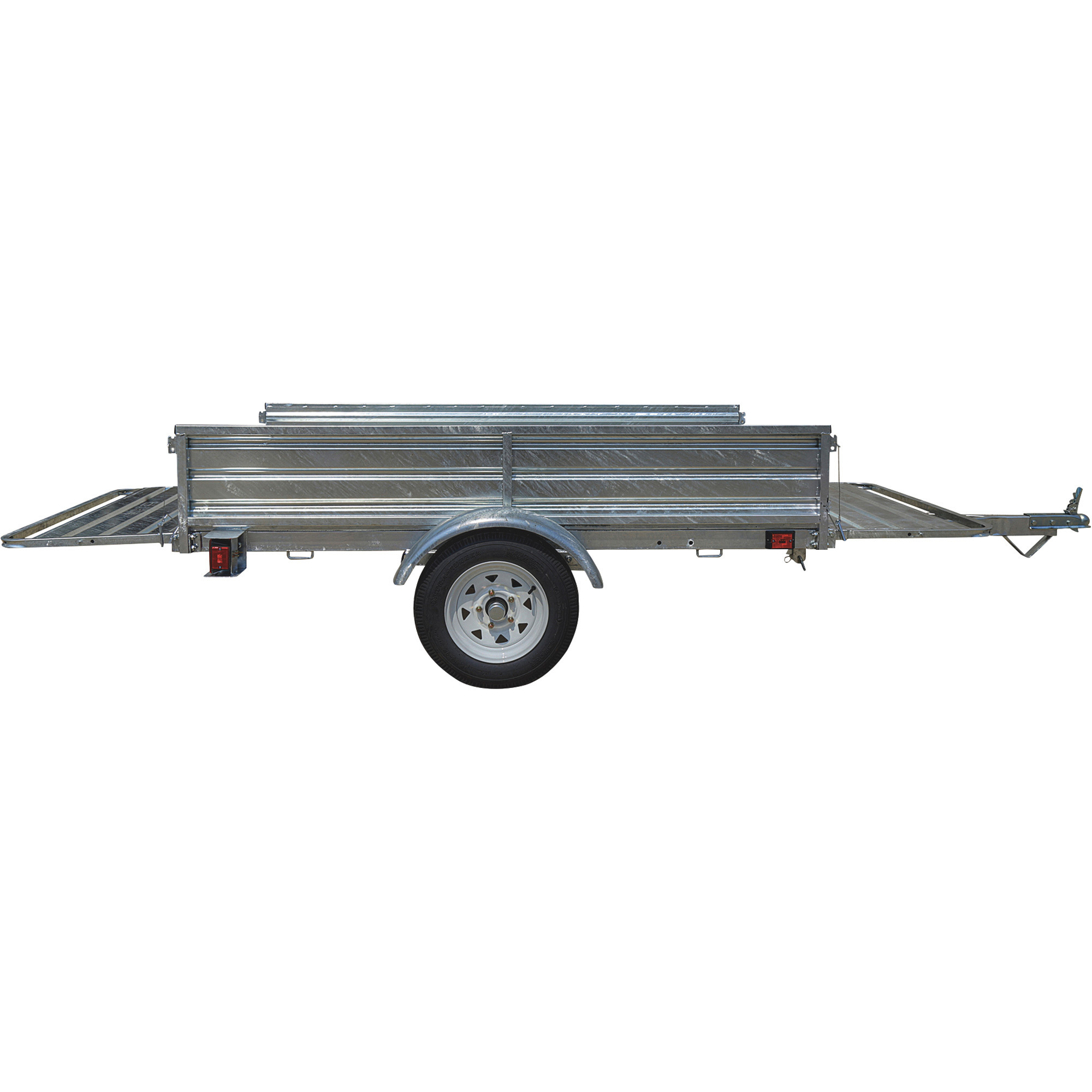

DK2 5ft. x 7ft. Utility Trailer Kit, Galvanized Steel, 1639-Lb. Load Capacity, Model# MMT5X7G

Item# 73956
"DK2 5ft. x 7ft. Utility Trailer Kit, Galvanized Steel, 1639-Lb. Load Capacity, Model# MMT5X7G"
DK2 5ft. x 7ft. Utility Trailer Kit, Galvanized Steel, 1639-Lb. Load Capacity, Model# MMT5X7G

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 5ft. x 7ft. Utility Trailer Kit, Galvanized Steel, 1639-Lb. Load Capacity, Model# MMT5X7G

Click or Tap image to Zoom

$1799.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Heavy-duty 5ft. x 7ft. steel trailer is fully welded and hot dipped galvanized to protect steel from elements
  • 1639-lb. load capacity; 2090-lb. GVWR
  • Tubular steel frame, steel corrugated floor and solid side and front panels/rails
  • Front and back load-bearing gates extends trailer bed to 11.58ft.
  • Tilt/dump feature makes it easy to load or unload heavy items

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DK2 MMT5X7 Galvanized Steel single axle multi-utility trailer is one of the most versatile trailers on the market. Sitting on a solid square tube cambered axle with 12in. radial tires, and a load capacity of 1639 lbs. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and/or interchangeable. The trailer is fully welded and hot dipped galvanized to protect the steel from the elements especially in coastal regions.

What's Included

    (1) Trailer kit in carton

Downloads

Product Manual

Features + Benefits

  • Heavy-duty 5ft. x 7ft. steel trailer is fully welded and hot dipped galvanized to protect steel from elements
  • 1639-lb. load capacity; 2090-lb. GVWR
  • Tubular steel frame, steel corrugated floor and solid side and front panels/rails
  • Front and back load-bearing gates extends trailer bed to 11.58ft.
  • Tilt/dump feature makes it easy to load or unload heavy items
  • Solid square tube cambered axle
  • 5.3in. x 12in. 6-ply radial tires (5 x 4.5in. bolt pattern)
  • V shape tongue for added strength
  • 2-position dump bed
  • Trailer is fully pre-wired with plug-and-play 4in. flat connectors to reduce assembly time
  • Floor height: 20in.
  • Hitch height: 16in.
  • Quick-release lock pin
  • Includes 2in. coupler with safety chains, LED lights and all necessary paperwork for registering with local DMV
  • Assembly required

Key Specs

AttributeSpecification

item#

73956

Brand

DK2

Manufacturer's Warranty

1 year limited warranty

Ship Weight

460.0 LB

Load Capacity

1,639 lb

Deck Length

4.5 ft

Deck Width

7 ft

Trailer Type

Trailer Kit

Load Capacity (lbs.)

1,639

Coupler Size

2 in

Frame Material

Steel

Deck Size L x W (ft.)

4 1/2 x 7
AttributeSpecification

Deck Material

Steel

Assembly Required

Yes

Gross Vehicle Weight Rated

2,090 lb

Wheel Size

12 in

Coupler Size (in.)

2

Lights Included

Yes

Wheel Size (in.)

12

Ramps Included

No

Bed Tilt

Yes

Product Weight

451 lb

Overall Dimensions L x W x H (in.)

178 x 65 x 36

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Is the rear gate fully and easily removeable?

    1 answer

    1. The rear gate is attached with two lower nuts and bolts, and two upper pins, it is easily removed.

      Helpful?

  2. What is the height of the tongue to be perfectly level?

    1 answer

    1. The level hitch/tongue height is listed as 16".

      Helpful?

  3. how is the title handled?

    1 answer

    1. Please refer to the manufacturers website for registration for licensing.

      Helpful?

  4. Can a hydraulic dump kit be added to this trailer and if so what do you recommend?

    1 answer

    1. At this time a hydraulic dump kit is unavailable from the manufacturer.

      Helpful?

  5. Any suspension or leaf springs?

    1 answer

    1. This trailer utilizes slipper leaf springs for its suspension.

      Helpful?

  6. How tall are the side walls

    1 answer

    1. The side panels are 14" tall. The drop gates on the front and back are 24" tall.

      Helpful?

  7. Howdy, what gauge is the side wall metal,

    1 answer

    1. The side panels of this trailer kit are fabricated from 0.06 gauge steel. They are also reinforced with 0.06 gauge square tubing along the edges and three vertical posts.

      Helpful?

  8. What is the speed rating of this trailer?

    1 answer

    1. This trailer is rated for highway speeds. The manufacturer states not to exceed the speed limit when driving.

      Helpful?

  9. What is the assembled weight of this trailer?

    1 answer

    1. The assembled weight of this trailer is 451 lbs.

      Helpful?

  10. Is this recommended to carry an ATV?

    1 answer

    1. When this trailer kit is properly assembled, it has a deck size of 4.5' x 7' and a capacity of 1639 lbs. This trailer could be used for transporting an ATV.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
