DK2 4.5 x 7.5 Drive-Up Gate Utility Trailer, Load Capacity 1639 lb, Deck Length 7.5 ft, Deck Width 4.5 ft, Model# MMT5X7-DUG

Item# 6023431
DK2 4.5 x 7.5 Drive-Up Gate Utility Trailer, Load Capacity 1639 lb, Deck Length 7.5 ft, Deck Width 4.5 ft, Model# MMT5X7-DUG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DK2 4.5 x 7.5 Drive-Up Gate Utility Trailer, Load Capacity 1639 lb, Deck Length 7.5 ft, Deck Width 4.5 ft, Model# MMT5X7-DUG

Click or Tap image to Zoom

$1779.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Constructed with fully-welded heavy-duty UV powder-coated tubular steel with a bed size of 4.5 ft. x 7.5 ft. that holds up to 1,639 pounds
  • Corrugated reinforced steel floor panel with 20" ground clearance
  • 24" load-bearing corrugated steel front drop gate and 40" expanded mesh and tubular steel rear ramp gate
  • Solid square tubular steel cambered axle

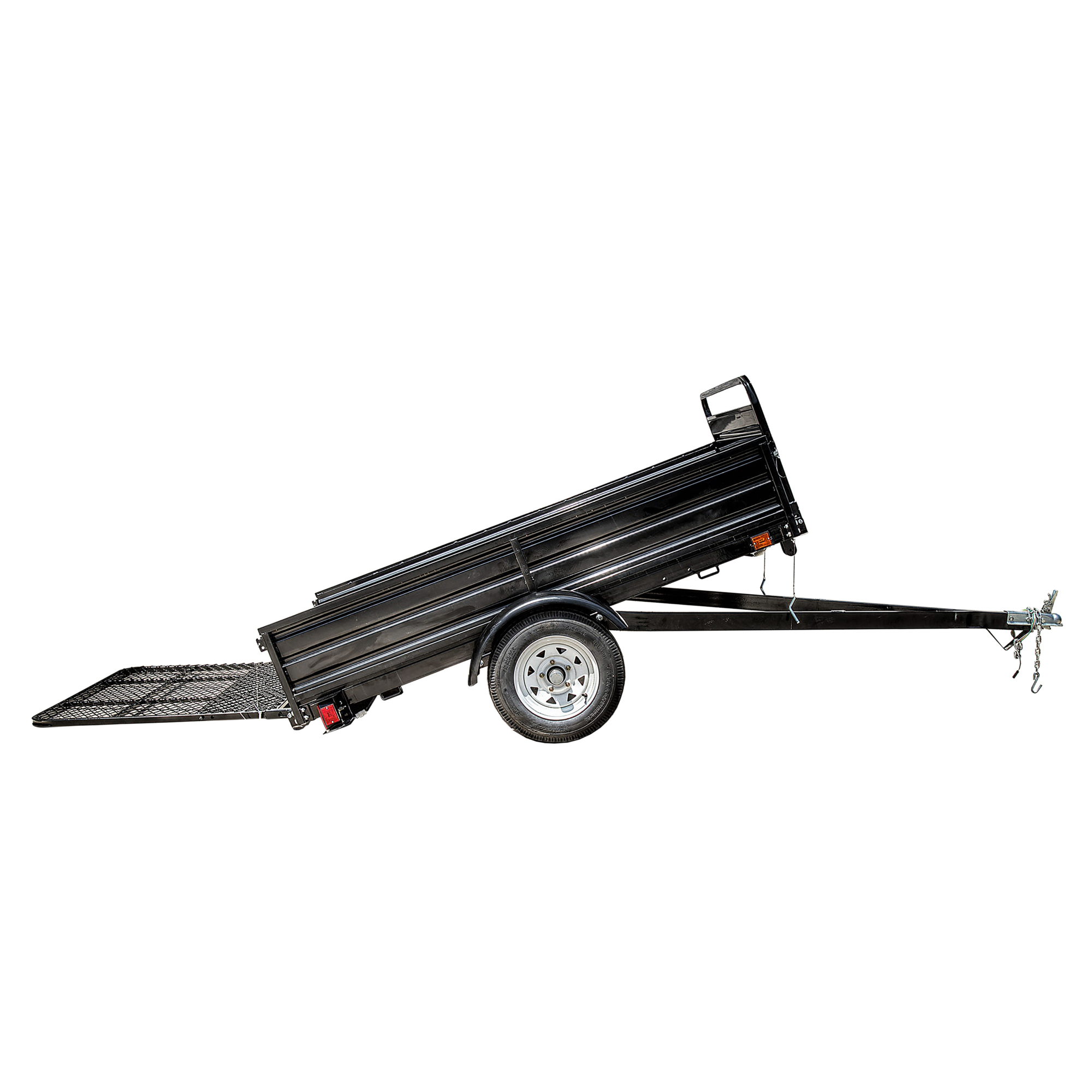

  • 2-position axle-mounted dump bed with quick-release lock pin

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

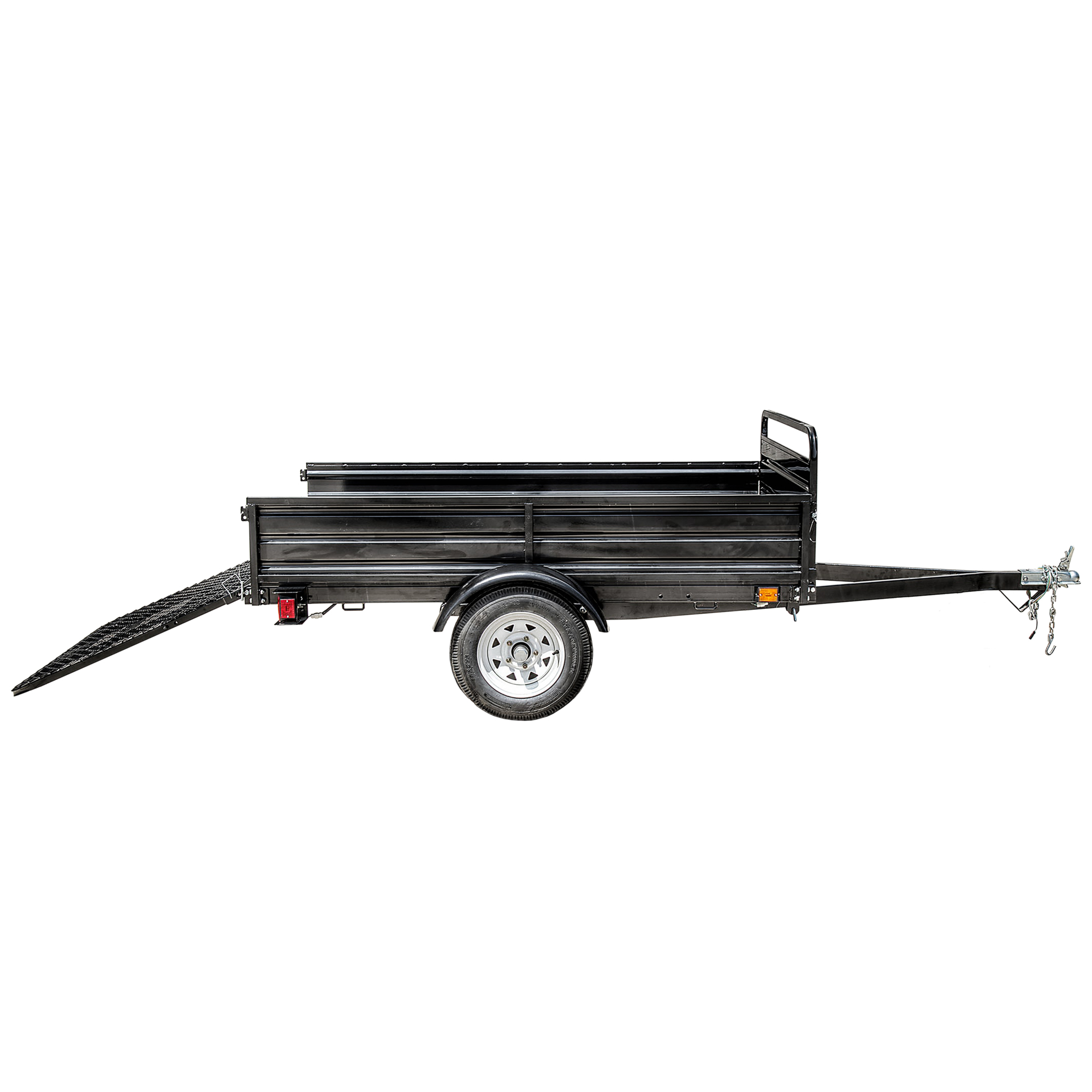

This single axle multi-utility trailer from DK2 is one of the most versatile trailers on the market. Sitting on a solid square tube cambered axle with 12in., 6-ply bias tires and a load capacity of 1,639 pounds. The MMT5X7-DUG comes with a 24in. front load-bearing gate and a 40in. rear drive-up gate, and a tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and/or interchangeable.

What's Included

    (1) Trailer

Downloads

Product Manual

Features + Benefits

  • Constructed with fully-welded heavy-duty UV powder-coated tubular steel with a bed size of 4.5 ft. x 7.5 ft. that holds up to 1,639 pounds
  • Corrugated reinforced steel floor panel with 20" ground clearance
  • 24" load-bearing corrugated steel front drop gate and 40" expanded mesh and tubular steel rear ramp gate
  • Solid square tubular steel cambered axle
  • 2-position axle-mounted dump bed with quick-release lock pin
  • D.O.T. 5.30-12 bias tires with a 5 x 4.5" bolt pattern
  • Quick-connect D.O.T. LED lighting with side markers and heavy-duty taillight protectors
  • A-frame tow bar with 2" ball coupler and a hitch height of 16"
  • Includes 1-year DK2 limited warranty and all necessary paperwork for registering with local DMV.

Key Specs

AttributeSpecification

item#

6023431

Brand

DK2

Manufacturer's Warranty

1 year limited warranty

Ship Weight

480.0 LB

Load Capacity

1,639 lb

Deck Length

7.5 ft

Deck Width

4.5 ft

Trailer Type

Complete Trailer

Coupler Size

2 in

Frame Material

Steel

Deck Material

Steel
AttributeSpecification

Assembly Required

Yes

Gross Vehicle Weight Rated

471 lb

Wheel Size

12 in

Foldable

No

Lights Included

Yes

Ramps Included

Yes

Wheel Material

Rubber-on-Steel

Bed Tilt

Yes

Product Weight

471.0000 lb

Dimensions L x W x H (in.)

177.0 x 53.0 x 65.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
