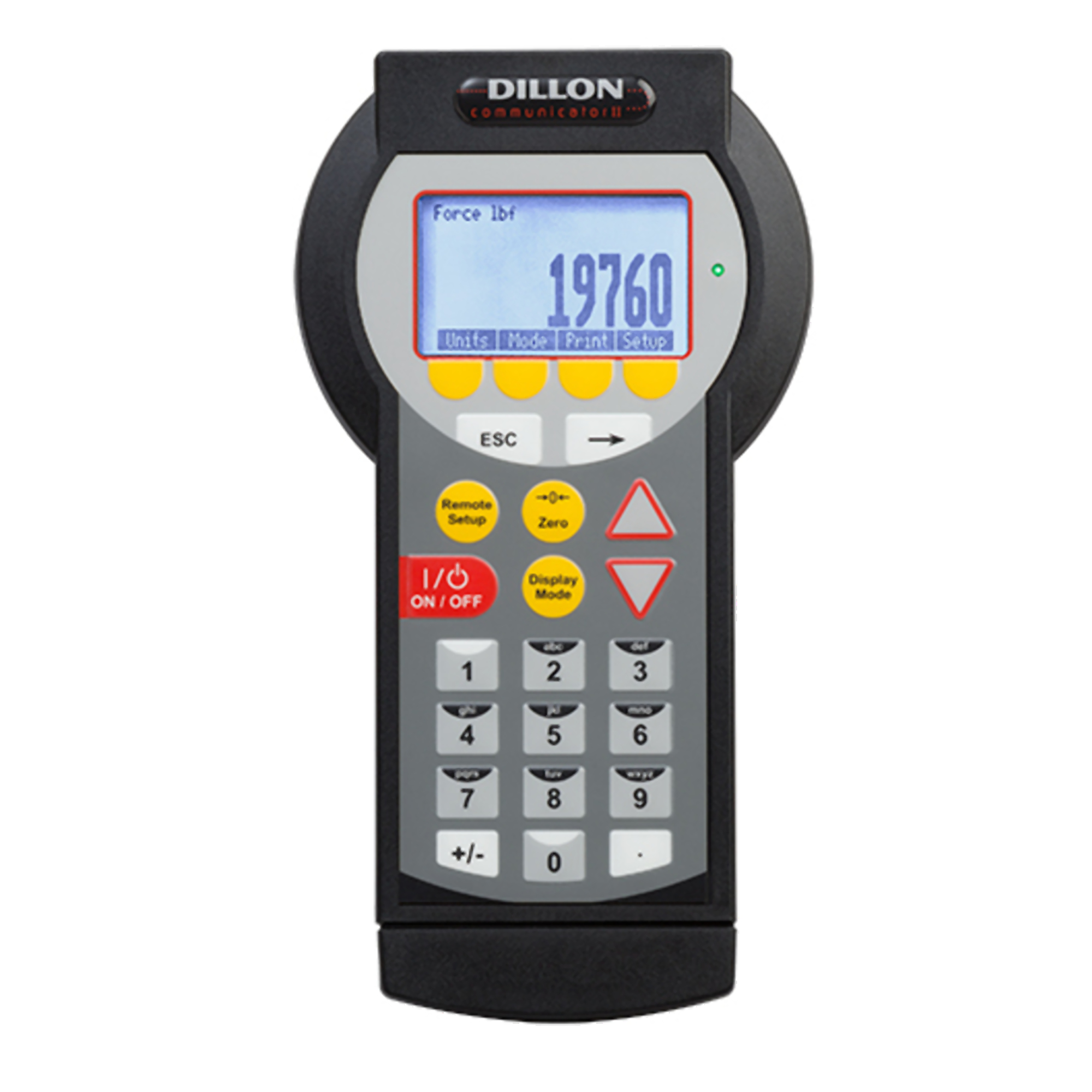

Dillon, Hand-held remote for EDXtreme Dynamometers, Model# Communicator

Item# 5946461
Dillon, Hand-held remote for EDXtreme Dynamometers, Model# Communicator

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dillon, Hand-held remote for EDXtreme Dynamometers, Model# Communicator

Click or Tap image to Zoom

$2129.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Uses wired or radio technologies to define function and manage the operation of one to 5 EDXtreme dynamometers.
  • Designed to NEMA 3 / IP54 with optional sleeve.
  • Ergonomic handheld design
  • 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
  • Operating temperature is -4° F to 158° F.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The optional Communicator is an extremely powerful hand-held remote that can define function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. It has an intuitive bright 128 x 64 dot graphic LCD display and operates on 4 AA batteries (included) with a battery life of up to 80 hours. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load. Its RF communication is up to 800’ and can communicate with up to 15 EDXtremes and the display shows individual EDX’s and Total/Sum. The optional RS-232 can easily print or extract data. The unit’s operating temperature is from -4° F to 158° F and is suitable for protected outdoor use. Includes carrying case.

What's Included

    (1) EDXtreme Handheld Communicator

Features + Benefits

  • Uses wired or radio technologies to define function and manage the operation of one to 5 EDXtreme dynamometers.
  • Designed to NEMA 3 / IP54 with optional sleeve.
  • Ergonomic handheld design
  • 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.
  • Operating temperature is -4° F to 158° F.
  • The programmable SOFTKEY interface can monitor multiple dynamometers within the same airspace.
  • Operates on 4 AA batteries for up to 80 continuous hours.
  • Includes batteries and carry case.

Key Specs

AttributeSpecification

item#

5946461

Brand

Dillon

Manufacturer's Warranty

2 year limited warranty

Ship Weight

10.0 LB
AttributeSpecification

Style

Dynamometer

Product Weight

1.0000 lb

Dimensions L x W x H (in.)

5.0 x 2.5 x 9.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
