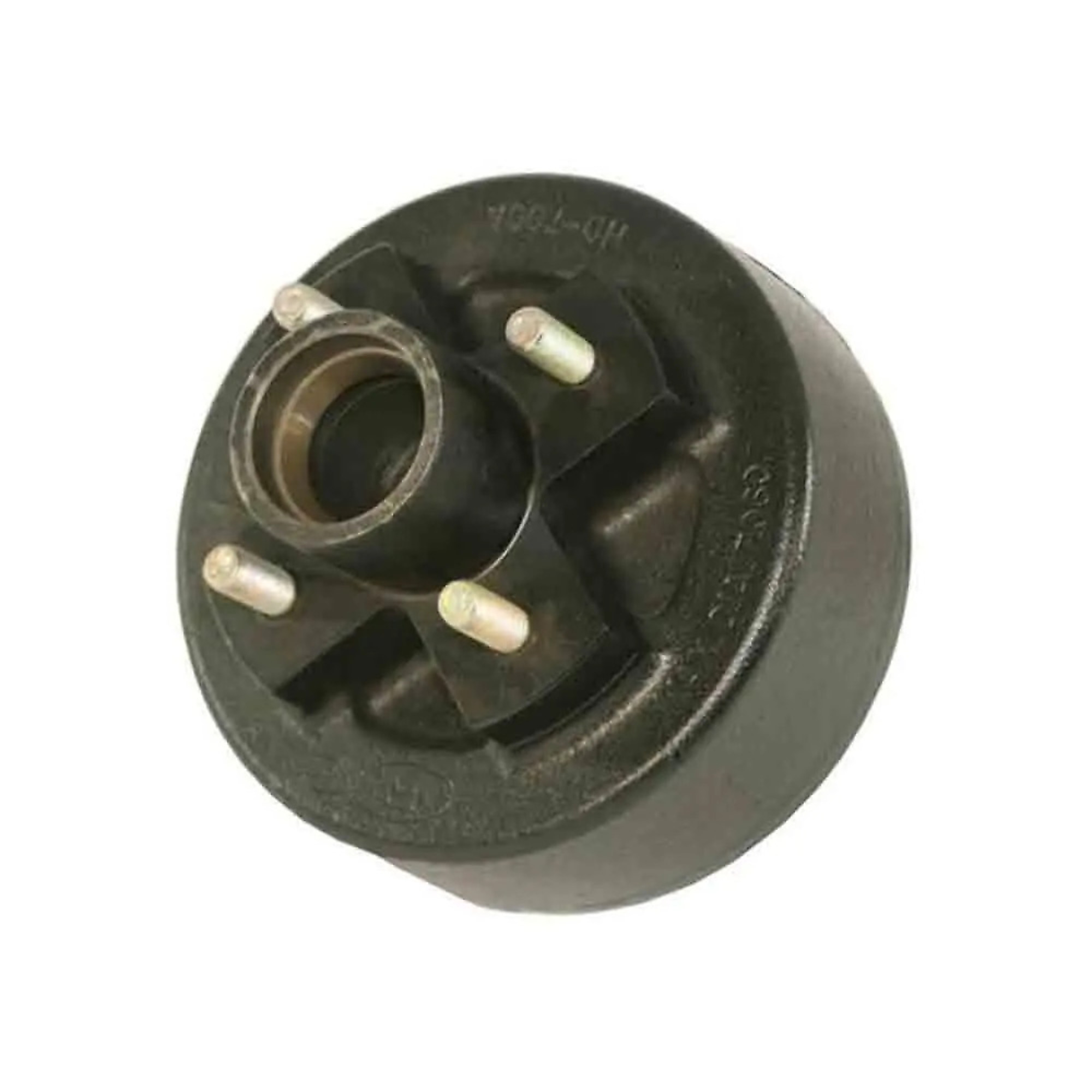

Dexter, 7-Inch Hub and Drum, 4-Bolt on 4 Inch Bolt Circle, For 1 or 1-1/16 inch Straight Spindles, Works with 2,000lb Axle, For use with 7 inch electric or hydraulic brakes. 1250lb Capacity per Hub, Model# HD-700A-04
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$123.72
- 2" deep inside for use with 7" electric or hydraulic brakes.
- 1/2-20 Threads
See full description
See All Trailer Hubs
See All Dexter Trailer Hubs
Currently Viewing This Product
Specifications
Specifications
Dexter, 7-Inch Hub and Drum, 4-Bolt on 4 Inch Bolt Circle, For 1 or 1-1/16 inch Straight Spindles, Works with 2,000lb Axle, For use with 7 inch electric or hydraulic brakes. 1250lb Capacity per Hub, Model# HD-700A-04
C. E. Smith Trailer Hub Kit, Galvanized, 1in. Shaft, 5 Stud x 4.5in. Bolt Circle, 1250-Lb. Capacity, Model# 13215
C. E. Smith Trailer Hub Kit, Galvanized, 1 1/16in. Shaft, 5 Stud x 4.5in. Bolt Circle, 1350-Lb. Capacity, Model# 13315
C. E. Smith Trailer Hub Kit, Galvanized, 1 3/8in.-1 1/16in. Tapered Shaft, 5 Stud x 4.5in. Bolt Circle, 1750-Lb. Capacity, Model# 13515
Studs (qty.)
Same
4
5
5
5
Bolt Circle Pattern
Same
4 in
4.5 in
4.5 in
4.5 in
Weight Capacity Each
Same
1,250 lb
1,250 lb
1,350 lb
1,750 lb
Single-Lip
Same
No
-
-
-
Double-Lip
Same
Yes
-
-
-
Product Weight
Same
14.0000 lb
8 lb
7.9 lb
9.3 lb
Dimensions L x W x H (in.)
Same
16.0 x 15.0 x 6.0 in
-
-
-
Seal Size ID
Same
-
1 in
1.062 in
1.375 in
Bearing Size ID
Same
-
1-1/4 in
1-1/4 in
-
Spindle Size
Same
-
1.25 in
1.5 in
1.719 in
