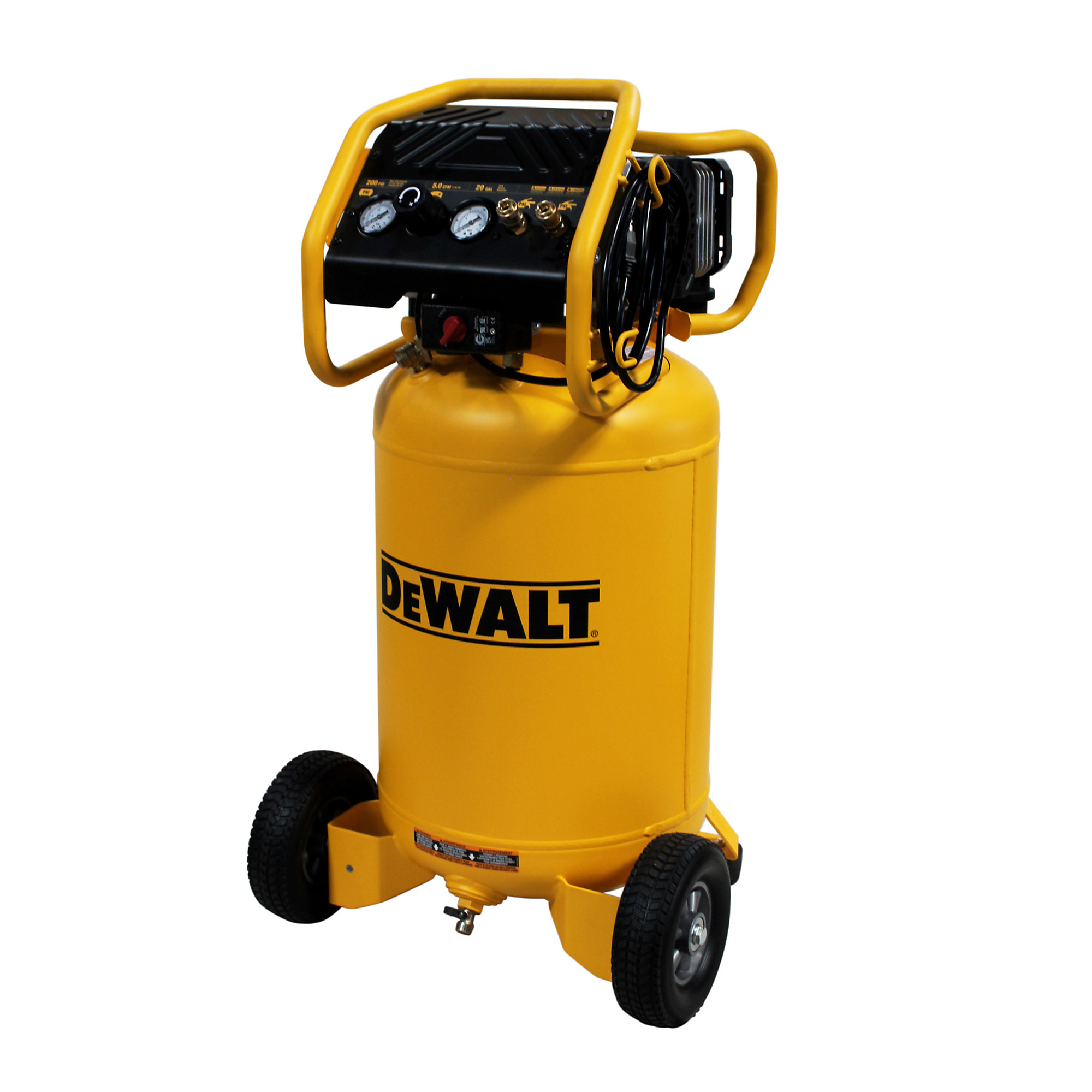

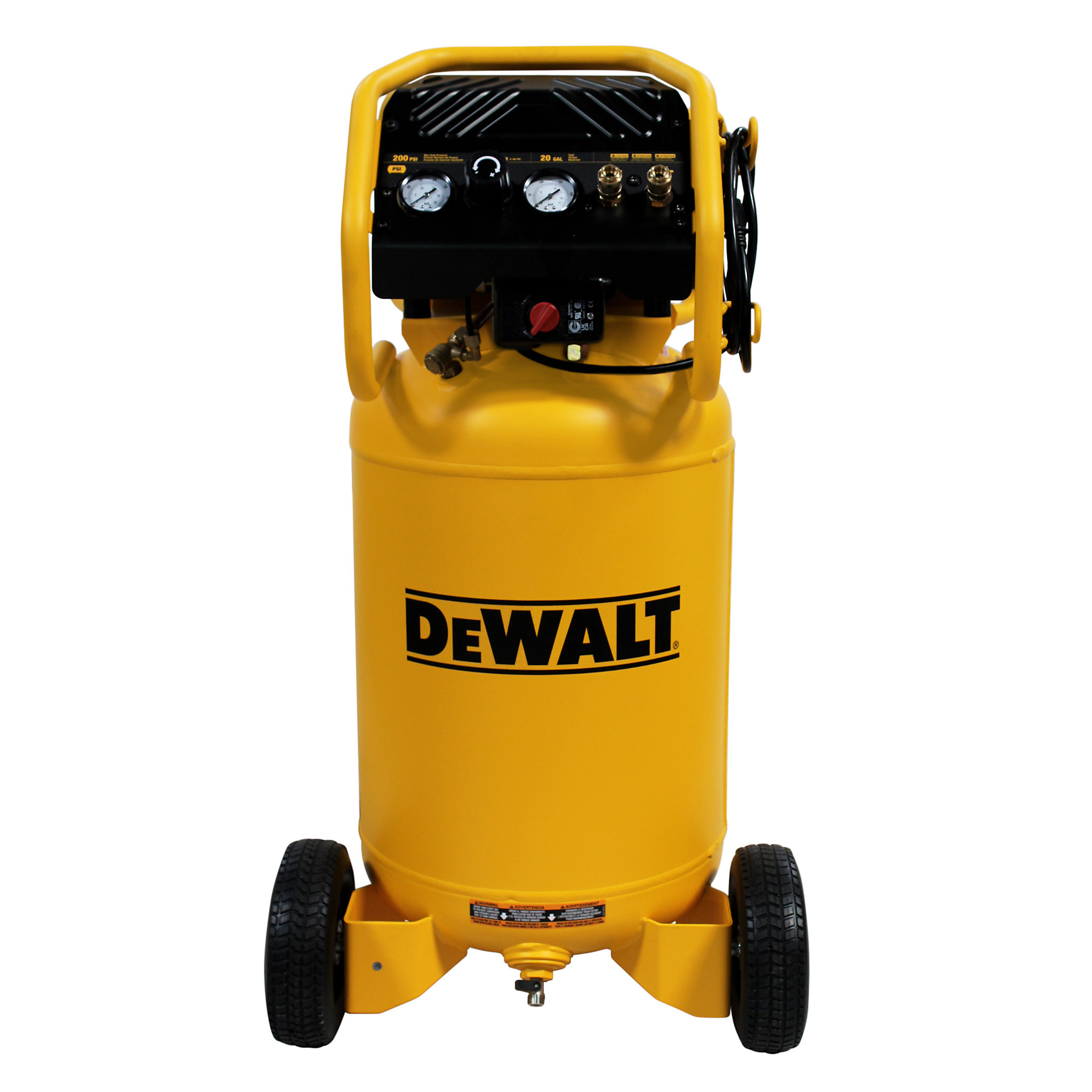

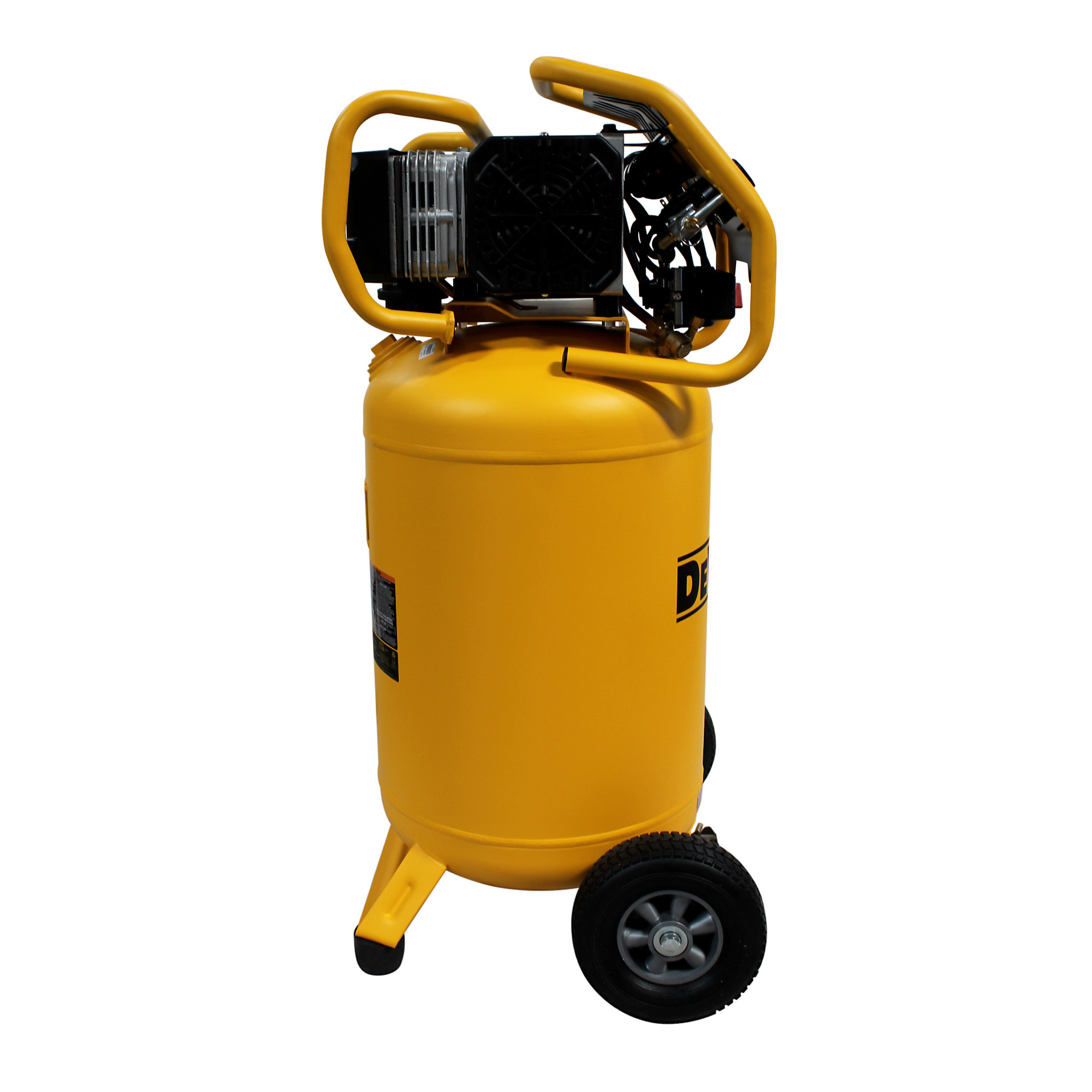

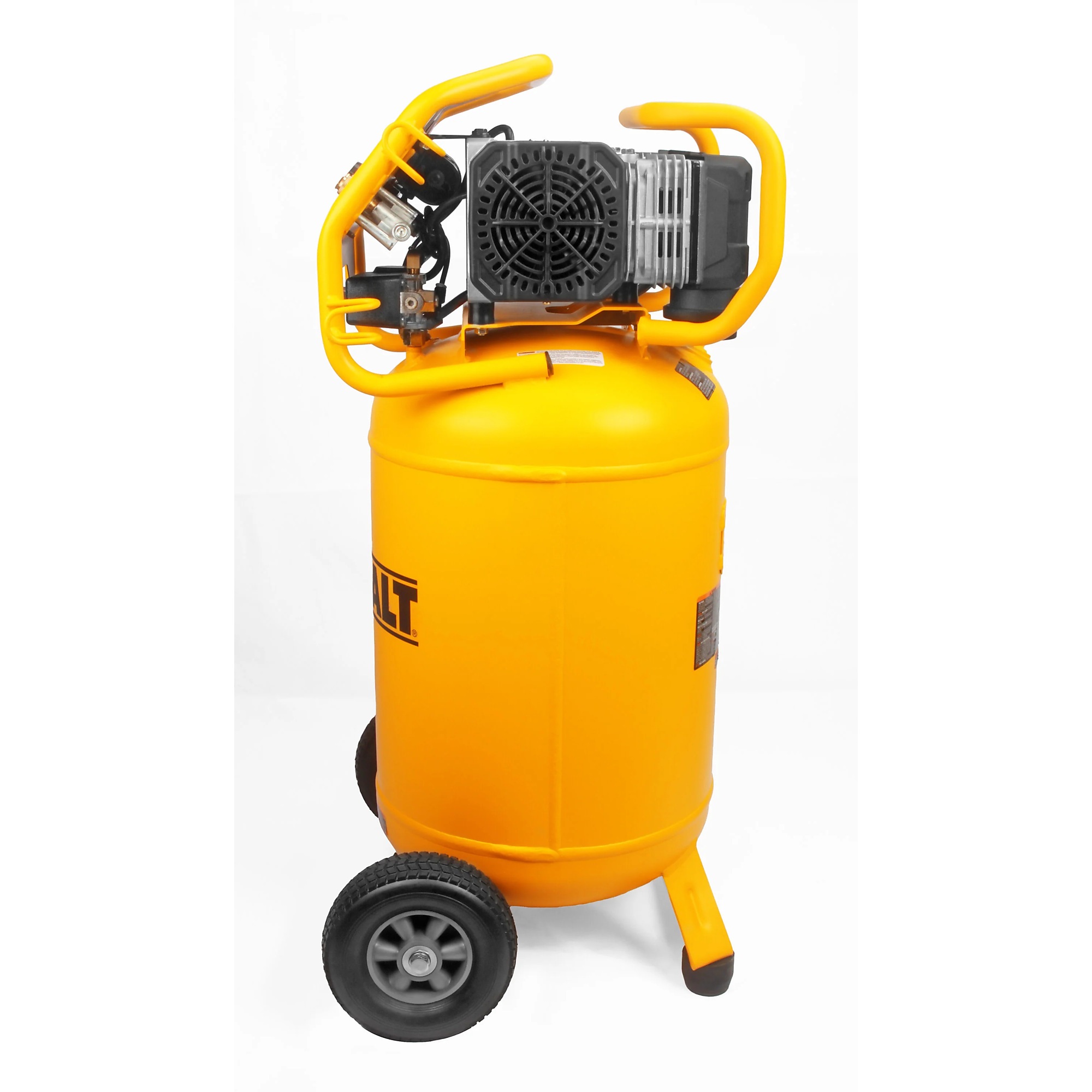

DEWALT Xtreme Quiet Vertical Air Compressor — 20-Gallon, 200 PSI, 1.6 HP, 5 CFM, Model# DXCM20020US

Item# 6690591
DEWALT XTREME Quiet 2 Stage 20-Gallon Portable Electric 200 PSI Vertical Air Compressor 1.6 HP
DEWALT Xtreme Quiet Vertical Air Compressor — 20-Gallon, 200 PSI, 1.6 HP, 5 CFM, Model# DXCM20020US

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Xtreme Quiet Vertical Air Compressor — 20-Gallon, 200 PSI, 1.6 HP, 5 CFM, Model# DXCM20020US

Click or Tap image to Zoom

$549.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 2-STAGE oil-free compressor delivers significantly more air at 200 PSI
  • 5.0 CFM at 90 PSI for fast recovery time during demanding use
  • XTREME Quiet – ultra-low 62.5 dB(A) for a safer work environment
  • 4,000 hour tested life provides unparalleled reliability
  • Brushless induction motor for long service life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DEWALT® 2-STAGE, XTREME Quiet compressors provide DEWALT® power, durability, and tool life at an ultra-low noise level for unparalleled indoor use. 5 CFM 90 PSI provides quick recovery times and consistent air, while the ultra-quiet design allows for a safer worksite and usage in more locations.

What's Included

    (1) Owners Manual

Features + Benefits

  • 2-STAGE oil-free compressor delivers significantly more air at 200 PSI
  • 5.0 CFM at 90 PSI for fast recovery time during demanding use
  • XTREME Quiet – ultra-low 62.5 dB(A) for a safer work environment
  • 4,000 hour tested life provides unparalleled reliability
  • Brushless induction motor for long service life
  • Oil-free pump for maintenance-free operation
  • Large rubber flat-free wheels to easily navigate rough terrain
  • Dual quick-couplers to support multiple tools
  • 1/4-turn ball valve tank drain for quick and easy tank draining

Key Specs

AttributeSpecification

item#

6690591

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

180.0 LB

Horsepower

1.6 HP

Air Tank Size

20 Gal

Volts

110

CFM at 90 PSI

5

Max. PSI

200

Stage

2

Air Outlets (qty.)

2

Amps

13.5
AttributeSpecification

Engine Start Type

Electric

Air Outlet Size

1/4 in. NPT

Noise Level

62.5 dB

Oil Required

No

Pressure Gauge

Yes

Electronic Drain Valve

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

165.0000 lb

Dimensions L x W x H (in.)

21.7 x 18.5 x 51.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. what is difference between single and two stage compressor

    1. Single-stage compressors compress air once and are best for lower pressure, light-duty tasks. Two-stage compressors compress air twice with cooling in between, allowing higher pressure, better efficiency, and continuous heavy-duty use.

      Helpful?

    2. A single-stage compressor compresses air once in a single stroke, making it simple and good for lower pressures (up to ~120-135 PSI) and DIY/light use, while a two-stage compressor compresses air twice, using larger and smaller pistons with an intercooler in between, allowing it to reach higher pressures (175+ PSI) more efficiently for continuous industrial tasks, despite being more complex and costly. The key difference is the number of compression cycles and the use of intercooling in two-stage units, which reduces heat and increases efficiency for demanding jobs.

      Helpful?

  2. What does the pressure drop to before the compressor restarts and goes into the recovery mode ?

    1. The motor shuts off at roughly 155 PSI and restarts when pressure drops to about 120 PSI.

      Helpful?

    2. The compressor model number DXCM20020US typically operates with a pressure switch that turns the motor off (cut-out) at around 155 PSI and restarts (cut-in) when the pressure drops to approximately 120 PSI .

      Helpful?

  3. What are overall dimensions

    1 answer

    1. The overall dimensions of this air compressor are 21.7" long x 18.5" wide x 51" high.

      Helpful?

  4. What is the duty cycle?

    1 answer

    1. The Dewalt air compressor would have a 70% duty cycle.

      Helpful?

  5. Can this unit be laid horizontally and still operate normally?

    0 answers
