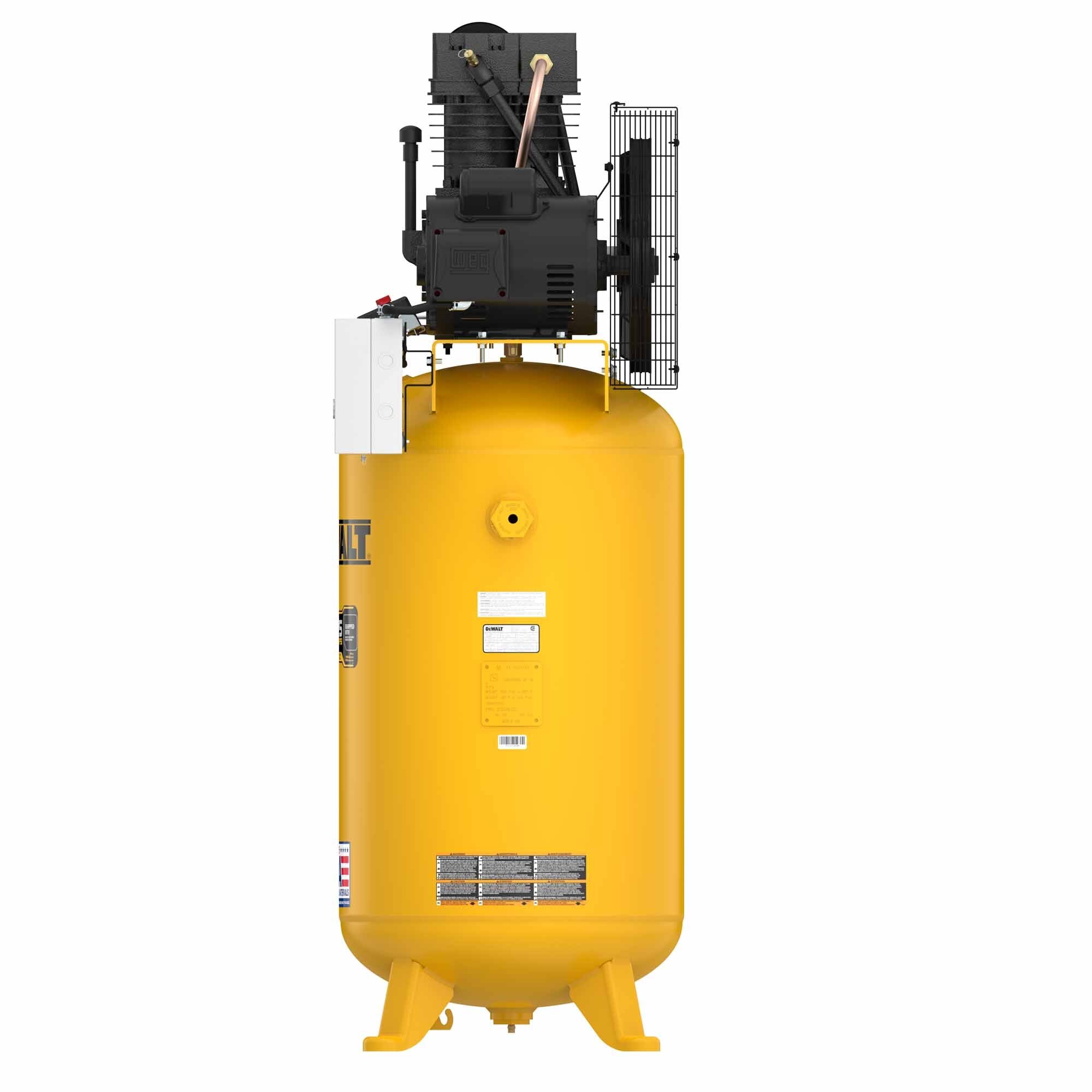

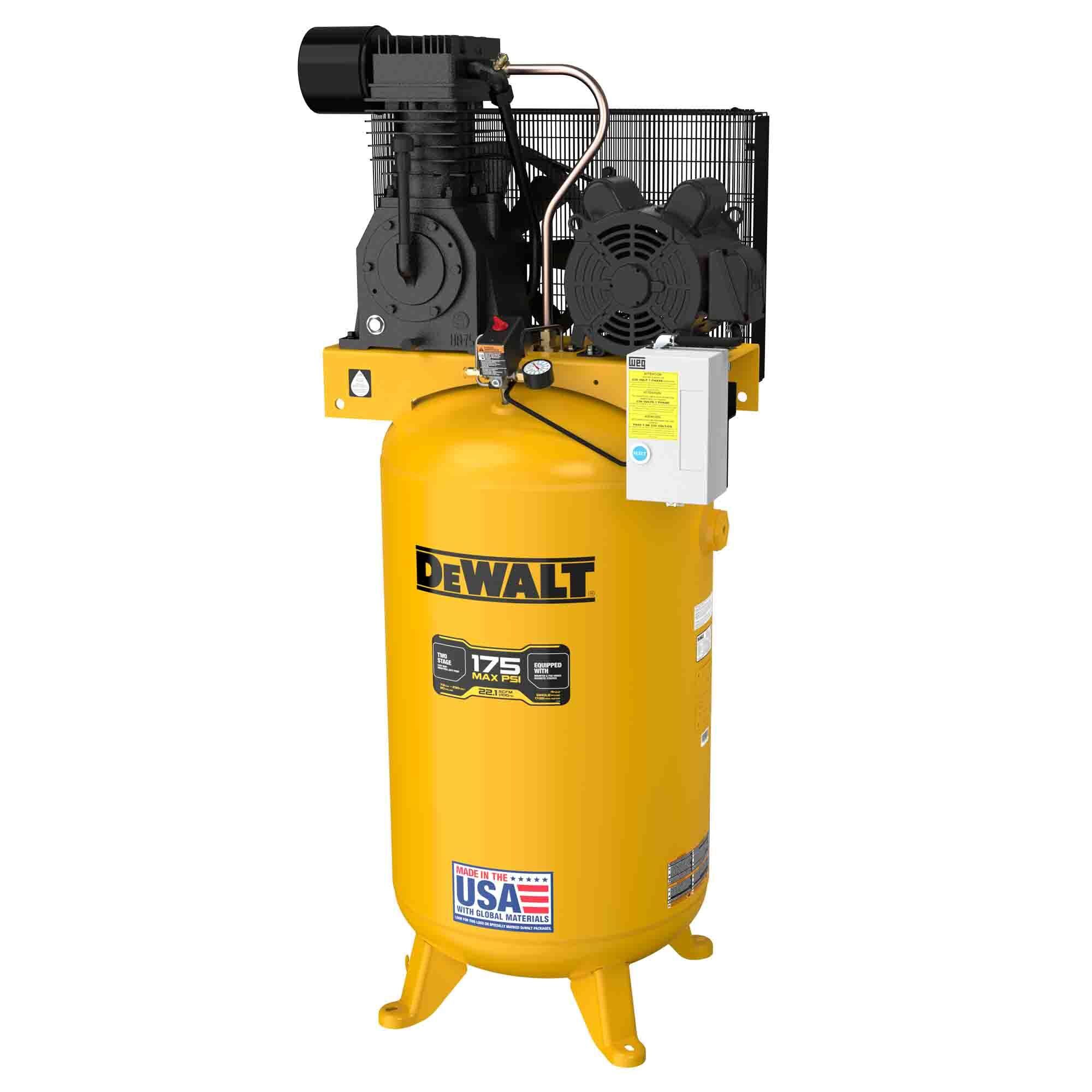

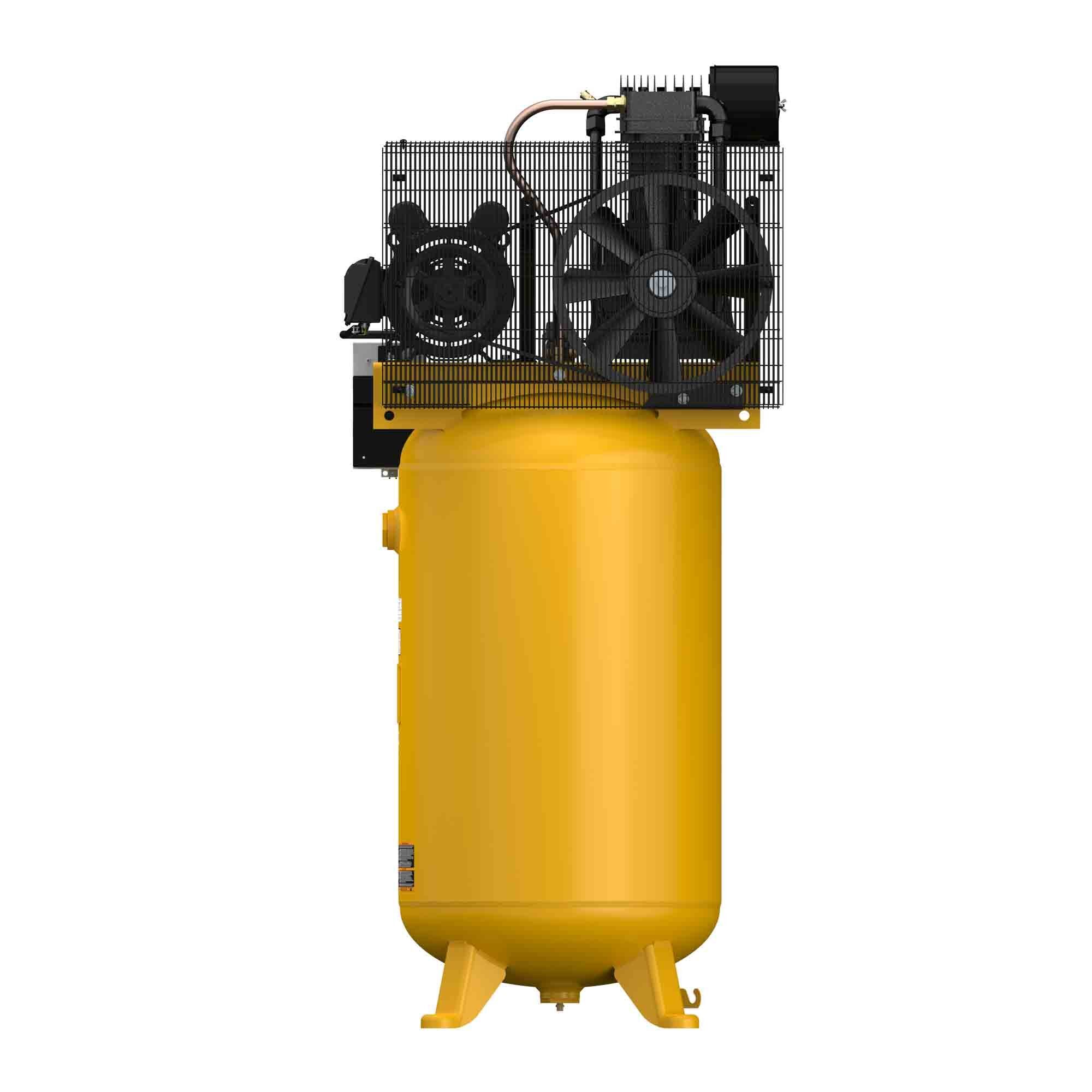

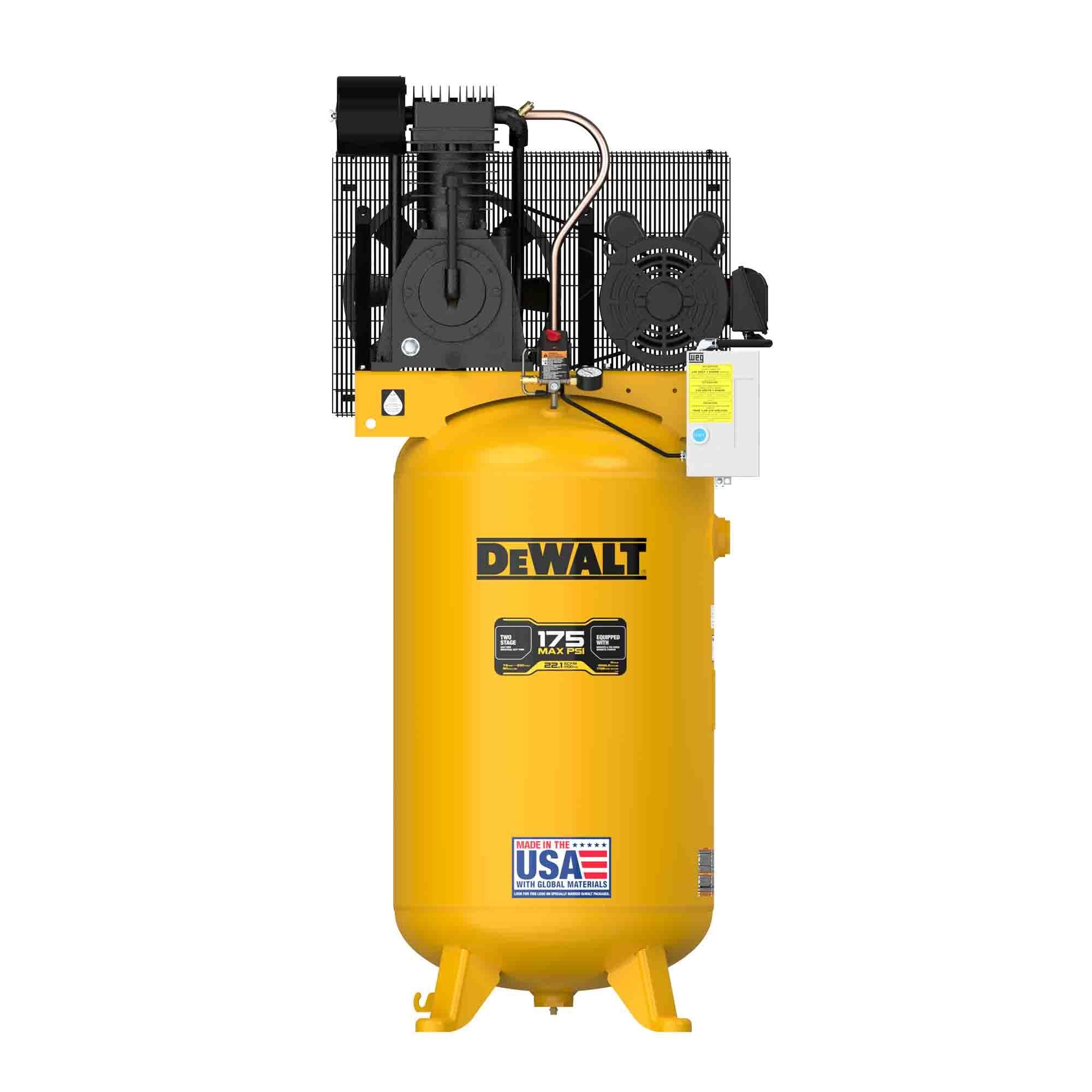

DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 7.5HP, Model# DXCM804

Item# 7304306
DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 7.5HP, Model# DXCM804

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 7.5HP, Model# DXCM804

Click or Tap image to Zoom

$2999.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Cast iron, 2 stage, oil lubricated pump
  • Heavy-duty 230-Volt induction motor
  • 80 Gal. tank is ASME certified to meet all safety standards
  • Uniquely designed metal belt guard improves compressor pump cooling by as much as 60°F over other belt guard designs
  • Shipped with synthetic oil for optimum pump performance and long life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DEWALT 80 Gal. 2 stage air compressor uses a powerful 7.5 HP induction motor to deliver a steady 21.2 SCFM at 175 PSI. This DEWALT air compressor features an industrial class electric motor, which provides enough power to operate more than one air tool or device at one time. With a capacity for serious work and ready for any job, this machine has the endurance to keep both big and small pneumatic tools running reliably. Install this powerhouse into your work area, wire it up, and get to work.This unit features a 230v electric motor. It should be connected to a power supply that is 230-Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 40 Amp double pole breaker for proper installation.) This compressor does not include a power cord.

What's Included

    (1) compressor

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Cast iron, 2 stage, oil lubricated pump
  • Heavy-duty 230-Volt induction motor
  • 80 Gal. tank is ASME certified to meet all safety standards
  • Uniquely designed metal belt guard improves compressor pump cooling by as much as 60°F over other belt guard designs
  • Shipped with synthetic oil for optimum pump performance and long life
  • Equipped with pre-wired and mounted magnetic starter
  • 22.1 CFM @ 100 PSI21.2 CFM @ 175 PSI

Key Specs

AttributeSpecification

item#

7304306

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

596.0 LB

Air Tank Size

80 Gal

Volts

230

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP
AttributeSpecification

Max. PSI

175

Amps

40

Pump Material

Cast Iron

Pump Drive

Belt

CFM at Max. PSI

21.2

Noise Level

84 dB

Oil Required

Yes

Electronic Drain Valve

No

Product Weight

596.0000 lb

Dimensions L x W x H (in.)

42.0 x 49.0 x 81.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
