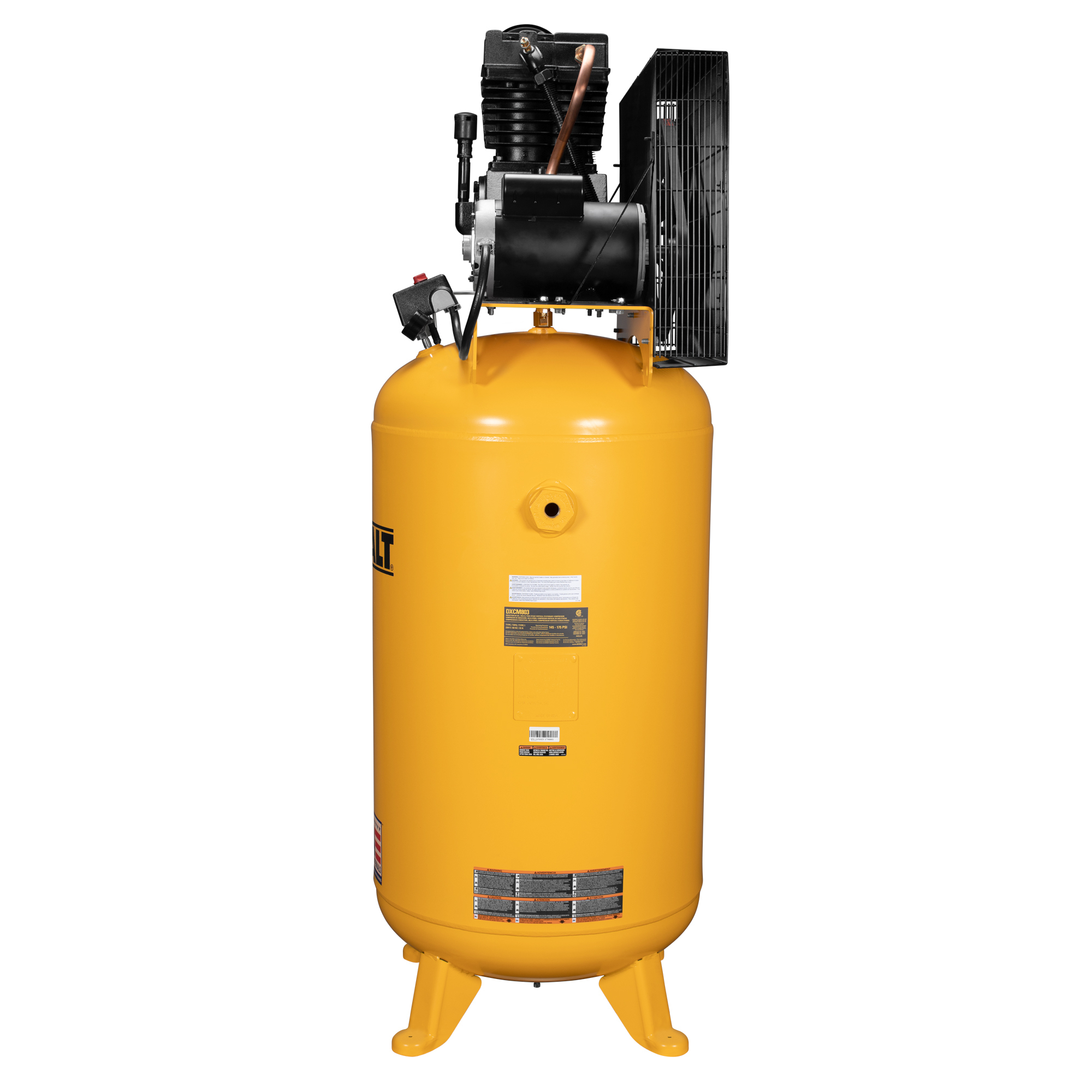

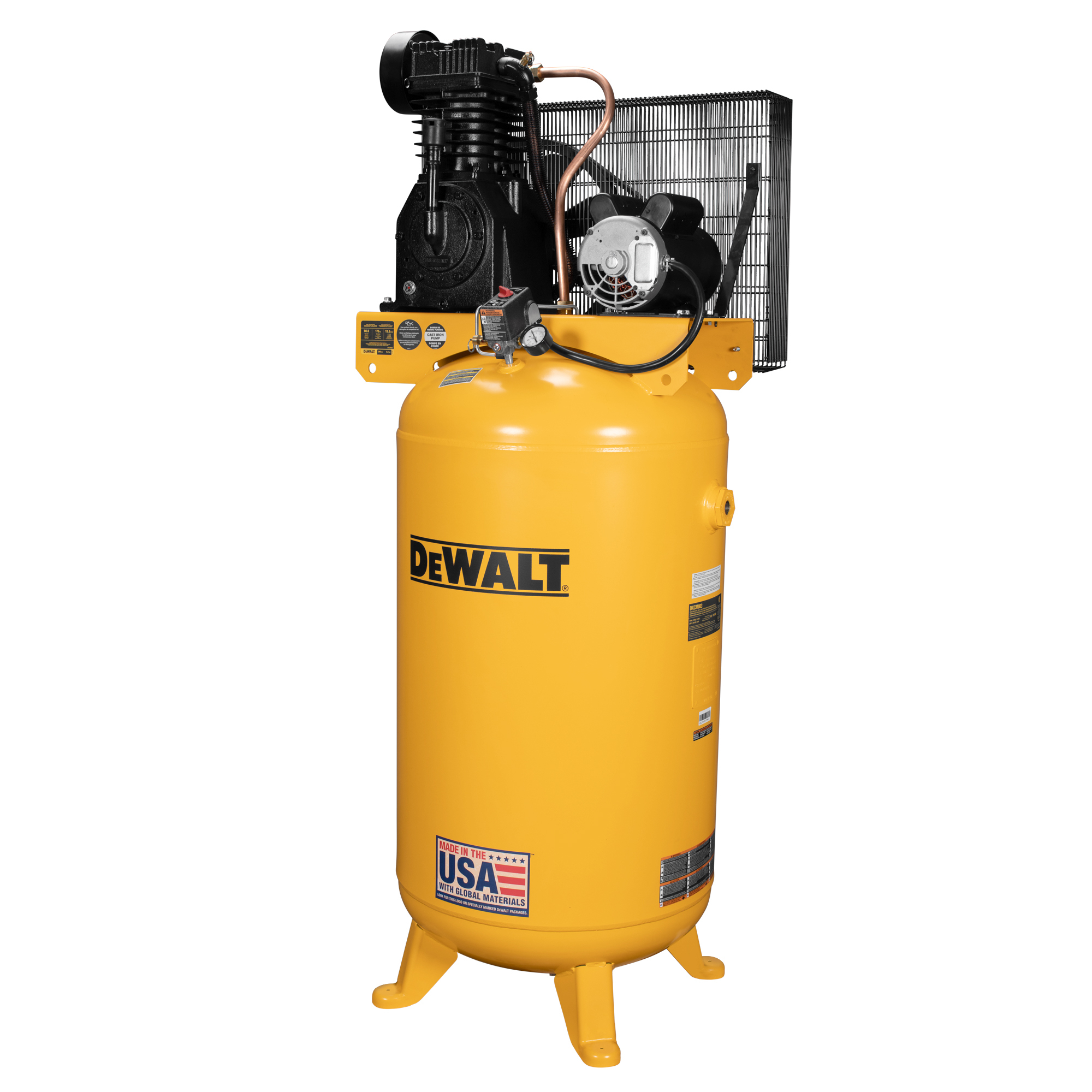

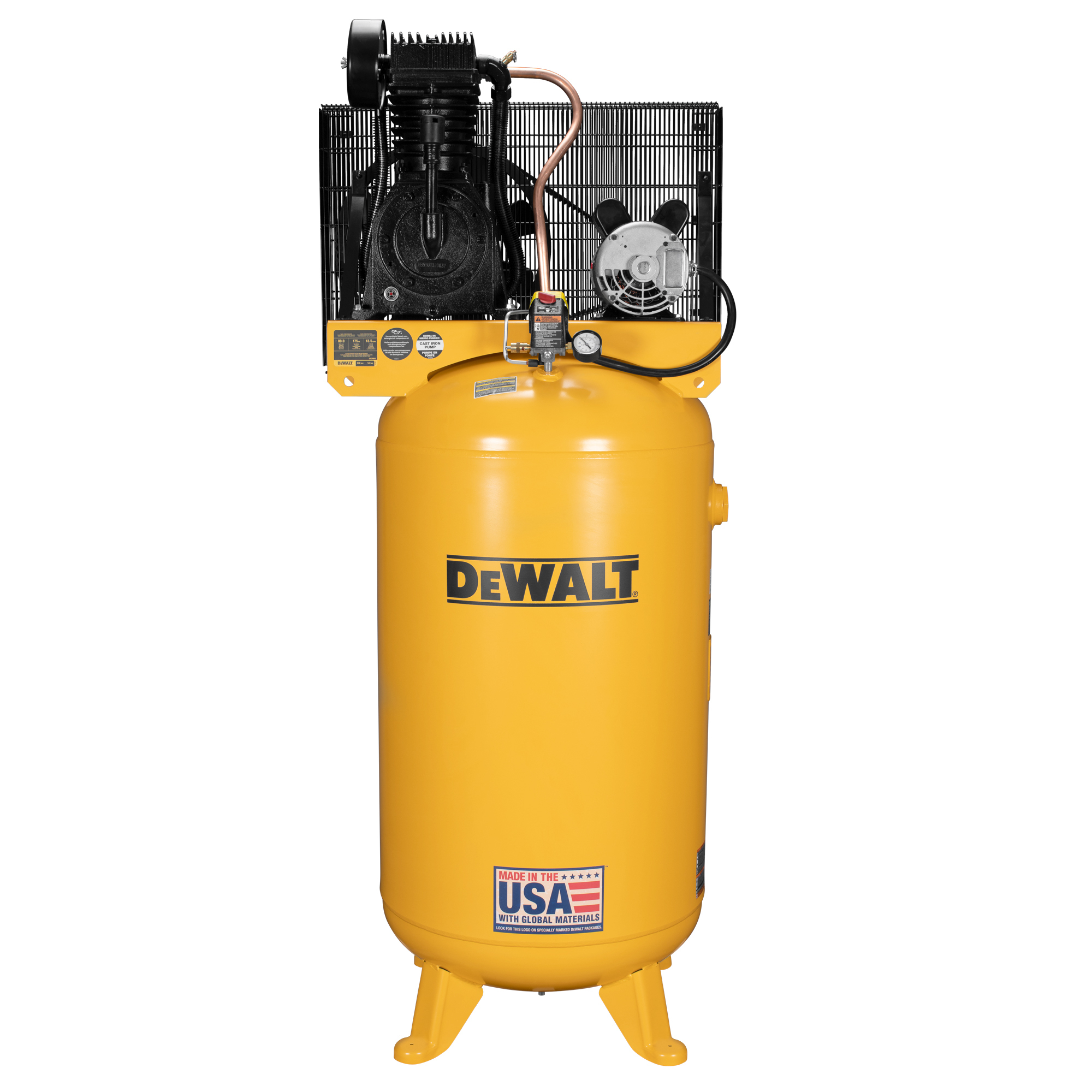

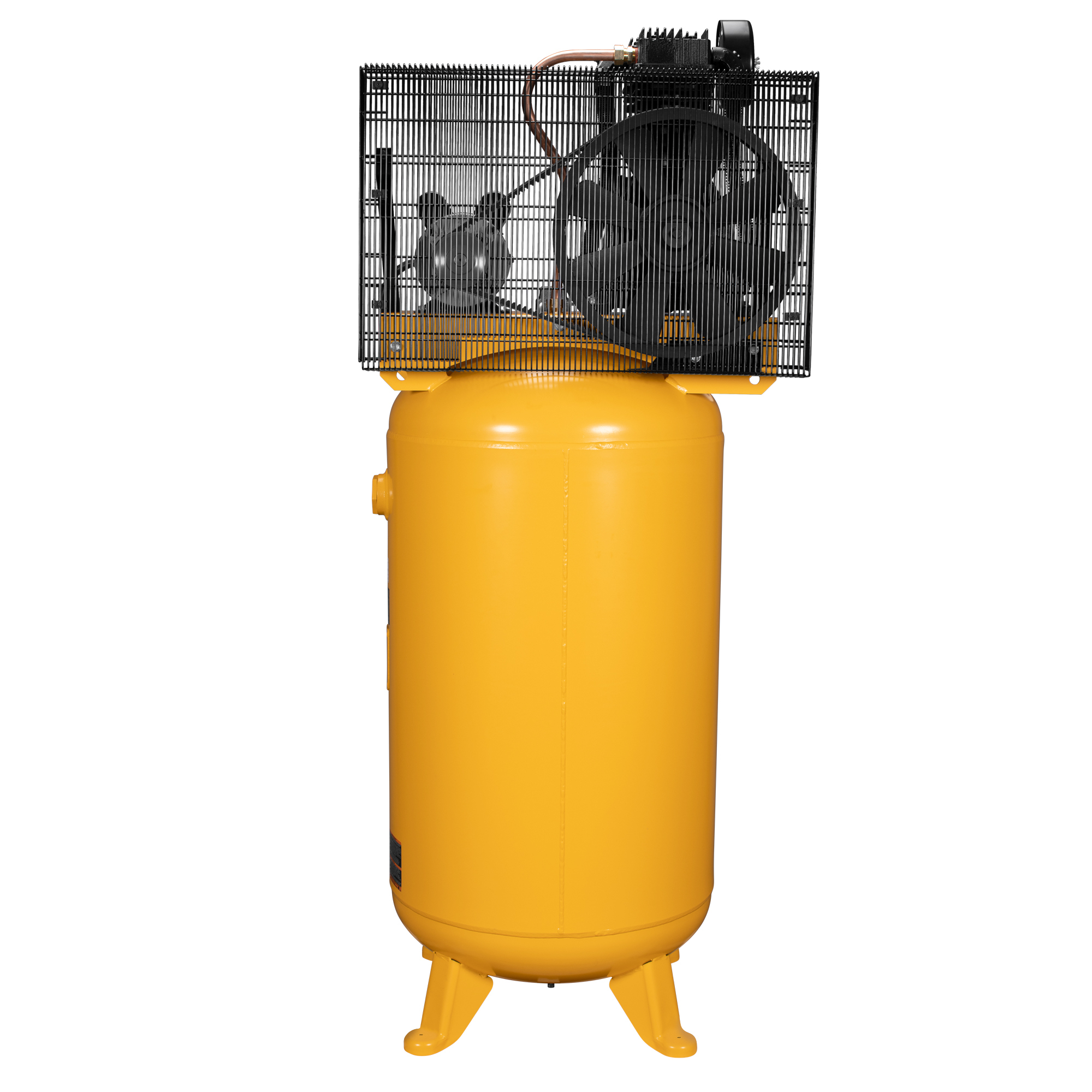

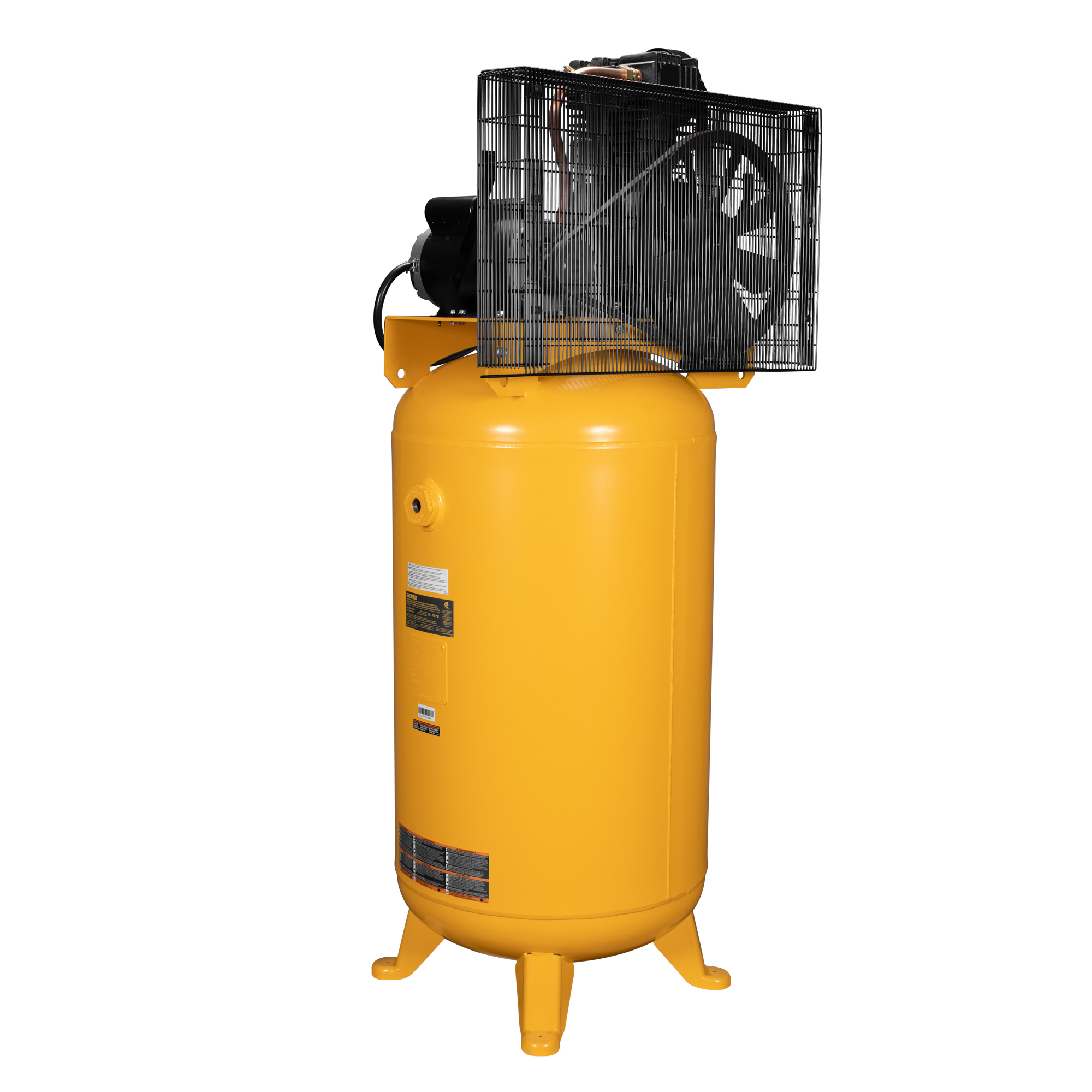

DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 5HP, 2-Stage, Model# DXCM803

Item# 7304314
DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 5HP, 2-Stage, Model# DXCM803

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Vertical Stationary Electric Air Compressor, 80 Gallon, Oil Lube, 5HP, 2-Stage, Model# DXCM803

Click or Tap image to Zoom

$2129.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Pump is cast iron, 2 stage, oil lubricated
  • Heavy-duty 230-Volt induction motor
  • 80 gallon tank is ASME certified to meet all safety standards
  • Durable wire formed belt guard to protect vital components
  • Shipped with synthetic oil for optimum pump performance and long life

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The DEWALT 80 gallon 2 stage air compressor uses a powerful 5 HP induction motor to deliver a steady 14.6 SCFM 100 PSI. This DEWALT air compressor motor, designed with thermal overload protection, requires no magnetic starter. With a capacity for serious work, this compressor is ready for any job and has the endurance to keep pneumatic tools both big and small running efficiently. Install this powerhouse into your work area, wire it up, and get to work. This unit features a 230v electric motor and should be connected to a power supply that is 240-Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 30 Amp double pole breaker for proper installation.) This compressor does not include a power cord.

What's Included

    (1) compressor

Downloads

Product Manual

Features + Benefits

  • Pump is cast iron, 2 stage, oil lubricated
  • Heavy-duty 230-Volt induction motor
  • 80 gallon tank is ASME certified to meet all safety standards
  • Durable wire formed belt guard to protect vital components
  • Shipped with synthetic oil for optimum pump performance and long life
  • Equipped with tank pressure gauge and pressure switch
  • 15.5 SCFM @ 40 PSI, 14.7 SCFM @ 90 PSI, 14.6 SCFM @ 100 PSI

Key Specs

AttributeSpecification

item#

7304314

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

464.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

14.7

Motor Phase

1

Stage

2

Tank Orientation

Vertical
AttributeSpecification

Horsepower

5 HP

Max. PSI

175

Amps

22

Pump Material

Cast Iron

Pump Drive

Belt

CFM at 40 PSI

15.5

Noise Level

83 dB

Oil Required

Yes

Product Weight

464.0000 lb

Dimensions L x W x H (in.)

42.0 x 49.0 x 81.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
