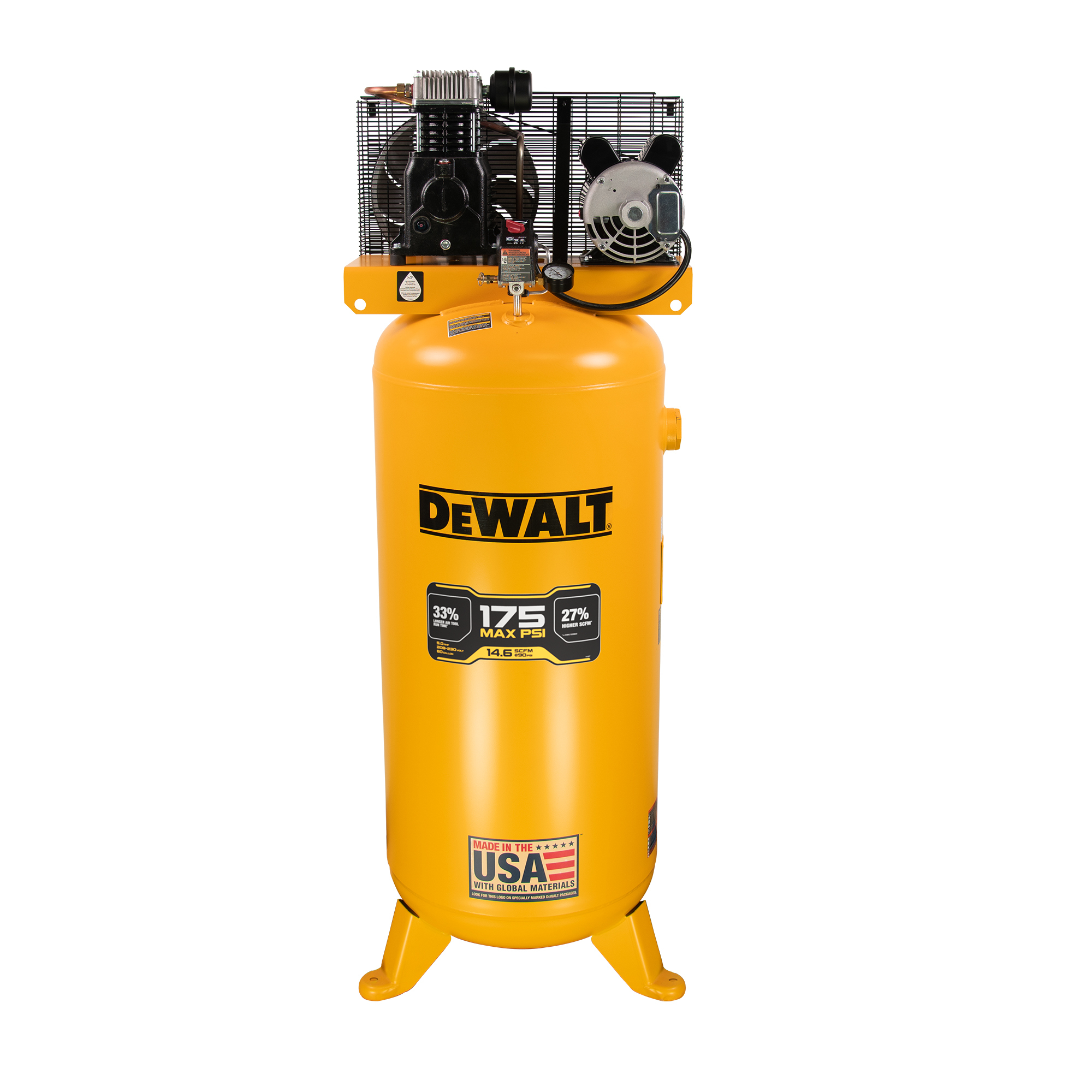

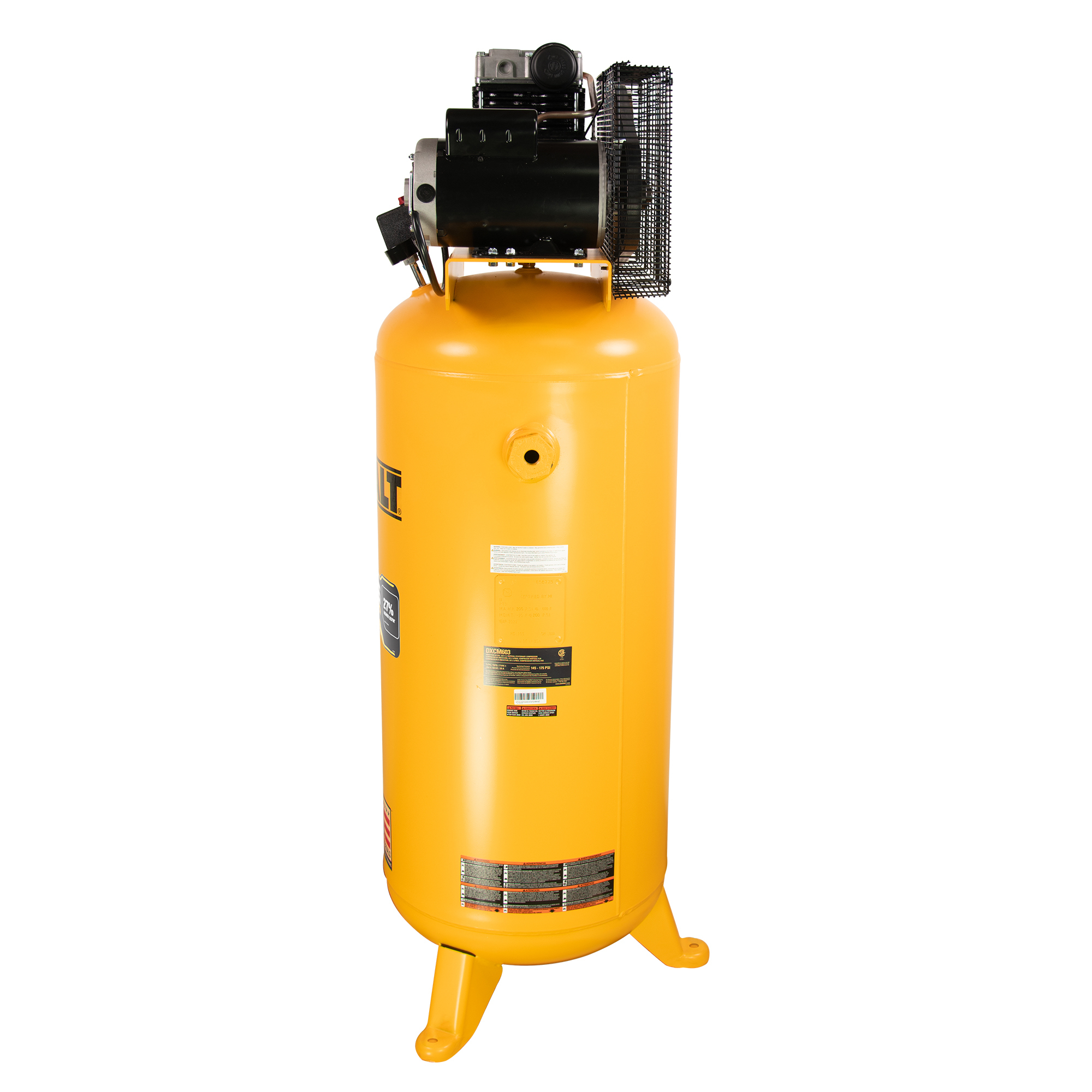

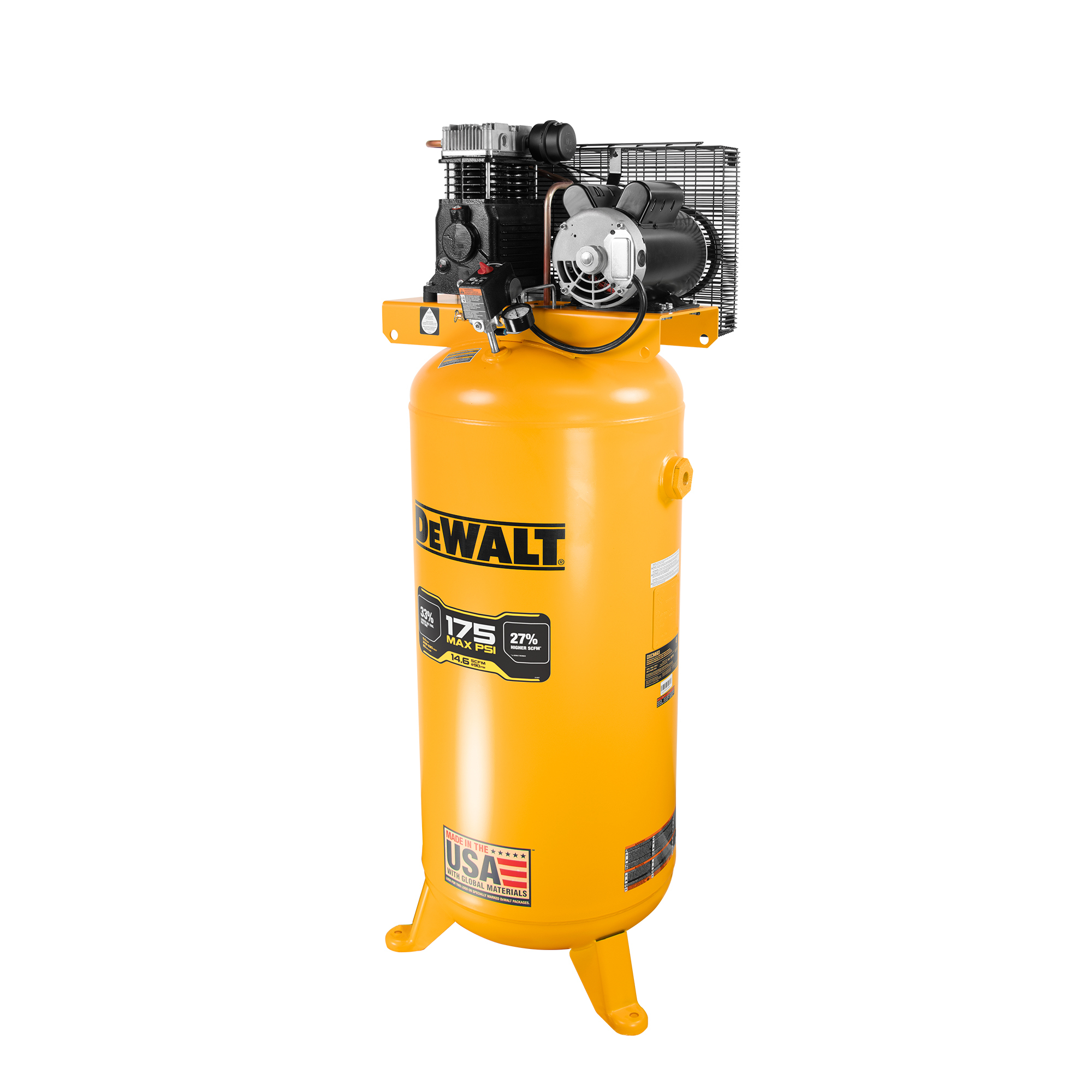

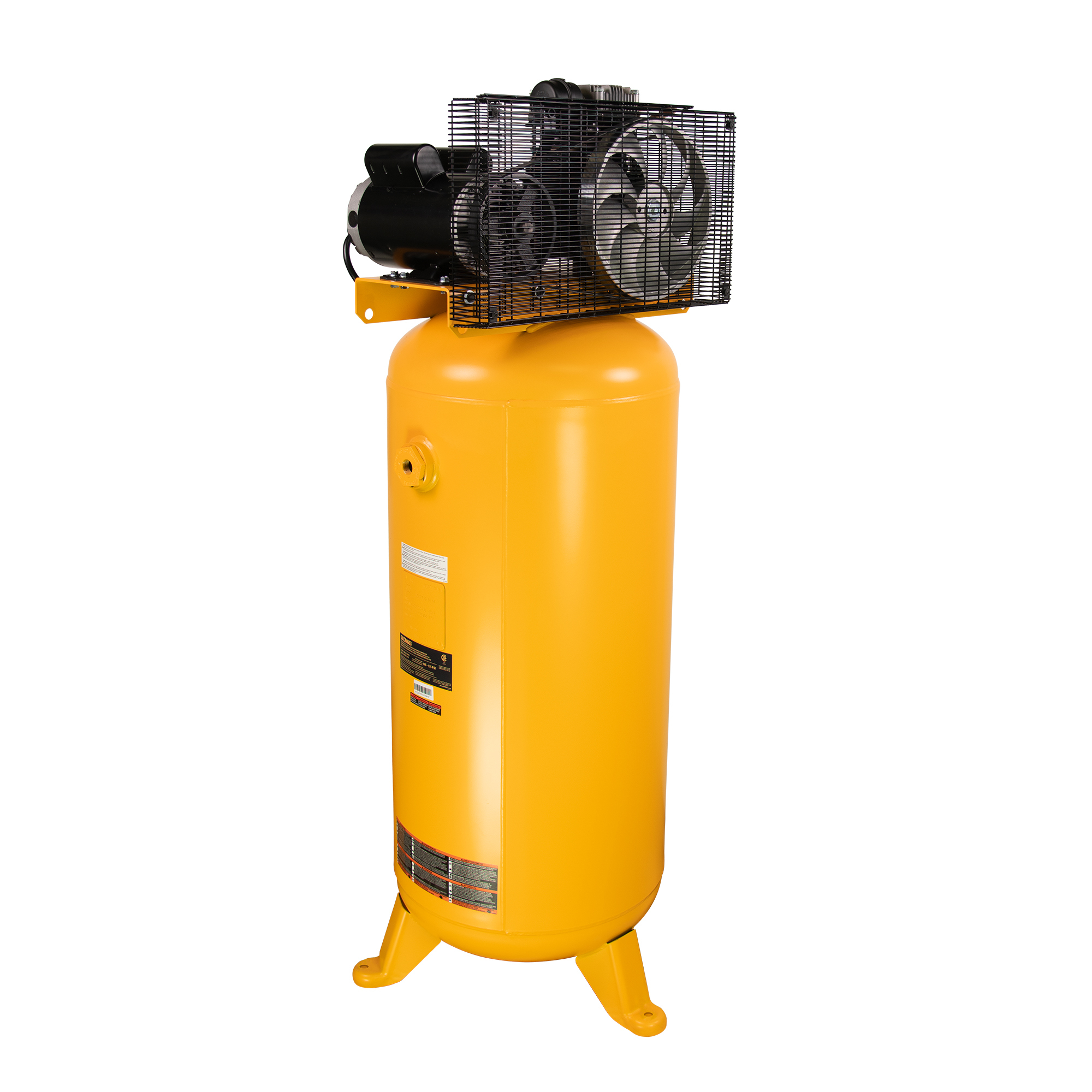

DEWALT Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 1-Stage, Model# DXCM603

Item# 7304293
New
DEWALT Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 1-Stage, Model# DXCM603

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Vertical Stationary Electric Air Compressor, 60 Gallon, 175 PSI, 1-Stage, Model# DXCM603

Click or Tap image to Zoom

$1349.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • High air flow, single stage with 14.6 SCFM and 90 PSI
  • 175 PSI maximum pressure typically found in 2 stage compressors, for optimum tool performance - 175 PSI combined with a 60 gallon tank provides more stored energy which allows for longer air tool run times
  • Heavy-duty, 208-230 spread volt induction motor designed to operate at both 208-Volt and 230-Volt applications
  • Large capacity, 60 gallon ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.
  • Equipped with pressure gauge and on/off switch

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Designed with performance and durability in mind, this DEWALT 60 Gallon Air Compressor delivers 14.6 SCFM at 90 PSI which is 27% higher SCFM compared to other 60 gallon compressors. It also provides 33% longer air tool run time versus others of this size. The DEWALT 60 Gallon 175 PSI air compressor is perfect for a small shop, automotive enthusiast, or serious DIY user. This unit features a 208-230 spread volt electric motor. It should be connected to a power supply that is 240-Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. (This unit requires a 30 amp double pole breaker for proper installation) This compressor does not include a power cord.

What's Included

    (1) compressor

Downloads

Product Manual
Play Item Video

Features + Benefits

  • High air flow, single stage with 14.6 SCFM and 90 PSI
  • 175 PSI maximum pressure typically found in 2 stage compressors, for optimum tool performance - 175 PSI combined with a 60 gallon tank provides more stored energy which allows for longer air tool run times
  • Heavy-duty, 208-230 spread volt induction motor designed to operate at both 208-Volt and 230-Volt applications
  • Large capacity, 60 gallon ASME air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.
  • Equipped with pressure gauge and on/off switch
  • Large air outlet port
  • Tie down holes on platform sides to secure unit when transporting

Key Specs

AttributeSpecification

item#

7304293

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

266.0 LB

Air Tank Size

60 Gal

Volts

208/230

CFM at 90 PSI

14.6

Motor Phase

1

Stage

1

Tank Orientation

Vertical
AttributeSpecification

Horsepower

5 HP

Max. PSI

175

Amps

20

Pump Drive

Belt

CFM at 40 PSI

17

Oil Required

Yes

Electronic Drain Valve

No

Product Weight

266.0000 lb

Dimensions L x W x H (in.)

49.0 x 41.0 x 81.0 in
