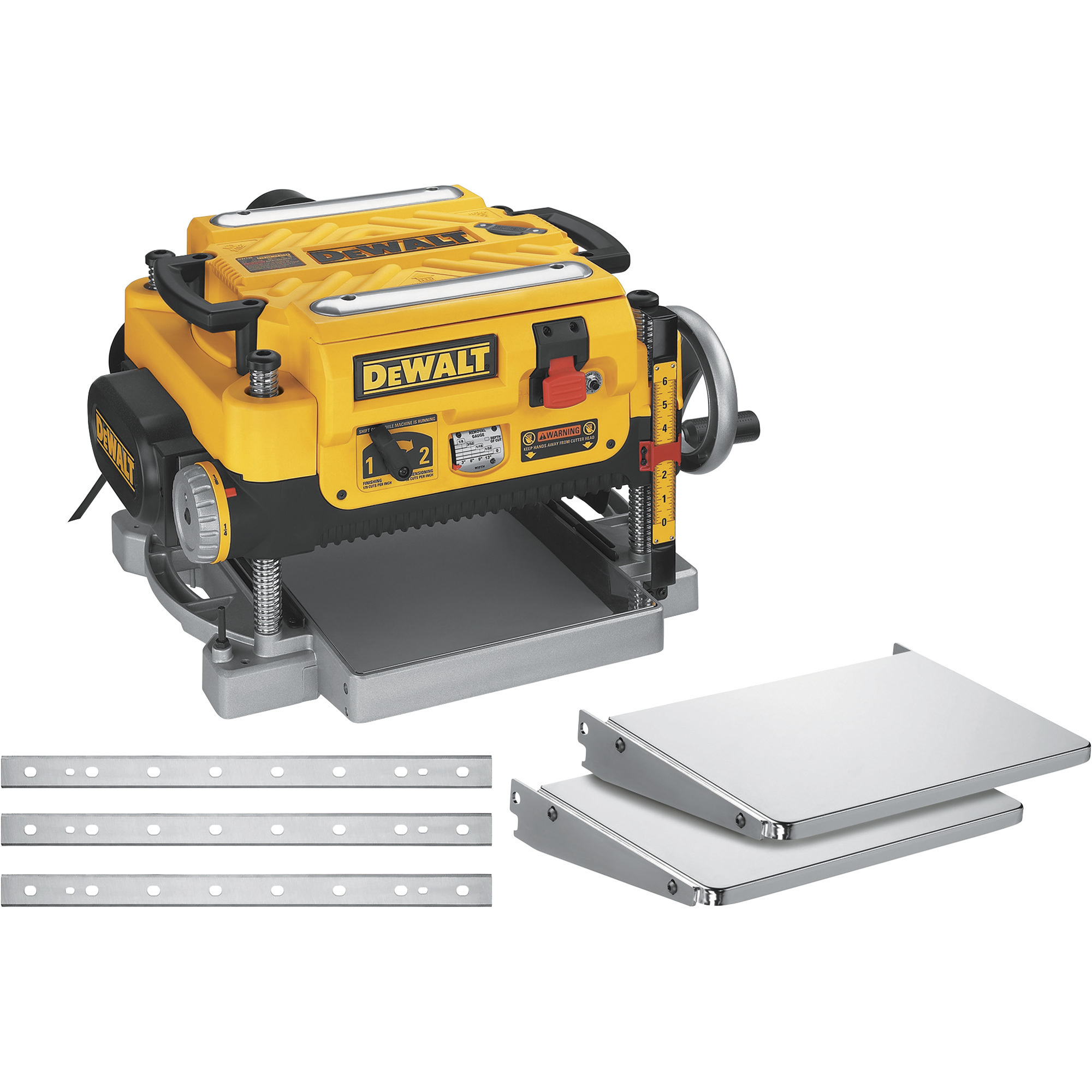

DEWALT Thickness Benchtop Planer, 13in., 3 Knife, 2-Speed, 15 Amp, Model# DW735X

Item# 50305
"DEWALT Thickness Benchtop Planer, 13in., 3 Knife, 2-Speed, 15 Amp, Model# DW735X"
Top Seller
DEWALT Thickness Benchtop Planer, 13in., 3 Knife, 2-Speed, 15 Amp, Model# DW735X

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Thickness Benchtop Planer, 13in., 3 Knife, 2-Speed, 15 Amp, Model# DW735X

Click or Tap image to Zoom

$859.00

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Powerful 15 Amp, 20,000 RPM motor (10,000 RPM cutter head speed) handles larger cuts in wider materials with ease
  • Three-knife cutter head delivers 30% longer knife life and makes knife change faster and easier
  • 2-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
  • Fan-assisted chip ejection vacuums chips off of the cutter head and exhausts them out of the machine
  • 19 3/4in. cast aluminum base is 2 times more rigid than a standard 10in. base and folding tables

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • DEWALT Thickness Benchtop Planer, 13in., 3 Knife, 2-Speed, 15 Amp, Model# DW735X

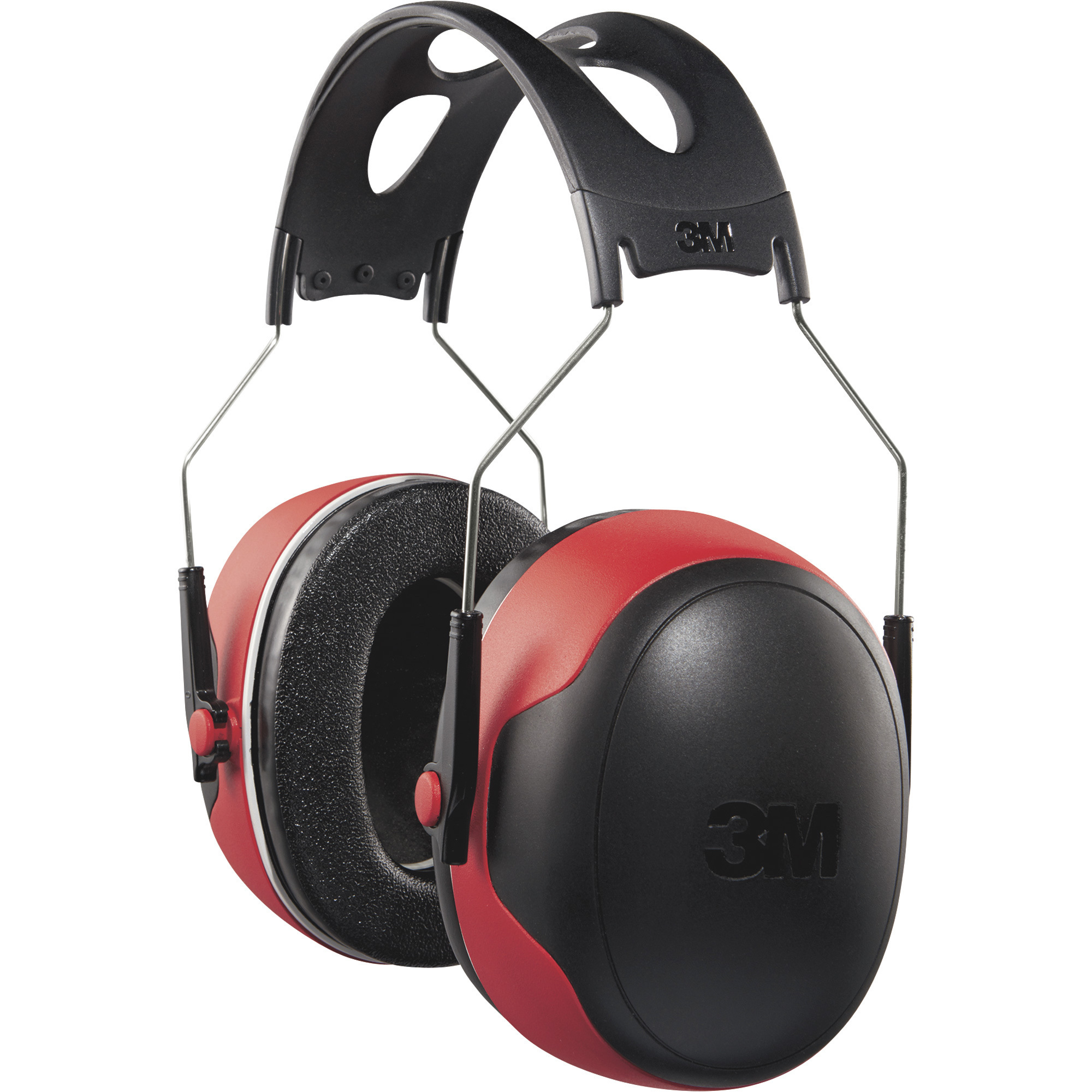

  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all two:

$898.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT® 13in., 3 Knife, 2-Speed Thickness Planer has a powerful 15 Amp, 20,000 RPM motor (10,000 RPM cutter head speed) that handles larger cuts in wider material with ease. The three-knife cutter head delivers longer blade life and the 2-speed gearbox lets users change feed speed to optimize cuts. Chip ejection vacuums chips off cutter head and exhausts them out of planer. Material removal gauge and thickness scale delivers accurate cuts. Includes infeed and outfeed tables and extra set of knives.

What's Included

    (1) DEWALT 13in. thickness benchtop planer, (1) Dust hose adapter
Play Item Video

Features + Benefits

  • Powerful 15 Amp, 20,000 RPM motor (10,000 RPM cutter head speed) handles larger cuts in wider materials with ease
  • Three-knife cutter head delivers 30% longer knife life and makes knife change faster and easier
  • 2-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
  • Fan-assisted chip ejection vacuums chips off of the cutter head and exhausts them out of the machine
  • 19 3/4in. cast aluminum base is 2 times more rigid than a standard 10in. base and folding tables
  • Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
  • Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
  • Extra-large turret depth stop allows users to return to most frequently used thicknesses with ease
  • 13in. width capacity
  • 6in. depth capacity
  • Includes infeed and outfeed tables and an extra set of knives

Key Specs

AttributeSpecification

item#

50305

Brand

DEWALT

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

102.4 LB

Product Type

Planers

Max. Cutting Depth

0.125 in
AttributeSpecification

Knives (qty.)

3

Cutterhead Speed

20,000 rpm

Volts

120

Amps

15

Product Weight

103 lb

Reviews

Questions & Answers

122 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Where do you get the 3 knife blades sharpened?

    1. You don't sharpen these blades. These are reversible and then disposable. The replacements are cheaper than sharpening and no need to use a jig when replacing them as you would have to do with blades that can be sharpened

      Helpful?

    2. they are replaceable you don't sharpen them.

      Helpful?

    3. It is recommended to replace the blades instead of having them resharpened for proper fit and accuracy of stock removal.

      Helpful?

  2. Which series is this unit, 1 or 12?

    1 answer

    1. The unit is not rated in for a series. It is an "X" version that indicates in includes infeed and outfeed table and an extra set of knives.

      Helpful?

  3. How do I align each of the 4 post?

    1 answer

    1. There is no manual carriage lock on the planer. The planer has an automatic carriage lock device that automatically minimizes the movement that causes snipe during planing. This is designed into the four threaded posts.

      Helpful?

  4. I need a belt

    1 answer

    1. The V belt model number 5140010-28 can be purchased through the manufacturer directly.

      Helpful?

  5. What is the minimum thickness that planer will go down to?

    1 answer

    1. Per the manufacturer, this planer will go down to 1/4"-3/4".

      Helpful?

  6. Not a shop vac but for a central shop vacuum, what is the minimum capacity, flow rate and hp, for this planner?

    1 answer

    1. The minimum thickness is 1/8". The 2 hp planer has a feed rate of 14 feet per minute on speed 1 and 26 feet per minute on speed 2.

      Helpful?

  7. what is the difference between the dw735 and the dw735x ?

    1 answer

    1. The only difference between the models is DW735X offers an infeed table, an outfeed table, and extra knives.

      Helpful?

  8. What capacity (hp and CFM) is the minimum central shop vac size recommended for this unit?

    1 answer

    1. The manufacturer does not recommend that a shop vac be connected to this item. The capacity of most vacs does not support the volume of chips ejected during planing. The vacuum hose may clog stopping the flow of chips.

      Helpful?

  9. Does this planer come with the outfeed tables shown?

    1 answer

    1. This model does include the outfeed tables.

      Helpful?

  10. Does this include a stand base?

    1 answer

    1. A stand or base is not included with this.This is meant to mount on a table or workbench.

      Helpful?
