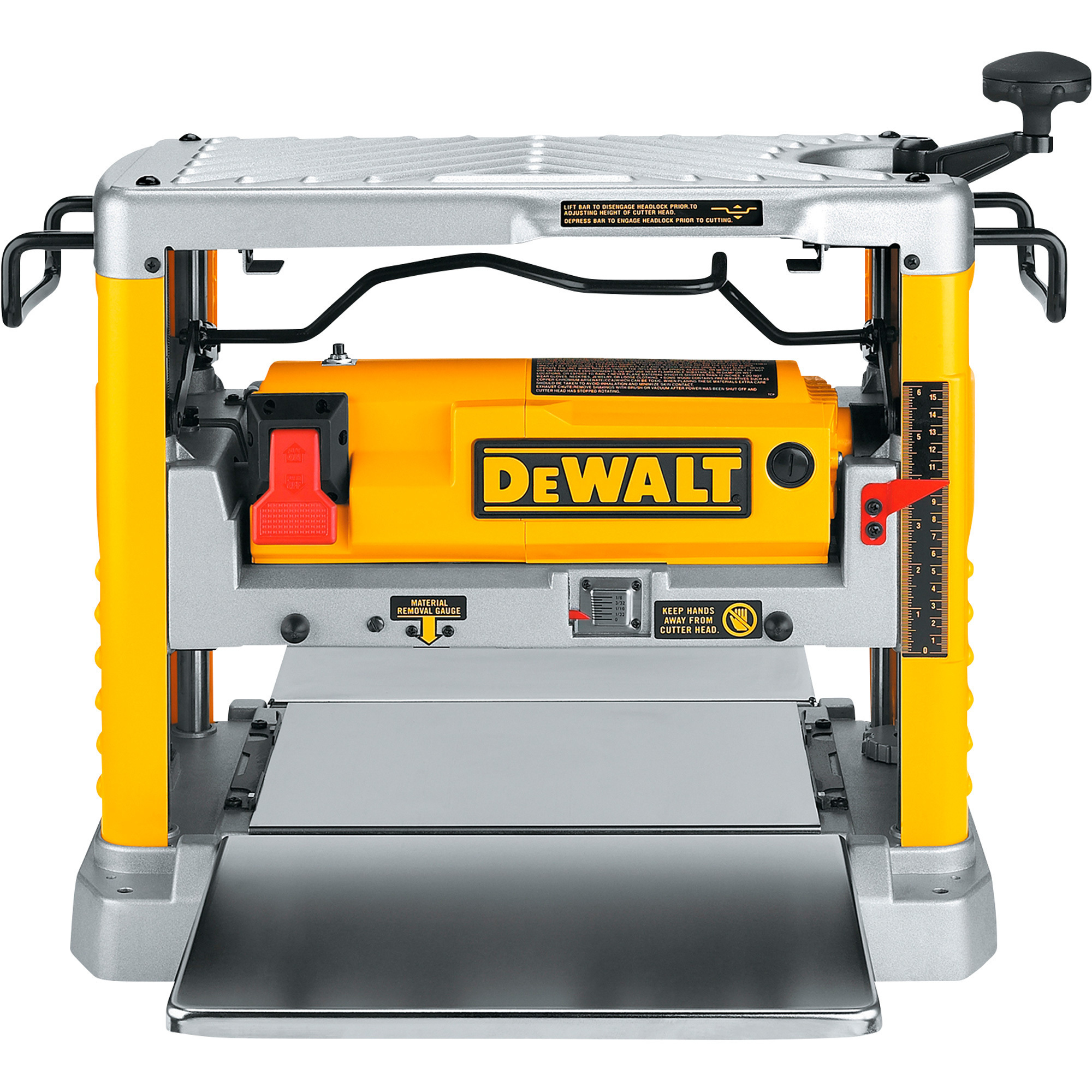

DEWALT Heavy-Duty Benchtop Planer with 3-Knife Cutter-Head, 12 1/2in. Width Capacity, Model# DW734

Item# 399566
"DEWALT Heavy-Duty Benchtop Planer with 3-Knife Cutter-Head, 12 1/2in. Width Capacity, Model# DW734"
DEWALT Heavy-Duty Benchtop Planer with 3-Knife Cutter-Head, 12 1/2in. Width Capacity, Model# DW734

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT Heavy-Duty Benchtop Planer with 3-Knife Cutter-Head, 12 1/2in. Width Capacity, Model# DW734

Click or Tap image to Zoom

  • 15 Amp, 20,000 RPM motor handles larger, deeper cuts in hardwood
  • 6in. depth capacity
  • Extra-long infeed and outfeed tables provide 33 1/2in. of material support
  • 1/8in. max. depth of cut
  • 6in. material thickness capacity

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The DEWALT® Planer with 3-Knife Cutter-Head has a powerful 15.0 Amp and 20,000 RPM motor to handle larger, deeper cuts in hardwoods. 3-knife cutter-head with 10,000 RPM cutter head speed provides 96 cuts per inch, one of the finest finishes of any portable planer. Disposable, reversible knives deliver 30% more knife life and make knife change fast and easy. Four-column carriage lock drastically reduces the movement that causes snipe.

What's Included

    (1) DEWALT Heavy-Duty Planer with 3-Knife Cutter-Head, 12 1/2in. Width Capacity, Model# DW734

Downloads

Product Manual

Features + Benefits

  • 15 Amp, 20,000 RPM motor handles larger, deeper cuts in hardwood
  • 6in. depth capacity
  • Extra-long infeed and outfeed tables provide 33 1/2in. of material support
  • 1/8in. max. depth of cut
  • 6in. material thickness capacity
  • 12 1/2in. material width capacity
  • Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
  • Turret depth stop allows users to return to their most frequently used depths with ease

Key Specs

AttributeSpecification

item#

399566

Brand

DEWALT

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

80.0 LB

Product Type

Planers
AttributeSpecification

Max. Cutting Depth

0.125 in

Knives (qty.)

3

Cutterhead Speed

20,000 rpm

Amps

15

Reviews

Questions & Answers

114 Reviews This action will navigate to reviews.

Questions

1–10 of 26 Questions
Sort by:

  1. does the wood need to be dry

    i have recently milled some timber into 2x12 planks can i mill it while its green or do i need to wait until it has dried out

    1. The dryer the better.

      Helpful?

    2. It works best with dry wood.

      Helpful?

  2. what about the blades?

    what kind of cutters lots of small blades or 1 cylender blade and can i get new blades if needed?

    1. This DEWALT Heavy-Duty Planer is equipped with a three-knife cylindrical cutter head with
      three blades that have two sharpened edges. These blades can be rotated once and changed as needed. The single blade replacement is part number BD5140071-51. You would contact our sister company, Jacks Small Engines to order parts. Please visit www.jackssmallengines.com for price and availability.

      Helpful?

    2. Three cylinder blades. Supposedly replacements available but haven't needed to do that yet.

      Helpful?

  3. Does this planer have feed rollers?

    1. yes

      Helpful?

    2. This planer does have feed rollers.

      Helpful?

  4. Where do you find replacement blades for the DeWalt H5341 12-1/2" Planer w/ 3 Knives

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. You will need the H5345 Replacement Knives.

  5. I get shavings out the infeed, how to repair, need a manual please

    1 answer
    Originally posted on grizzly.com

    1. Thank you for getting in touch with us. In order to address your concern, we recommend reaching out to Dewalt directly. Additionally, they can provide you with the manual for your product. Please feel free to contact Dewalt Customer Service at 1-800-433-9258.

  6. How many RPMs? Does the Dewalt 12 inch planner operate at??

    1 answer

    1. The planer offers a 20,000 RPM motor. The cutter head provides a 10,000 RPM cutter head speed.

      Helpful?

  7. Does the 12 1/2" planer come with an extra set of knives like the 13"?

    1 answer

    1. The planer will include one set of the 3 knives. It does not include an extra set of knives.

      Helpful?

  8. I have approximately 2,000 board feet of old growth fir flooring that needs planing. 2" x 5" tongue and groove. Originally milled in the 1920's. Need to take it down at least 1/8". Most board lengths are over 15'. Will this machine do the job?

    1 answer

    1. The planer will work for this application.

      Helpful?

  9. is there a vacuum connection

    1 answer

    1. The planer has a dust hood, it does not have a vacuum connection.

      Helpful?

  10. I am new to wood working how important is a planer and what does it do

    1 answer

    1. A planer is used to trim boards at a consistent thickness. It also smooths the boards. This is important in woodworking because it allows the user to make a nice product.

      Helpful?
