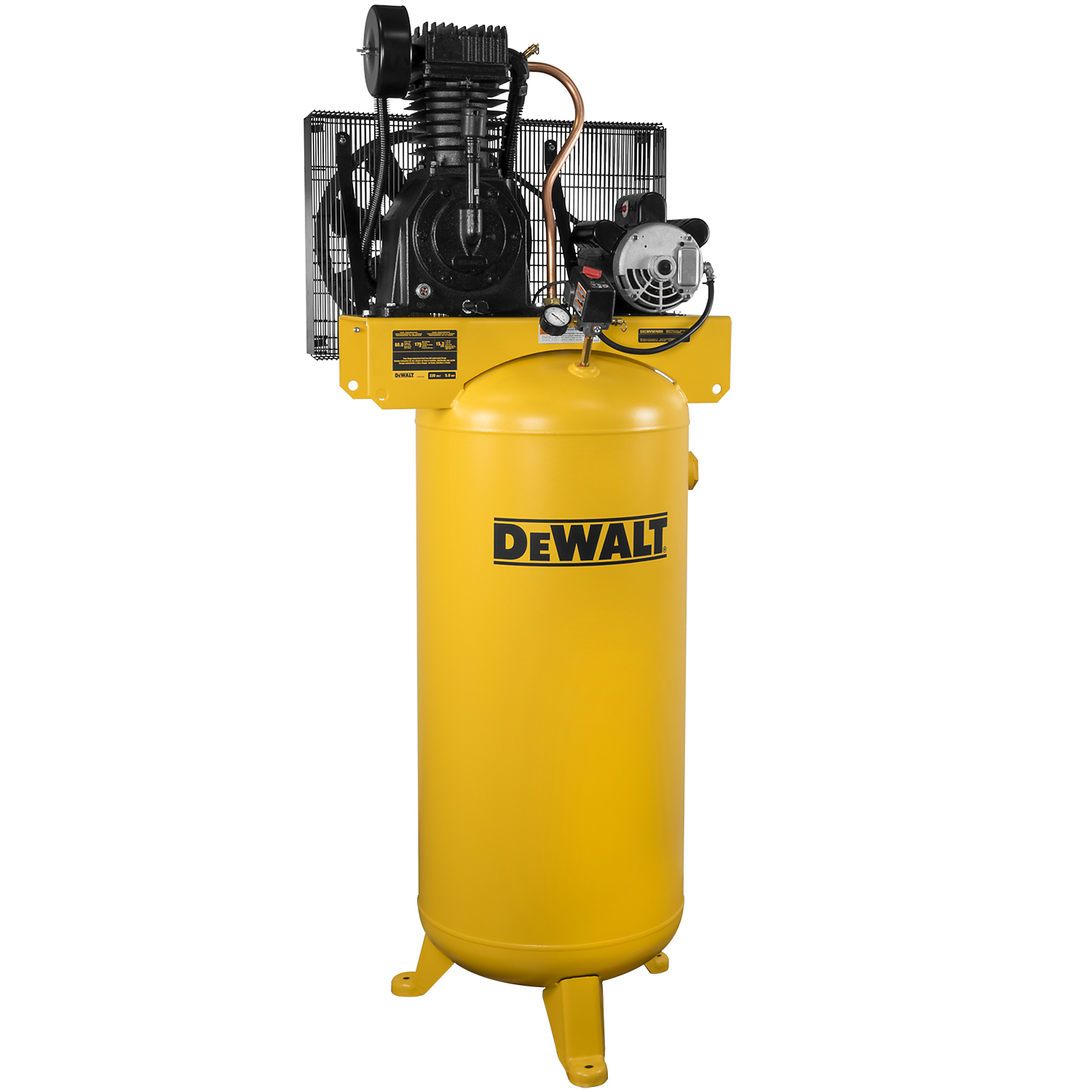

DEWALT 60 Gallon Air Compressor, Vertical, Two Stage 5 HP, Model# DXCMV5076055

Item# 4920365
DEWALT 60 Gallon Air Compressor, Vertical, Two Stage 5 HP, Model# DXCMV5076055

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 60 Gallon Air Compressor, Vertical, Two Stage 5 HP, Model# DXCMV5076055

Click or Tap image to Zoom

$2049.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Industrial performance delivers maximum CFM at 175 PSI; provides enough power to operate more than one air tool or device at one time
  • Low pump RPM for longer life
  • Patented pump design provides for a cooler running pump
  • Large capacity, 60 gallon ASME air receiver
  • Equipped with tank pressure gauge and on/off switch

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • DEWALT 60 Gallon Air Compressor, Vertical, Two Stage 5 HP, Model# DXCMV5076055
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
  • Quincy Compressor 30W Compressor Oil, 1-Qt., Model# 112543Q100
Price for all three:

$2102.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

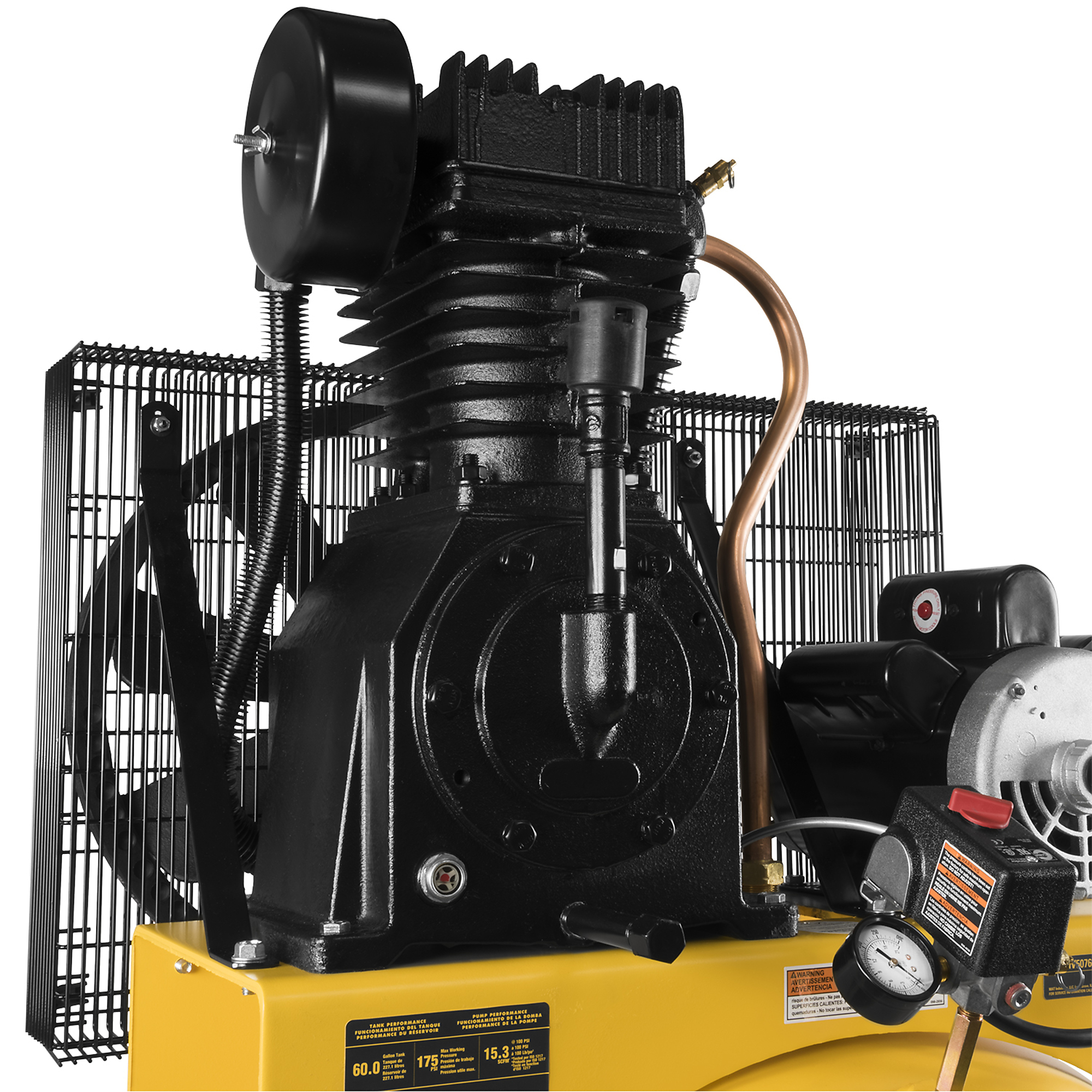

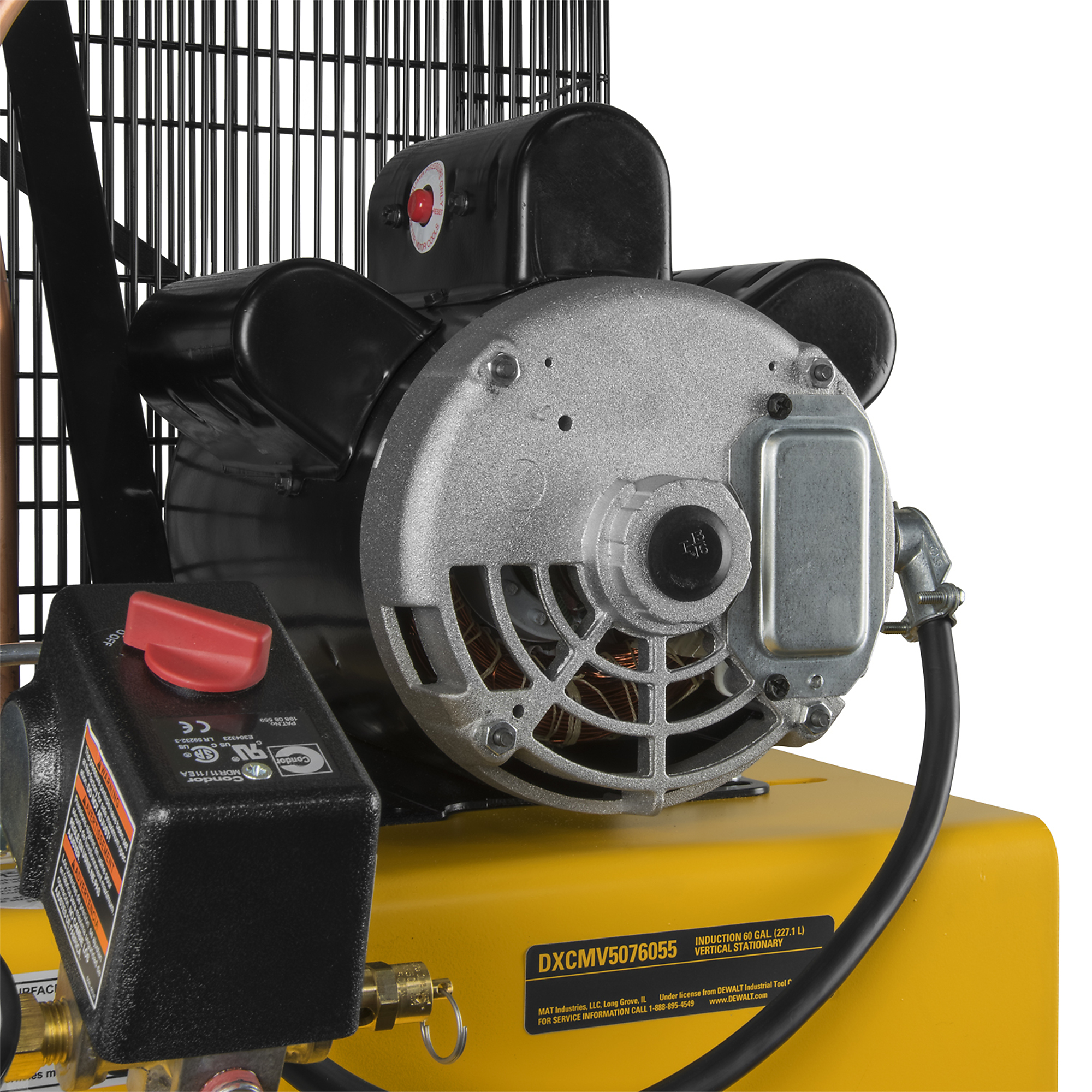

This two-stage industrial air compressor is designed for the serious professional. It is powered by a heavyweight 5 HP tops motor featuring a Thermal Overload Protection system that protects it from voltage fluctuations. This heavy-duty machine has a 175 maximum PSI, able to operate a variety of tools and maintain longer run times. A patented pump and piston design provides cooler operation. This air compressor features patented deep-grove directional, asymmetrical cooling fins and a patented cast-iron flywheel design with large extended fins for improved cooling and low-pump RPM.

What's Included

    (1) 60 Gal. 175 PSI Two Stage Stationary Electric Air Compressor

Features + Benefits

  • Industrial performance delivers maximum CFM at 175 PSI; provides enough power to operate more than one air tool or device at one time
  • Low pump RPM for longer life
  • Patented pump design provides for a cooler running pump
  • Large capacity, 60 gallon ASME air receiver
  • Equipped with tank pressure gauge and on/off switch

Key Specs

AttributeSpecification

item#

4920365

Brand

DEWALT

Manufacturer's Warranty

2 year limited warranty

Ship Weight

424.0 LB

Horsepower

5 HP

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

15.3

Max. PSI

175

Stage

2

Air Compressor Type

Stationary Electric

Amps

22

Engine Start Type

Electric
AttributeSpecification

Motor Phase

1

Pump Material

Cast Iron

CFM at Max. PSI

13.5

Noise Level

84 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Tank Orientation

Vertical

Product Weight

424.0000 lb

Dimensions L x W x H (in.)

40.0 x 31.0 x 80.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. What is the life expectancy of this dewalt air compressor the rest of the air compressors , say , an amount of hours they are supposed to last for

    1 answer

    1. With proper maintenance, the compressor can last 10-15 years or more.

      Helpful?

  2. What is the duty cycle

    1 answer

    1. This is 75 % duty cycle with no more than 6 Start / Stop cycles per hour.
