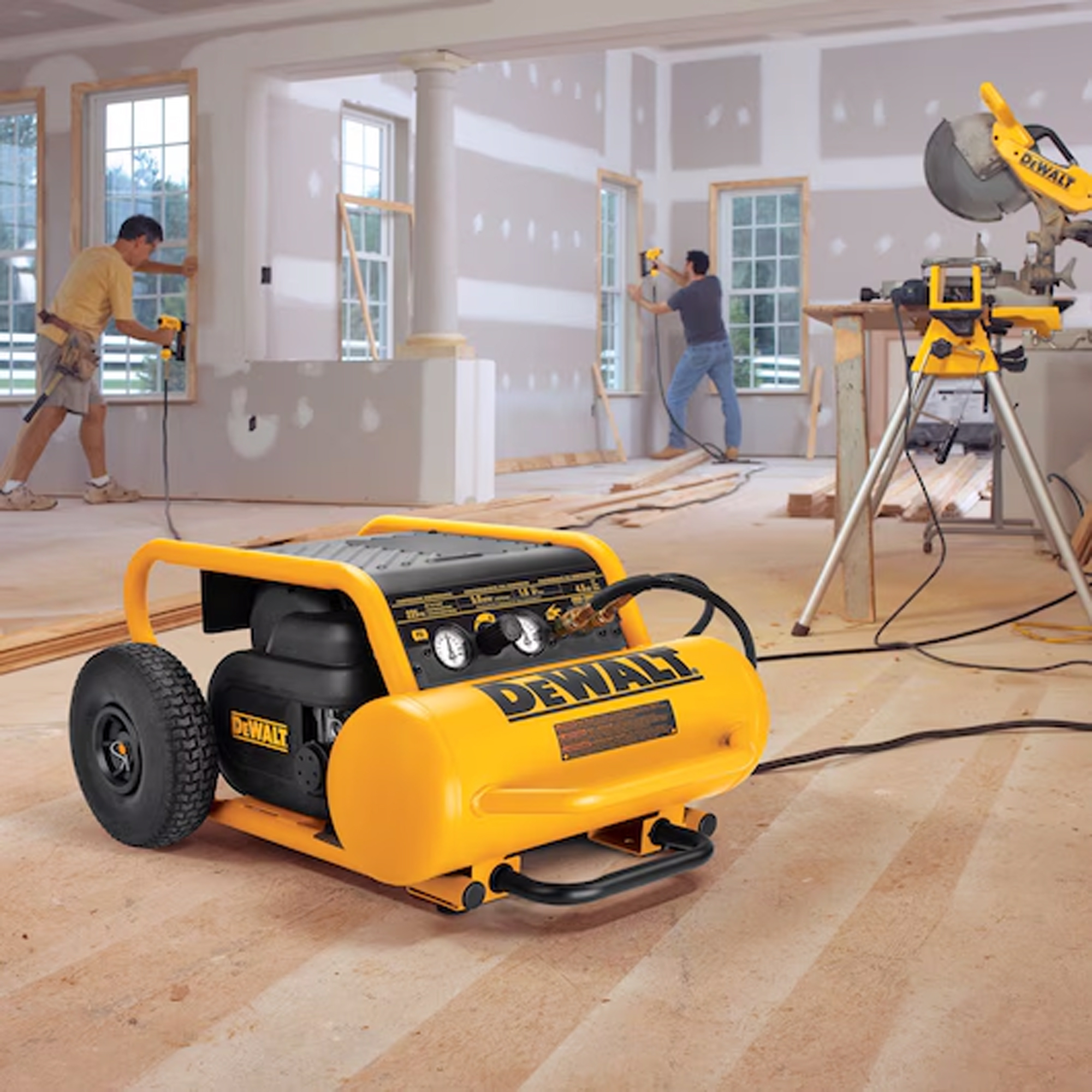

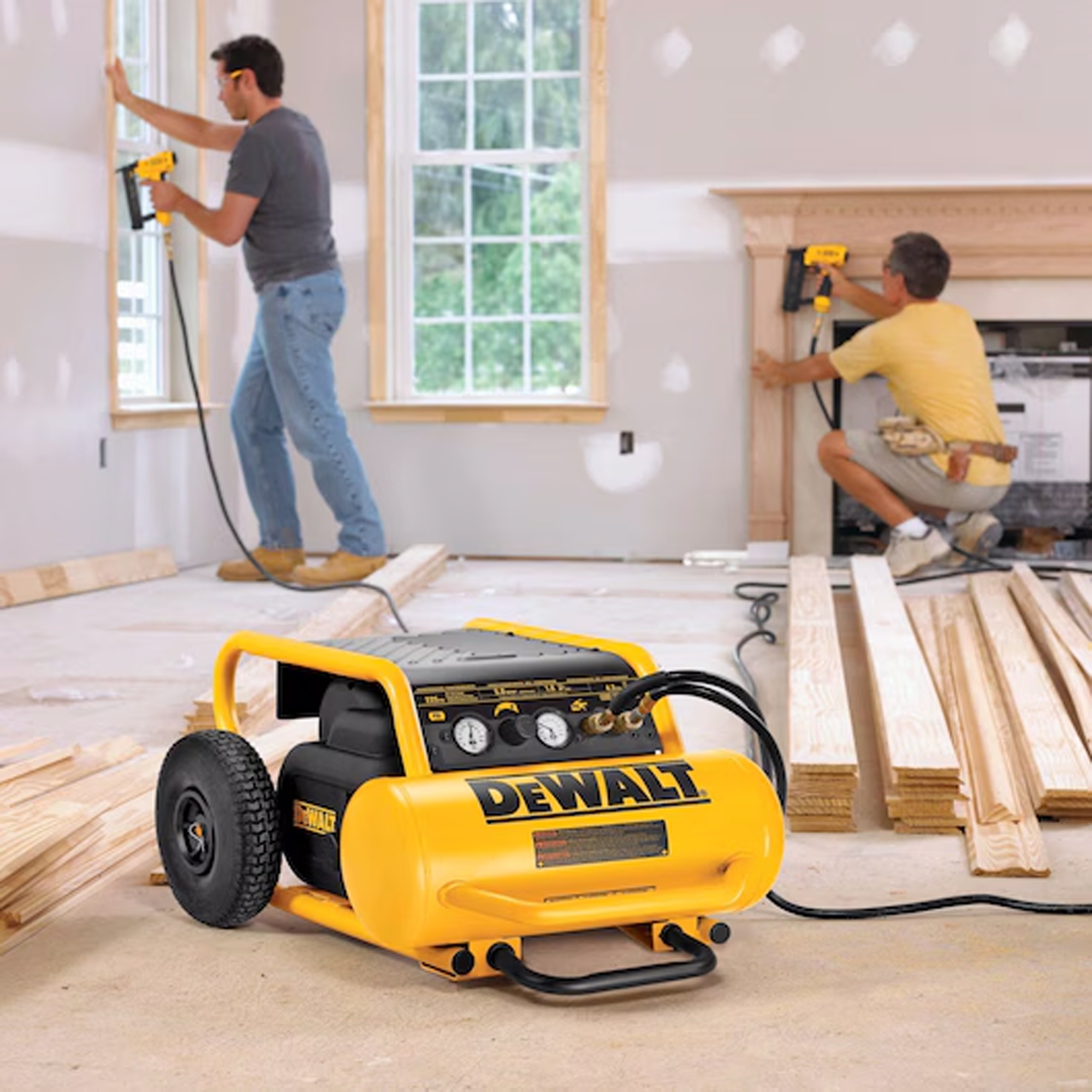

DEWALT, 4.5 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 4.5 Gal, Volts 120 Model# D55146

Item# 6145681
"DEWALT, 4.5 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 4.5 Gal, Volts 120 Model# D55146"
DEWALT, 4.5 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 4.5 Gal, Volts 120 Model# D55146

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT, 4.5 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 4.5 Gal, Volts 120 Model# D55146

Click or Tap image to Zoom

$402.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2 in. gauges allow for an easy to read surface
  • 5.0 SCFM @ 90 PSI allows the compressor to recover quickly after its initial tank charge is exhausted

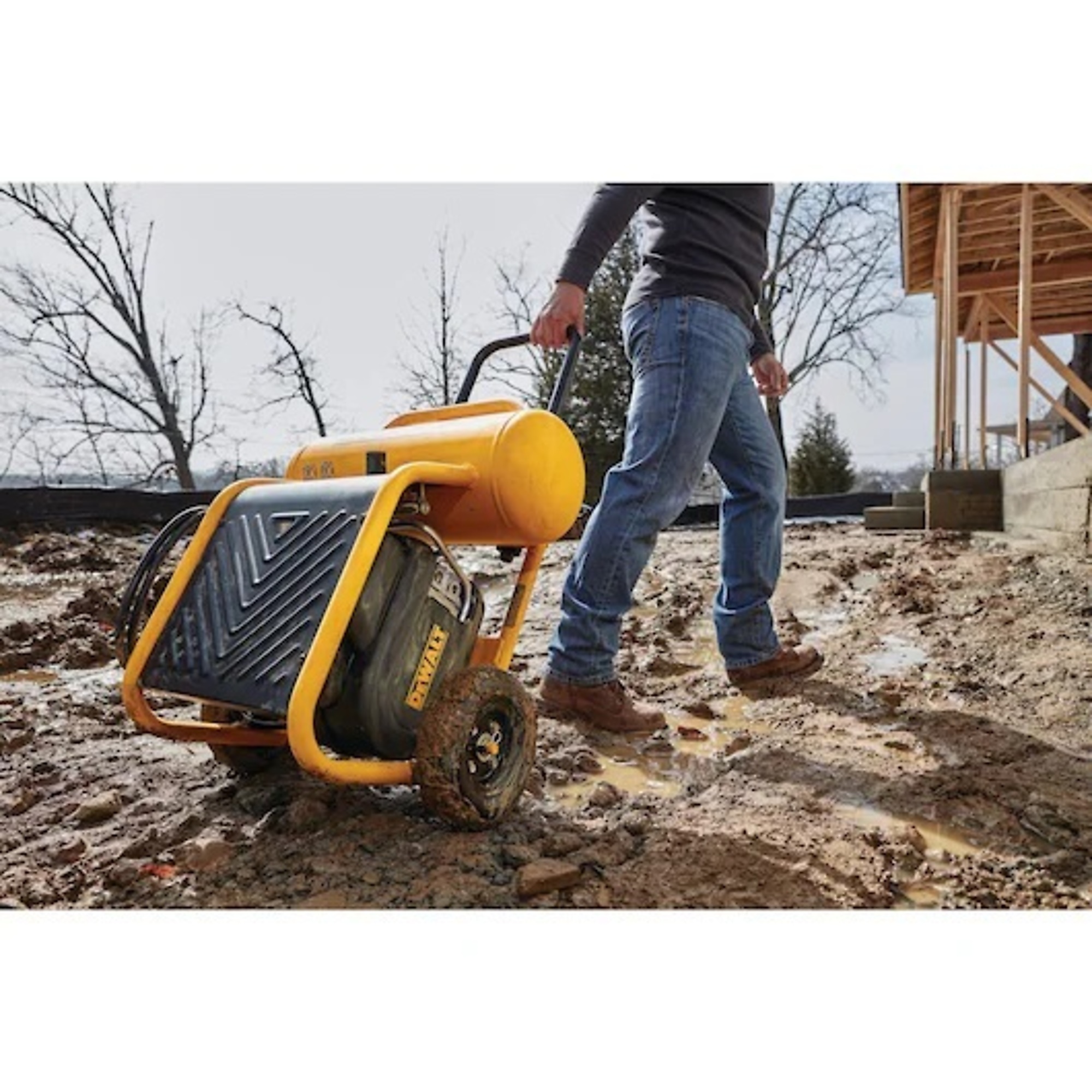

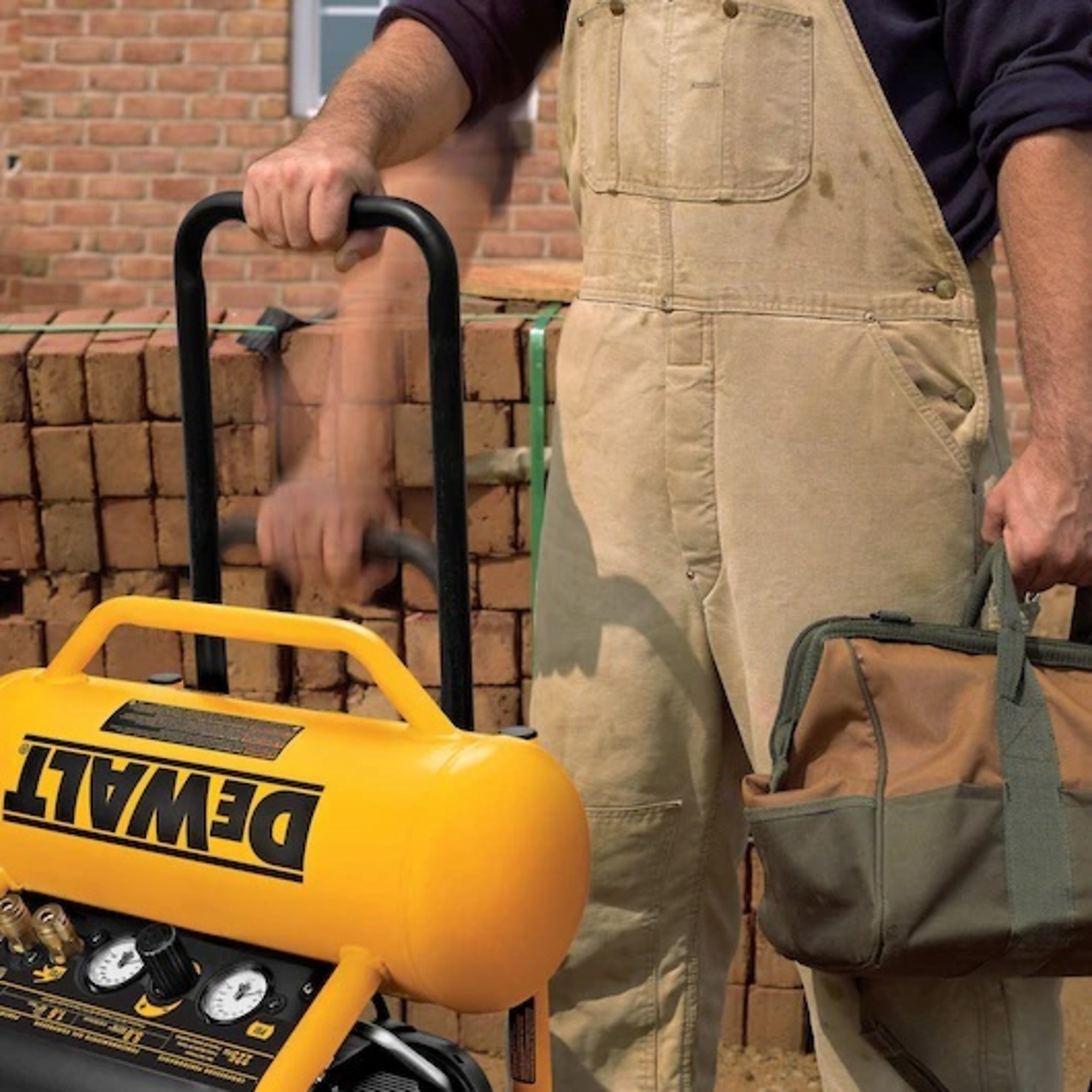

  • Vertical stand feature and collapsible handle allows a user to save space by transporting or storing the compressor in a vertical position
  • 78 dBA* operational noise level for a quieter work environment (* tested per ISO3477)
  • 10 in. non-flat pneumatic tires allow for easy transportation around the jobsite

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

DEWALT built the D55146 Heavy Duty 4.5 Gallon, 225 PSI, Heavy Duty Hand Carry Compressor with Wheels is quiet, efficient and solidly built; constructed to withstand harsh jobsite conditions. Its dual connections allow users to simultaneously operate up to 3 framing nailers or 2 roofing nailers. This versatile compressor is useful to both small framing carpenters remodelers and large trim carpenter crews remodelers alike. The unique, patented high efficiency motor and high pressure pump provide a maximum pressure of 225 PSI with 5.0 SCFM 90 PSI so you never lose pressure. The D55146 is convenient, with an oil free, maintenance free pump and is easy to move store with pneumatic wheels. It’s the perfect compressor to choose if you need a lot of power and a low maintenance tool. Vertical stand feature and collapsible handle allows user to save space by transporting or storing the compressor in a vertical position. 5. 0 SCFM (standard cubic feet per minute) 90 psi (pounds per square inch) allows the compressor to recover quickly after its initial tank charge is exhausted. 78 dB (decibel) operational noise level for a quieter work environment. Efficient high pressure technology allows for longer pump and motor life. Oil-free, maintenance free pump for convenient use. Efficient high pressure motor allows the compressor to be run with an extension code (12 gauge or heavier, 50ft. or less) due to consistent amp draw requirement of the compressor. High flow coupler allows for maximum nailer performance. Metal console panel provides a display area as well as protects the gauges, couplers, and regulator. High flow coupler allows for maximum nailer performance. 2in. gauges allow for an easy to read surface. 1 year limited . Vertical stand feature and collapsible handle allows user to save space by transporting or storing the compressor in a vertical position. This product is manufactured in United States. This product meets customer requirement.

What's Included

    (1) Air Compressor

Features + Benefits

  • 2 in. gauges allow for an easy to read surface
  • 5.0 SCFM @ 90 PSI allows the compressor to recover quickly after its initial tank charge is exhausted
  • Vertical stand feature and collapsible handle allows a user to save space by transporting or storing the compressor in a vertical position
  • 78 dBA* operational noise level for a quieter work environment (* tested per ISO3477)
  • 10 in. non-flat pneumatic tires allow for easy transportation around the jobsite
  • EHP® Efficient high pressure technology allows for longer pump and motor life
  • Oil free, maintenance free pump for convenient use
  • Efficient high pressure motor allows the compressor to be run with an extension cord (12 Ga. or heavier, 50 ft. or less) due to consistent amp draw requirement of the compressor
  • Supports roofing and framing nailers
  • Supports brad nailers and finish nailers
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6145681

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

86.0 LB

Horsepower

1.6 HP

Air Tank Size

4.5 Gal

Volts

120

Engine Brand

OEM

CFM at 90 PSI

5

Max. PSI

225

Stage

1

Air Outlets (qty.)

2

Amps

15
AttributeSpecification

Engine Start Type

Electric

Pump Material

Combination

Air Outlet Size

1/4 in. NPT

Noise Level

78 dB

Oil Required

No

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Tank Orientation

Horizontal

Product Weight

78.7000 lb

Dimensions L x W x H (in.)

27.0 x 23.0 x 15.35 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What’s the running watts?

    1. The DEWALT air compressor requires 1,800 running watts. The surge (starting) wattage rating can require 2 to 3 times the running watts.

      Helpful?

    2. The wattage draw is 1,800. The start-up may require 2 to 3 times this amount.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
