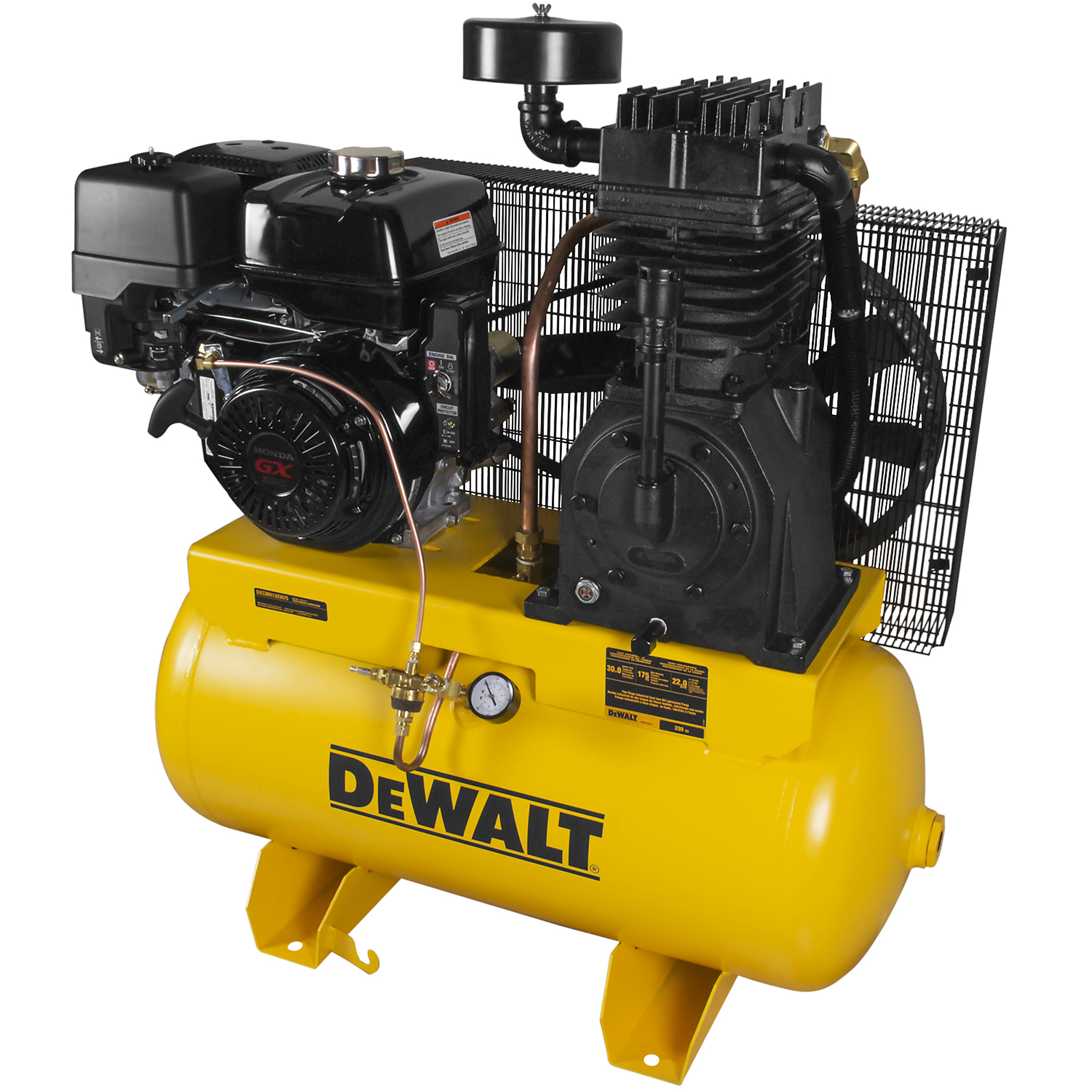

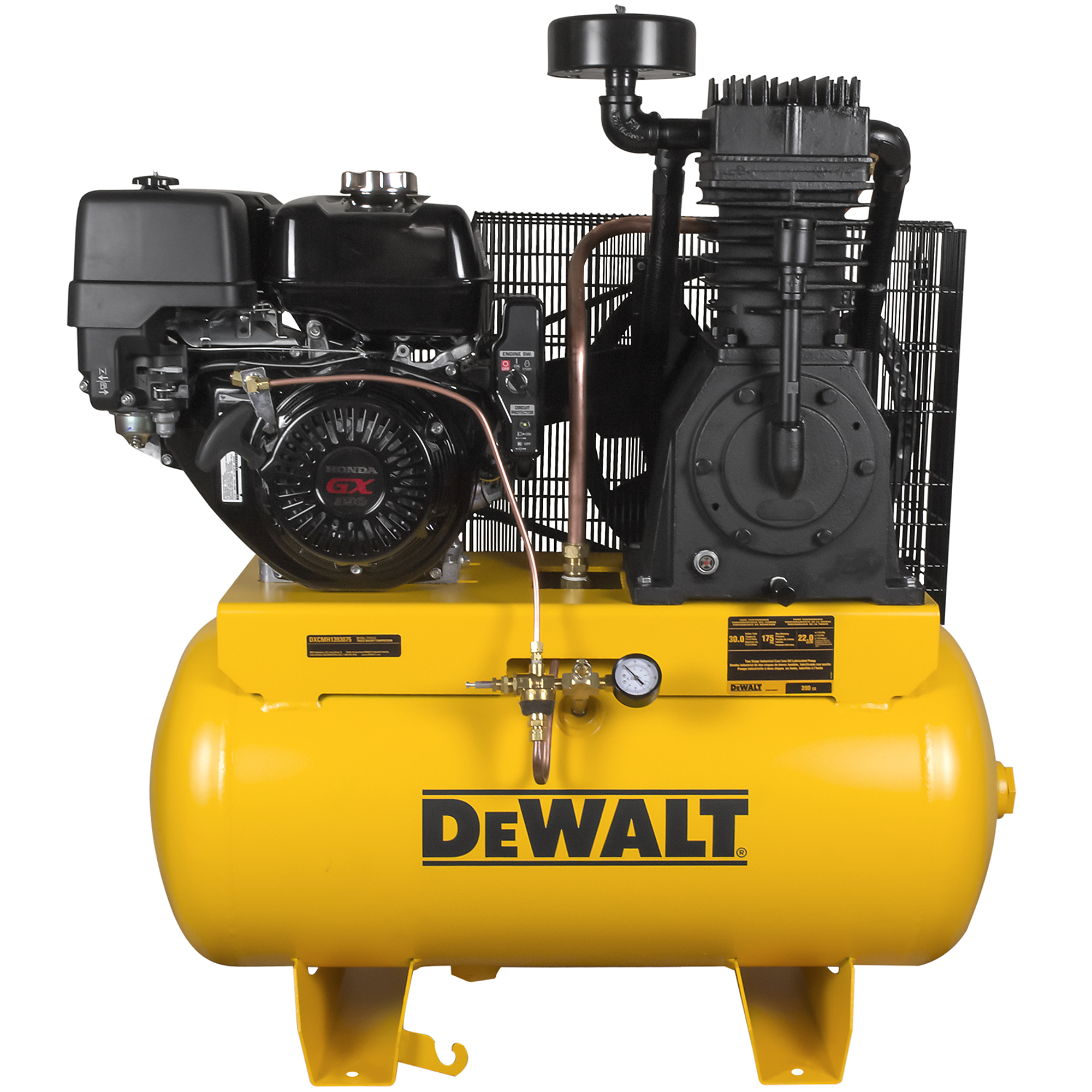

DEWALT 30 Gallon Air Compressor, Horizontal w/Truck Mount Honda Gas Engine, 13 HP, Model# DXCMH1393075

Item# 4920146
DEWALT 30 Gallon Air Compressor, Horizontal w/Truck Mount Honda Gas Engine, 13 HP, Model# DXCMH1393075

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT 30 Gallon Air Compressor, Horizontal w/Truck Mount Honda Gas Engine, 13 HP, Model# DXCMH1393075

Click or Tap image to Zoom

  • Features a reliable electric start Honda GX390 OHV gas engine
  • Offers a 390-CC engine with a rate of 24.0-CFM at 100 psi or 22.0-CFM at 175 psi
  • Includes a patented piston design a cast iron precision bored cylinder head and patented asymmetrical deep-grove directional cooling fins
  • Features a patented cast iron flywheel design

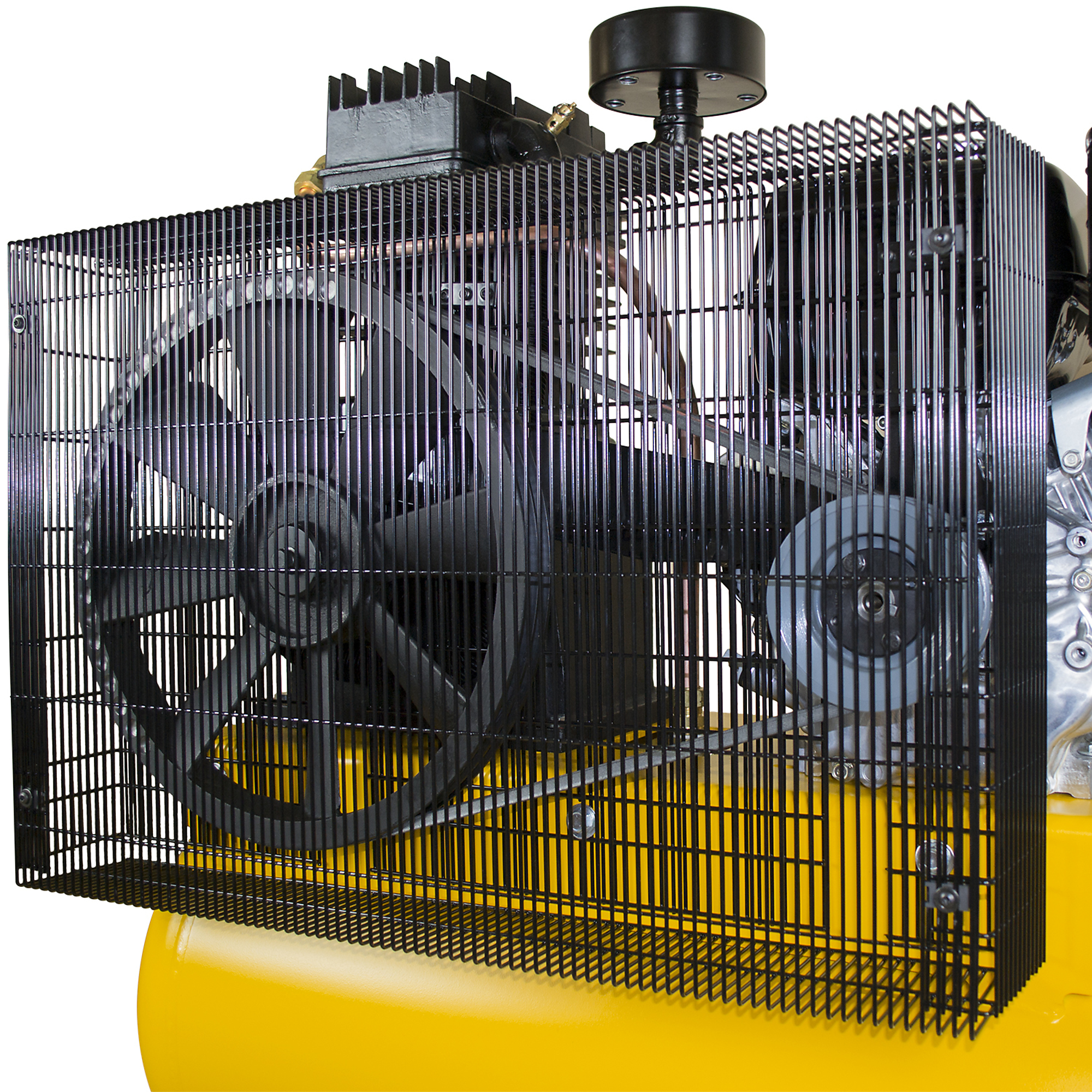

  • Includes a uniquely-designed metal belt guard that improves cooling by as much as 60 degrees F

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This air compressor is engineered with an overall rugged functionality. This design utilizes a reliable, electric start Honda GX390 OHV gas engine for increased efficiency, optimal power transfer. It is EPA and CARB approved and features an automatic low-oil shutdown function. Manufactured for industrial performance, this 30 gal. 2-stage cast iron industrial air compressor delivers a maximum of 22.0-CFM at 175 PSI, providing enough power to operate more than one air tool or device at a time. The pump is crafted with a patented piston design, a cast iron precision bored cylinder head with a set of patented asymmetrical deep-groove directional cooling fins and a patented cast iron flywheel design. Merged together, those features provide a cooler running pump. This compressor is engineered as a truck mount style unit with ASME Certification and includes a uniquely-designed metal belt guard that improves compressor pump cooling by as much as 60 degrees over other belt guard designs.

What's Included

    (1) 30 Gal. 2-Stage Portable Gas-Powered Truck Mount Air Compressor

Features + Benefits

  • Features a reliable electric start Honda GX390 OHV gas engine
  • Offers a 390-CC engine with a rate of 24.0-CFM at 100 psi or 22.0-CFM at 175 psi
  • Includes a patented piston design a cast iron precision bored cylinder head and patented asymmetrical deep-grove directional cooling fins
  • Features a patented cast iron flywheel design
  • Includes a uniquely-designed metal belt guard that improves cooling by as much as 60 degrees F

Key Specs

AttributeSpecification

item#

4920146

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

497.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

24

Max. PSI

175

Stage

2

Fuel Capacity

1.6 Gal

Engine Displacement

390 cc
AttributeSpecification

Engine Start Type

Electric and Recoil

Pump Material

Cast Iron

CFM at Max. PSI

22

Noise Level

75 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Air Dryer

None

Drain Type

Manual

Tank Orientation

Horizontal

Product Weight

497.0000 lb

Dimensions L x W x H (in.)

46.0 x 23.5 x 48.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. what size oil does the engine and the air compressor take please? thanks

    1 answer

    1. The engine would take standard 10W-30 weight oil. The recommended air compressor oil would be ISO 100/SAE40 non-detergent premium air compressor oil for the pump.

      Helpful?

  2. Does this come with the start-up kit?

    1 answer

    1. A start up kit does not come with the generator. There is not a start up kit available.
