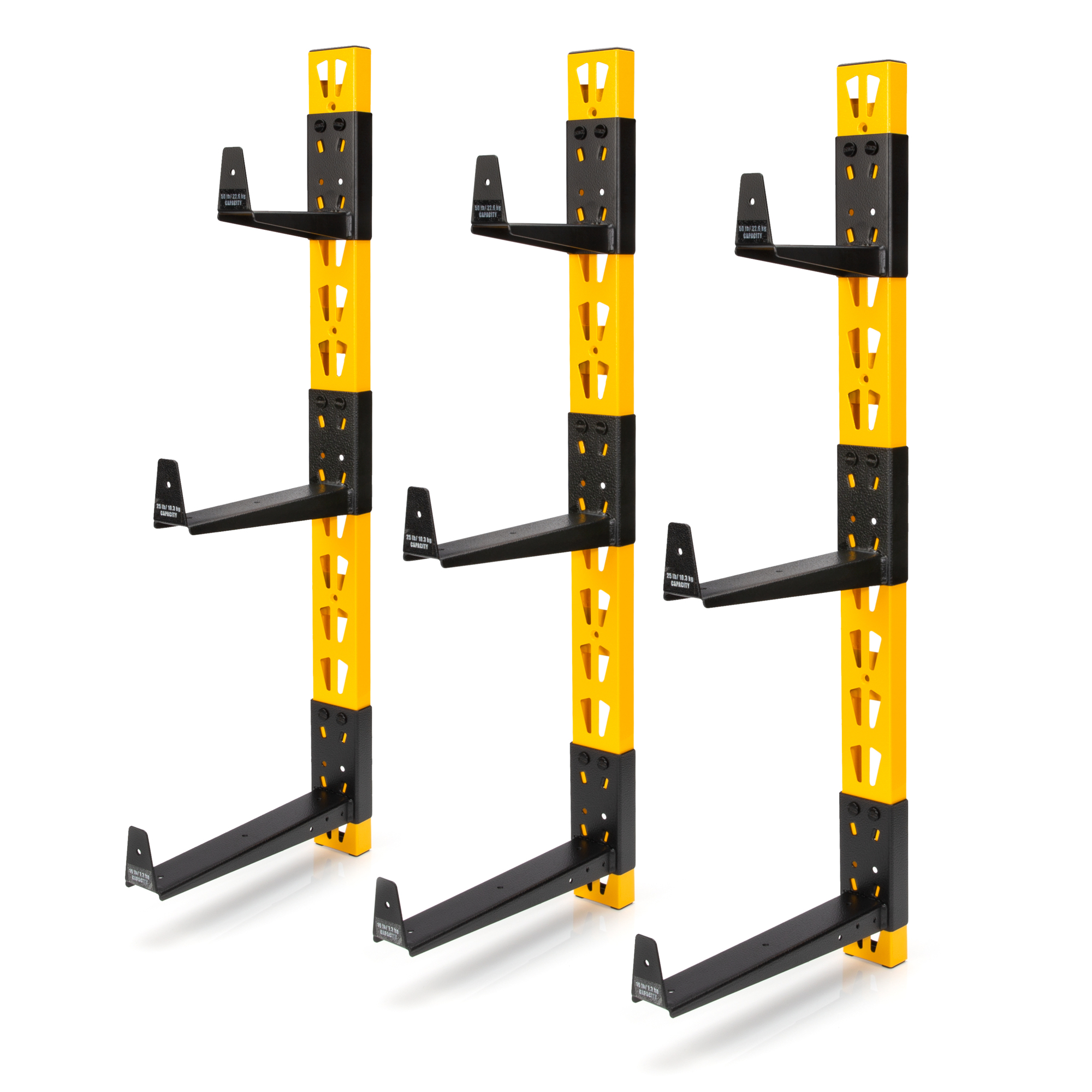

DeWalt Wall-Mounted Cantilever Rack — 3-Piece, Steel, 36in. Rails, Model# DXSTACLR

Item# 6707357
"DeWALT 3-Piece Wall Mount Cantilever Rack, DXSTACLR"
Top Seller
DeWalt Wall-Mounted Cantilever Rack — 3-Piece, Steel, 36in. Rails, Model# DXSTACLR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DeWalt Wall-Mounted Cantilever Rack — 3-Piece, Steel, 36in. Rails, Model# DXSTACLR

Click or Tap image to Zoom

$109.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • LARGE CAPACITY - Supports 50 lb. per short arm, 25 lb. per medium arm, and 16 lb. per long arm for a total capacity of 273 lb.
  • MULTIPLE DEPTH STORAGE - Set includes 3 different cantilever arm lengths with 6-inch, 10-inch, and 12-inch lengths
  • POWDER-COATED STEEL - Arms and rails are made of durable steel with an industrial grade powder coating that won't chip or fade

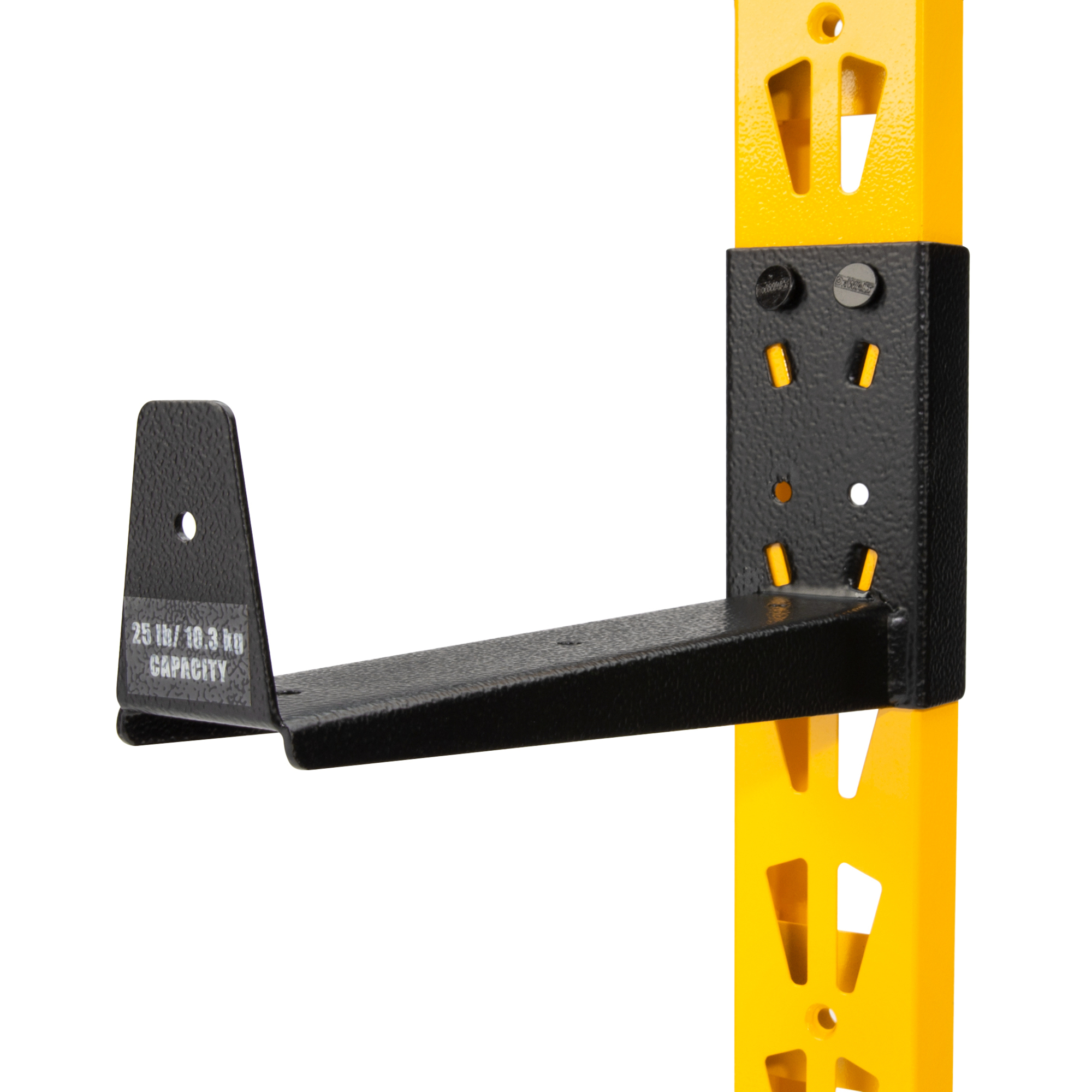

  • ARM END STOPS - Each support arm features a 2.5-inch flat tab on the end to prevent round stock from rolling off

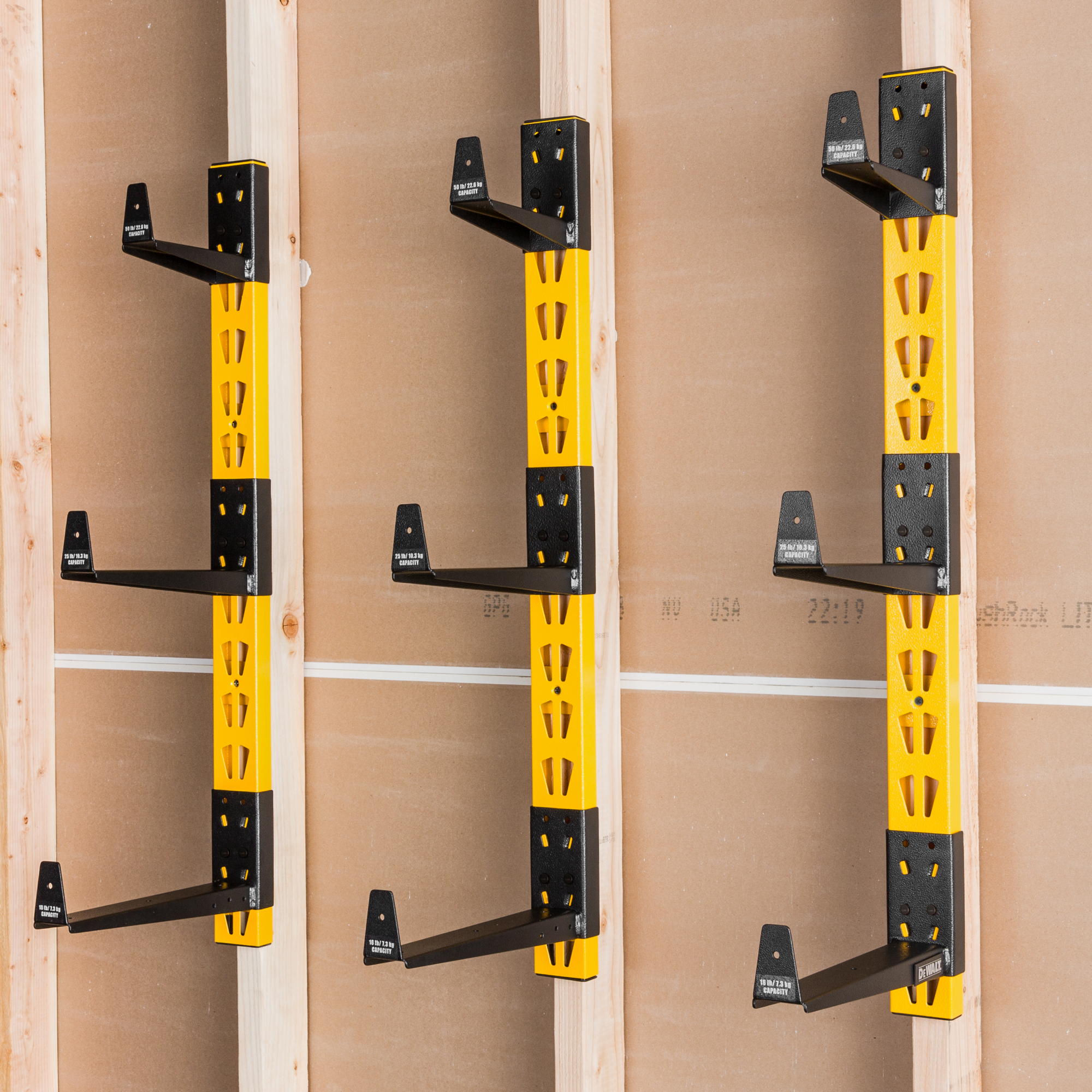

  • EASY MOUNTING RAILS - 36-inch tall wall mount rails easily mount to both finished walls or to bare 2X4 studs

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

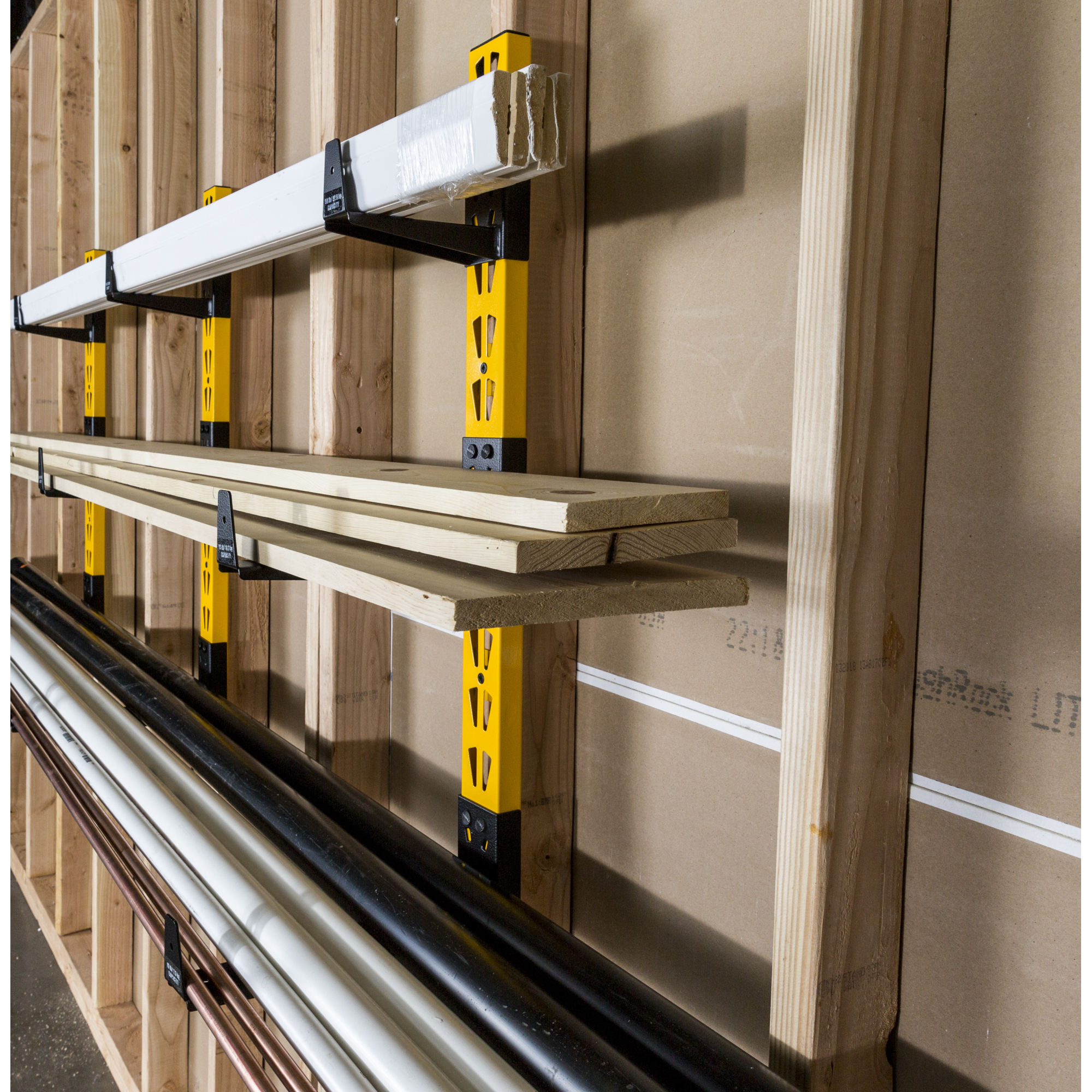

Easily bring long material storage to any workshop or garage with the DEWALT DXSTACLR 3-Piece Wall-Mounted Cantilever Rack. This durable steel rack features three sets of storage arms to let you easily store lumber, rods, dowels, metal bar stock, and more. Don't judge them by their size though because the shortest set, the 6in. arms, are also the strongest. Being able to support up to 50-pounds per arm, they can hold a total of 150-pounds when evenly distributed across the set of 3 short arms. The medium, 10in. arms can support 25-pounds each and the long, 12in. arms come in supporting 16-pounds each for a total of 75-pounds across the medium arms, and 48-pounds across the long arms when evenly spread across the 3 arms per set. To prevent injury from accidentally bumping into the arms each has a 2.5in. end stop that both blunts the end and keeps round stock from rolling off the rack. Locking pins on each arm prevent them from coming free when bumped or jostled when stacking materials onto the rack but are easily removed when you want to change the height of the arms which adjust in 2.35in. increments. The 36in. wall-mounting rails are designed to easily mount to both finished and bare-stud walls with the included hardware.

What's Included

    (3) Small Cantilever Arm (3) Medium Cantilever Arm (3) Large Cantilever Arm (3) Wall Mount Upright (1) Mounting Hardware

Features + Benefits

  • LARGE CAPACITY - Supports 50 lb. per short arm, 25 lb. per medium arm, and 16 lb. per long arm for a total capacity of 273 lb.
  • MULTIPLE DEPTH STORAGE - Set includes 3 different cantilever arm lengths with 6-inch, 10-inch, and 12-inch lengths
  • POWDER-COATED STEEL - Arms and rails are made of durable steel with an industrial grade powder coating that won't chip or fade
  • ARM END STOPS - Each support arm features a 2.5-inch flat tab on the end to prevent round stock from rolling off
  • EASY MOUNTING RAILS - 36-inch tall wall mount rails easily mount to both finished walls or to bare 2X4 studs

Key Specs

AttributeSpecification

item#

6707357

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

22.86 LB

Product Type

Rack

Accessory Type

Cantillever Mount Bracket

Capacity

50 lb
AttributeSpecification

Adjustable

Yes

Shelves (qty.)

3

Shelf Material

Steel

Bracket Material

Steel

Product Weight

20.8500 lb

Dimensions L x W x H (in.)

35.4 x 2.75 x 13.25 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
