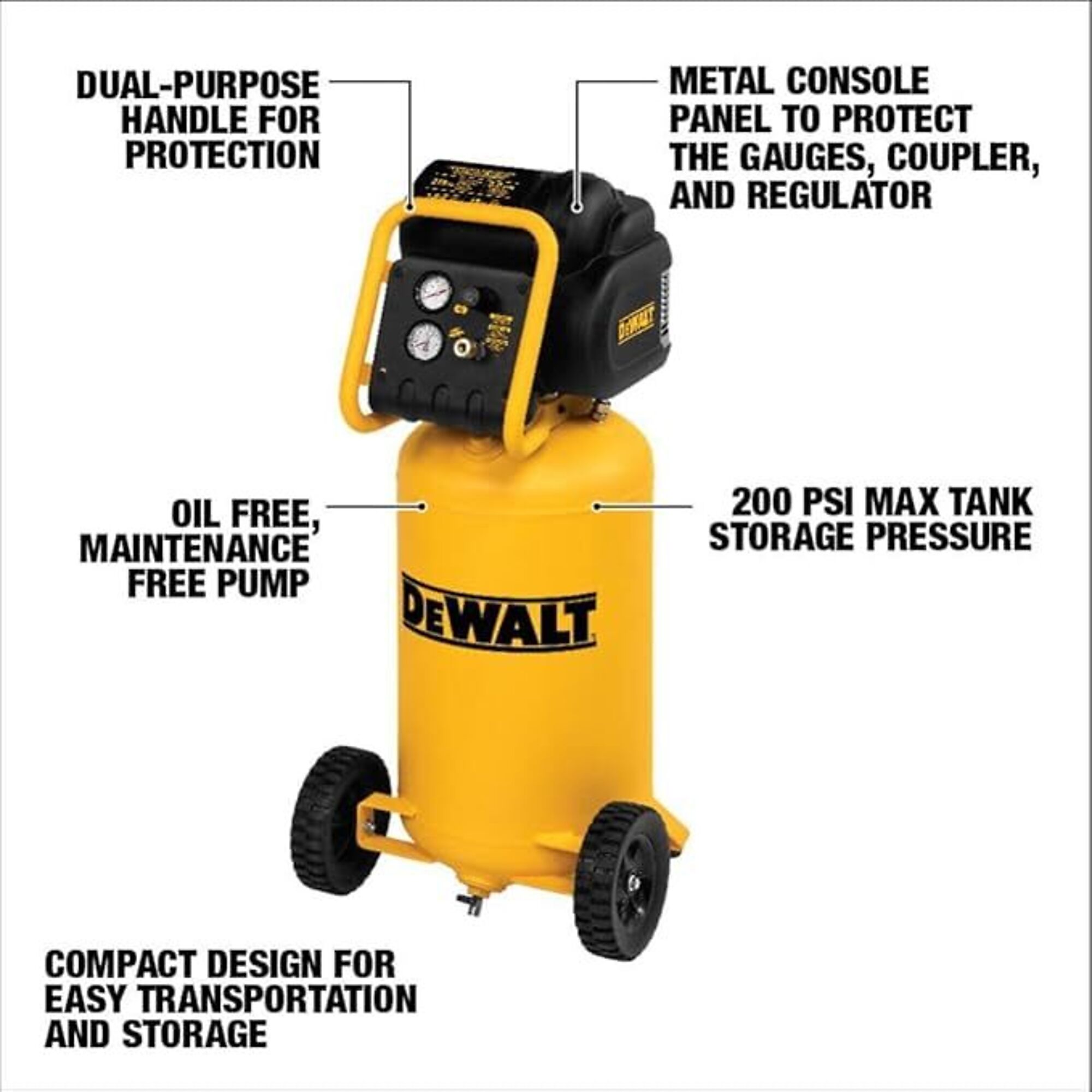

DEWALT, 15 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 15 Gal, Volts 120 Model# D55168

Item# 6145673
DEWALT, 15 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 15 Gal, Volts 120 Model# D55168

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

DEWALT, 15 Gal 1.6 Hp Air Compressor, Horsepower 1.6 HP, Air Tank Size 15 Gal, Volts 120 Model# D55168

Click or Tap image to Zoom

$479.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 5.0 SCFM @ 90 PSI allows for quick compressor recovery times
  • High flow air regulator allows for maximum air tool run time
  • High flow coupler allows for maximum air tool run time
  • 2 in. gauges allow for an easy to read surface
  • Wide track, semi-pneumatic tires allow for additional stability, easy movement, and no tire maintenance

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

DEWALT workshop air compressor, portable, vertical, 1.6 hp power, 120 V, 15 a, 15 gal capacity, 160 psi operating, 200 psi maximum, 5 SCFM at 90 psi, 1/4in. FNPT outlet, 78 dba, oil-free pump, 1750 RPM pump, universal motor, belt drive, robust dual-purpose handle, 1000 hr, steel cylinder, 24-1/2in. overall length, 22in. overall width, 44-3/4in. overall height, includes: control panel, roll cage, hose storage and ball drain valve, standards: UL listed. Lightweight enough for easy portability, this 15-gallon compressor from DEWALT lets you repair and perform maintenance work on cars, as well as a variety of equipment, and can also help with nailing projects and blowing dust away from your work area. Ideal for home or small shop use, its quiet, 78 dBA noise level and oil-free design make for a more pleasant, less messy working experience, while its ability to efficiently operate air tools like paint sprayers and ratchet wrenches gives you plenty of options. The D55168 also minimizes down-time and stands up to wear and tear, thanks to its 225 PSI max tank pressure and 5.4 SCFM at 90 PSI operation.

What's Included

    (1) Air Compressor

Features + Benefits

  • 5.0 SCFM @ 90 PSI allows for quick compressor recovery times
  • High flow air regulator allows for maximum air tool run time
  • High flow coupler allows for maximum air tool run time
  • 2 in. gauges allow for an easy to read surface
  • Wide track, semi-pneumatic tires allow for additional stability, easy movement, and no tire maintenance
  • 225 PSI max tank storage pressure allows for longer air tool run times
  • 78 dBA (tested per ISO3744) operational noise level for a quieter work environment
  • EHP® Efficient high pressure technology delivers exceptional air-tool runtimes
  • Oil free, maintenance free pump for convenient use
  • Efficient high pressure motor allows the compressor to be run with an extension cord (12 Ga. or heavier, 50 ft. or less) due to consistent amp draw requirements of the compressor
  • Compact design allows for the compressor to be easily moved, transported, and stored
  • Robust dual purpose handle provides additional protection to the compressor along with serving as a hose wrap

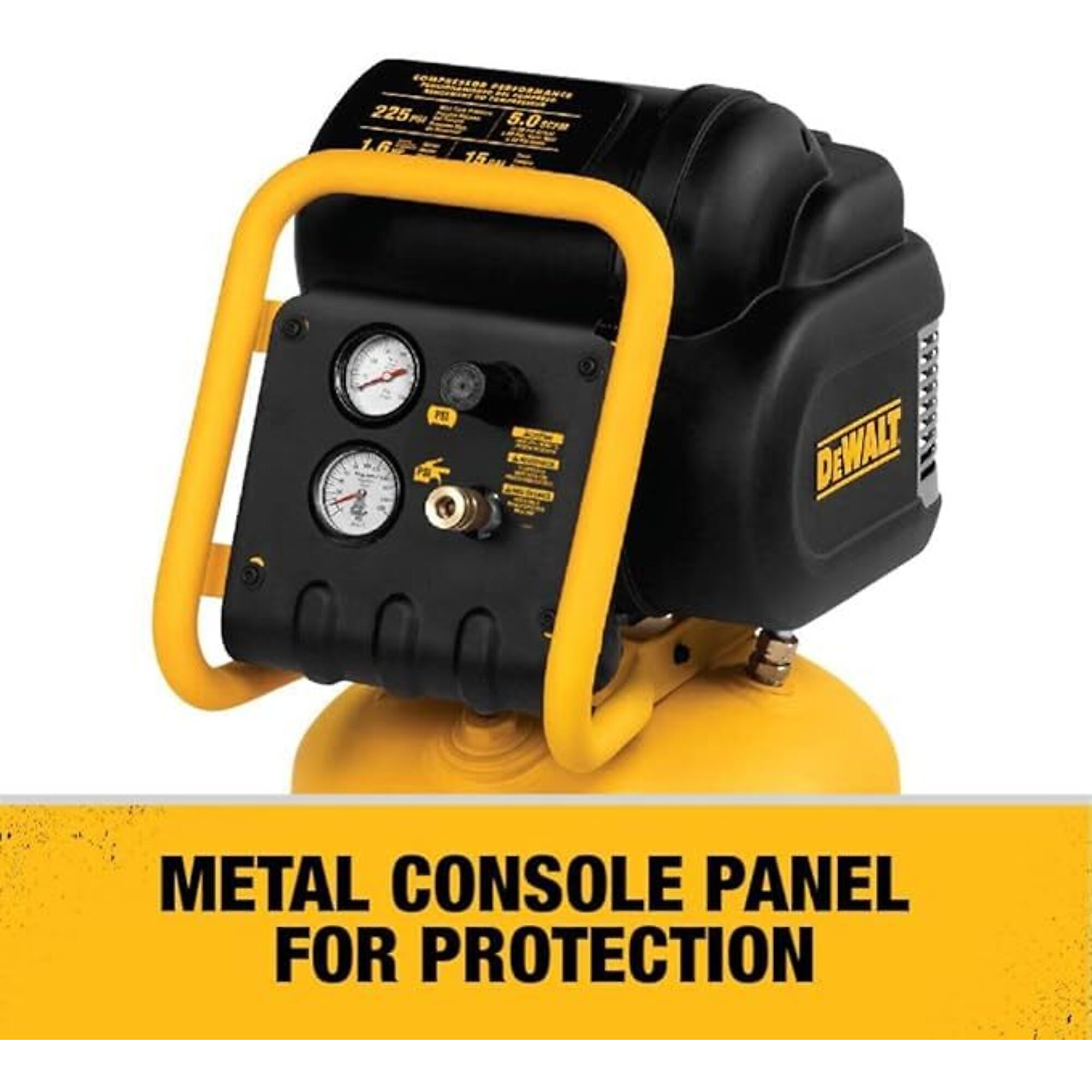

  • Metal console panel protects the gauges, coupler, and regulator
  • Limited Warranty 1 Year

Key Specs

AttributeSpecification

item#

6145673

Brand

DEWALT

Manufacturer's Warranty

1 year limited warranty

Ship Weight

107.0 LB

Horsepower

1.6 HP

Air Tank Size

15 Gal

Volts

120

Engine Brand

OEM

CFM at 90 PSI

5

Max. PSI

225

Stage

1

Air Outlets (qty.)

1

Amps

15
AttributeSpecification

Engine Start Type

Electric

Pump Material

Combination

Air Outlet Size

1/4 in. NPT

Noise Level

78 dB

Oil Required

No

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Ball Valve

Tank Orientation

Vertical

Product Weight

95.7000 lb

Dimensions L x W x H (in.)

18.06 x 17.25 x 41.13 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Motor rpm

    1. The motor of this compressor is rated at 1750 RPM.

      Helpful?

    2. The motor RPM (revolutions per minute) for the DEWALT model D55168 air compressor is 1750 RPM.

      Helpful?

  2. Is it direct drive or belt drive? How loud is it?

    1. The DEWALT, 15 Gal 1.6 Hp Air Compressor is belt driven. It operates at an approximate decibel rating of 78.

      Helpful?

    2. The DEWALT model number D55168 is a belt drive air compressor. As for the noise level, it operates at around 78 dBA, which is relatively quiet for an air compressor, making it suitable for a quieter work environment.

      Helpful?

  3. I have been looking at other compressors (Dewalt included) that have two connections for air lines. Is it possible to attach a splitter-type fitting that would allow connections to two hoses simultaneously with "Open/Close" optionality?

    1 answer

    1. The model number D55168 can accommodate a splitter-type fitting to connect two hoses simultaneously with an 'Open/Close' option.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
