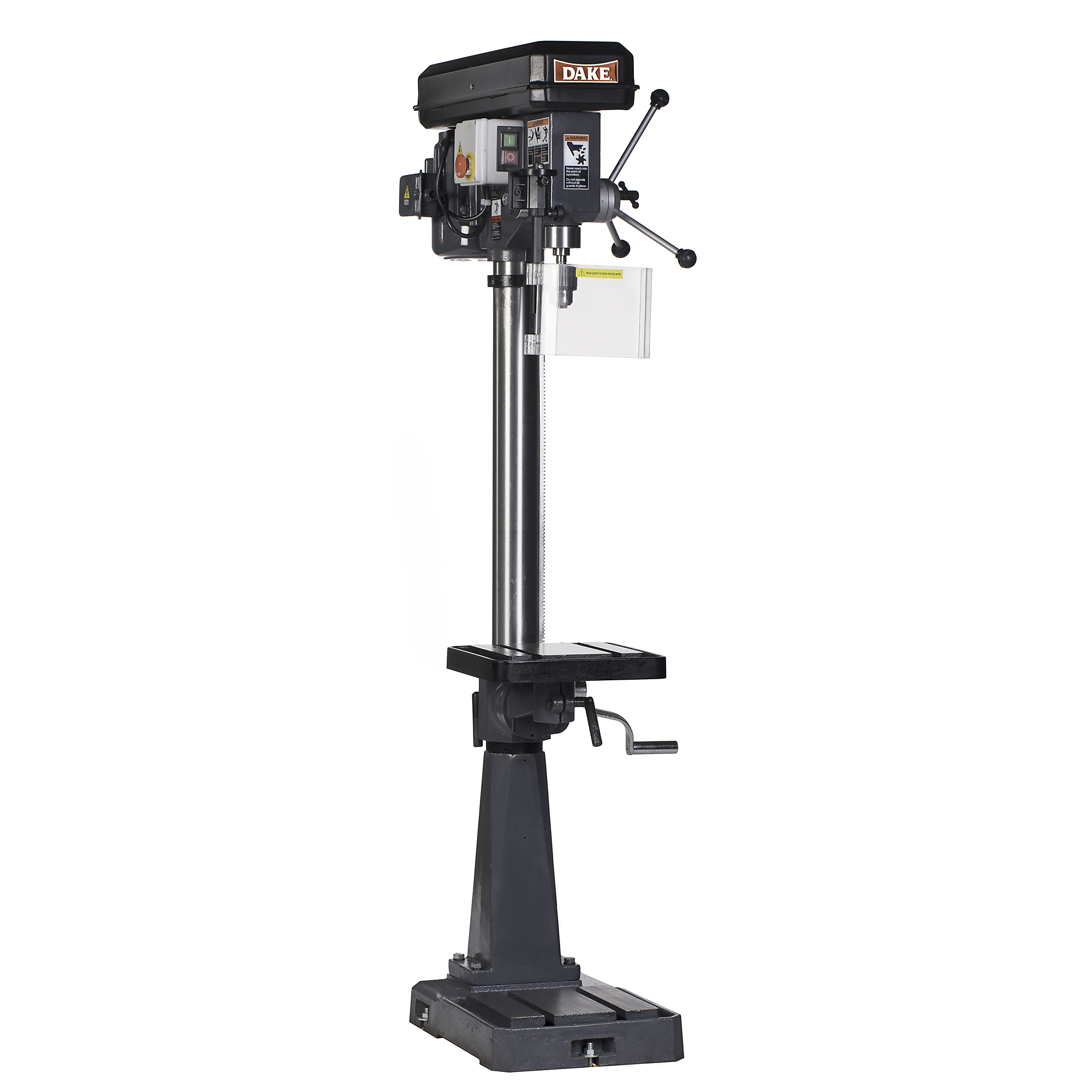

Dake, Floor Drill Press 5/8in. Capacity, 110V, Horsepower 1 HP, Volts 110/220 Model# SB-16

Item# 6304777
Dake, Floor Drill Press 5/8in. Capacity, 110V, Horsepower 1 HP, Volts 110/220 Model# SB-16

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dake, Floor Drill Press 5/8in. Capacity, 110V, Horsepower 1 HP, Volts 110/220 Model# SB-16

Click or Tap image to Zoom

$2571.12

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Drill capacity (in) 5/8; Horsepower ½; Motor 110/220/440V; Spindle Taper MT2; Working Diameter (in) 14-1/8; Number Of Speeds 9; Spindle Speed Range 240-3400; Electrics CE 120V; Weight (lbs) 230; Spindle Travel (in) 3-1/8; Column Diameter (in) 3-1/8; Table Depth (in) 11-3/4; Table Width (in) 11-3/4; Base Depth (in) 19-5/8; Base Width (in) 12-1/2; Spindle To Table (in) 28-1/2; Spindle To Base (in) 49-1/4; Overall Height (in) 64.
  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Machined table and base surfaces with t-slots for mounting and fixturing
  • Forward and reverse selector switch for tapping applications

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Variable speed floor model drill press that automatically advances to preset depth, bottoms out, and returns automatically. Comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one touch drill press.

What's Included

    (1) 1 Drill Press

Features + Benefits

  • Drill capacity (in) 5/8; Horsepower ½; Motor 110/220/440V; Spindle Taper MT2; Working Diameter (in) 14-1/8; Number Of Speeds 9; Spindle Speed Range 240-3400; Electrics CE 120V; Weight (lbs) 230; Spindle Travel (in) 3-1/8; Column Diameter (in) 3-1/8; Table Depth (in) 11-3/4; Table Width (in) 11-3/4; Base Depth (in) 19-5/8; Base Width (in) 12-1/2; Spindle To Table (in) 28-1/2; Spindle To Base (in) 49-1/4; Overall Height (in) 64.
  • A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
  • Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
  • Machined table and base surfaces with t-slots for mounting and fixturing
  • Forward and reverse selector switch for tapping applications
  • Electrical package features on/off switch, emergency stop button, and interlock safety switch for belt cover
  • Massive cast head, machined column, and sturdy cast base reduces vibration
  • Latest frequency inverter technology for easy speed changes and concentrated torque
  • Handle has 3 spokes with spring return for precise operator control and ergonomic operation
  • Power down feed
  • Standard Equipment: 5/8” Keyed chuck, Drift for bit removal, Plexiglas chip and chuck guard.

Key Specs

AttributeSpecification

item#

6304777

Brand

Dake

Manufacturer's Warranty

1 year limited warranty

Ship Weight

412.0 LB

Horsepower

1 HP

Volts

110/220

360 Degree Head Swivel

No
AttributeSpecification

Product Type

Drill Press

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Product Weight

400.0000 lb

Dimensions L x W x H (in.)

45.0 x 75.0 x 33.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
