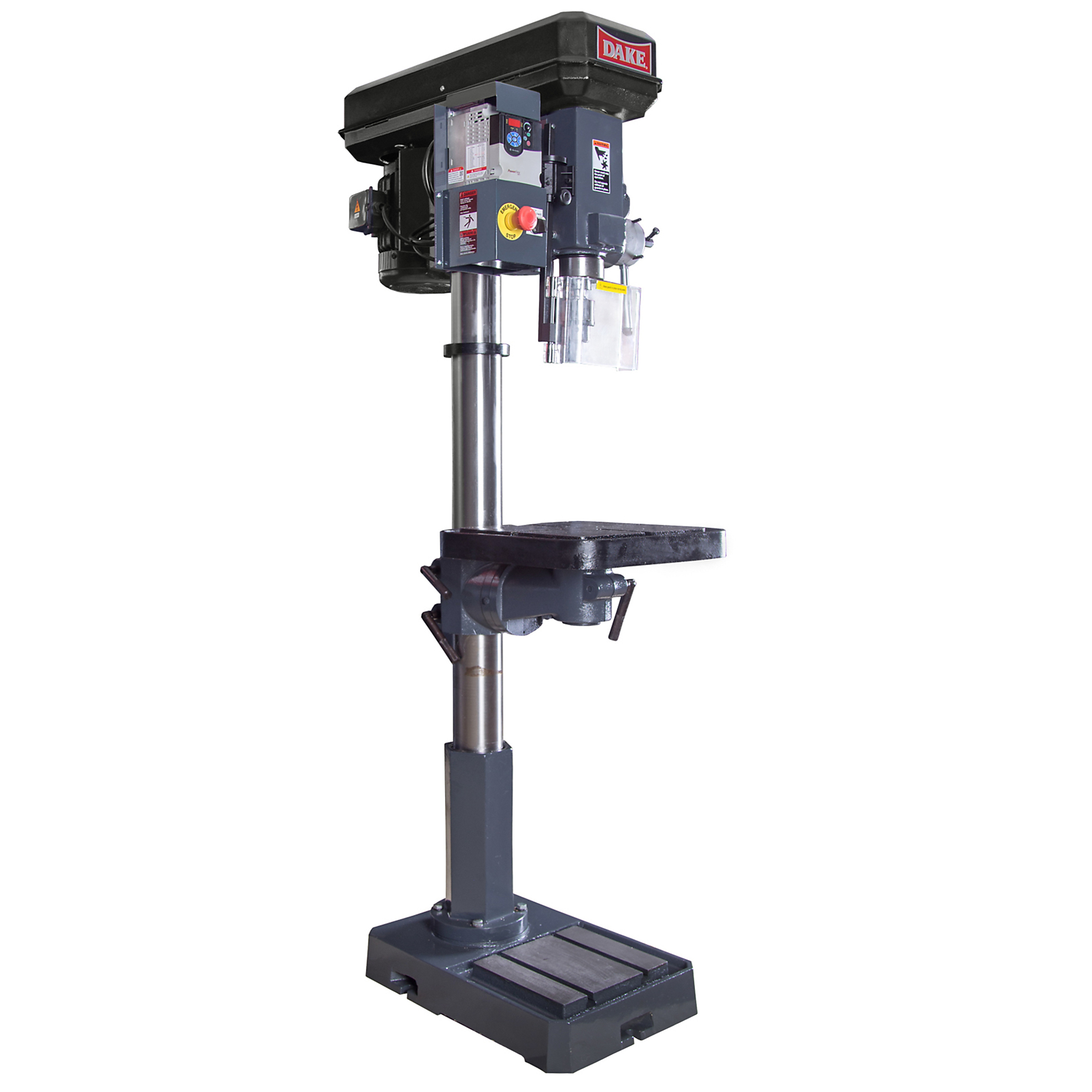

Dake, Floor Drill Press 1in., Auto Feed, Variable, 110V, 1 Ph, Horsepower 1.5 HP, Volts 110 Model# SB-250V
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$5436.72
- Drill capacity (in) 1; Horsepower 1.5; Motor 110V, Single Phase; Spindle Taper MT3; Working Diameter (in) 18; Number Of Speeds: Variable Speeds; Spindle Speed Range 68-1380; Electrics CE 120V 1 Phase; Weight (lbs) 483; Spindle Travel (in) 5; Column Diameter (in) 3-5/8; Table Depth (in) 15-3/4; Table Width (in) 15-3/4; Base Depth (in) 23-5/8; Base Width (in) 15; Spindle To Table (in) 28-3/8; Spindle To Base (in) 49-1/4; Overall Height (in) 71.
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
- Machined table and base surfaces with t-slots for mounting and fixturing
- Forward and reverse selector switch for tapping applications
Prop 65 Warning: See Details
See full description
What's Included
- (1) 1 Drill Press
Features + Benefits
- Drill capacity (in) 1; Horsepower 1.5; Motor 110V, Single Phase; Spindle Taper MT3; Working Diameter (in) 18; Number Of Speeds: Variable Speeds; Spindle Speed Range 68-1380; Electrics CE 120V 1 Phase; Weight (lbs) 483; Spindle Travel (in) 5; Column Diameter (in) 3-5/8; Table Depth (in) 15-3/4; Table Width (in) 15-3/4; Base Depth (in) 23-5/8; Base Width (in) 15; Spindle To Table (in) 28-3/8; Spindle To Base (in) 49-1/4; Overall Height (in) 71.
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation
- Machined table and base surfaces with t-slots for mounting and fixturing
- Forward and reverse selector switch for tapping applications
- Electrical package features on/off switch, emergency stop button, and interlock safety switch for belt cover
- Massive cast head, machined column, and sturdy cast base reduces vibration
- Latest frequency inverter technology for easy speed changes and concentrated torque
- Handle has 3 spokes with spring return for precise operator control and ergonomic operation
- Power down feed
- Standard Equipment: 5/8” Keyed chuck, Drift for bit removal, Plexiglas chip and chuck guard.
