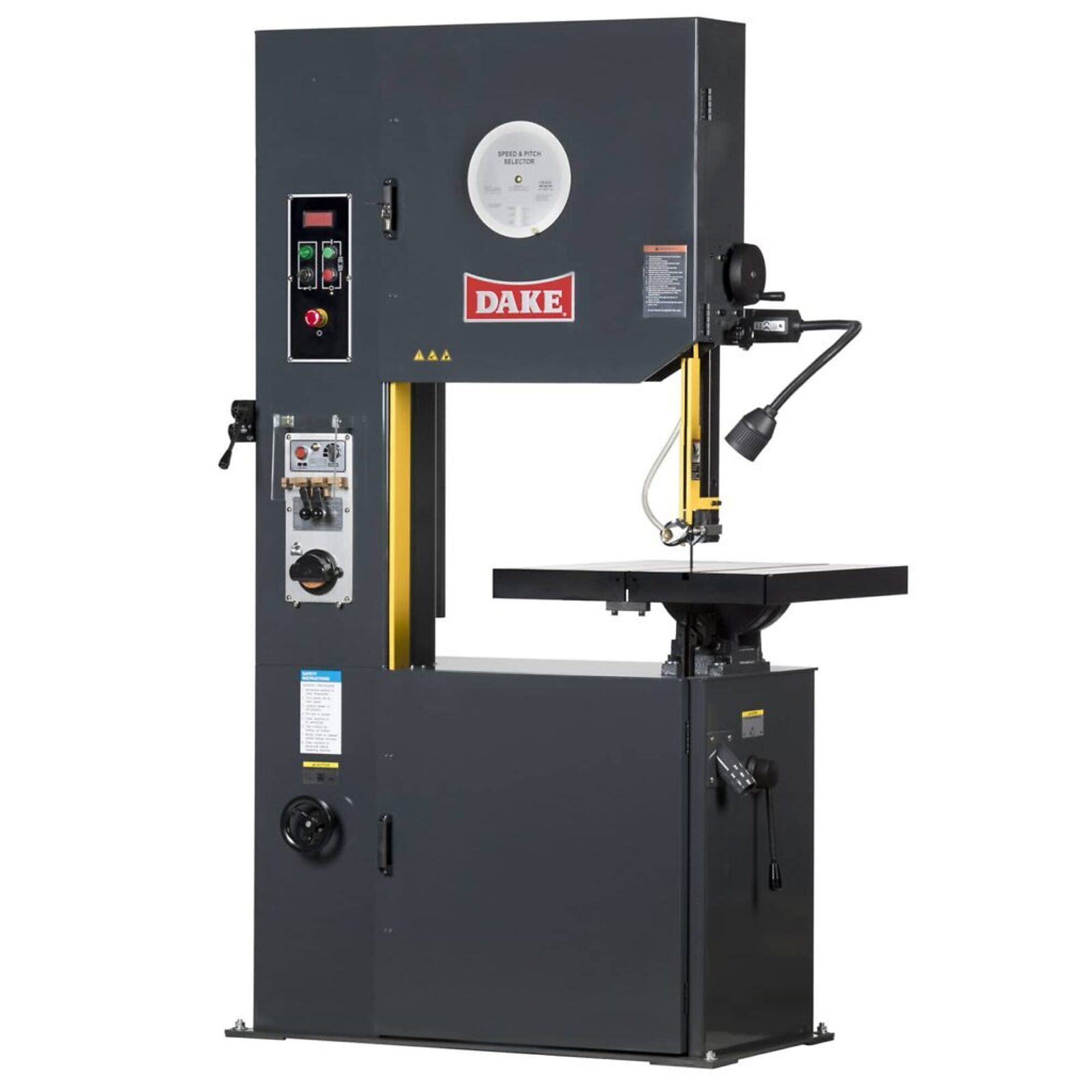

Dake, 26in. Throat Vertical Bandsaw - Electric Table - 220V 3Ph, Model# V-26E

Item# 6297052
Dake, 26in. Throat Vertical Bandsaw - Electric Table - 220V 3Ph, Model# V-26E

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dake, 26in. Throat Vertical Bandsaw - Electric Table - 220V 3Ph, Model# V-26E

Click or Tap image to Zoom

$23,513.52

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Variable Speeds with 50 - 415 feet per minute in low range and 550 - 5,000 feet per minute in the high range
  • Electronic Power Fed Table. Torque motor driven with rack and pinion
  • Heavy cast table with chip clearance grooves and back stop bar
  • Low voltage controls, main power lock out switch and door limit switches
  • Rip Fence, miter gauge, circle cutting attachment

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

26in. throat vertical bandsaw with electric power table 220V - 3 ph This heavy duty vertical bandsaw is designed for large production pieces. A 26in. capacity, power feed table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, rip fence, miter gauge, and 4 cutting modes. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

What's Included

    (1) Bandsaw, Heavy Duty Frame, Rip Fence, Work Light, Blade Welder / Grinder / Shear, Speed Indicator (Digital Readout), Blade Tension Indicator, Digital Tachometer, Chip Blower & Blade Brush, 1 Standard Blade

Features + Benefits

  • Variable Speeds with 50 - 415 feet per minute in low range and 550 - 5,000 feet per minute in the high range
  • Electronic Power Fed Table. Torque motor driven with rack and pinion
  • Heavy cast table with chip clearance grooves and back stop bar
  • Low voltage controls, main power lock out switch and door limit switches
  • Rip Fence, miter gauge, circle cutting attachment
  • Built-in blade welder with grinder and shear to easily fix broken blades
  • Blade speed / pitch selector guide and digital tachometer
  • Work light comes standard for increased visibility
  • Standard: Heavy Duty Frame Rip Fence Work Light Blade Welder / Grinder / Shear Speed Indicator (Digital Readout) Blade Tension Indicator Digital Tachometer Chip Blower & Blade Brush 1 Standard Blade
  • Horsepower 3 Voltage 220V
  • Blade width 1/4"-1" Blade length 184 1/4" Blade speed 550-5000 fpm
  • Worktable travel distance 12"
  • Band wheels number 2
  • Band wheels size 26 1/4"
  • Throat size (band to column) 26"
  • Maximum work height 13"
  • Work table dimensions 23 1/2" x 27 1/2"
  • Worktable tilt 45° R / 10°L
  • Worktable height 39 3/8"
  • Machine height 84"

Key Specs

AttributeSpecification

item#

6297052

Brand

Dake

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

1555.0 LB

Product Weight

1550.0000 lb

Dimensions L x W x H (in.)

51.0 x 30.0 x 85.0 in
