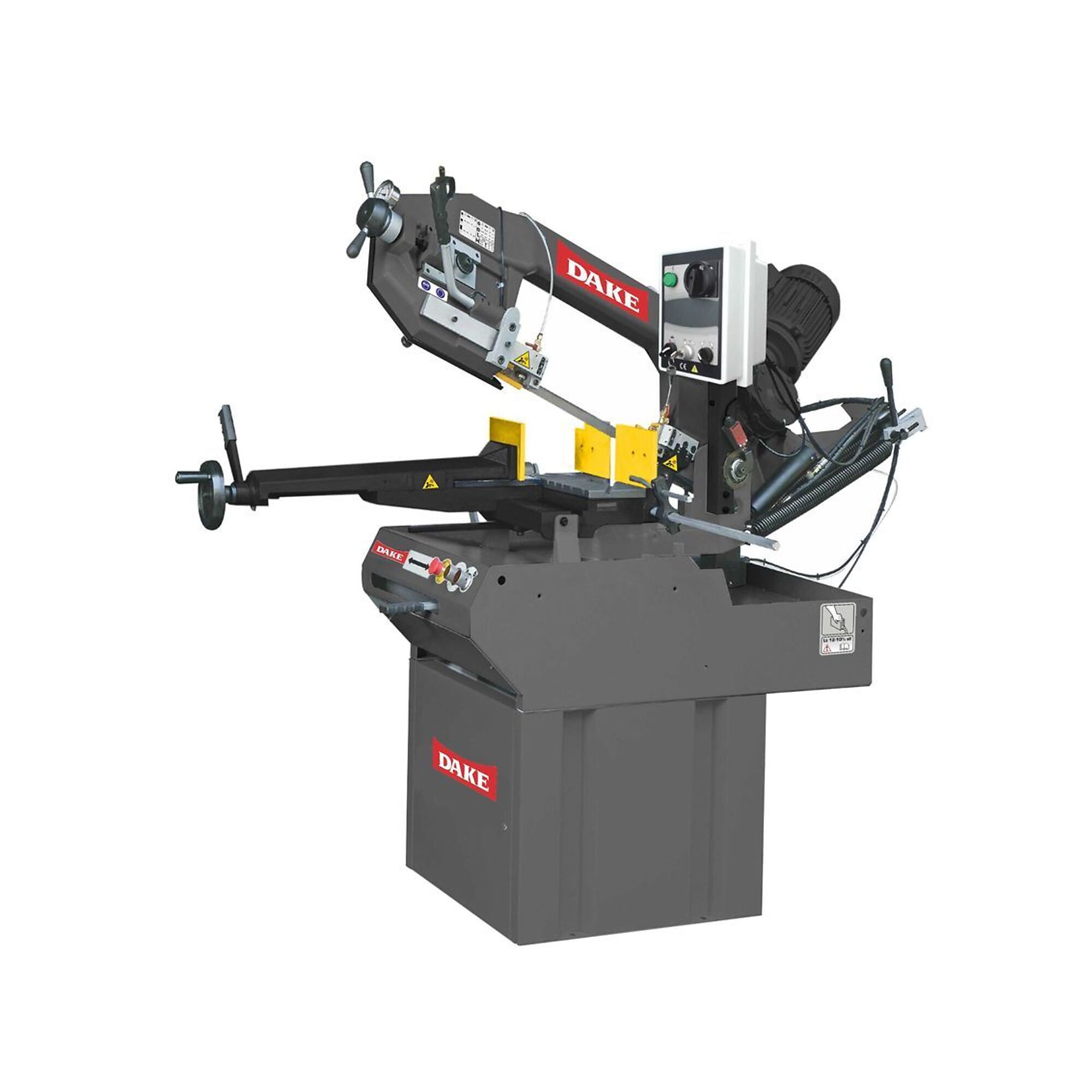

Dake, 10in. Dual Miter Bandsaw, Hydraulic Feed, 220v 3ph, Model# SE-10 DM

Item# 6297132
Dake, 10in. Dual Miter Bandsaw, Hydraulic Feed, 220v 3ph, Model# SE-10 DM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dake, 10in. Dual Miter Bandsaw, Hydraulic Feed, 220v 3ph, Model# SE-10 DM

Click or Tap image to Zoom

$13,501.20

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Hydraulic controlled down feed with adjustable manual return
  • Automatic shut off at the end of the cut
  • Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut
  • Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly traversing vise can be used left or right of the blade
  • Ergonomic designed for operator’s comfort and control

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Heavy duty, dual mitering saw that comes with one standard Bi-metal blade. Hydraulic controlled downfeed with automatic shut off at the end of the cut. 2.75HP, 220V motor with up to 60°right mitering capabilities. Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.

What's Included

    (1) Bandsaw, Steel base, 1 standard bi-metal blade, Traversing, manual vise, Coolant, Stock stop gauge

Features + Benefits

  • Hydraulic controlled down feed with adjustable manual return
  • Automatic shut off at the end of the cut
  • Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut
  • Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly traversing vise can be used left or right of the blade
  • Ergonomic designed for operator’s comfort and control
  • Gearbox is direct bolted to the bow for less vibration, and positive drive gear box is direct driven via steel and bronze gears, no belts and pulleys to contend with
  • CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch and blade cover interlock
  • Blade tensioning is done via a hand wheel and color-coded gauge tensioning system taking the guesswork out of tensioning
  • Miters up to 60° right / 45° left. Mitering pre-sets with flip up and pin stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
  • Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
  • Electric coolant pump and self-contained coolant system
  • Steel fabricated base, and stock stop gauge
  • Standard: Steel base, 1 standard bi-metal blade, Traversing, manual vise, Coolant, Stock stop gauge
  • Capacity 10" Round
  • Horsepower 2.75 Voltage 220V 3 phase
  • Maximum blade speed 230 FPM
  • Blade width 1"
  • Blade length 108"
  • Blade speed 115-230 FPM

Key Specs

AttributeSpecification

item#

6297132

Brand

Dake

Manufacturer's Warranty

1 year limited warranty
AttributeSpecification

Ship Weight

847.0 LB

Product Weight

843.0000 lb

Dimensions L x W x H (in.)

63.0 x 48.0 x 62.0 in
