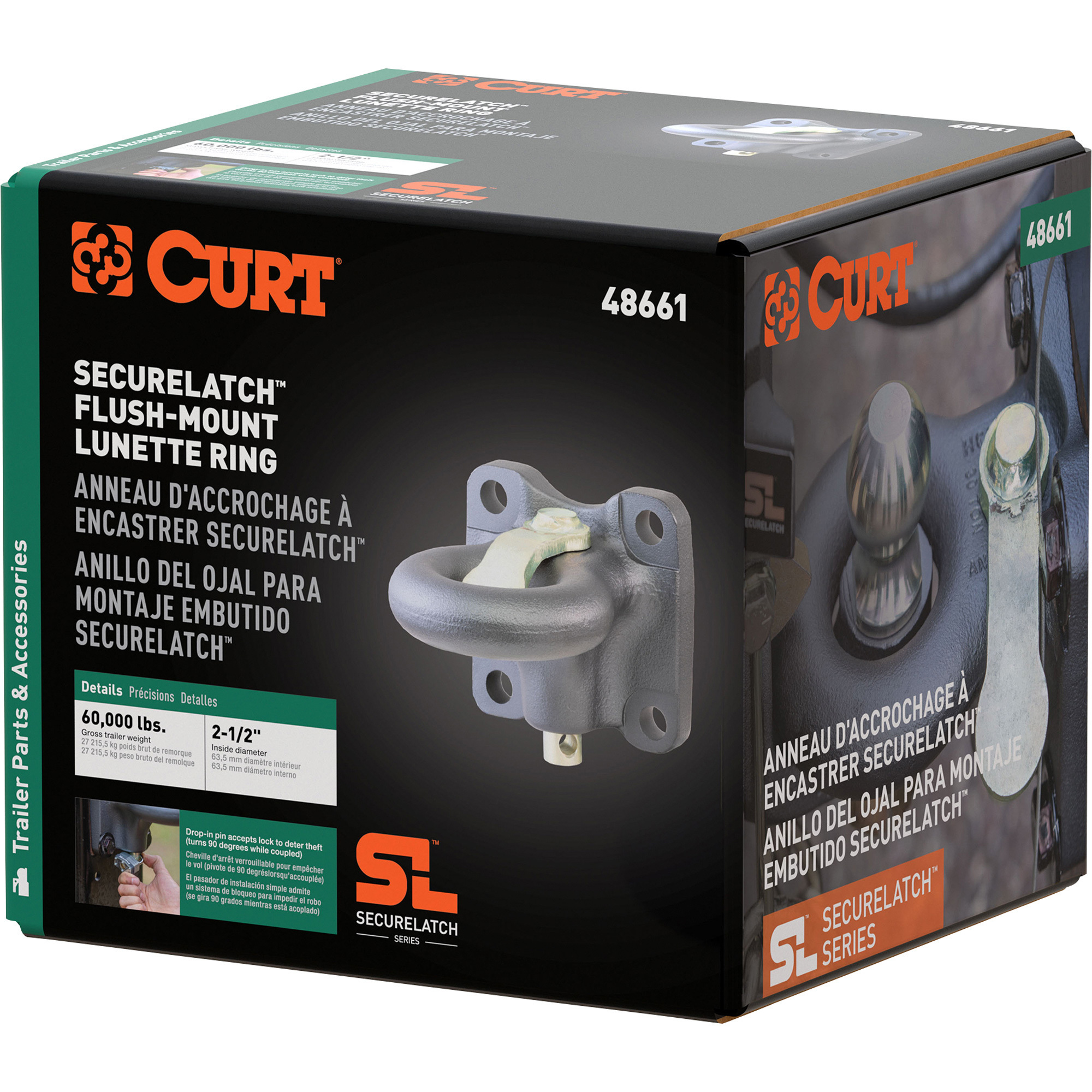

Curt SecureLatch 30-Ton Flush-Mount Lunette Ring, Model# 48661

Item# 97628
Curt SecureLatch 30-Ton Flush-Mount Lunette Ring, Model# 48661

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt SecureLatch 30-Ton Flush-Mount Lunette Ring, Model# 48661

Click or Tap image to Zoom

$237.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
  • Vertically offset base allows ring to be flipped for maximum height adjustment
  • Rated for 60,000 lbs. gross trailer weight
  • 2-1/2" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Bolt holes spaced 4-1/2" apart

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The CURT SecureLatch flush-mount lunette ring offers enhanced security and maximum versatility. Its integrated locking pin helps prevent coupling and theft when your trailer is left unattended, featuring holes in the bottom to accept a padlock. The pin can also be turned 90 degrees to allow you to hitch up your trailer. This lunette ring also offers increased height adjustment, featuring an offset base. This allows the ring to be flipped for more drop or rise as needed. This CURT SecureLatch lunette ring has a flush-mount base with bolt holes spaced 4-1/2in. apart. The lunette ring itself has a 2-1/2in. inside diameter to couple to a pintle hook or ball and pintle combination, and it is rated for up to 60,000 pounds gross trailer weight. This SecureLatch lunette eyelet is made from austempered iron for superior strength and wear resistance, and it features a durable, dark grey teridium powder coat finish for resistance to the elements.

What's Included

    (1) Flush-mount lunette ring

Features + Benefits

  • Drop-in pin accepts lock to deter theft (turns 90 degrees while coupled)
  • Vertically offset base allows ring to be flipped for maximum height adjustment
  • Rated for 60,000 lbs. gross trailer weight
  • 2-1/2" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Bolt holes spaced 4-1/2" apart
  • Cast iron construction is austempered for superior strength and wear resistance
  • Textured, dark grey teridium powder coat for a premium finish
  • Bright gold zinc-plated pin for long-lasting corrosion resistance
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Includes lunette ring and drop-in pin (mounting hardware not included)
  • U.S. patent# 5,527,356; Canadian patent# 2,823,1; Australian patent# 2143561

Key Specs

AttributeSpecification

item#

97628

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

19.0 LB

Fits Ball Size

2-1/2 in

Material

Cast Iron
AttributeSpecification

Max. Gross Trailer Weight

60,000 lb

Coupler Size

2-1/2 in

Eyelet Diameter I.D.

2.5 in

Capacity

60,000 lb

Product Weight

19 lb
