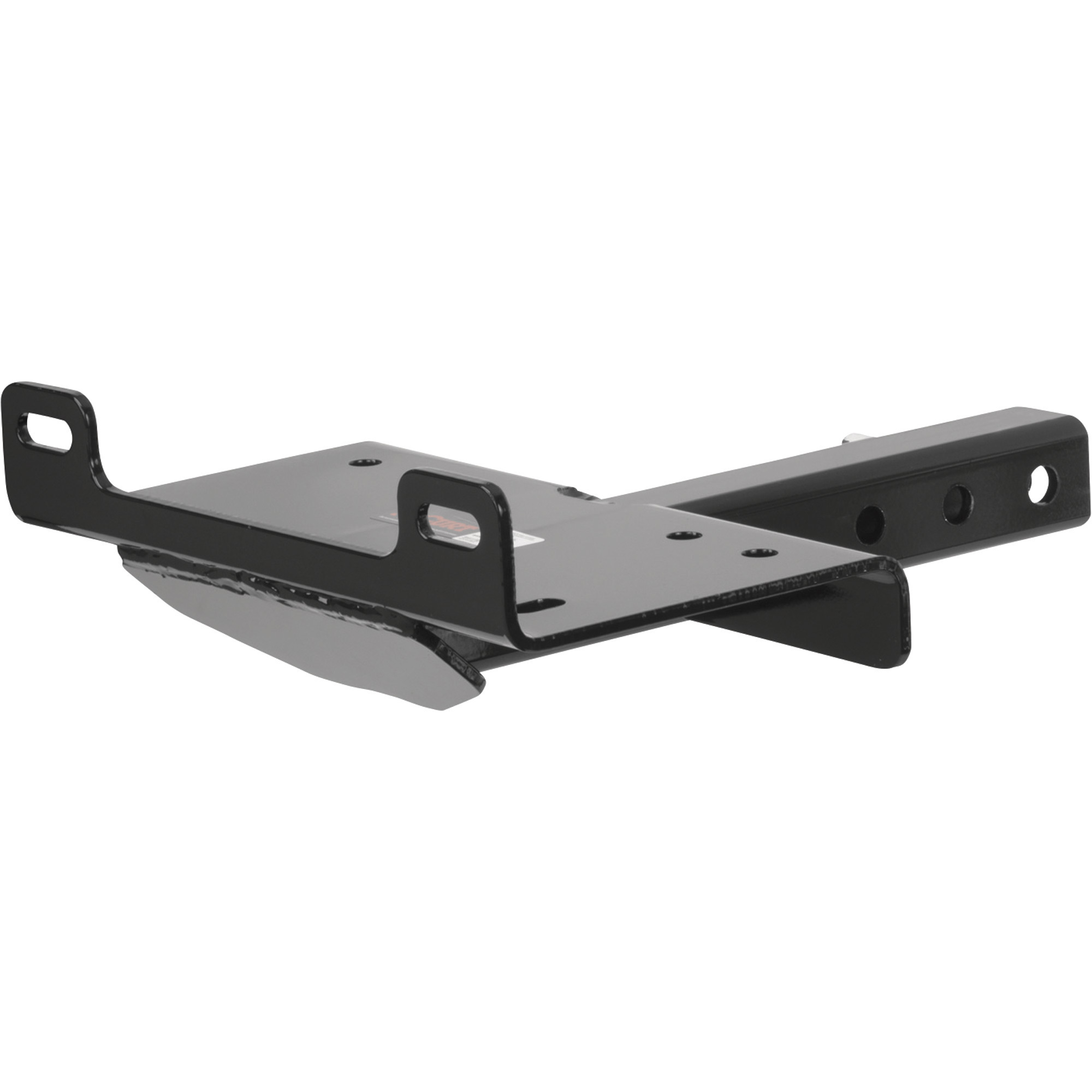

Curt Manufacturing Winch Mount, Model# 31010

Item# 142701
"Curt Manufacturing Winch Mount, Model# 31010"
Curt Manufacturing Winch Mount, Model# 31010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Winch Mount, Model# 31010

Click or Tap image to Zoom

$94.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Allows a winch to be easily attached to a receiver
  • Fits any 2in. x 2in. trailer hitch receiver tube opening
  • Multiple mounting holes fit a variety of winches
  • Handles provide a firm handhold during winch operation (Curt Model# 31005, sold separately)
  • 3 holes on the shank provide added clearance as needed

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Curt Manufacturing receiver tube winch mount for 2in. tube. Winch mount does not have a weight rating. It is designed to be used with Curt front mount trailer hitches which have a 5,000-lb. gross trailer weight rating and a 250-lb. tongue weight rating. U.S.A.

What's Included

    (1) Receiver tube winch mount

Features + Benefits

  • Allows a winch to be easily attached to a receiver
  • Fits any 2in. x 2in. trailer hitch receiver tube opening
  • Multiple mounting holes fit a variety of winches
  • Handles provide a firm handhold during winch operation (Curt Model# 31005, sold separately)
  • 3 holes on the shank provide added clearance as needed
  • Built-in skid shield provides extra protection for the winch
  • Constructed from high-strength steel
  • Protected by a durable black powder-coat finish
  • Co-cured in a rust-resistant liquid Bonderite coating
  • Weight/pulling capacity will depend on your individual winch

Key Specs

AttributeSpecification

item#

142701

Brand

Curt Manufacturing

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

24.8 LB

Max. Capacity

5000 lb
AttributeSpecification

Length

17.75 in

Width

13 in

Compatible With

2" Receivers

Product Type

Mounting Plates

Material

Steel

Reviews

Questions & Answers

199 Reviews This action will navigate to reviews.

Questions

1–9 of 9 Questions
Sort by:

  1. Length of shaft?

    What's the length of the shaft to the first hole to the back of mounting surface? Last question, promise.

    1. total shaft length 9.25 inches from back of plate
      1st hole 4.25 inches on center
      2nd hole 6.25 inches on center
      3rd hole 8.25 inches on center

      Helpful?

    2. The full length of the shaft is 9 1/2" . From the first hole to the back of the mounting surface is 8 1/2".

      Helpful?

  2. Length of shaft?

    From the back of the mounting plate, how long is the shaft to the center of the furthest hole?

    1. total shaft length 9.25 inches
      1st hole 4.25 inches on center
      2nd hole 6.25 inches on center
      3rd hole 8.25 inches on center

      Helpful?

    2. From the back of the mounting plate, to the center of the furthest hole is 8 1/2 inches.

      Helpful?

  3. Where are these produced

    1 answer

    1. This winch mount is made in the USA.

      Helpful?

  4. What is the distance from the front of the plate (where winch cable will come out) to the hitch mounting holes? I only have 11.5 inches of space.

    1 answer

    1. The Plate is 13" x 8". The bolt pattern front to back is 4, 9/16" and side to side there are two patterns, 10" and 6, 1/2". From the front to the back mounting holes is approximately 6, 1/4".

      Helpful?

  5. What's the length of the shaft to the first hole to the back of mounting surface? Last question, promise.

    1 answer

    1. There are 3 holes on the plate surface. From the shaft to 1st hole at edge is 4 1/2", the 2nd hole is 6 1/2" and the farthest hole is 8 1/2".

      Helpful?

  6. Will this mount work with the S Series of Winches?

    1 answer

    1. The Curt Manufacturing winch mount will work with winches that require the following mounting pattern:

      Back holes are 1/2" in diameter, front holes are slots that are 1/2" x 15/16".

      There are two bolt patterns. The first one is 6 1/2" from side to side and 4 9/16" from front to back. The second one is 10" from side to side and 4 9/16" from front to back.

      The mount does have a 600 lb. tongue weight capacity.

      Helpful?

  7. Pulling

    What size winch can be safely used with this mount?

    1 answer

    1. The maximum winch this will handle is 9000 pound.

      Helpful?

  8. what is the actual size of the plate ?

    1 answer

    1. The dimensions of the plate are approximately 13 inches by 8 inches.

      Helpful?

  9. Weight limit

    What is the max limit of this mount?

    1 answer

    1. This Curt Manufacturing winch mount has a 600 pound tongue weight.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
