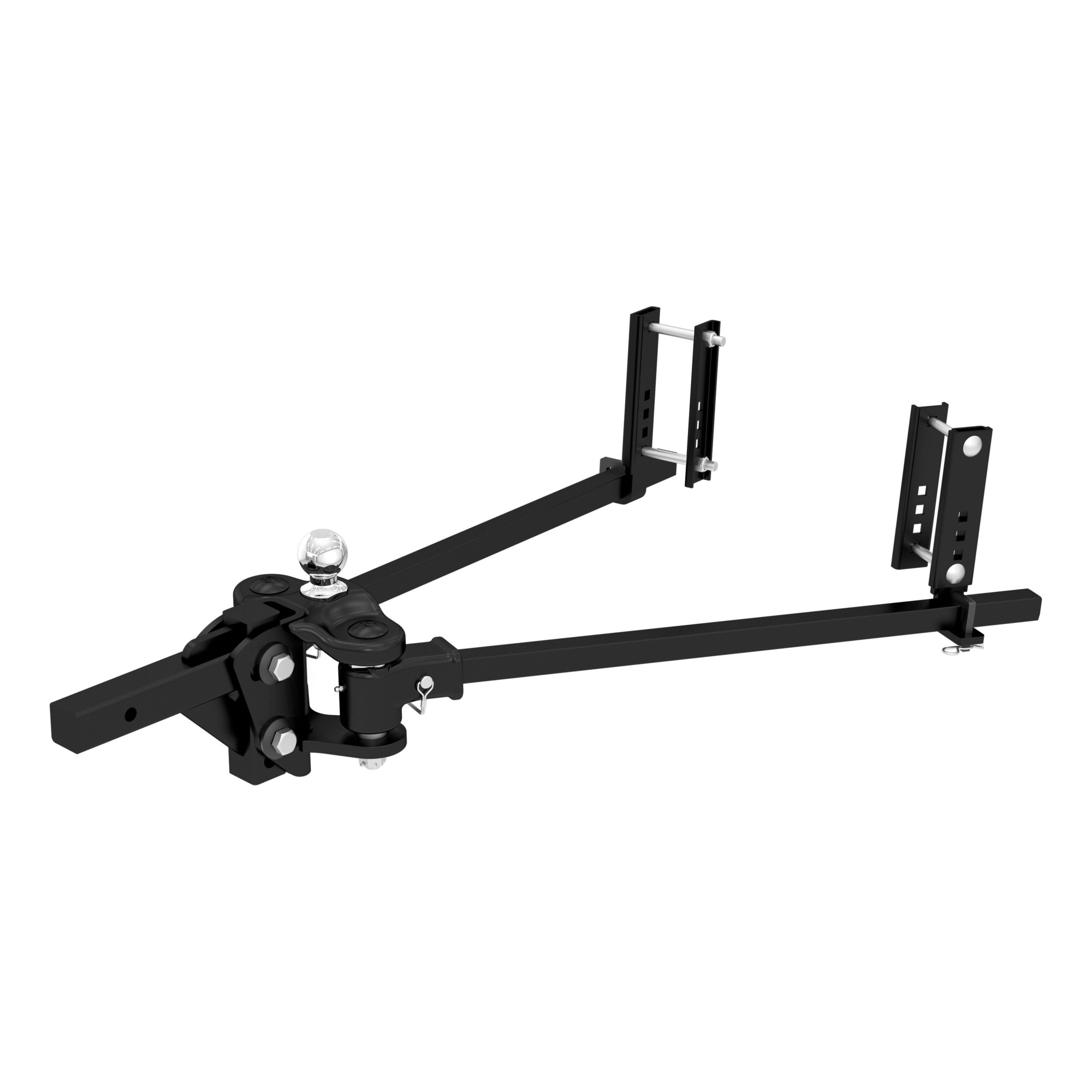

Curt Manufacturing TruTrack Trunnion Bar Weight Distribution System, 15,000lb. Max. Capacity, Model# 17501

Item# 4414227
Curt Manufacturing TruTrack Trunnion Bar Weight Distribution System, 15,000lb. Max. Capacity, Model# 17501

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing TruTrack Trunnion Bar Weight Distribution System, 15,000lb. Max. Capacity, Model# 17501

Click or Tap image to Zoom

$659.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

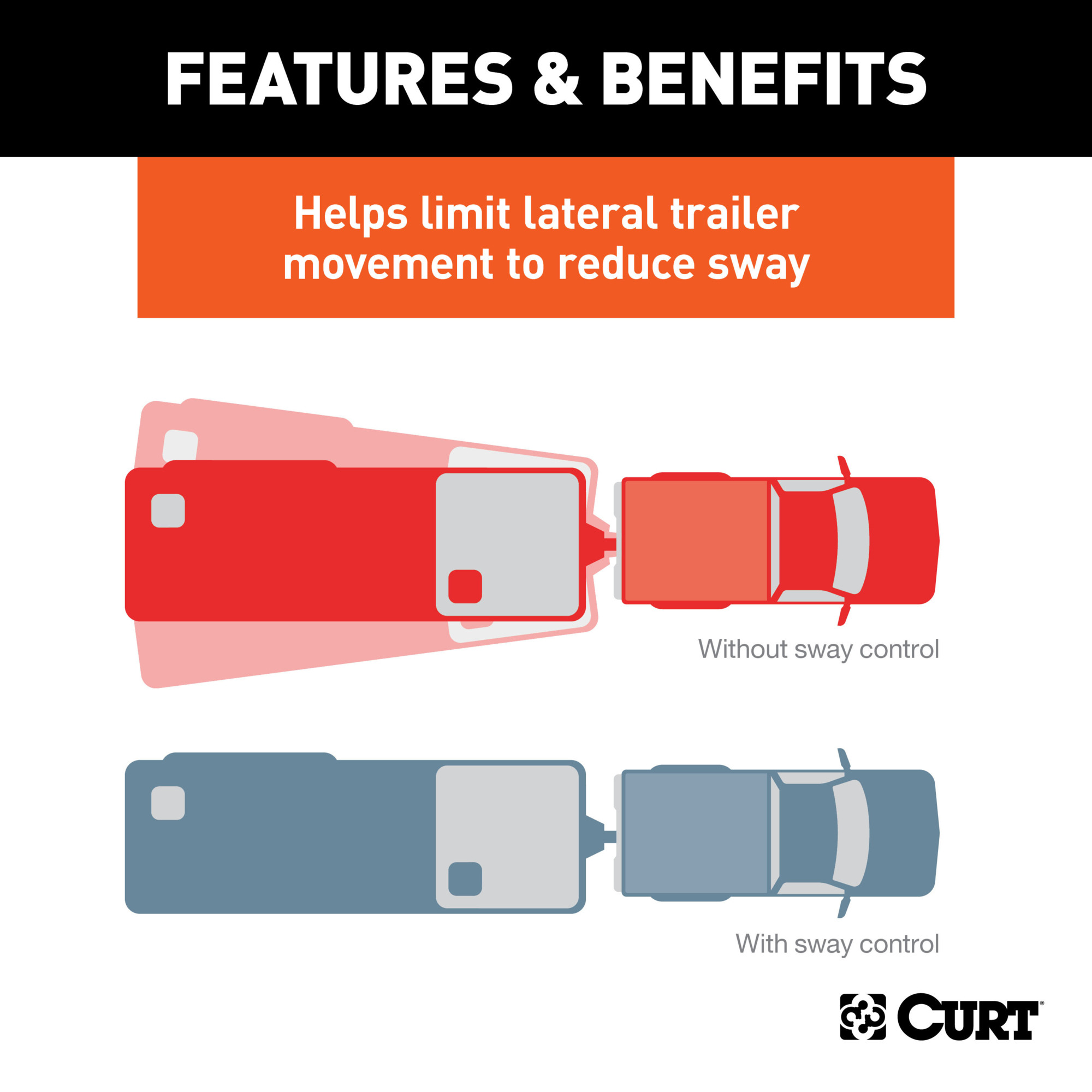

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Four points of sway control work together to keep trailer aligned
  • Welded head with cast pieces and trunnion-style forged steel spring bars
  • Uses spring & cam system with hardened components, instead of friction alone
  • Adjustable brackets provide fixed support unlike spring bar chain models

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

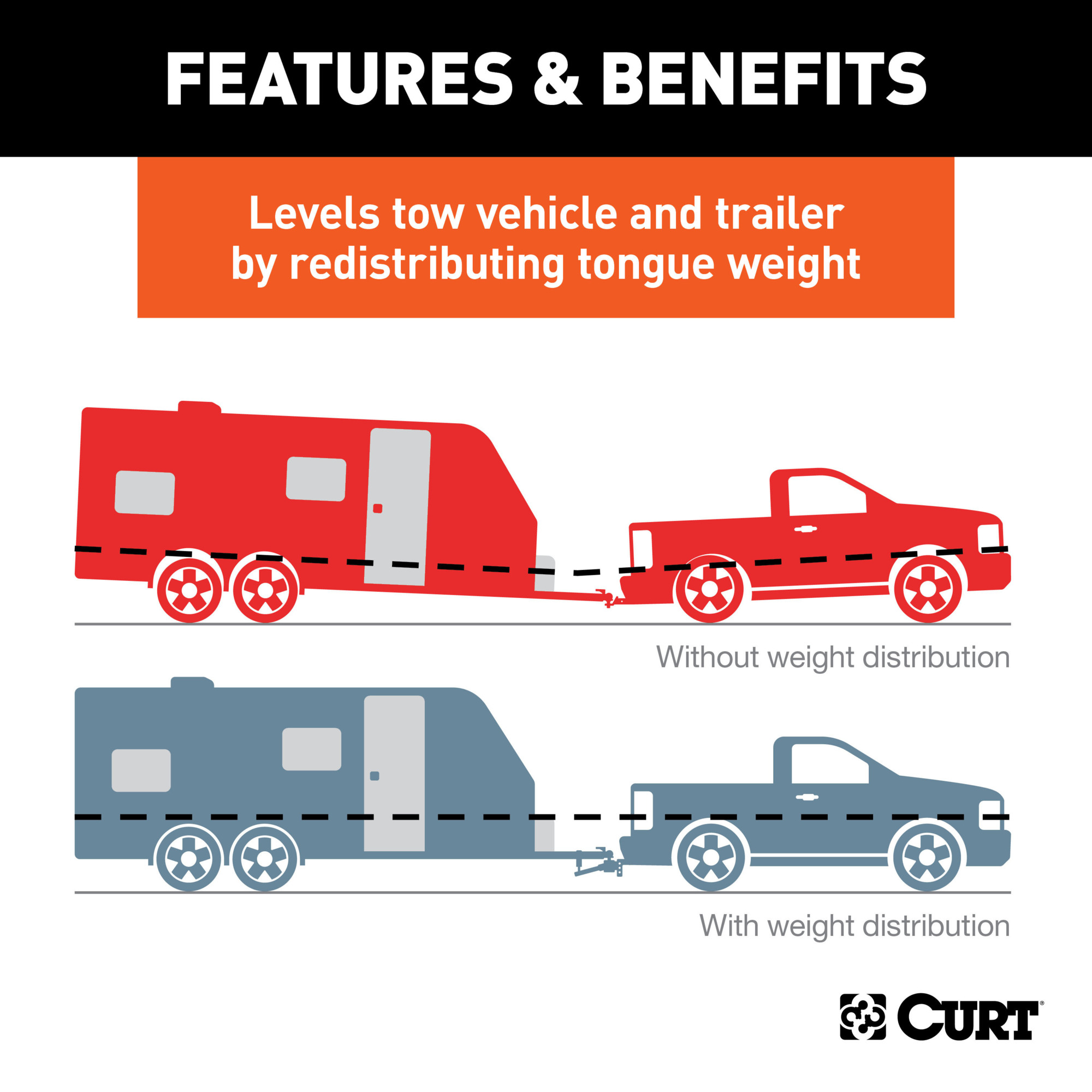

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.

What's Included

    (1) TruTrack WD System

Features + Benefits

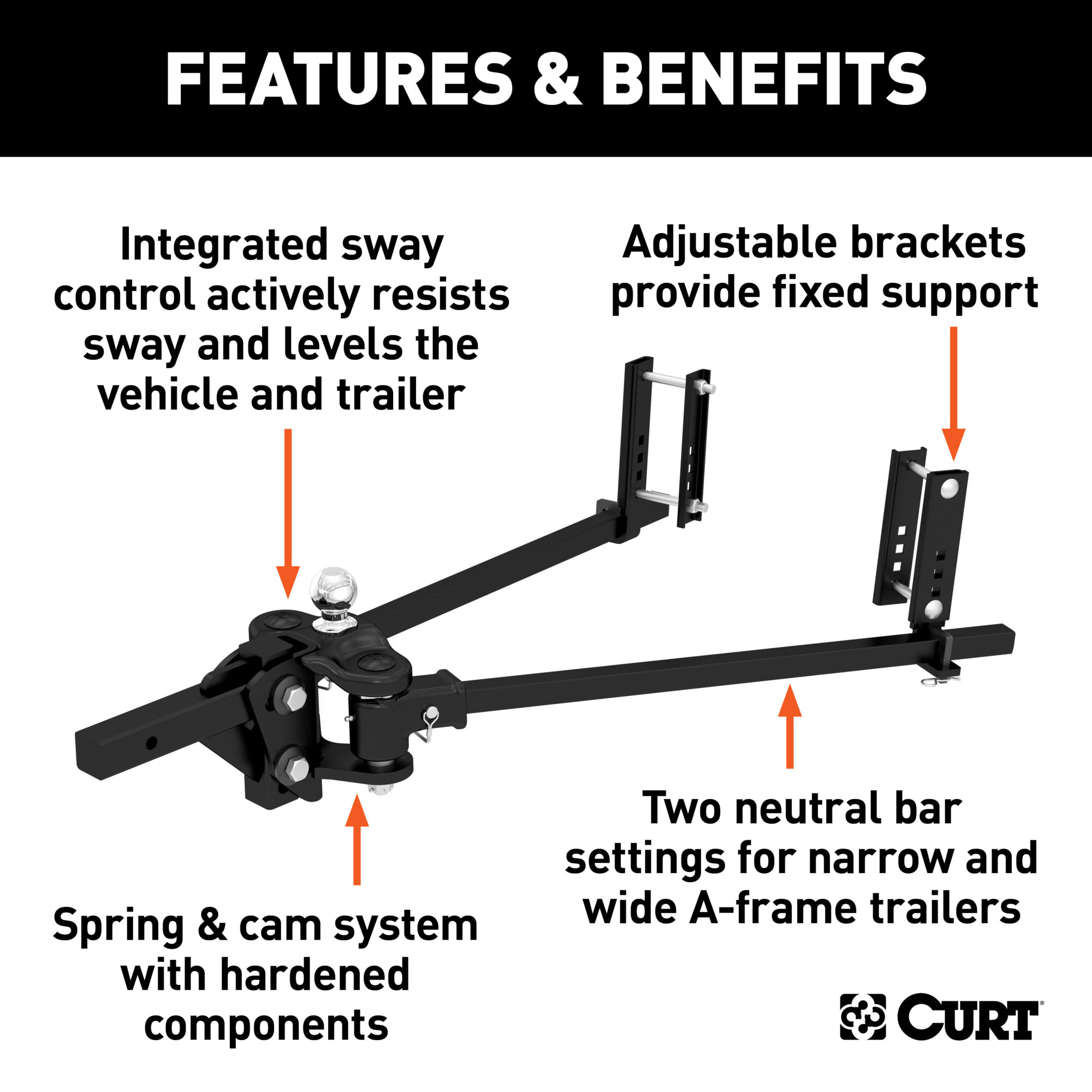

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Four points of sway control work together to keep trailer aligned
  • Welded head with cast pieces and trunnion-style forged steel spring bars
  • Uses spring & cam system with hardened components, instead of friction alone
  • Adjustable brackets provide fixed support unlike spring bar chain models
  • Brackets use friction to resist lateral movement, replacing a sway control
  • 2" shank can be flipped to provide necessary drop or rise
  • Hex castle nut allows for easy adjustment for different trailers
  • Fits virtually all A-frame trailers, featuring two neutral spring bar settings
  • Carbide black powder coat, black-oxide-plated cams and stainless steel balls
  • Includes a pre-torqued 2-5/16" trailer ball
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Springs bars can be adjusted to 3 or 7 degrees (+/- 5)
  • Includes shank, trailer ball, spring bars, head, support brackets, pin & clip

Key Specs

AttributeSpecification

item#

4414227

Brand

Curt Manufacturing

Ship Weight

11.5 LB

Material

Combination
AttributeSpecification

Max. Gross Trailer Weight

15,000 lb

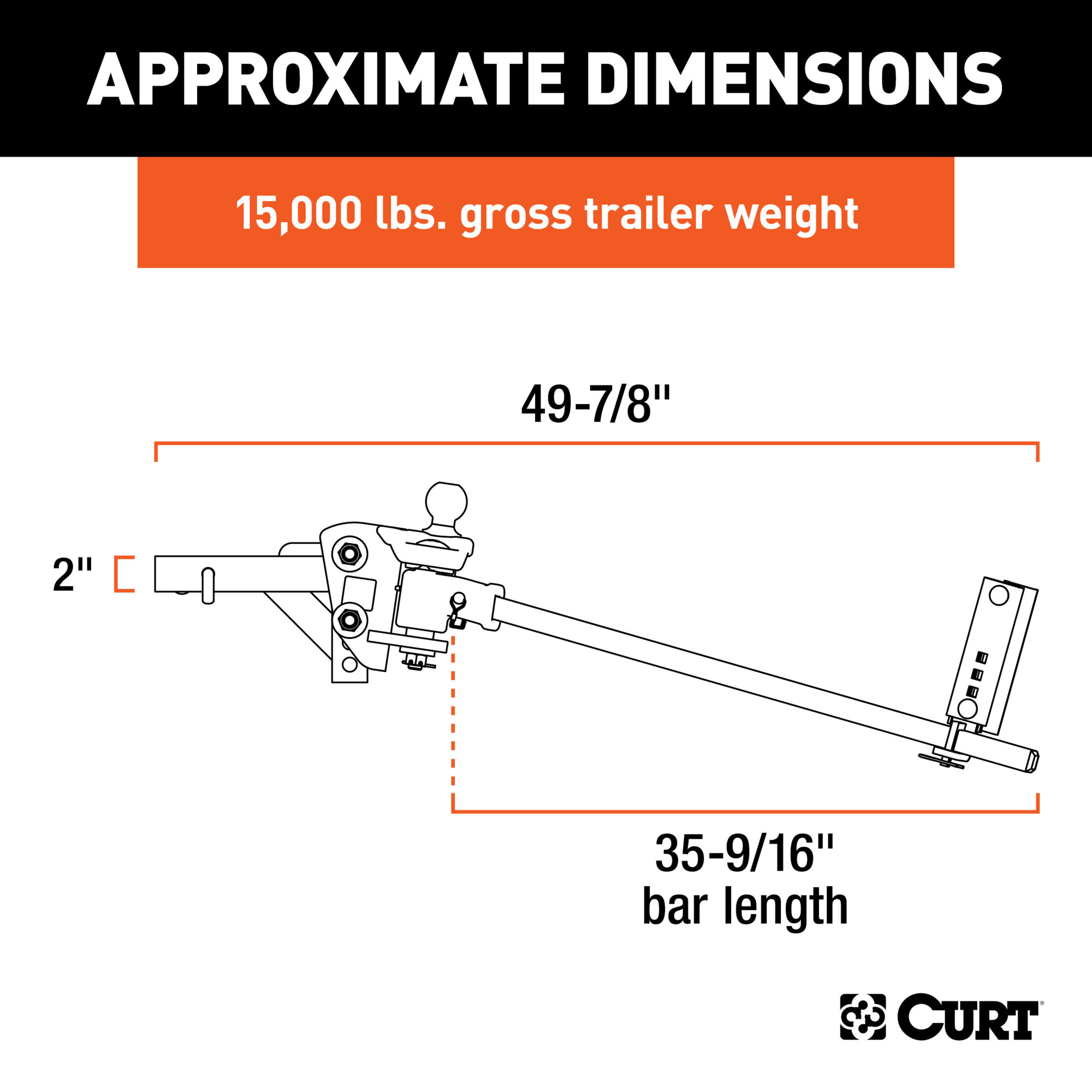

Dimensions L x W x H (in.)

38.0 x 11.5 x 12.75 in

Product Weight

120.0000 lb
