Curt Manufacturing, Sway Tab Ball Mount, Model# 45820

Item# 4411510
Curt Manufacturing, Sway Tab Ball Mount, Model# 45820

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, Sway Tab Ball Mount, Model# 45820

Click or Tap image to Zoom

$39.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

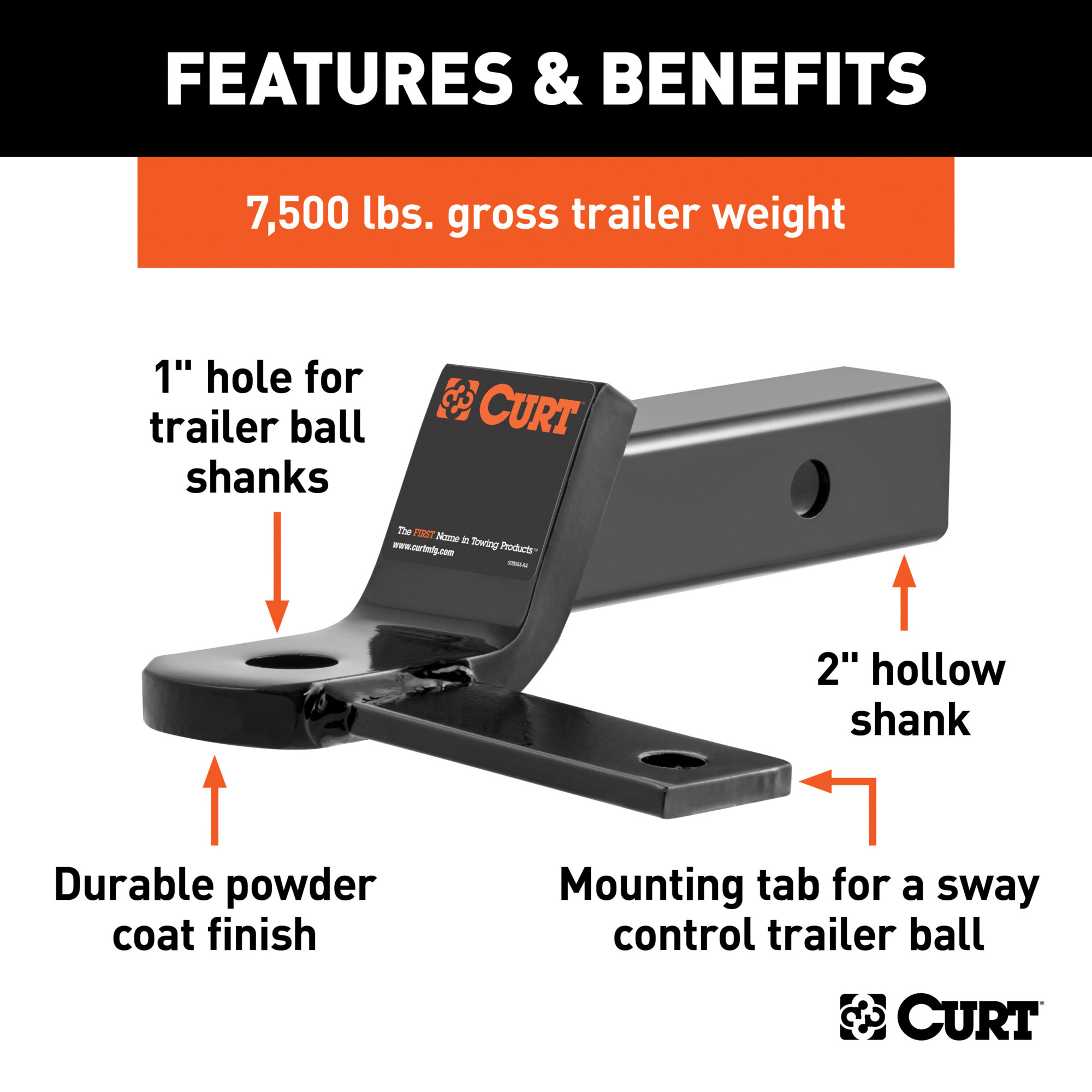

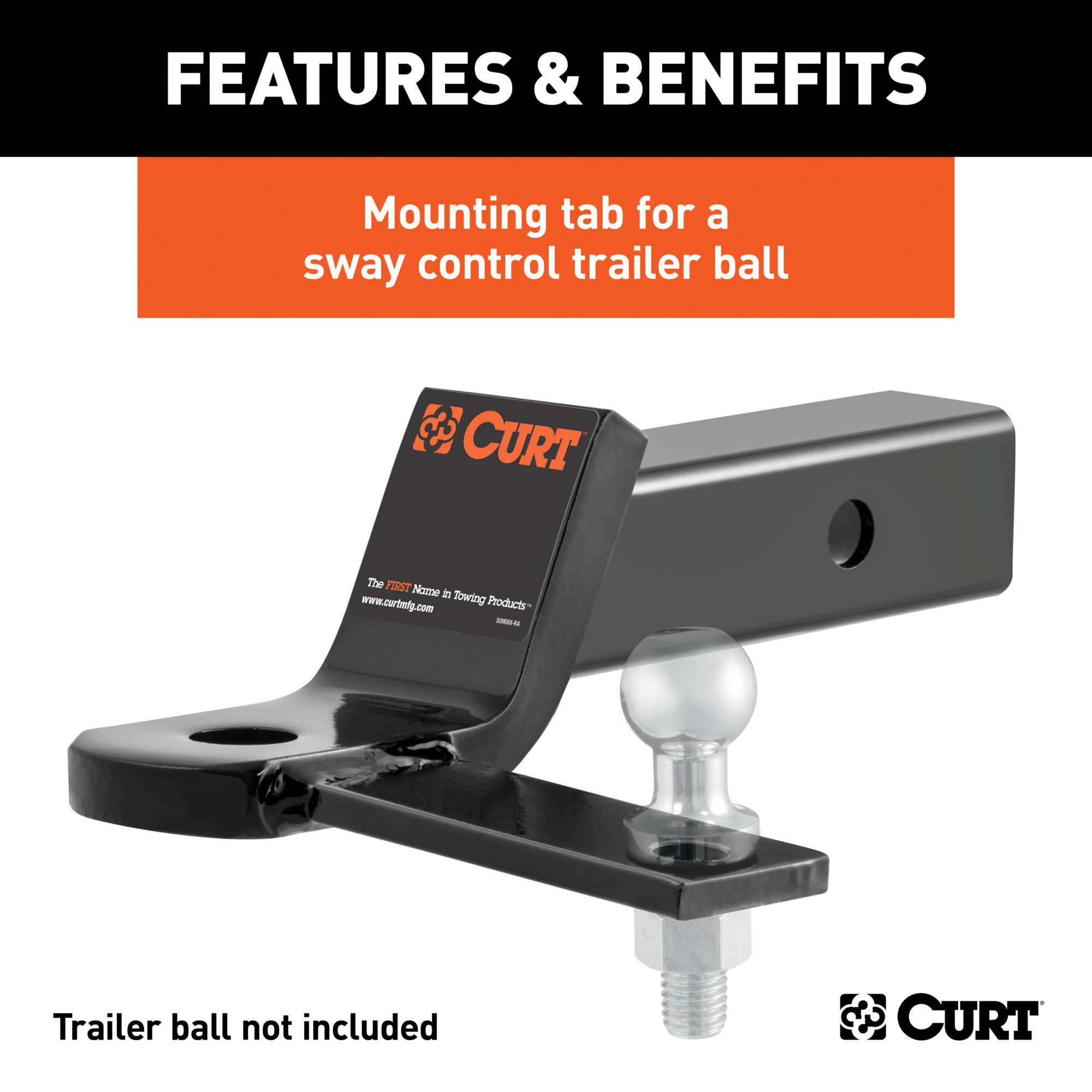

  • Provides a mounting tab for a sway control trailer ball

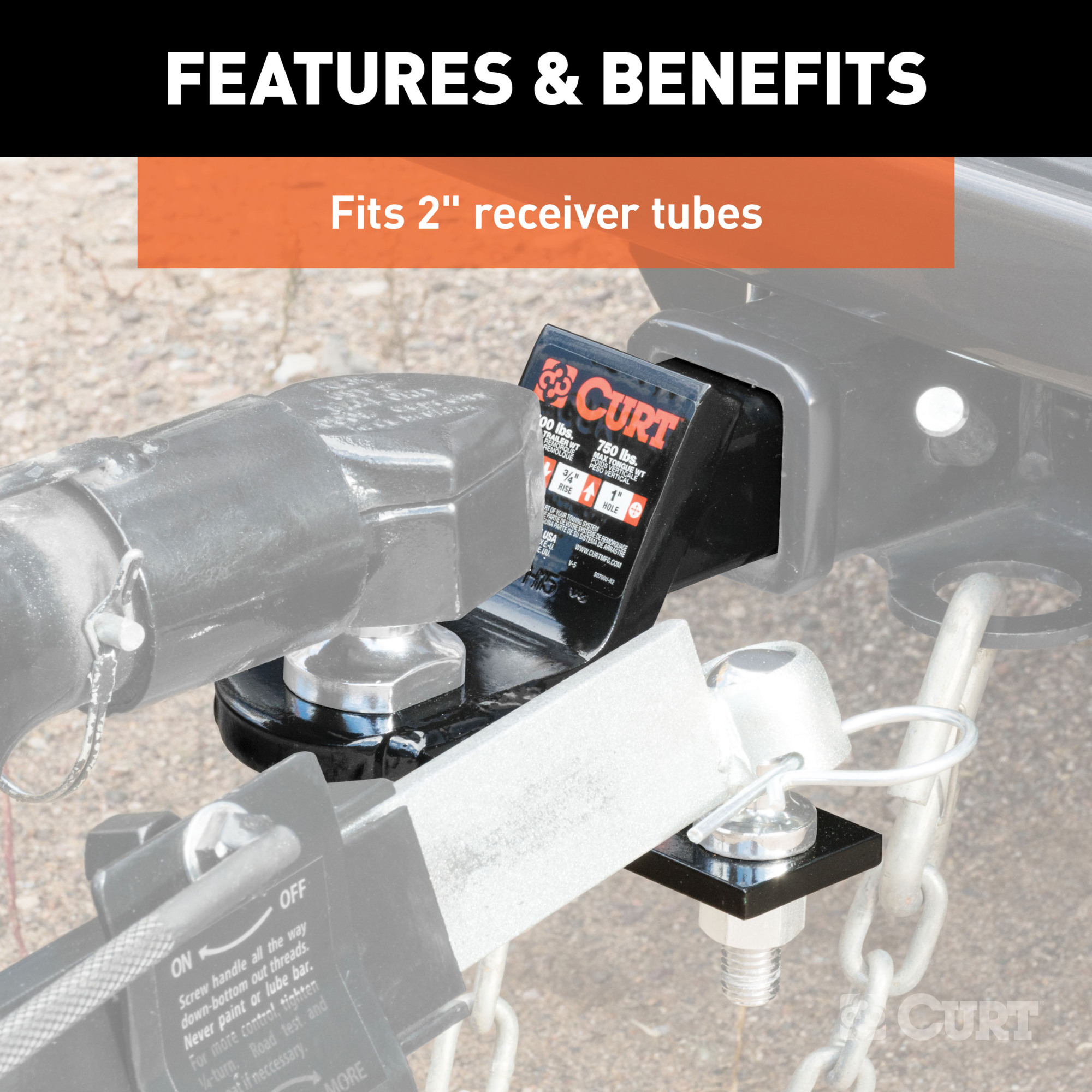

  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Equipped with a 1" hole to accept a trailer ball shank
  • Sway control unit helps limit lateral trailer movement

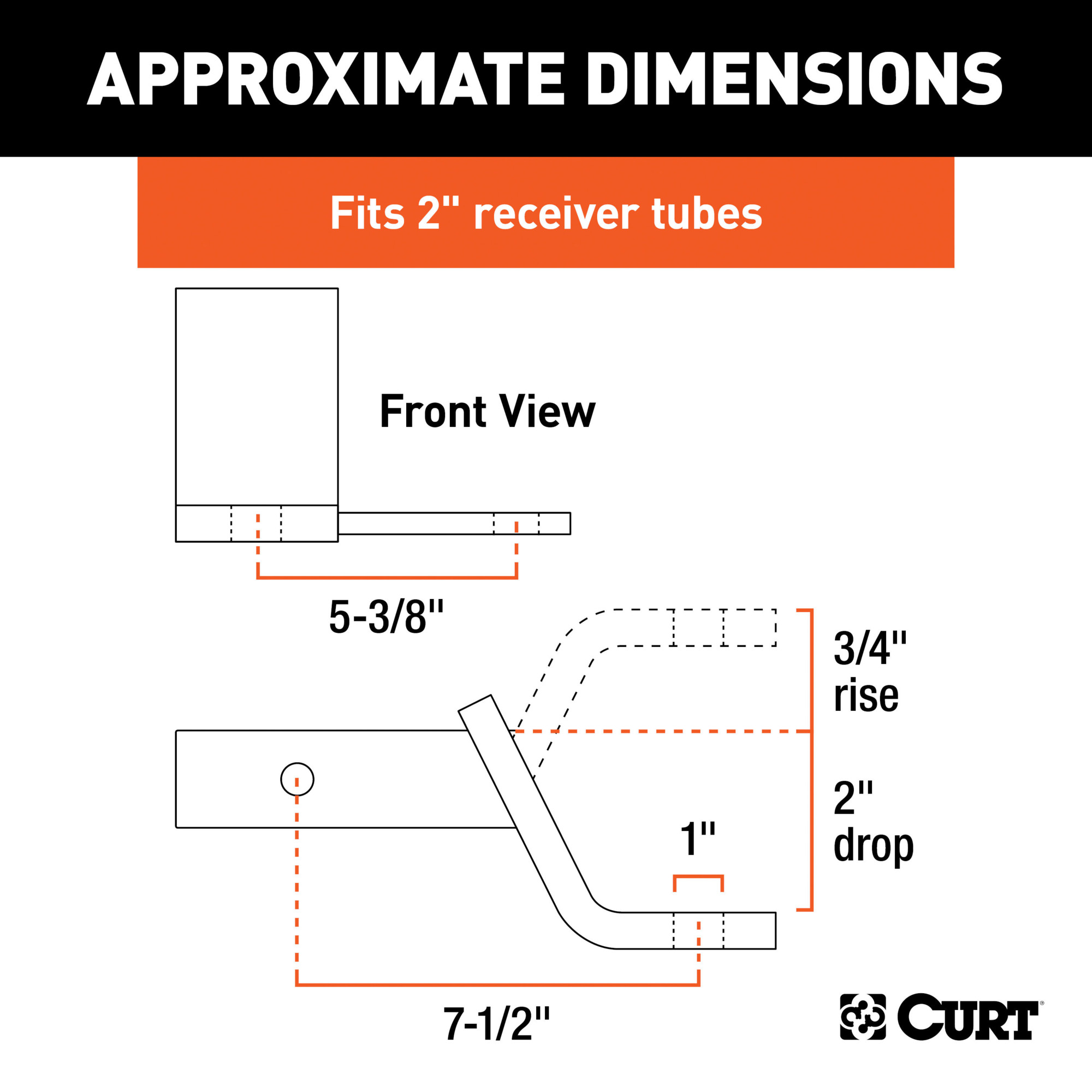

  • 3/4" rise or 2" drop for precise trailer leveling

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

CURT specialty ball mounts are a group of exceptional towing products, built to succeed where others fear to tread. From the back roads of overrun forests to the muddy fields of small town farms, towing looks a little different, and that means different demands on your towing equipment. CURT offers a full lineup of unique ball mounts that are made to tackle the rougher side of towing while still being able to fit a standard 2in. x 2in. receiver tube. This sway control ball mount is perfect for adding a sway control unit to your vehicle-trailer combination without using a weight distribution hitch. It features a standard ball mount design for towing a trailer but also comes with a welded sway control tab to attach the CURT sway control unit #17200. While the trailer ball platform is equipped with a 1in. hole to accept a standard trailer ball, the sway control tab offers a 5/8in. diameter to mount the CURT sway control ball #40093.This specialty ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs., making it an excellent choice for larger trailers that may require sway control. For long-lasting reliability, it comes finished in our gloss black powder coating to provide the corrosion, scratch and UV resistance needed to survive anything you throw its way.

What's Included

    (1) Sway Tab Ball Mount

Features + Benefits

  • Provides a mounting tab for a sway control trailer ball
  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Equipped with a 1" hole to accept a trailer ball shank
  • Sway control unit helps limit lateral trailer movement
  • 3/4" rise or 2" drop for precise trailer leveling
  • Hollow shank weighs less and can be used with an anti-rattle kit
  • CNC-formed, robotically welded and mechanically descaled for a perfect fit
  • Protected by a durable powder coat finish
  • Made in USA
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Trailer balls and hitch pin sold separately

Key Specs

AttributeSpecification

item#

4411510

Brand

Curt Manufacturing

Manufacturer's Warranty

1 year limited warranty

Ship Weight

7.0 LB

Receiver Opening

2 in

Shank Diameter

2 in
AttributeSpecification

Rise

0.75 in

Drop

2 in

Material

Combination

Tongue Weight

750 lb

Product Weight

7.0000 lb

Dimensions L x W x H (in.)

12.0 x 8.0 x 4.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
