Remove the head of the old drive screw with a chisel. Use a pin punch to remove the remaining shank of the drive screw. Place the new key set with the nose facing down, in the slot of the spring clip. Insert the hex screw into the spring clip and then into the head unit. Make sure that the set key is seated in position. Torque the hex screw to 30 in lbs. Repeat the steps for the other side.

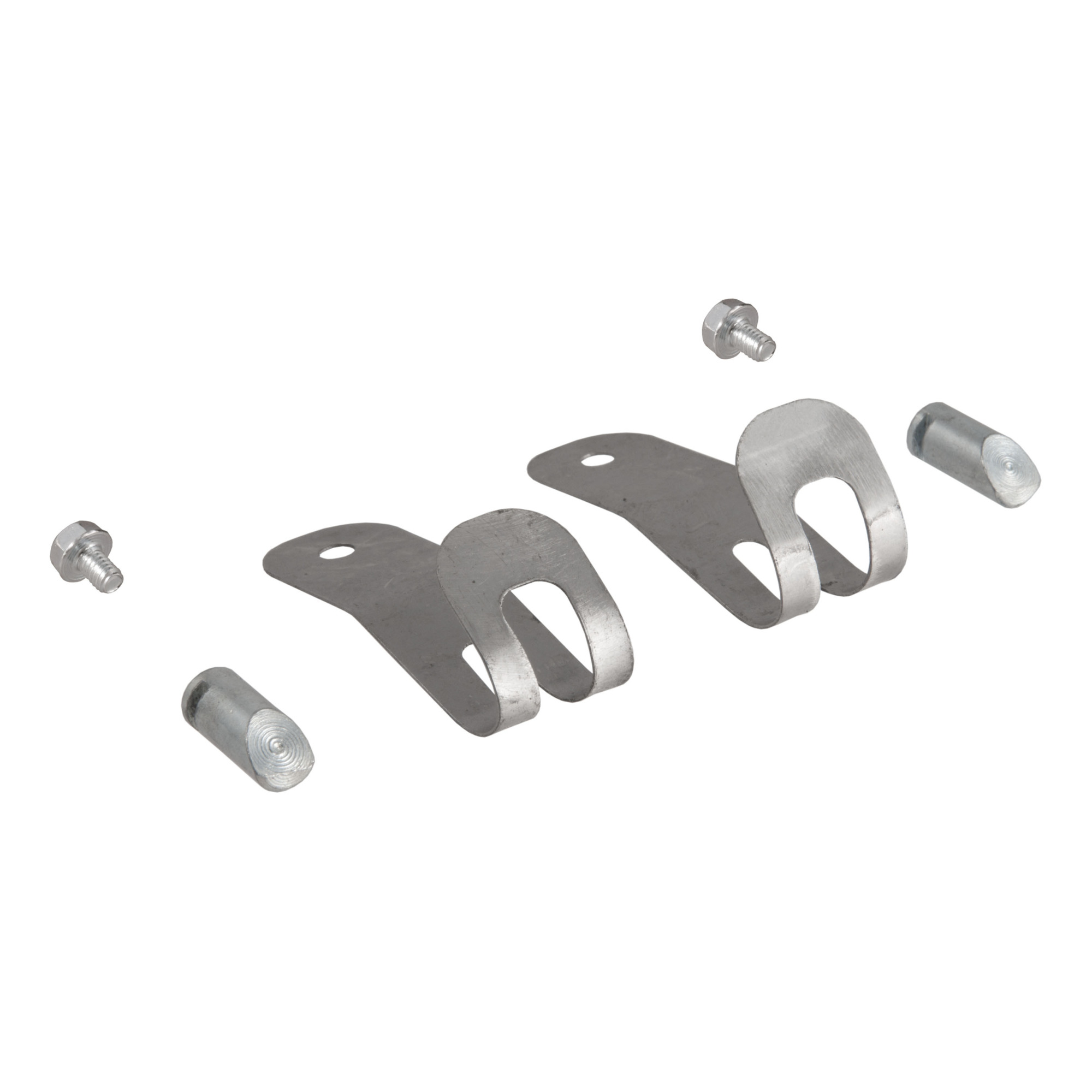

Curt Manufacturing, Round Bar Weight Distribution Retainers, Model# 17109
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$14.99
- For use with select CURT round bar weight distribution hitches
- Compatible with hitch #17600 or #17601

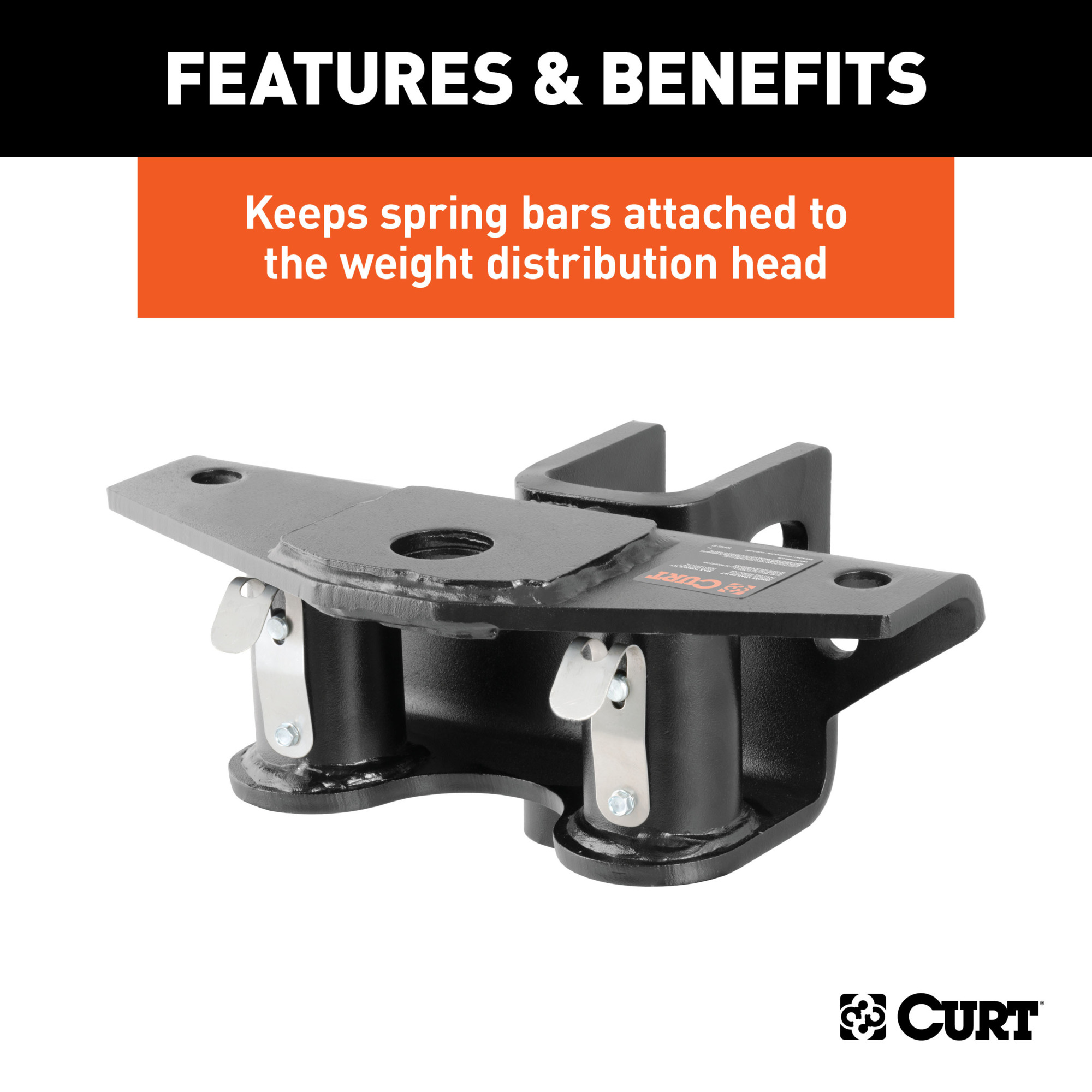

- Designed to keep spring bars attached to the WD head

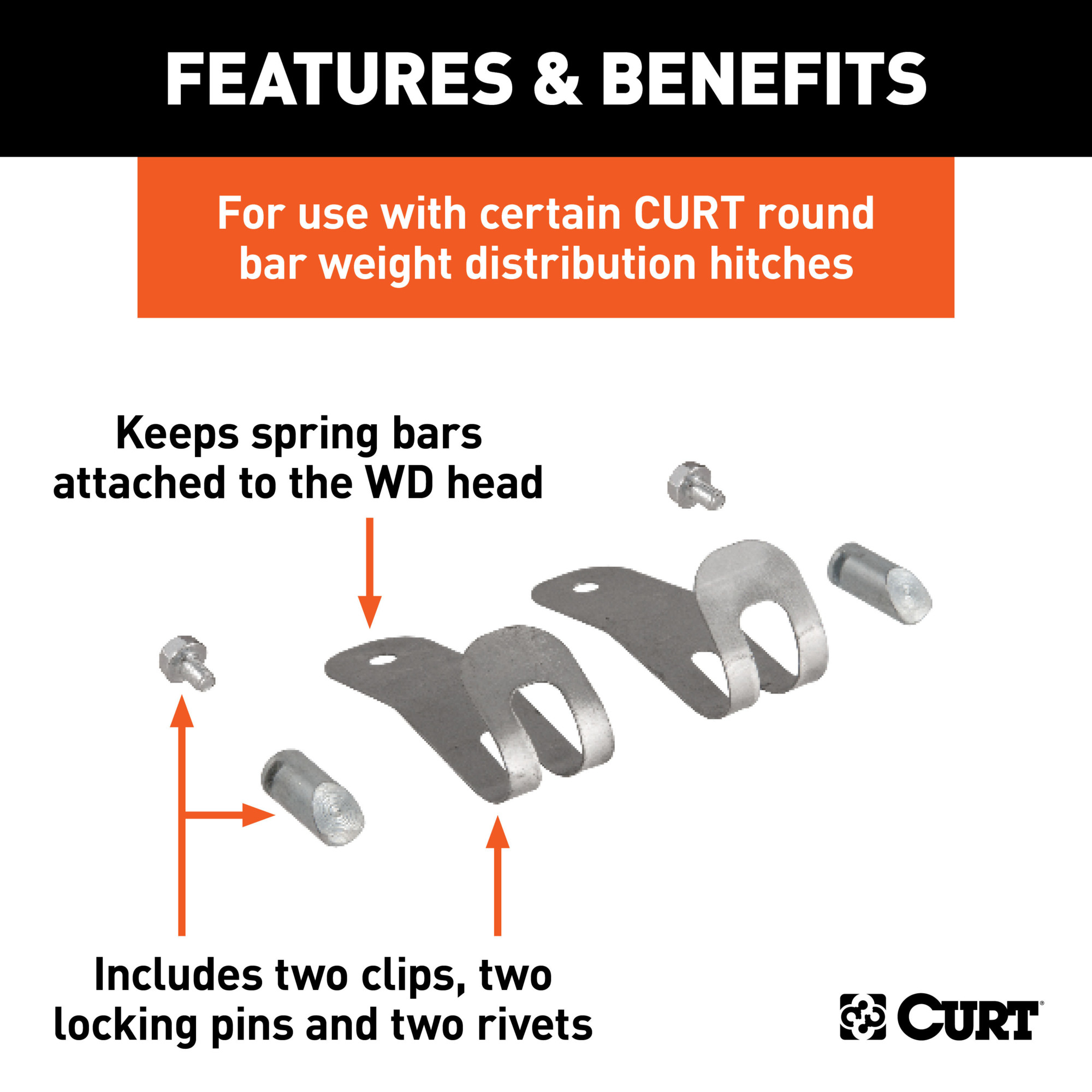

- Includes two clips, two locking pins and two rivets
See full description
See All Weight Distribution Kits
See All Curt Manufacturing Weight Distribution Kits
Currently Viewing This Product
Specifications
Specifications
Curt Manufacturing, Round Bar Weight Distribution Retainers, Model# 17109
Curt Manufacturing Deep Drop Trunnion Bar Weight Distribution Hitch, Carbon Steel, 10,000lb. Max Capacity, Model# 17352
Curt Manufacturing Replacement MV Round Weight Distribution Spring Bar, Steel, 6,000lb. Max. Capacity, Model# 17071
Curt Manufacturing Weight Distribution Shank, 14.5in. Drop, Steel, 15,000lb. Max. Capacity, Model# 17125
Material
Same
Multiple
Carbon Steel
Combination
Combination
Max. Gross Trailer Weight
Same
10,000 lb
-
6,000 lb
15,000 lb
Dimensions L x W x H (in.)
Same
4.0 x 1.0 x 2.0 in
35.5 x 8.25 x 13.0 in
33.0 x 1.5 x 8.0 in
21.0 x 2.0 x 12.0 in
Product Weight
Same
0.0500 lb
95.1200 lb
14.2500 lb
39.0000 lb
