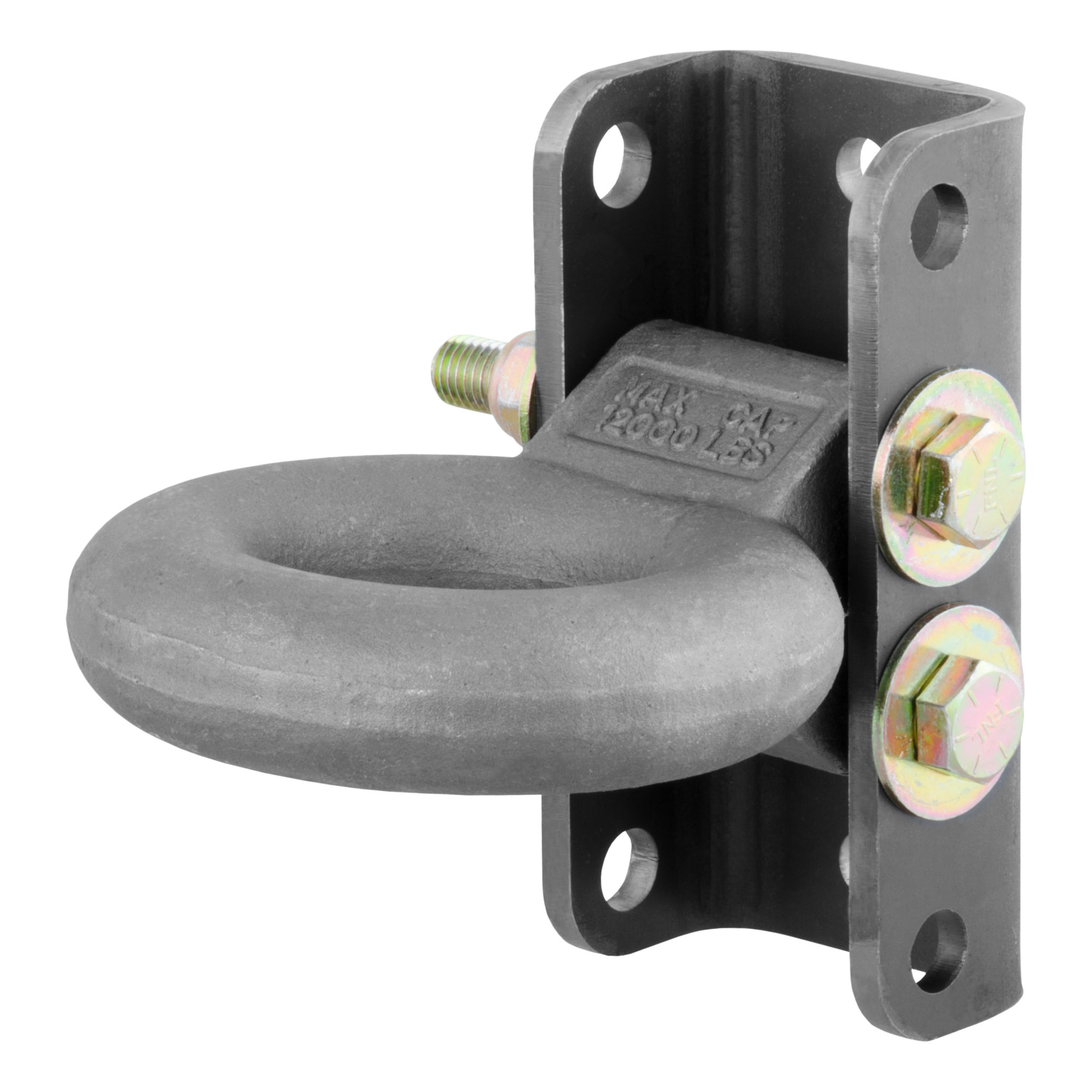

Curt Manufacturing, Lunette Eye Channel, Model# 48631

Item# 4413275
Curt Manufacturing, Lunette Eye Channel, Model# 48631

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, Lunette Eye Channel, Model# 48631

Click or Tap image to Zoom

$97.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Three-position height adjustment allows for precise trailer leveling
  • 2" bolt pattern spread for simple, secure attachment
  • Constructed from forged steel for superior strength

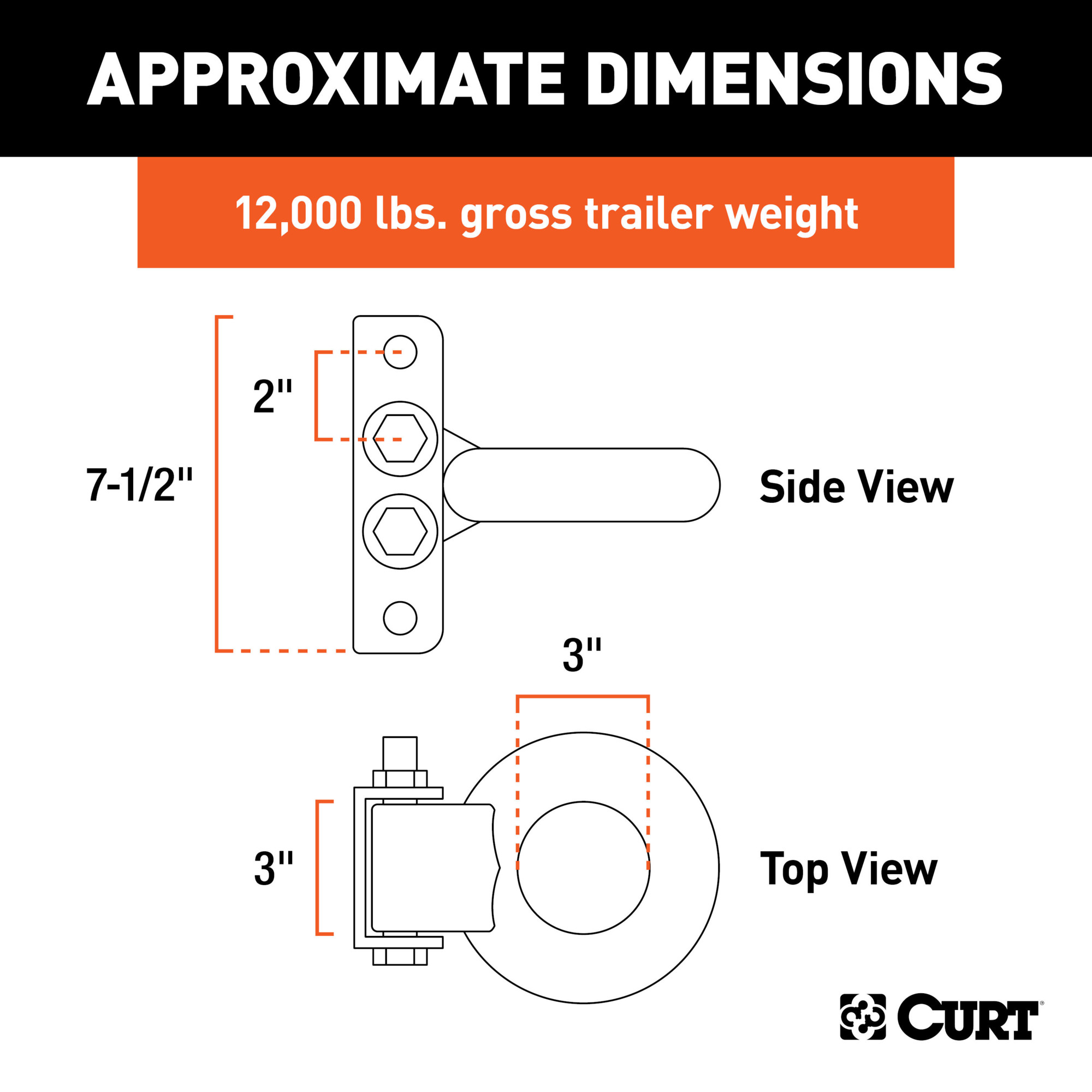

  • 7-1/2" x 3" channel bracket features one-piece, formed steel construction

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This channel-mount lunette eye kit allows for secure coupling to a pintle hook or ball and pintle combination and features three height adjustment positions for precise trailer levelling. It features forged steel construction and boasts a gross trailer weight capacity of 12,000 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a 3in. inside diameter, this lunette ring fits a variety of CURT pintle hooks and ball and pintle combinations.

What's Included

    (1) Lunette Eye

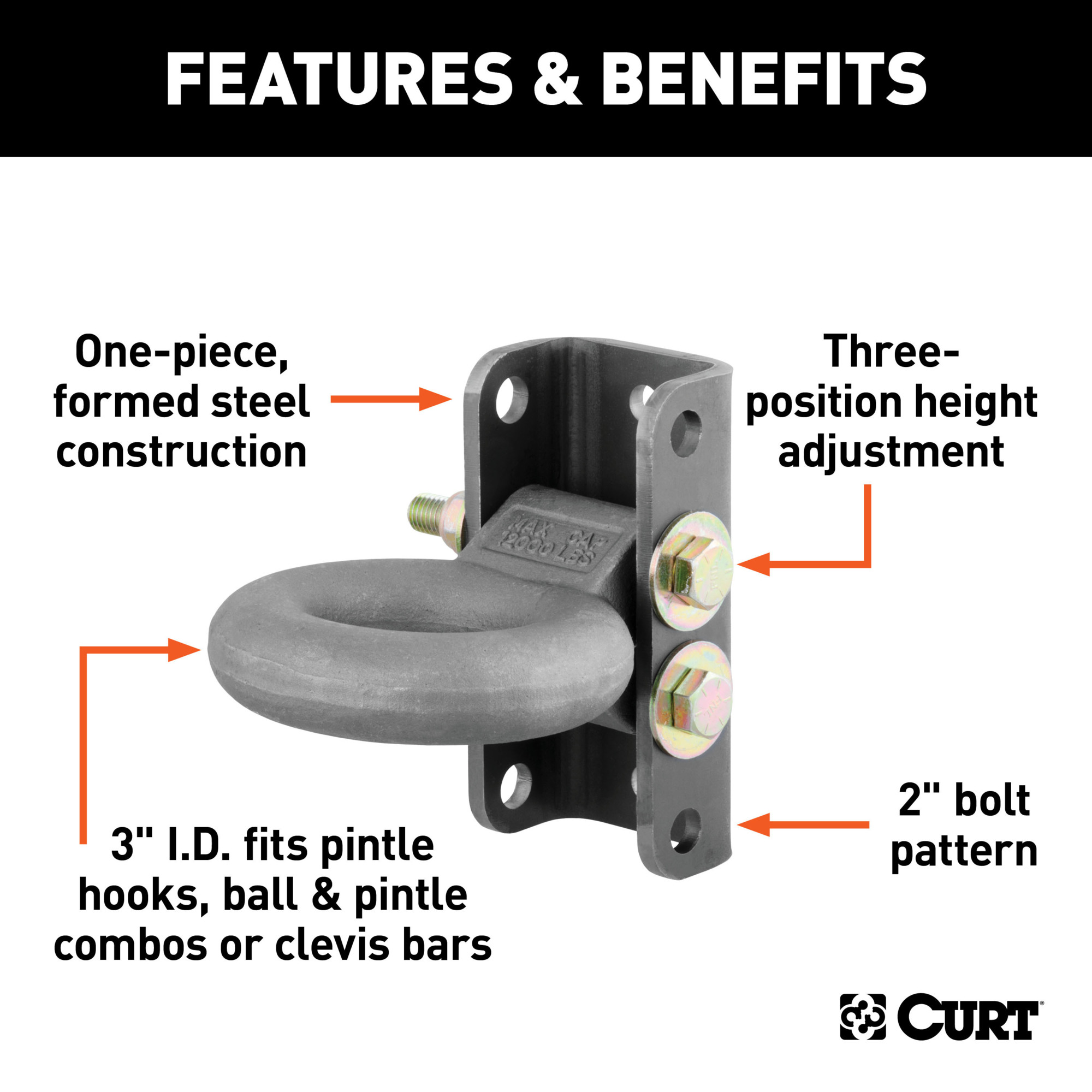

Features + Benefits

  • 3" inside diameter fits pintle hooks, ball & pintle combinations or clevis bars
  • Three-position height adjustment allows for precise trailer leveling
  • 2" bolt pattern spread for simple, secure attachment
  • Constructed from forged steel for superior strength
  • 7-1/2" x 3" channel bracket features one-piece, formed steel construction

Key Specs

AttributeSpecification

item#

4413275

Brand

Curt Manufacturing

Ship Weight

18.0 LB
AttributeSpecification

Material

Combination

Max. Gross Trailer Weight

12,000 lb
