Curt Manufacturing Light-Duty TruTrack Weight Distribution Hitch Kit, 8,000lb. Max. Capacity, Model# 17499

Item# 4413911
Curt Manufacturing Light-Duty TruTrack Weight Distribution Hitch Kit, 8,000lb. Max. Capacity, Model# 17499

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Light-Duty TruTrack Weight Distribution Hitch Kit, 8,000lb. Max. Capacity, Model# 17499

Click or Tap image to Zoom

$619.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Integrated sway control actively resists sway and levels the vehicle and trailer

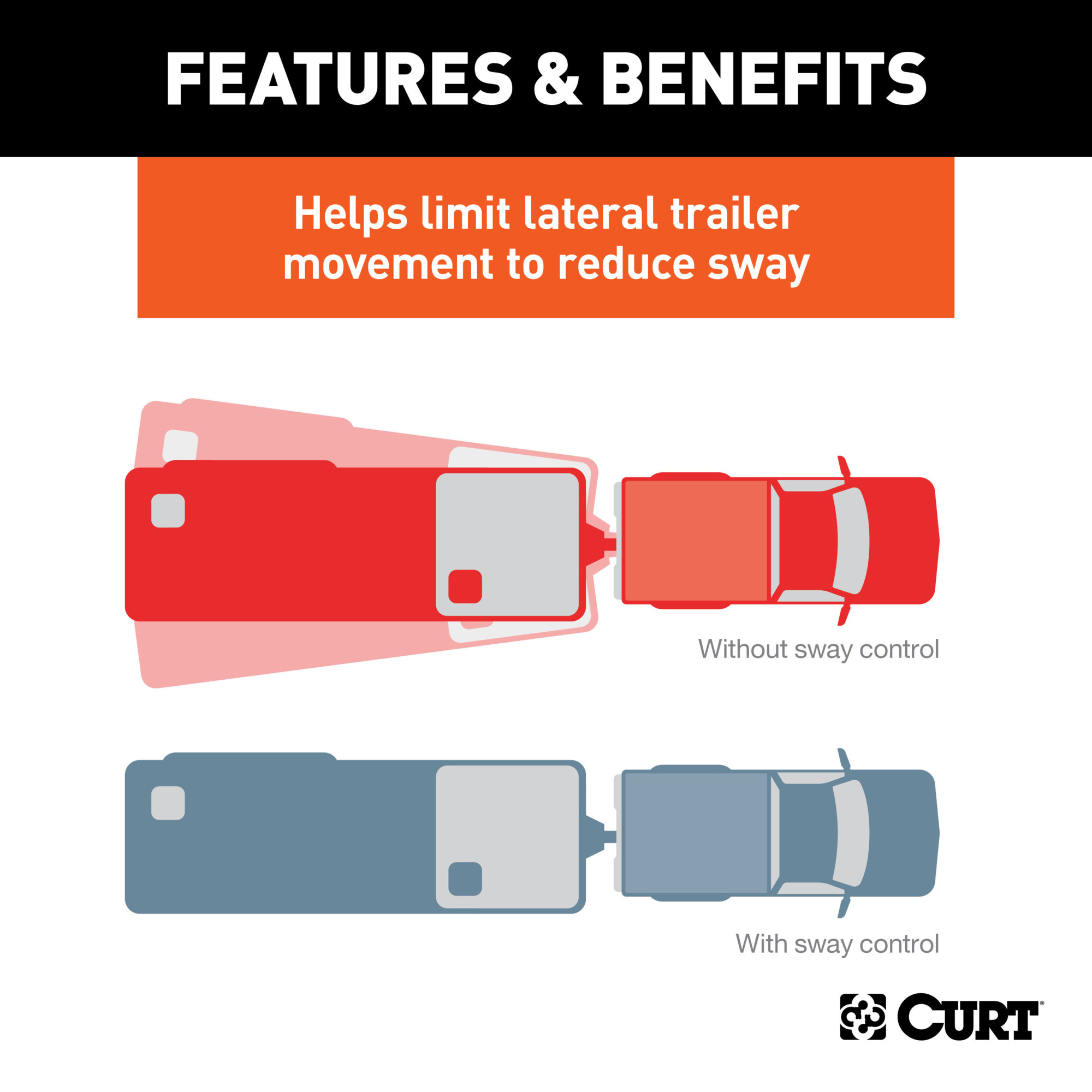

  • Four points of sway control work together to keep trailer aligned
  • Welded head with cast pieces and trunnion-style forged steel spring bars
  • Uses spring & cam system with hardened components, instead of friction alone
  • Adjustable brackets provide fixed support unlike spring bar chain models

See full description

Complete Your Solution

  • Curt Manufacturing Light-Duty TruTrack Weight Distribution Hitch Kit, 8,000lb. Max. Capacity, Model# 17499
  • SmartStraps Web Sling, 6,400-Lb. Breaking Strength, 6ft. x 2in., Model# 840
Price for all two:

$646.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

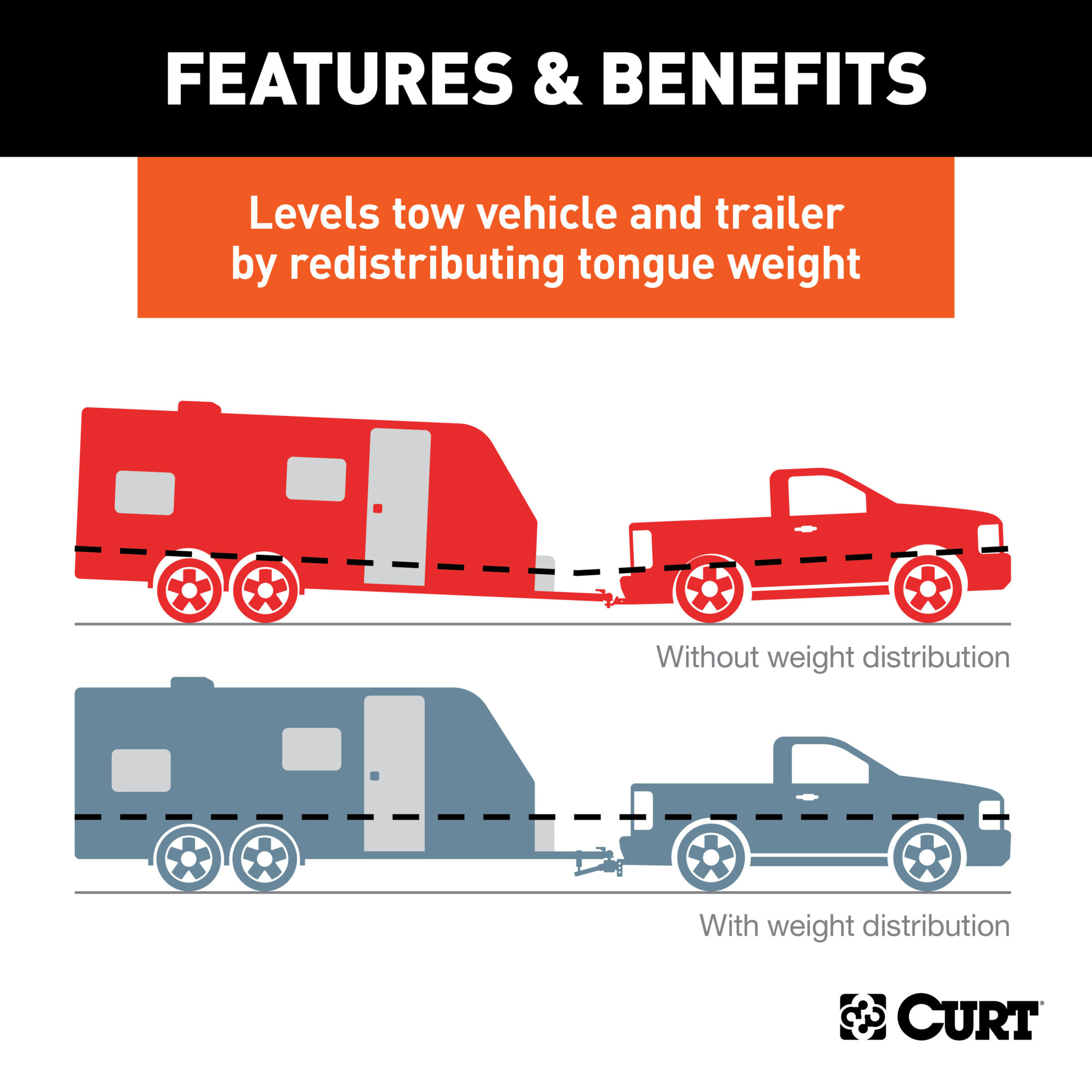

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. This, coupled with the easiest setup in the industry, truly makes the TruTrack unparalleled in its class. Like all WD hitches, the TruTrack 4P uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the light-duty TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy (NOTE: Trailer ball not included). In addition to its integrated sway control and easy setup, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers, car haulers and other heavy-duty trailers.

What's Included

    (1) Light-Duty TruTrack

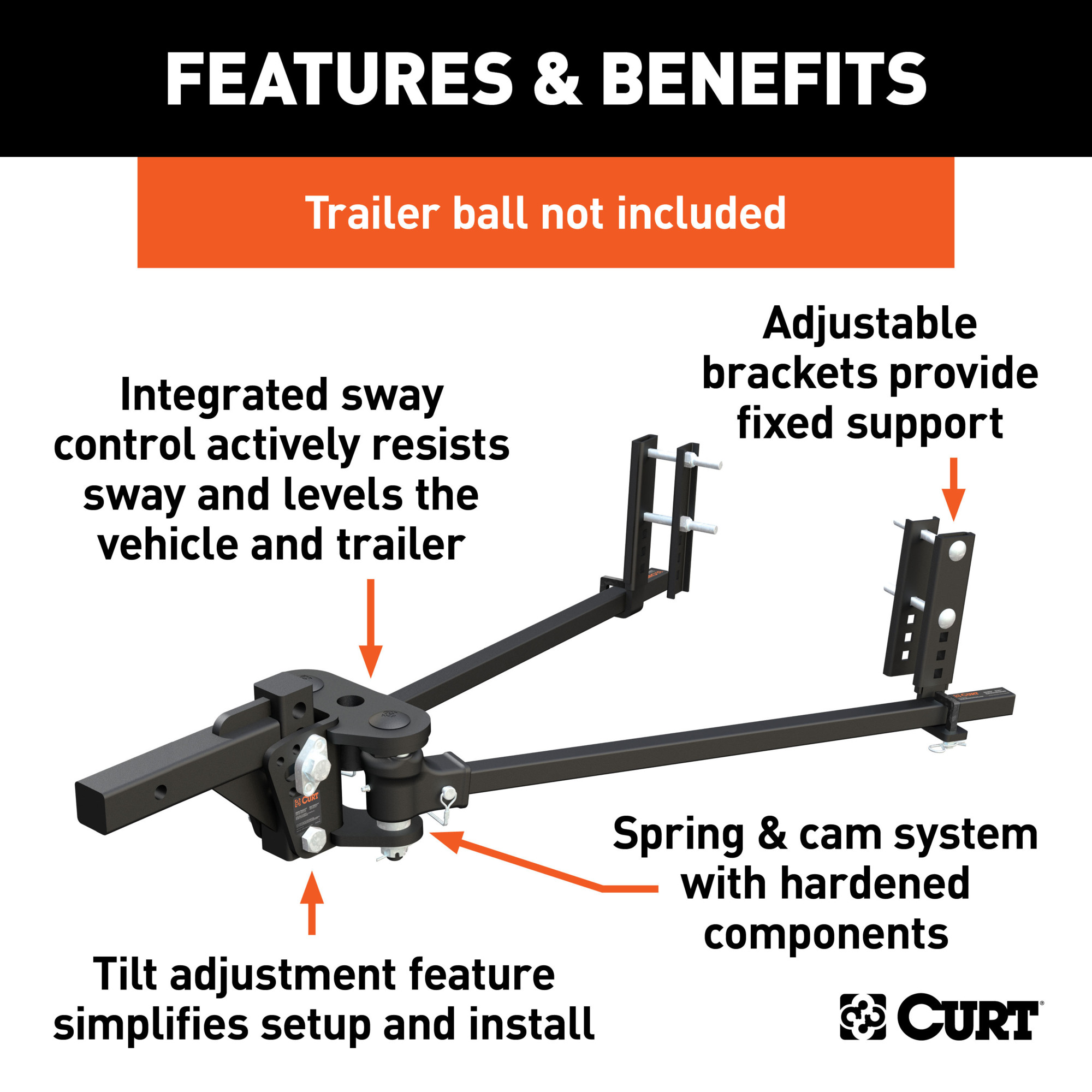

Features + Benefits

  • Integrated sway control actively resists sway and levels the vehicle and trailer
  • Four points of sway control work together to keep trailer aligned
  • Welded head with cast pieces and trunnion-style forged steel spring bars
  • Uses spring & cam system with hardened components, instead of friction alone
  • Adjustable brackets provide fixed support unlike spring bar chain models
  • Brackets use friction to resist lateral movement, replacing a sway control
  • 2" shank can be flipped to provide necessary drop or rise
  • Hex castle nut allows for easy adjustment for different trailers
  • Tilt adjustment feature simplifies setup and installation
  • Fits virtually all A-frame trailers, featuring two neutral spring bar settings
  • Carbide black powder coat, black-oxide-plated cams and stainless steel balls
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Springs bars can be adjusted to 3 or 7 degrees (+/- 5)
  • Includes shank, spring bars, head, support brackets, pin & clip (trailer ball sold separately)

Key Specs

AttributeSpecification

item#

4413911

Brand

Curt Manufacturing

Ship Weight

8.5 LB

Material

Combination
AttributeSpecification

Max. Gross Trailer Weight

8,000 lb

Dimensions L x W x H (in.)

37.0 x 8.5 x 13.0 in

Product Weight

94.7000 lb

Reviews

Questions & Answers

Questions

  1. how far aft of hitch ball center must the brackets be mounted on the frame?

    1 answer

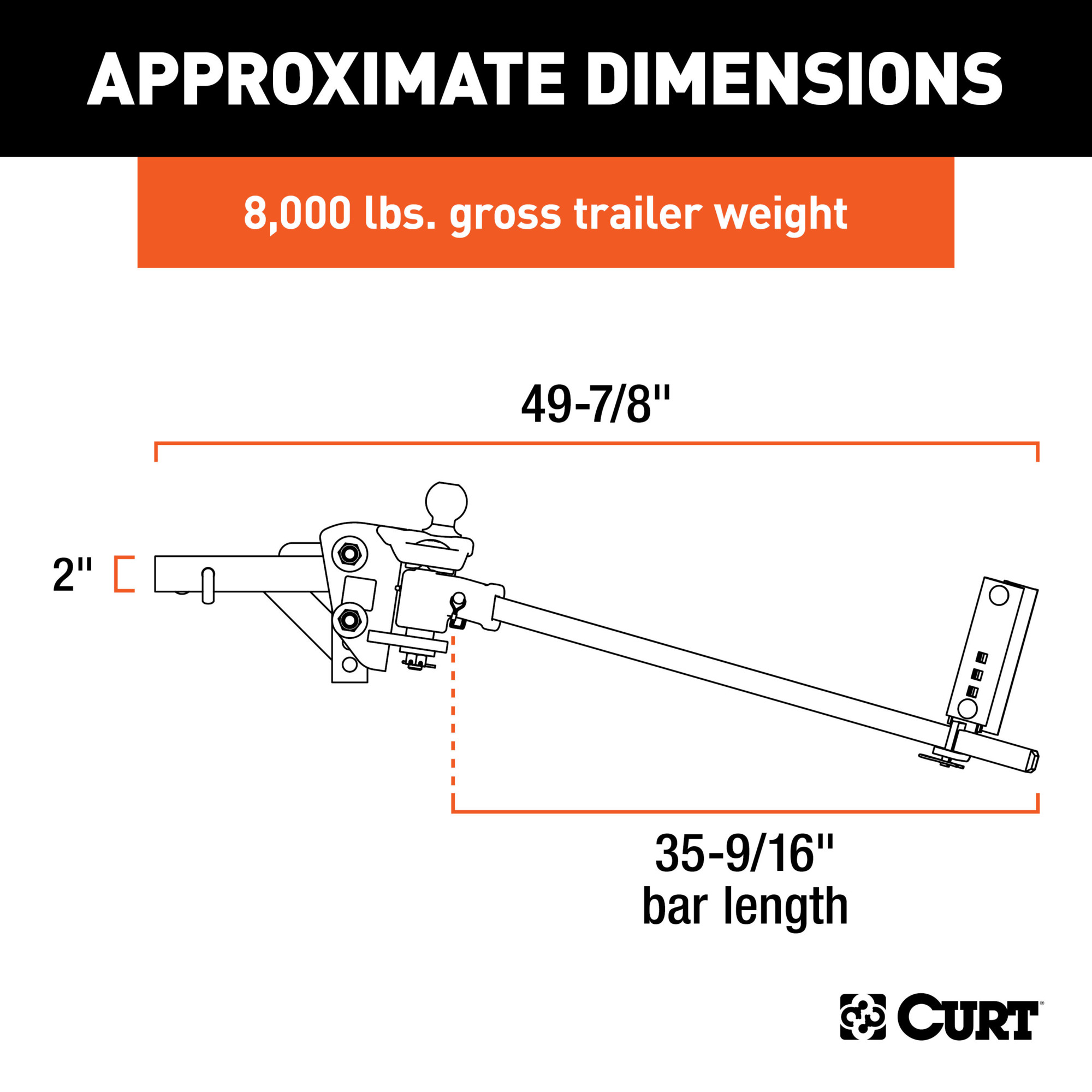

    1. The bar length is 35 9/16". This would be about the distance the brackets would be mounted from the ball. Some small variance is possible depending on the setup of the trailer and things that might be in the way such as storage boxes or propane tanks.
