Curt Manufacturing Adjustable Trailer Hitch Pintle Mount, 12.5in. Plate Height, Carbon Steel, 20,000lb. Capacity, Model# 48349

Item# 4413363
Curt Manufacturing Adjustable Trailer Hitch Pintle Mount, 12.5in. Plate Height, Carbon Steel, 20,000lb. Capacity, Model# 48349

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing Adjustable Trailer Hitch Pintle Mount, 12.5in. Plate Height, Carbon Steel, 20,000lb. Capacity, Model# 48349

Click or Tap image to Zoom

$209.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

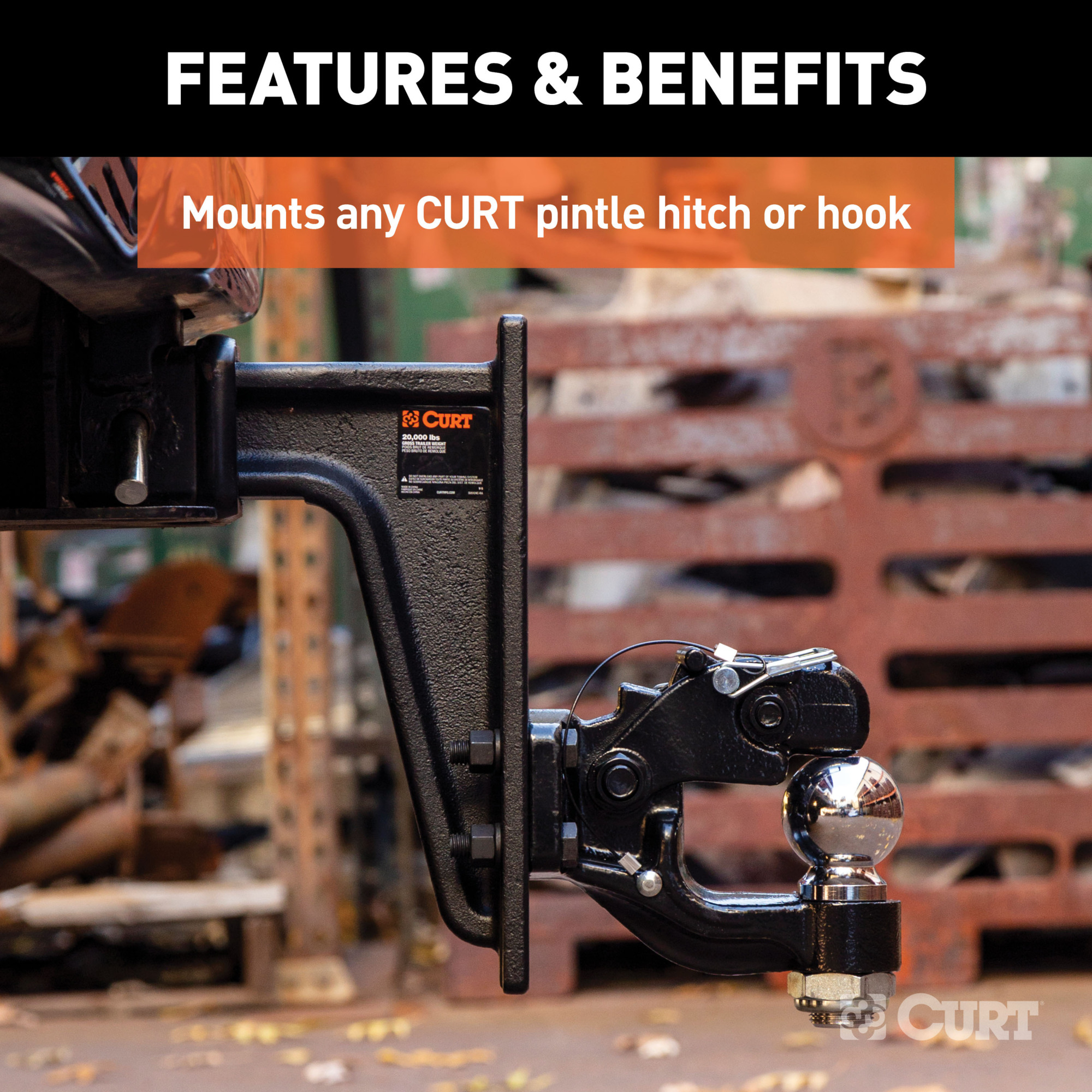

  • Mounts any CURT adjustable pintle hook or ball & pintle combination

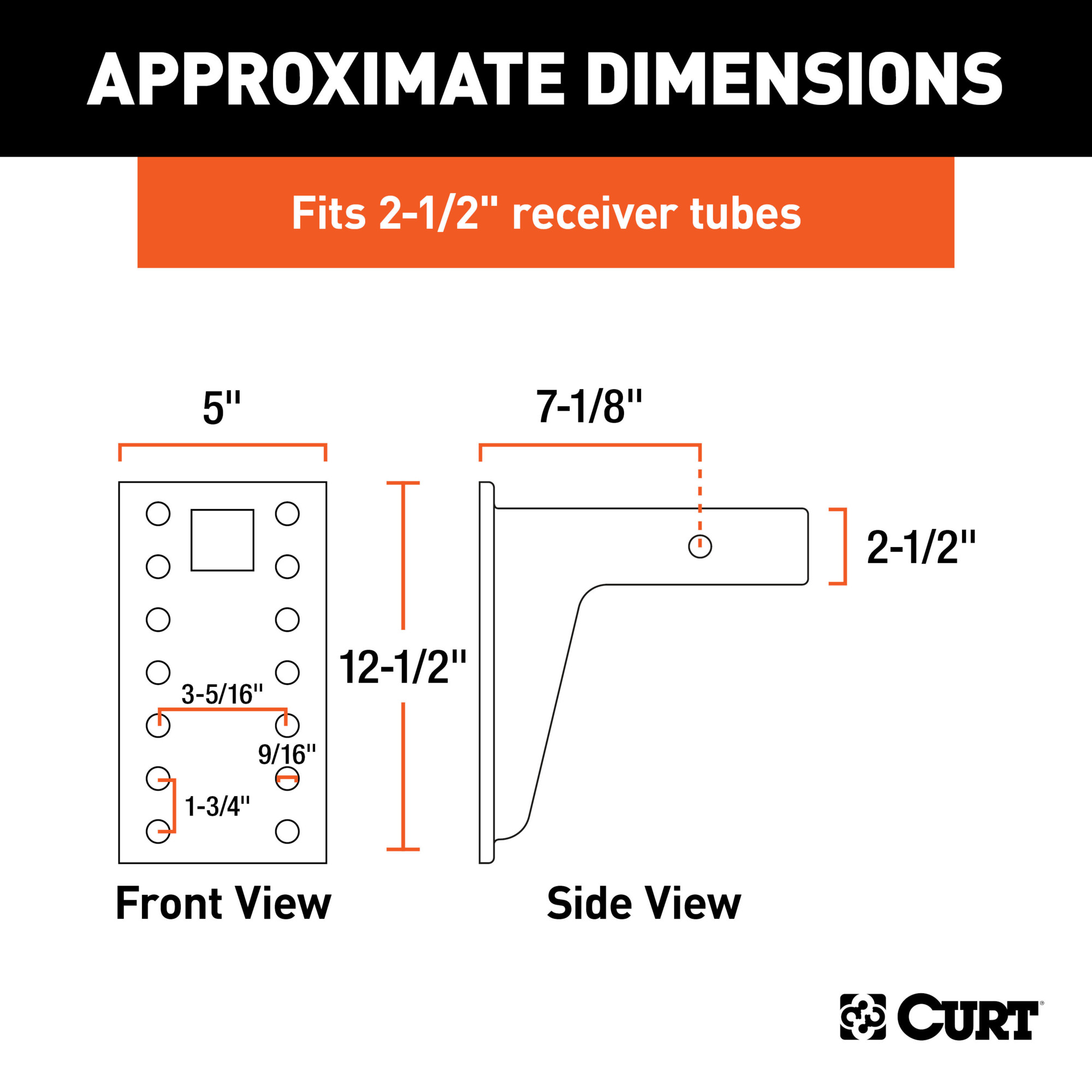

  • Face plate holes spaced apart 1-3/4" high x 3-5/16" wide

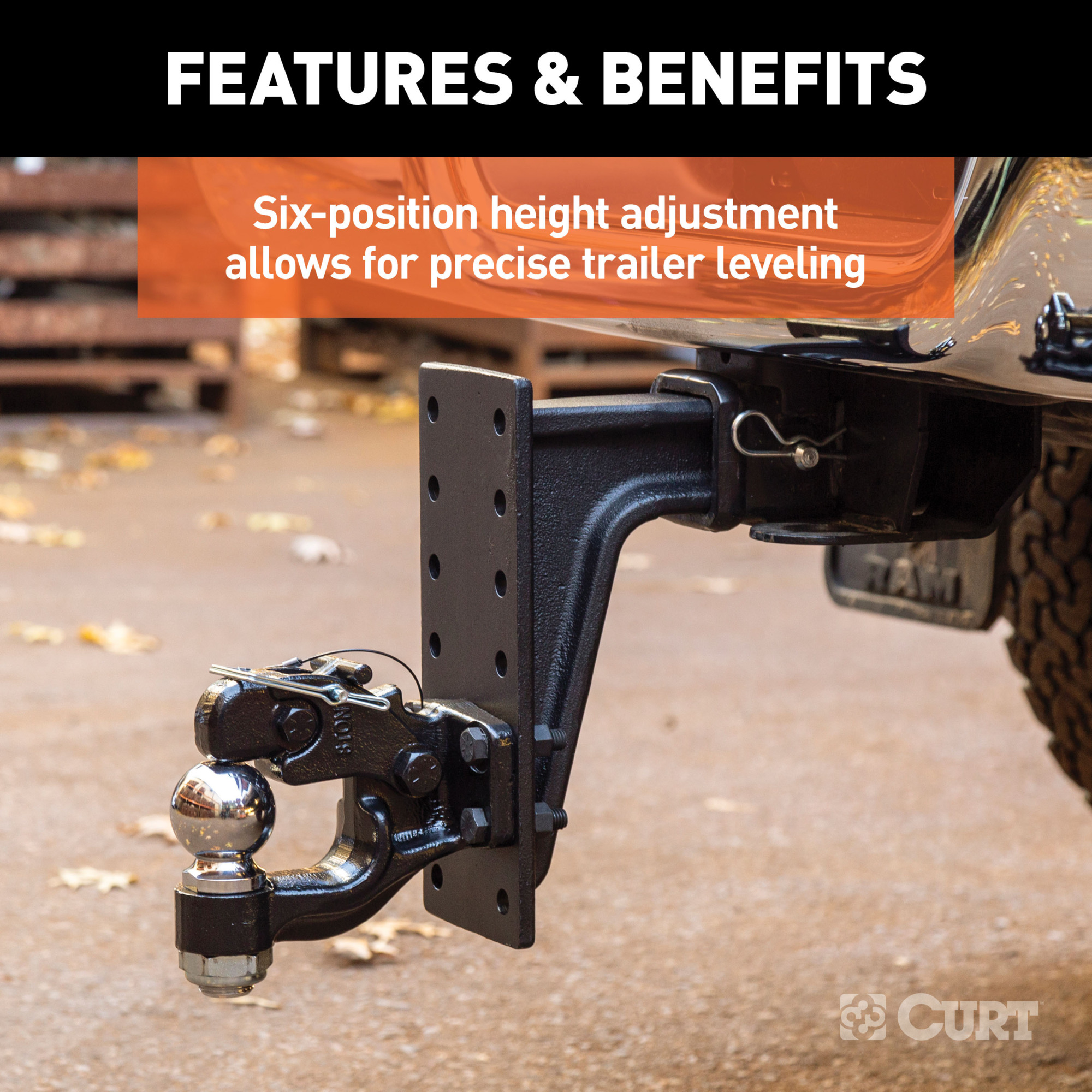

  • Six-position height adjustment allows for precise trailer leveling
  • Shank constructed from solid steel for optimum strength

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Your truck might have the muscle and your hitch might have more capacity than you know what to do with, but what about a ball mount that can keep up? The CURT 2-1/2in. adjustable pintle mount is the ideal heavy-duty counterpart to your full-size pickup and class 5 trailer hitch. Rather than using a reducer sleeve or hitch adapter to increase the shank size of your 2in. mount, this pintle mount features a solid steel 2-1/2in. x 2-1/2in. shank. It can accept any mounted CURT pintle hook or ball and pintle combination, and with its 12-1/2in. height, it offers up to six height adjustment positions (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Not only does the 2-1/2in. x 2-1/2in. pintle mount accommodate a variety of trailers with different coupler heights, but it also allows for use with the heaviest of loads. Its solid shank gives it the strength to accept a gross trailer weight up to 20,000 lbs. It also features a black carbide powder coat finish to ensure maximum resistance to chipping, scratches and rust. Never let your towing equipment hold you back from the job that needs getting done. Whether you are towing a livestock trailer, flatbed or equipment hauler, Bring It with a CURT 2-1/2in. adjustable pintle mount.

What's Included

    (1) Pintle Mount

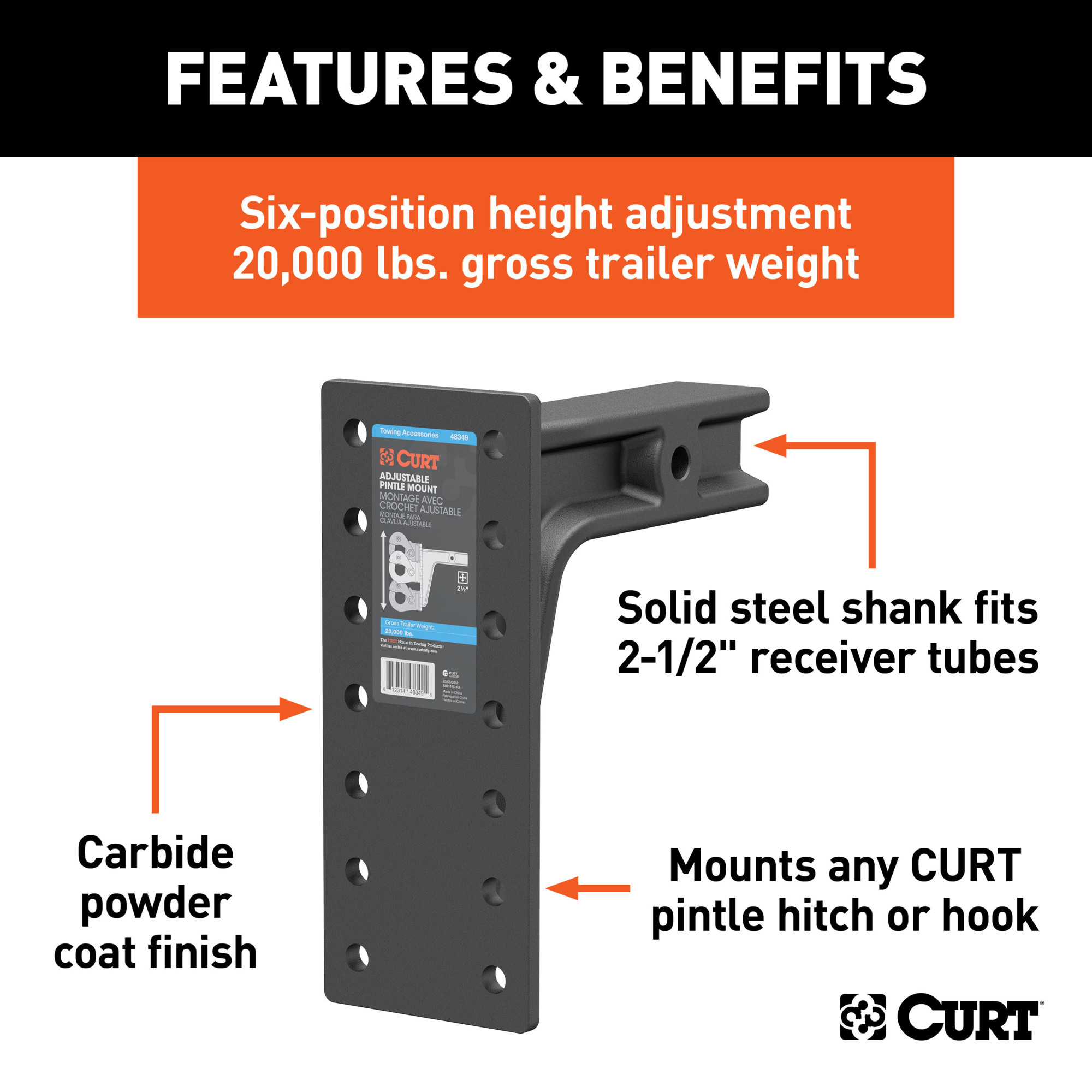

Features + Benefits

  • Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
  • Mounts any CURT adjustable pintle hook or ball & pintle combination
  • Face plate holes spaced apart 1-3/4" high x 3-5/16" wide
  • Six-position height adjustment allows for precise trailer leveling
  • Shank constructed from solid steel for optimum strength
  • Protected by a highly durable carbide powder coat finish
  • Limited lifetime warranty (one-year finish, one-year parts)
  • For use in drop position only

Key Specs

AttributeSpecification

item#

4413363

Brand

Curt Manufacturing

Ship Weight

29.0 LB

Material

Carbon Steel
AttributeSpecification

Max. Gross Trailer Weight

20,000 lb

Dimensions L x W x H (in.)

13.0 x 6.0 x 12.0 in

Product Weight

29.0000 lb

Reviews

Questions & Answers

Questions

  1. What is the maximum vertical (tongue) capacity

    1 answer

    1. This product has been tested per SAE J847 for use as a pintle mount as well as SAE J684 as a ball mount. In both cases, the maximum vertical tongue weight is 20% of the 20,000lb rating, or 4000lbs.
