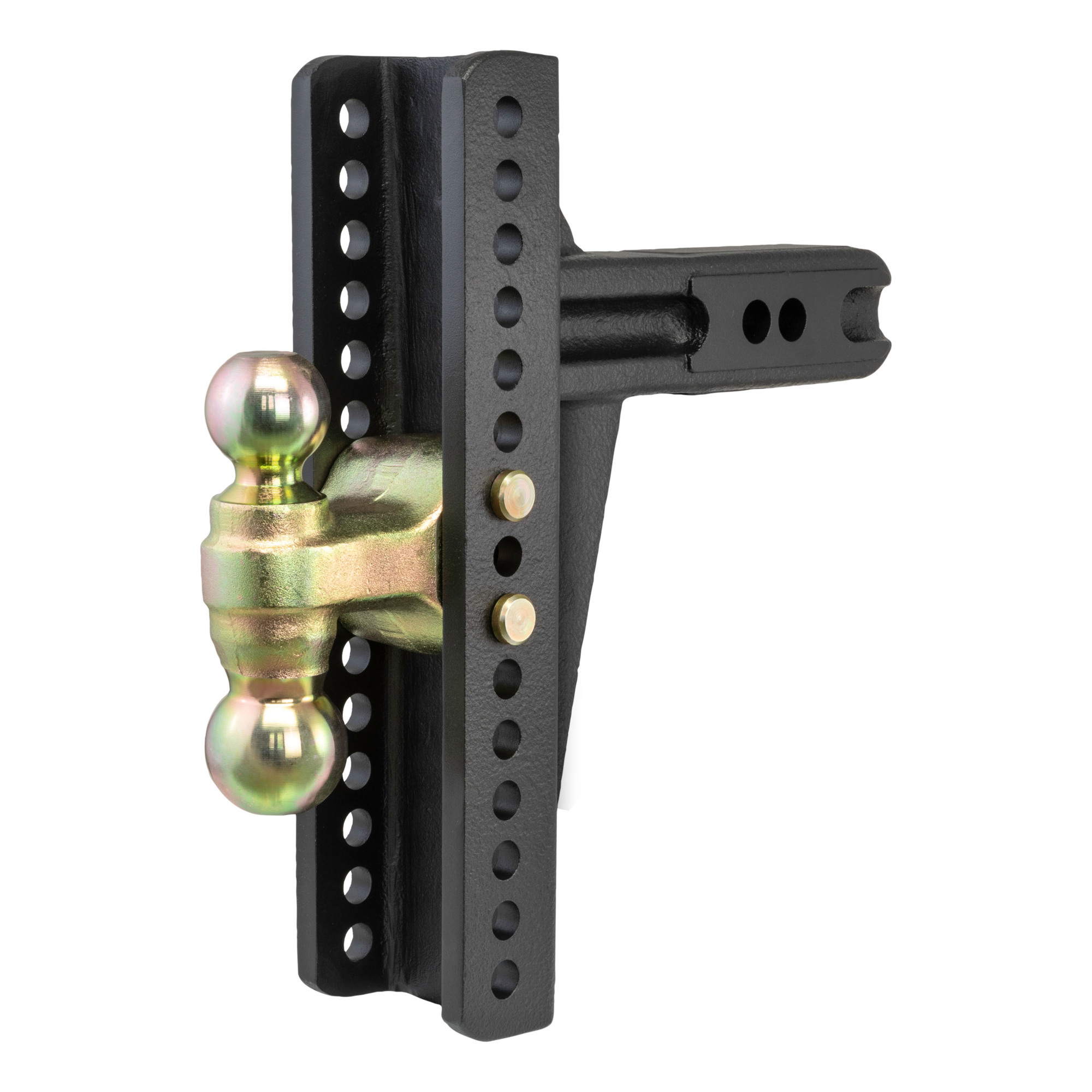

Curt Manufacturing, Adjustable Channel Mount, Dual Ball 2-1/2in. Shank,10-3/8in. Drp, Model# 45927

Item# 4412977
Curt Manufacturing, Adjustable Channel Mount, Dual Ball 2-1/2in. Shank,10-3/8in. Drp, Model# 45927

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, Adjustable Channel Mount, Dual Ball 2-1/2in. Shank,10-3/8in. Drp, Model# 45927

Click or Tap image to Zoom

$519.99

    • Shipping:

      Factory shipped

    • Store Pickup:

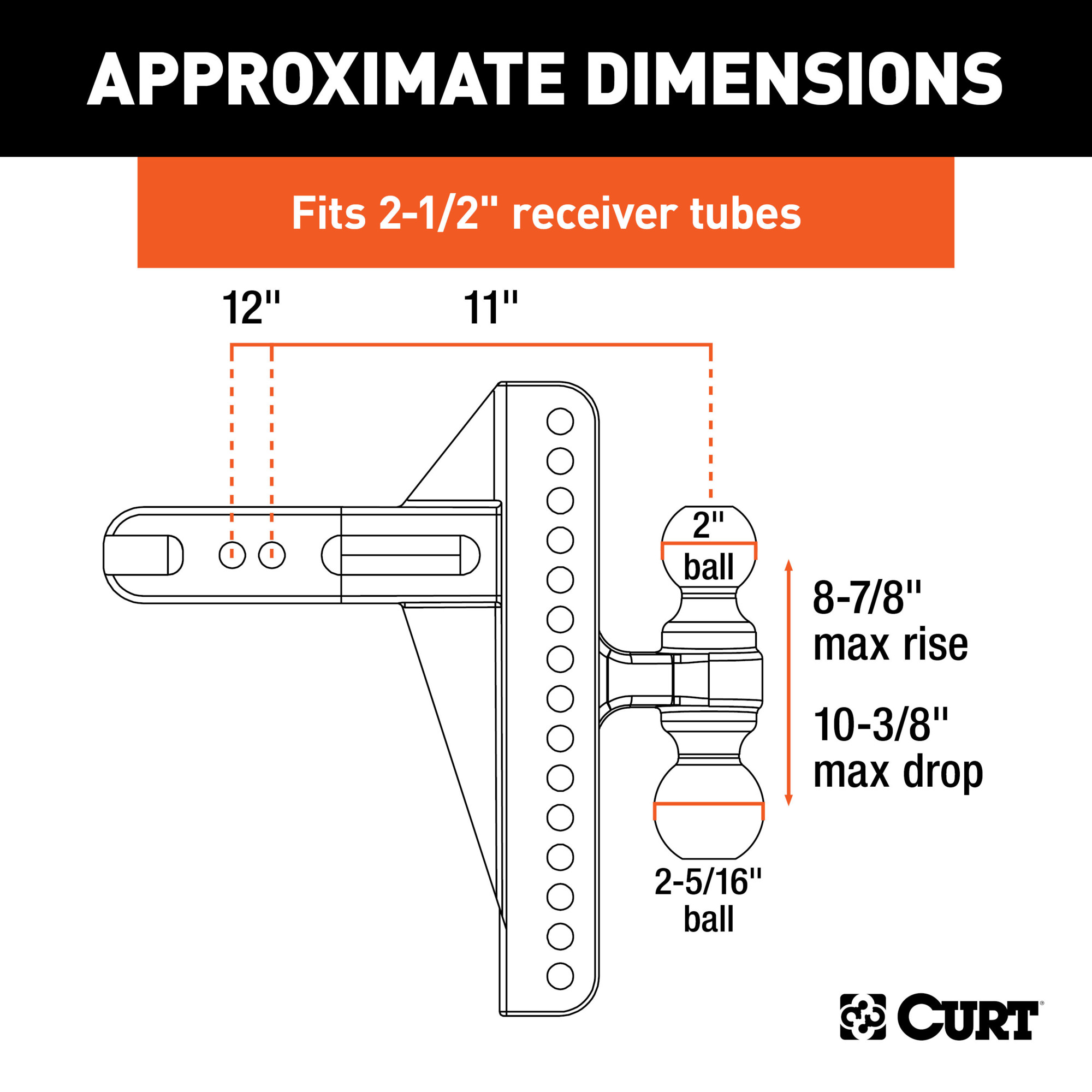

    • Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

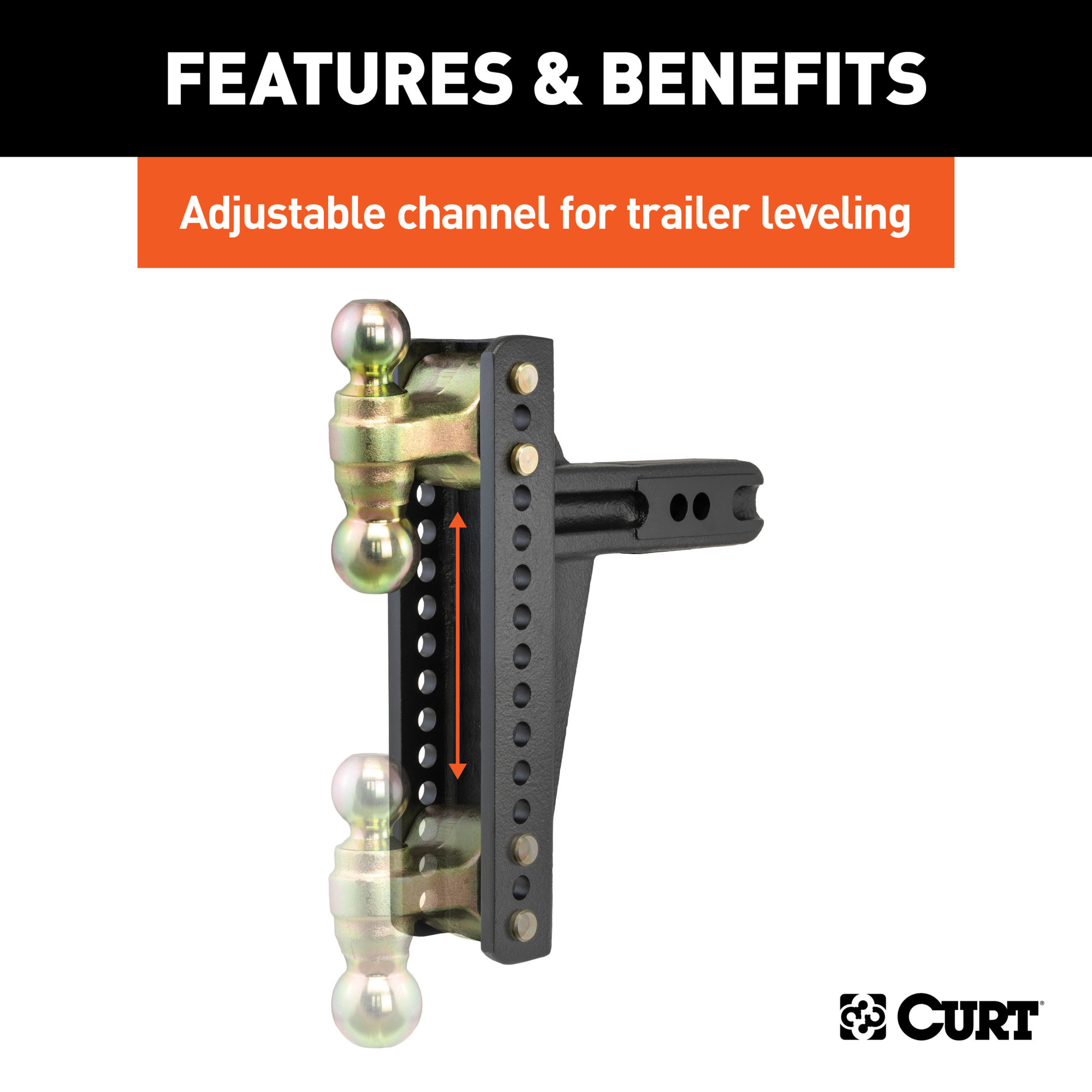

    • Adjustable channel mount allows for precise trailer leveling
    • Shank can be flipped for a max rise of 8-7/8" and drop of 10-3/8"
    • 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 20,000 lbs.
    • Two hitch pin holes provide shank lengths of 11" or 12"

    See full description

    • Description

    • Key Specs

    • Reviews

    • Q & A

    • Warranty

    • Compare

    Product Summary

    If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable deep drop channel-style ball mount has a shank size of 2-1/2in. x 2-1/2in. and features two different trailer ball sizes to accommodate two different coupler sizes: 2in. and 2-5/16in. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 8-7/8in. rise or lowered to a maximum of 10-3/8in. drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2in. ball and 20,000 lbs. for the 2-5/16in. ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11in. or 12in. length. The adjustable channel-style shank can also be used with the channel-style combination pintle mount or ball mount platform attachment to give you the option of installing your own trailer ball size. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

    What's Included

      (1) Channel Mount

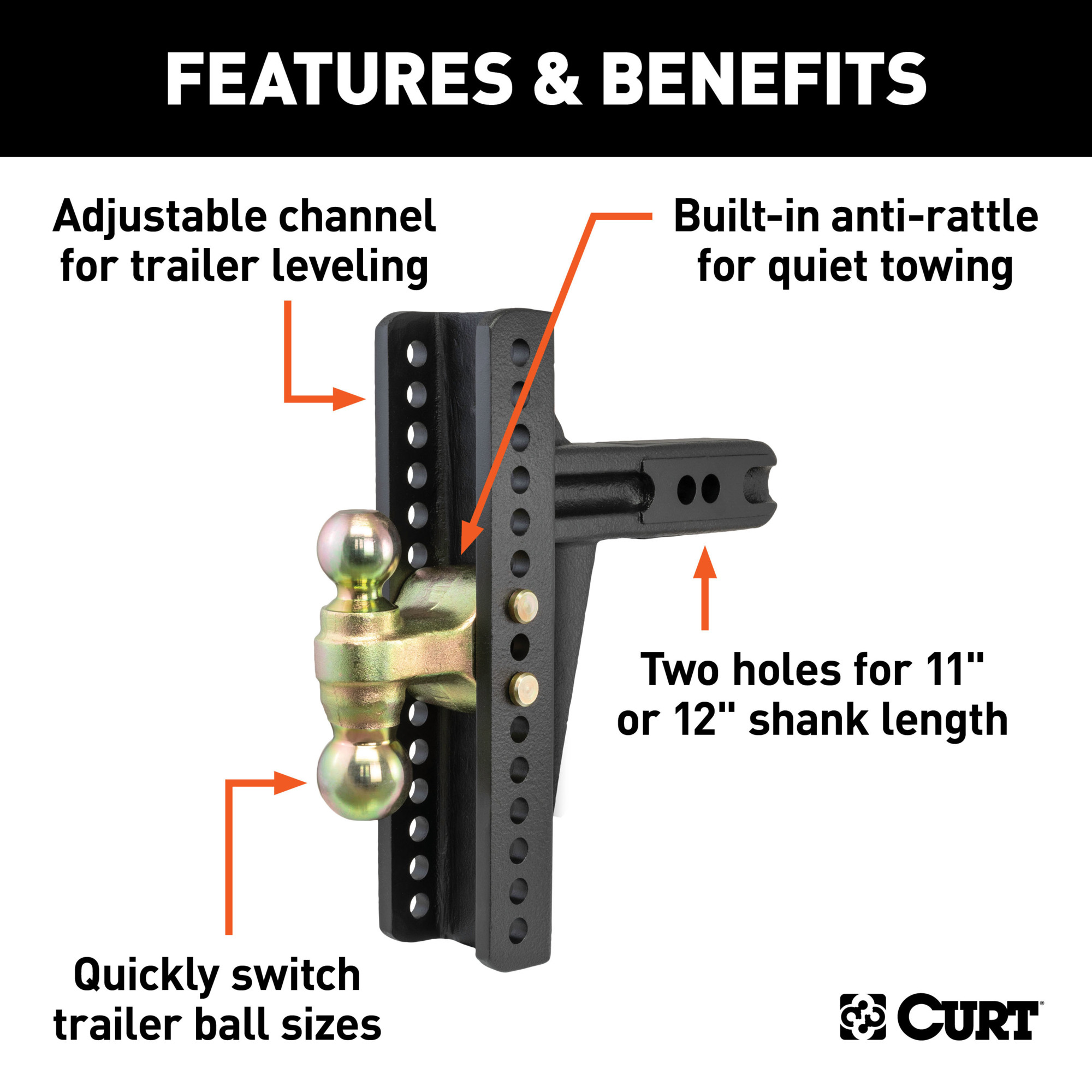

    Features + Benefits

    • Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
    • Adjustable channel mount allows for precise trailer leveling
    • Shank can be flipped for a max rise of 8-7/8" and drop of 10-3/8"
    • 2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 20,000 lbs.
    • Two hitch pin holes provide shank lengths of 11" or 12"

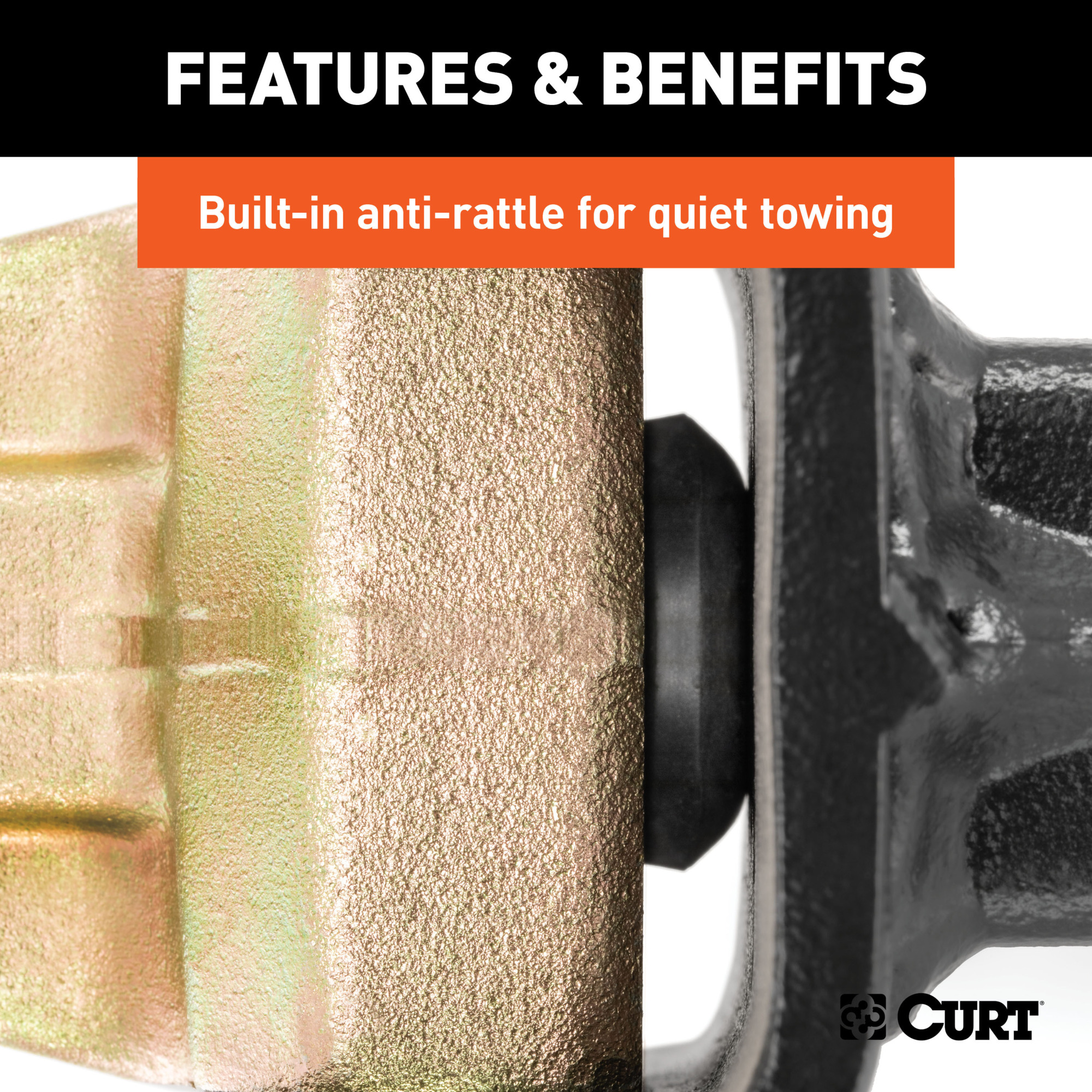

    • Built-in anti-rattle helps promote quiet towing
    • Protected by a highly durable carbide powder coat finish
    • Limited lifetime warranty (one-year finish, one-year parts)
    • Includes pins & clips
    • Patent# US8,33,563

    Key Specs

    AttributeSpecification

    item#

    		4412977

    Brand

    		Curt Manufacturing

    Manufacturer's Warranty

    		1 year limited warranty

    Shank Diameter

    		2.5 in

    Rise

    		8.875 in

    Drop

    		10.375 in
    AttributeSpecification

    Material

    		Combination

    Tongue Weight

    		21,000 lb

    Hitch Pin Included

    		No

    Product Weight

    		50.0000 lb

    Dimensions L x W x H (in.)

    		17.0 x 13.0 x 5.0 in

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
