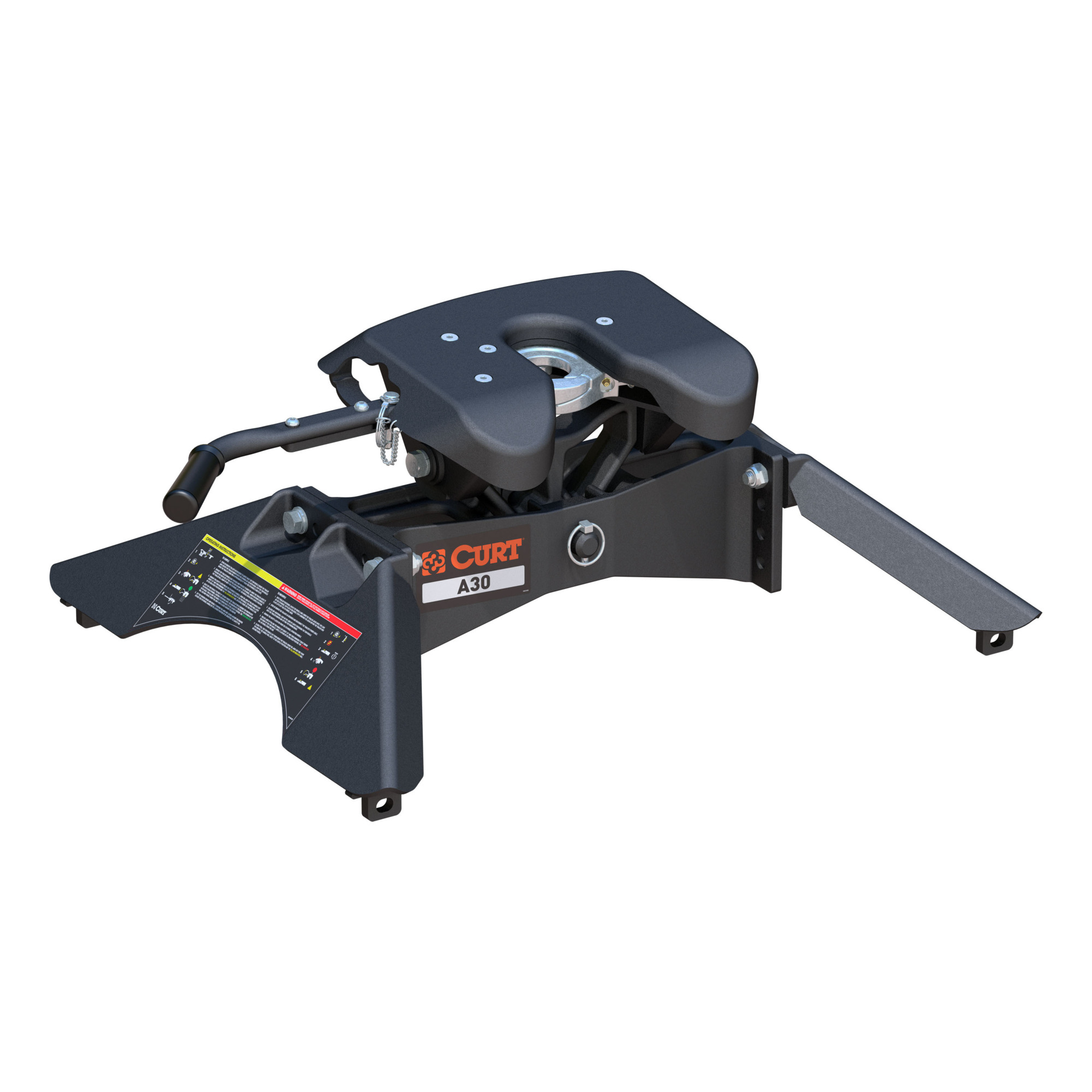

Curt Manufacturing, A30 5th Wheel Hitch, Model# 16190

Item# 6131343
Curt Manufacturing, A30 5th Wheel Hitch, Model# 16190

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Manufacturing, A30 5th Wheel Hitch, Model# 16190

Click or Tap image to Zoom

$1251.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise|Fully articulating torsion head for controlled coupling and stable towing|Lockable handle self-resets to the ready-to-couple position after uncoupling|Constructed with a cast steel main body for a more precise build|High-strength, interlocking cast jaws fully wrap the kingpin to minimize noise|Extra wide head opening for easier coupling|Fast, one-pin head removal makes moving easy with smaller, lighter pieces|Alignment pegs and easy-access bolts for simple leg-to-body attachment|Three-position coupling indicator clearly shows coupling status|Compatible with kingpin extension boxes, including common pivoting pin boxes|Mounts to all industry-standard base rails|Offers three height adjustment positions to adapt to each unique truck bed|Includes a polyethylene lube plate to eliminate messy grease deposits|Tested for safety in accordance with SAE J2638|Protected by a highly durable carbide powder coat finish|Limited lifetime warranty (one-year finish, one-year parts)
  • Includes 5th wheel head, legs and hardware (patent# 8,827,298)
  • Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
  • Capacity limited to lowest-rated towing component

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 30K 5th wheel hitch. Like our other A-series hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. The A30 5th wheel hitch is also engineered for easier installation. The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening. The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier. This 30K 5th wheel mounts to any industry-standard 5th wheel rails, using the included 5th wheel legs. Once installed, the A30 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A30 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish. We also test the A30 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.

What's Included

    (1) A30 5th Wheel Hitch

Features + Benefits

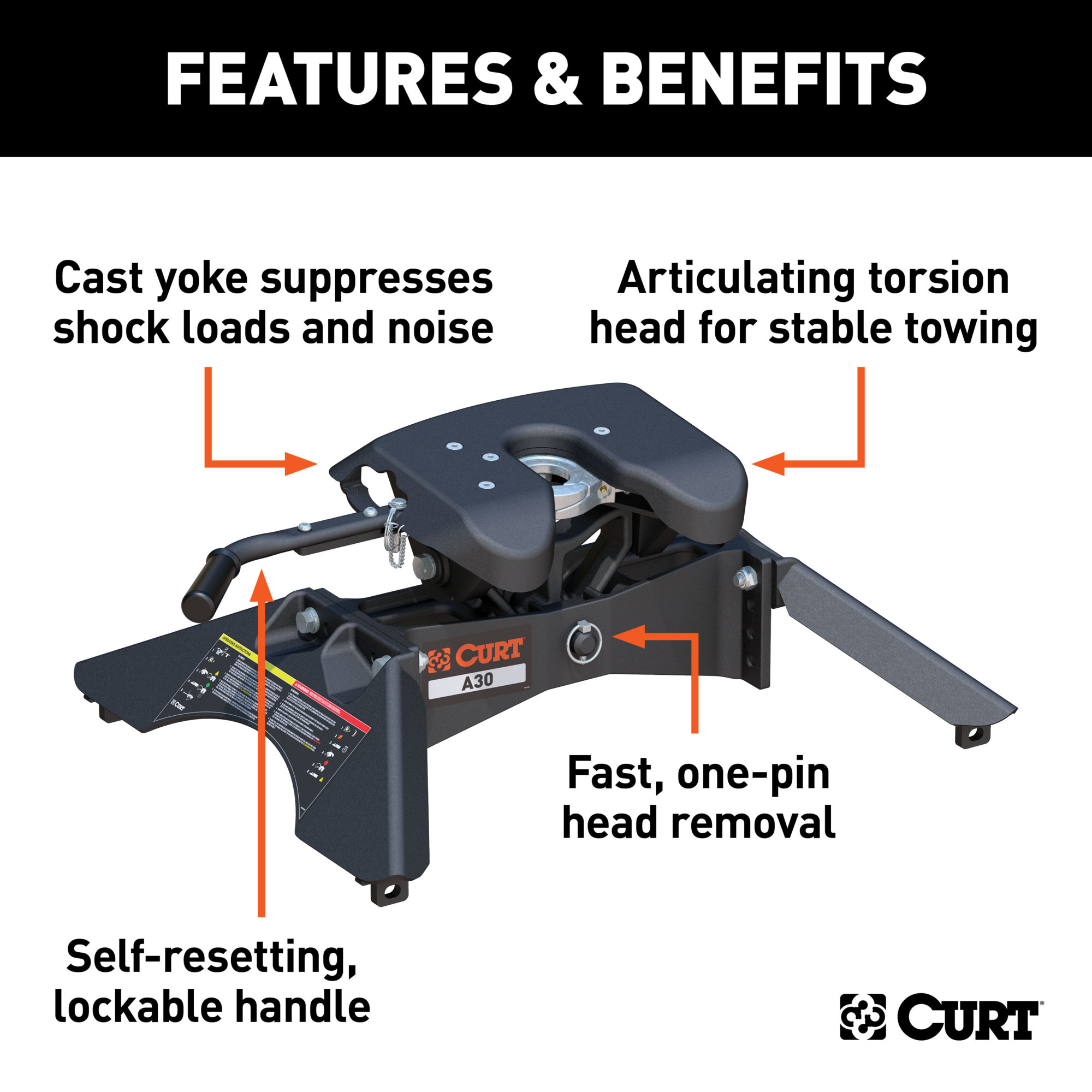

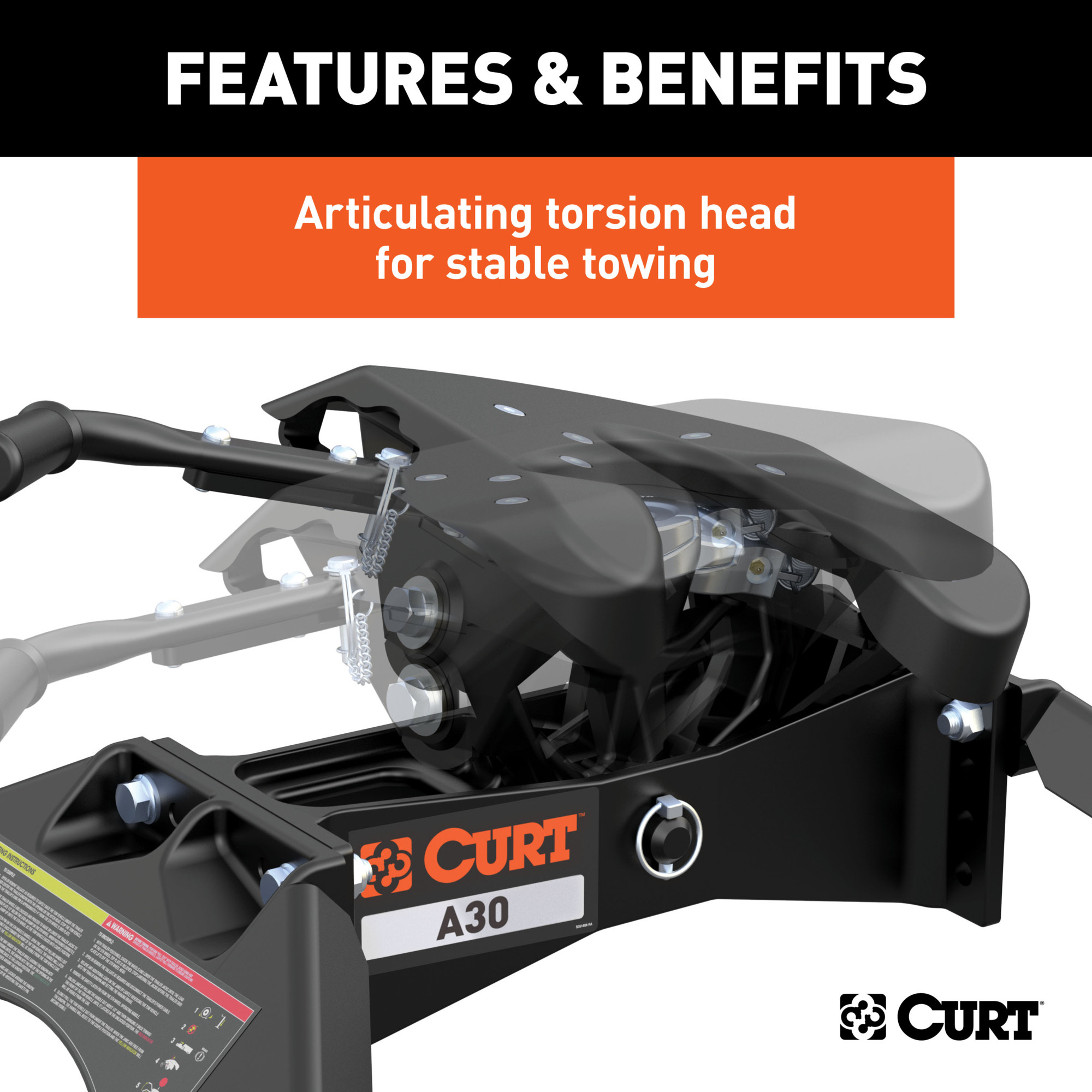

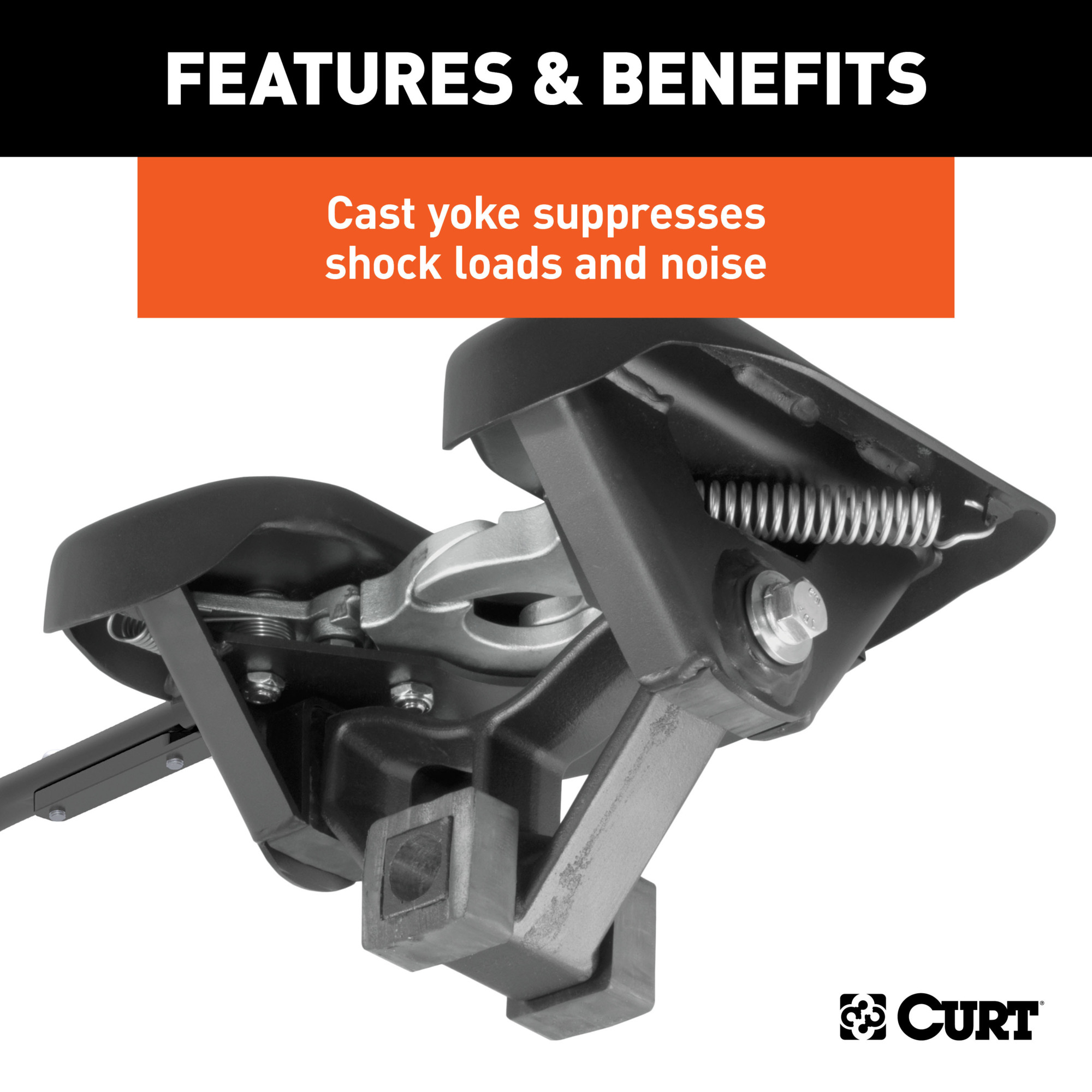

  • Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise|Fully articulating torsion head for controlled coupling and stable towing|Lockable handle self-resets to the ready-to-couple position after uncoupling|Constructed with a cast steel main body for a more precise build|High-strength, interlocking cast jaws fully wrap the kingpin to minimize noise|Extra wide head opening for easier coupling|Fast, one-pin head removal makes moving easy with smaller, lighter pieces|Alignment pegs and easy-access bolts for simple leg-to-body attachment|Three-position coupling indicator clearly shows coupling status|Compatible with kingpin extension boxes, including common pivoting pin boxes|Mounts to all industry-standard base rails|Offers three height adjustment positions to adapt to each unique truck bed|Includes a polyethylene lube plate to eliminate messy grease deposits|Tested for safety in accordance with SAE J2638|Protected by a highly durable carbide powder coat finish|Limited lifetime warranty (one-year finish, one-year parts)
  • Includes 5th wheel head, legs and hardware (patent# 8,827,298)
  • Each truck-trailer configuration is different. Be sure to review each configuration and always ensure adequate trailer-to-cab clearance when maneuvering.
  • Capacity limited to lowest-rated towing component

Key Specs

AttributeSpecification

item#

6131343

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

129.5 LB
AttributeSpecification

Product Type

Hitch

Product Weight

129.5000 lb

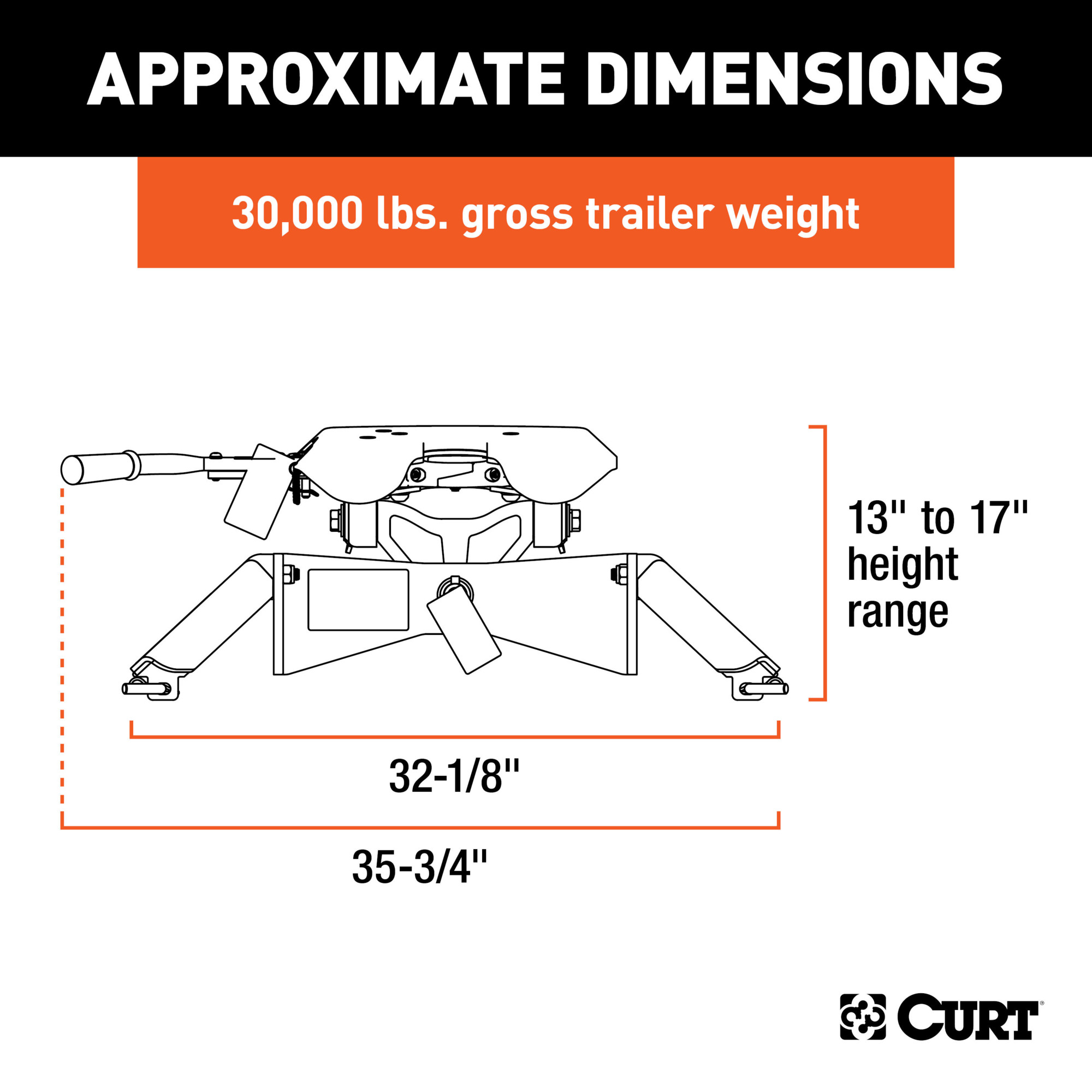

Dimensions L x W x H (in.)

18.0 x 0.0 x 15.0 in
