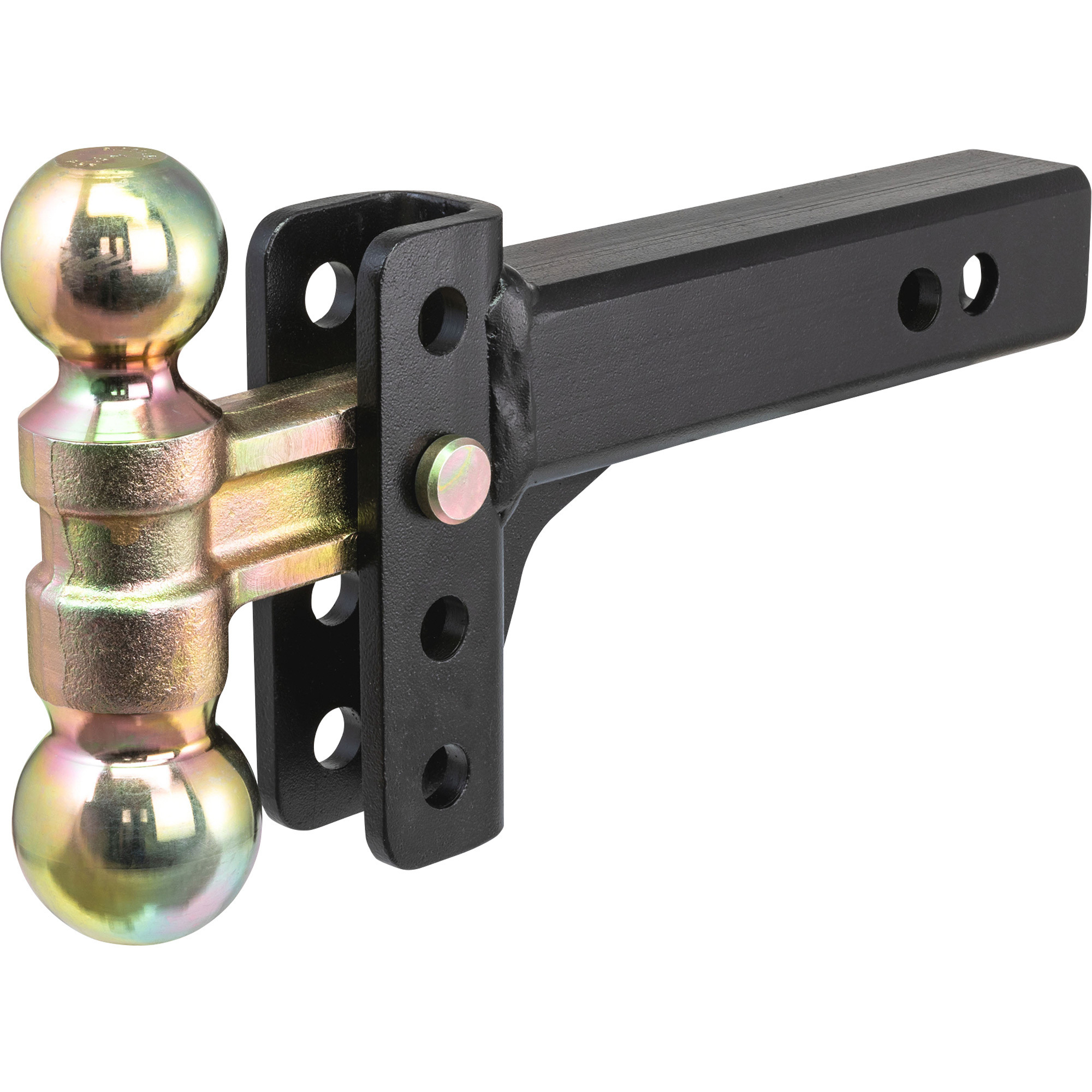

Curt Double Ball Adjustable Channel Mount, 2in. and 2 5/16in. Balls, 2in. Shank, Model# 45903

Item# 105058
Curt Double Ball Adjustable Channel Mount, 2in. and 2 5/16in. Balls, 2in. Shank, Model# 45903

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Curt Double Ball Adjustable Channel Mount, 2in. and 2 5/16in. Balls, 2in. Shank, Model# 45903

Click or Tap image to Zoom

$156.95

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2" ball rated for 8,000 lbs. and 2-5/16" ball rated for 10,000 lbs.
  • Weighs only 15 lbs. for easy handling, compared to other adjustable hitches
  • Shank can be flipped for a max rise of 3-1/2" and drop of 3-3/4"
  • Adjustable channel mount allows for precise trailer leveling
  • One-pin dual ball attachment for quick, easy adjustment

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. The CURT slim adjustable channel-style ball mount provides a weight capacity of up to 10,000 pounds and only weighs 15 pounds. It has a shank size of 2in. x 2in. and features two different trailer ball sizes to accommodate two different coupler sizes: 2in. and 2-5/16in. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 3-1/2in. rise or lowered to a maximum of 3-3/4in. drop, allowing you to make your trailer completely level in any towing situation. The CURT slim adjustable ballmount offers a gross trailer weight capacity of up to 8,000 pounds for the 2in. ball and 10,000 pounds for the 2-5/16in. ball. It allows you to tow a variety of trailers, and it features two pin holes in the shank to be mounted at an 10in. or 11in. length. All CURT channel-style adjustable hitches are made with sturdy steel construction and come with a black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

What's Included

    (1) Double ball adjustable channel mount

Downloads

Product Manual

Features + Benefits

  • 2" ball rated for 8,000 lbs. and 2-5/16" ball rated for 10,000 lbs.
  • Weighs only 15 lbs. for easy handling, compared to other adjustable hitches
  • Shank can be flipped for a max rise of 3-1/2" and drop of 3-3/4"
  • Adjustable channel mount allows for precise trailer leveling
  • One-pin dual ball attachment for quick, easy adjustment
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Two hitch pin holes provide shank lengths of 10" or 11"
  • Protected by a highly durable carbide powder coat (zinc-plated dual ball)
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Includes pins & clips
  • Patent# US8,33,563

Key Specs

AttributeSpecification

item#

105058

Brand

Curt Manufacturing

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

15.0 LB

Gross Towing Weight

10,000 lb

Receiver Opening

2 in

Shank Diameter

2 in
AttributeSpecification

Shank Length

0.9 in

Fits Receivers

2 in

Rise

3.5 in

Drop

3.75 in

Material

Steel

Hitch Pin Included

Yes

Balls Included

2
