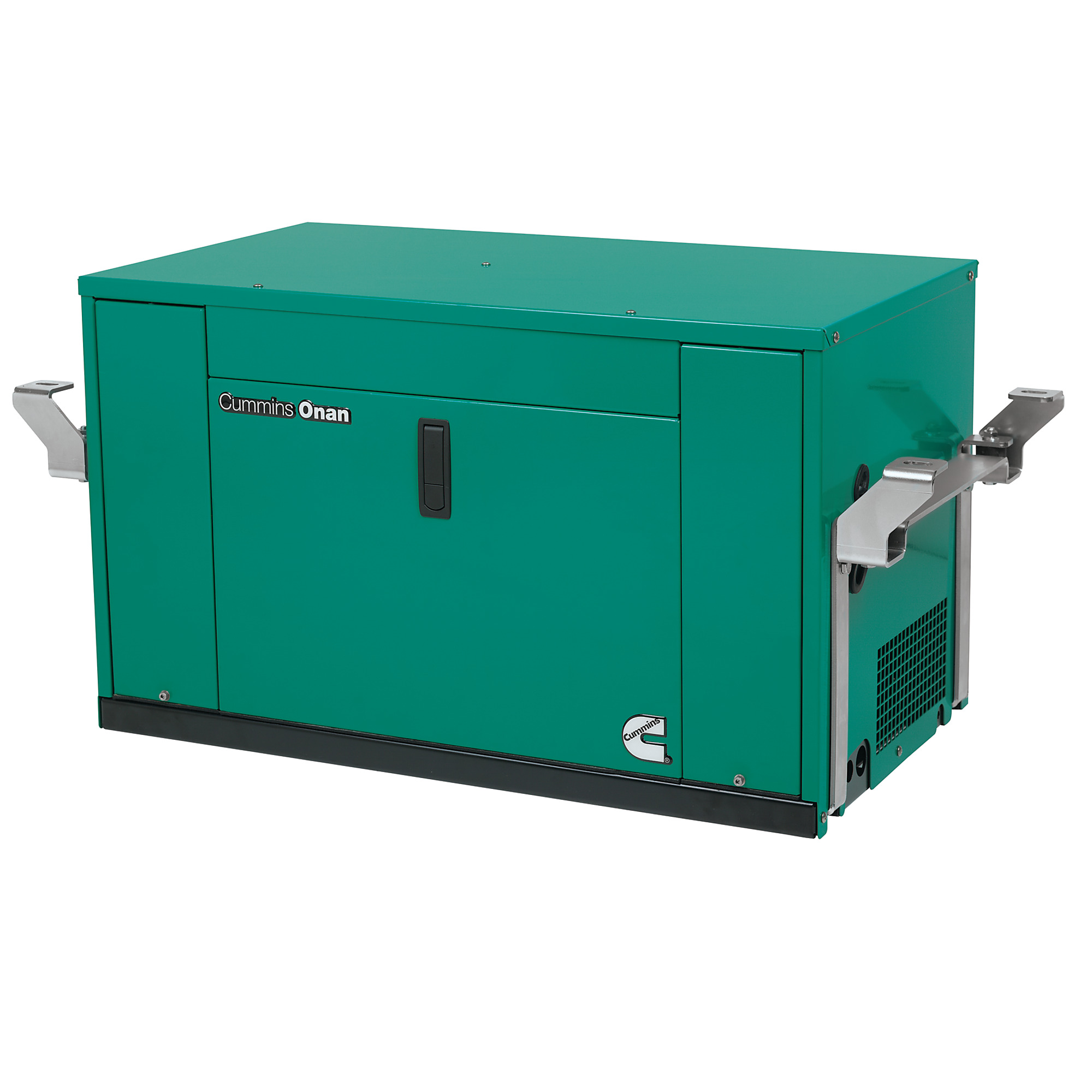

Cummins Onan QD 3200 - 3.2HDZAA-6508 3200W Diesel RV Generator

Item# 7183698
Cummins Onan QD 3200 - 3.2HDZAA-6508 3200W Diesel RV Generator

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Cummins Onan QD 3200 - 3.2HDZAA-6508 3200W Diesel RV Generator

Click or Tap image to Zoom

$5299.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Computer-controlled constant speed operation
  • Sound-controlling housing encloses cooling system and muffler
  • Double isolation mounting system reduces vibration
  • Easy accessible maintenance points
  • Integrated start/stop control with hour meter

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

QD 3200 – 3.2HDZAA-6508: RV Quiet Diesel™ generator set designed to supply 3,200 W at 120 V, 60 Hz for coach loads; computer-controlled constant-speed operation in a sound-controlling housing with double-isolation mounting, integrated start/stop control and hour meter. Sound rating at 68 dB(A) 10ft. half load. Choose it for smaller RVs that need to run one rooftop air conditioner. Cummins Part Number A066G703

What's Included

    (1) Generator

Features + Benefits

  • Computer-controlled constant speed operation
  • Sound-controlling housing encloses cooling system and muffler
  • Double isolation mounting system reduces vibration
  • Easy accessible maintenance points
  • Integrated start/stop control with hour meter

Key Specs

AttributeSpecification

item#

7183698

Brand

Cummins Onan

Manufacturer's Warranty

3 year limited warranty

Ship Weight

250.0 LB

Rated Watts

3,200

Voltage

120

Max. Amps

26.7

Fuel Type

Diesel

Engine Brand

Cummins
AttributeSpecification

Engine Displacement

347 cc

Start Type

Electric

Full Load Fuel Consumption

0.4 GPH

Battery Required

Yes

Battery Included

No

Hertz

60

Product Weight

205.0000 lb

Dimensions L x W x H (in.)

30.52 x 17.3 x 18.0 in

Reviews

Questions & Answers

Questions

  1. What is the size and type is the fuel connector?

    1 answer

    1. The generator requires 1/4" inside diameter high pressure fuel hose for its supply and return lines. It connects using 1/4" barb fittings or 1/4" NPT connections. The connections would be secured with standard low pressure fuel line clamps.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty
