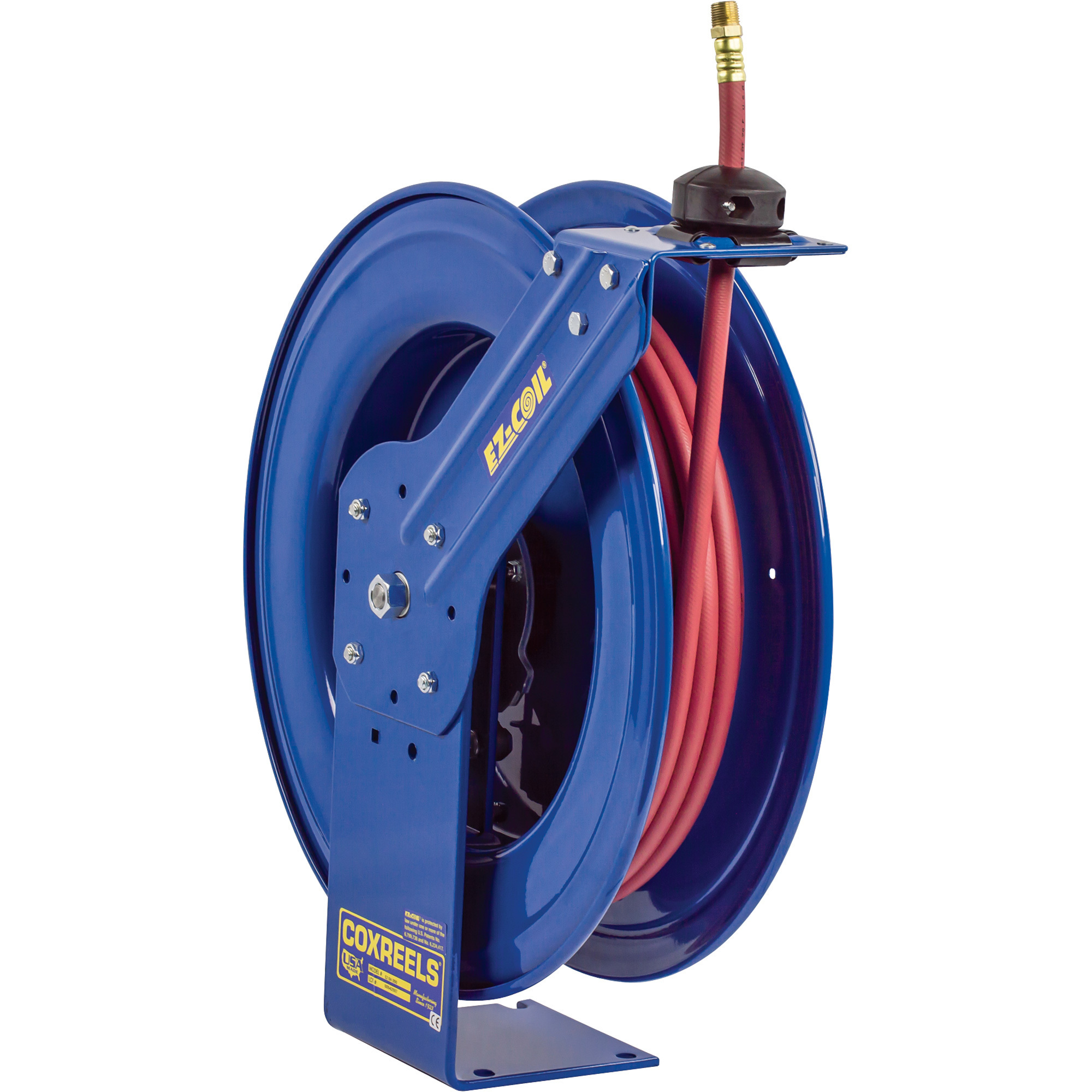

Coxreels Heavy-Duty Safety Air/Water Hose Reel, With 1/2in. x 75ft. PVC Hose, Max. 300 PSI, Model# EZ-SH-475

Item# 159115
"Coxreels Heavy-Duty Safety Air/Water Hose Reel, With 1/2in. x 75ft. PVC Hose, Max. 300 PSI, Model# EZ-SH-475"
Coxreels Heavy-Duty Safety Air/Water Hose Reel, With 1/2in. x 75ft. PVC Hose, Max. 300 PSI, Model# EZ-SH-475

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels Heavy-Duty Safety Air/Water Hose Reel, With 1/2in. x 75ft. PVC Hose, Max. 300 PSI, Model# EZ-SH-475

Click or Tap image to Zoom

$677.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Professional-grade heavy-duty steel construction
  • Durable proprietary CPC™ powder-coat process
  • Rolled edges and ribbed discs provide strength and safety
  • Nitrile swivel seals
  • Auto rewind easily wraps, stores and protects hose

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Coxreels® EZ-SH Safety Series Super Hub spring-driven retractable hose reel has a larger chassis and frame to accommodate longer lengths and larger diameters of hose. The added feature of Coxreels' patented EZ-Coil controlled retraction controls the spring driven rewind to 80% slower than that of a conventional hose reel. No power source is required, pull-out tension remains unaffected and the reel and its components last longer not having to withstand the slamming action at the end of the recoil cycle. U.S.A.

What's Included

    (1) Air/water hose reel (1) Hose

Downloads

Product Manual

Features + Benefits

  • Professional-grade heavy-duty steel construction
  • Durable proprietary CPC™ powder-coat process
  • Rolled edges and ribbed discs provide strength and safety
  • Nitrile swivel seals
  • Auto rewind easily wraps, stores and protects hose
  • Heavy-gauge 1/4in. steel base and support post
  • Factory-matched cartridge-style spring motor
  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • 1in. solid steel axle with 1in. lubricated precision bearings
  • Guide arm adjusts to wall, floor and overhead positions
  • Multiposition lock ratchet secures hose at desired length
  • Non-corrosive stainless steel spring, pawl and zinc-plated ratchet
  • EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
  • MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Key Specs

AttributeSpecification

item#

159115

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

68.0 LB

Hose Diameter

1/2 in

Hose Length

75 ft
AttributeSpecification

Max. PSI

300

Hose Material

PVC

Max. Hose Temperature

150 °F

Whip Hose Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

24.0 x 8.75 x 25.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
