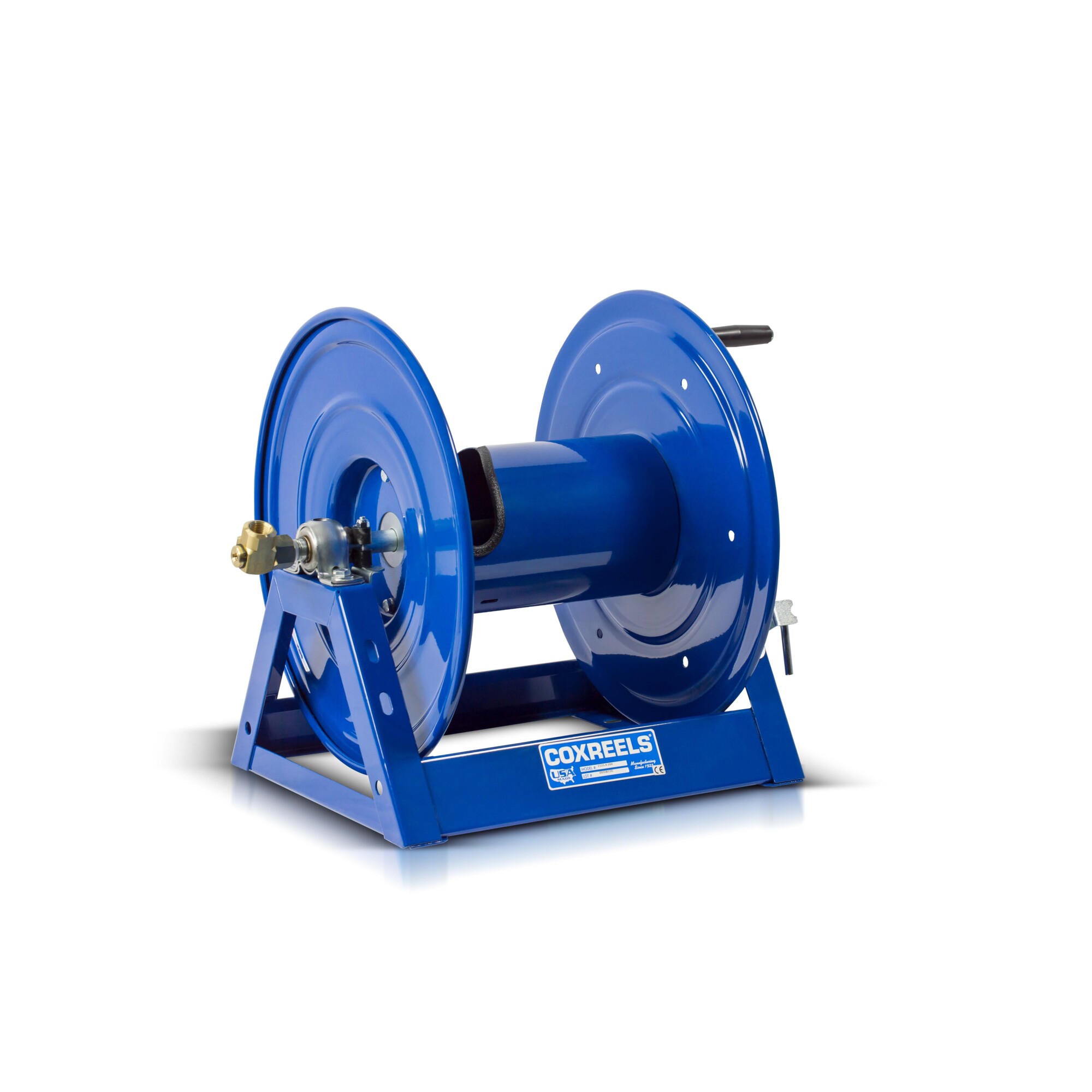

Coxreels, Hand Crank Hose Reel 1/2in. x 325ft.-less hose, Hose Diameter 1/2 in, Hose Length 325 ft, Model# 1125-4-325

Item# 6517490
Coxreels, Hand Crank Hose Reel 1/2in. x 325ft.-less hose, Hose Diameter 1/2 in, Hose Length 325 ft, Model# 1125-4-325

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Coxreels, Hand Crank Hose Reel 1/2in. x 325ft.-less hose, Hose Diameter 1/2 in, Hose Length 325 ft, Model# 1125-4-325

Click or Tap image to Zoom

$369.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Coxreels Hand Crank Hose Reel is engineered to provide reliable and efficient hose management for demanding applications. With a capacity to hold up to 325 feet of 1/2-inch inner diameter hose, this reel is ideal for extended reach and large-scale operations. Constructed to withstand pressures up to 3000 PSI, it ensures durability and performance under high-pressure conditions. The hand crank mechanism allows for smooth and controlled retraction and deployment of the hose, making it easy to manage and store when not in use. Designed without a hose, this reel offers flexibility for users to select and attach their preferred hose type to suit specific needs. Built with robust materials and a sturdy frame, the Coxreels Hand Crank Hose Reel is a dependable solution for industrial, agricultural, and commercial environments where efficient hose storage and handling are critical.

What's Included

    (1) Reel

Features + Benefits

  • SWIVEL - Machined from solid brass 90? full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.

Key Specs

AttributeSpecification

item#

6517490

Brand

Coxreels

Manufacturer's Warranty

2 year limited warranty

Ship Weight

48.0 LB

Hose Diameter

1/2 in

Hose Length

325 ft

Max. PSI

3,000

Hose Material

Other
AttributeSpecification

Min. Hose Temperature

0 °F

Hose Outlet Size

1/2 in. NPT

Reel Inlet Size

1/2 in. NPT

Auto Rewind

No

Whip Hose Included

No

Product Weight

48.0000 lb

Dimensions L x W x H (in.)

17.625 x 31.5 x 18.75 in
